ASP.NET EntityDataSource - asp:EntityDataSource

ASP.NET EntityDataSource - asp:EntityDataSource เป็น Control ในกลุ่มของ DataControl ที่ใช้สำหรับการสร้าง Entity DataSource เพื่อเรียกใช้งาน Entity Data Model

Framework : 3,4


ASP.NET EntityDataSource

*** บทความนี้ไม่สมบูรณ์


Syntax

<asp:EntityDataSource ID="myEntityDataSource" runat="server"></asp:EntityDataSource>



ASP.NET EntityDataSource

เริ่มจากการสร้าง ASP.NET Entity Data Model โดลคลิกควาที่ Project เลือก Add New Item


ASP.NET EntityDataSource

เลือก ASP.NET Entity Data Model


ASP.NET EntityDataSource

เลือก Yes เพื่อเก็บ Code ไว้ใน App_Code

ASP.NET EntityDataSource

เลือก Generate from database

ASP.NET EntityDataSource

เลือก New Connection








ASP.NET EntityDataSource

เลือก Microsoft SQL Server

ASP.NET EntityDataSource

กำหนด Connection ของ SQL Server

ASP.NET EntityDataSource

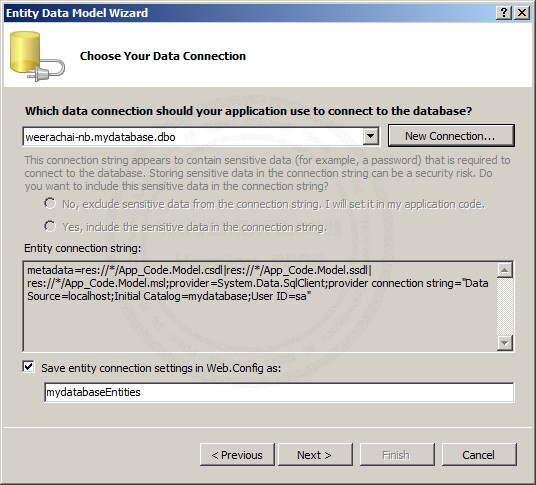

เลือก Connection ที่ได้จากการสร้าง

ASP.NET EntityDataSource

เลือก Table

ASP.NET EntityDataSource

ได้ object ชื่อ customer ดังรูป

ASP.NET EntityDataSource

ลาก EntityDataSource มาไว้ใน Web Form เลือก Configure Data Source

ASP.NET EntityDataSource

เลือก Connection ของ Entities


ASP.NET EntityDataSource

เลือกรูปแบบการอ่านข้อมูลจากตาราง

ASP.NET EntityDataSource

ทดสอบกับ Control ของ GridView

ASP.NET EntityDataSource

ได้ผลลัพธ์เหมือนกับในรูป

สำหรับตัวอย่างนี้สามารถใช้ได้ทั้ง VB.NET และ C#

<%@ Page Language="VB" AutoEventWireup="false" CodeFile="EntityDataSource.aspx.vb" Inherits="EntityDataSource" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>ThaiCreate.Com Tutorial</title>
</head>
<body>
    <form id="form1" runat="server">
    <div>

        <asp:EntityDataSource ID="EntityDataSource1" runat="server"
            ConnectionString="name=mydatabaseEntities"
            DefaultContainerName="mydatabaseEntities" EnableDelete="True"
            EnableFlattening="False" EnableInsert="True" EnableUpdate="True"
            EntitySetName="customers">
        </asp:EntityDataSource>
        <asp:GridView ID="GridView1" runat="server" AllowPaging="True"
            AllowSorting="True" AutoGenerateColumns="False" DataKeyNames="CustomerID"
            DataSourceID="EntityDataSource1">
            <Columns>
                <asp:CommandField ShowDeleteButton="True" ShowEditButton="True"
                    ShowSelectButton="True" />
                <asp:BoundField DataField="CustomerID" HeaderText="CustomerID" ReadOnly="True"
                    SortExpression="CustomerID" />
                <asp:BoundField DataField="Name" HeaderText="Name" SortExpression="Name" />
                <asp:BoundField DataField="Email" HeaderText="Email" SortExpression="Email" />
                <asp:BoundField DataField="CountryCode" HeaderText="CountryCode"
                    SortExpression="CountryCode" />
                <asp:BoundField DataField="Budget" HeaderText="Budget"
                    SortExpression="Budget" />
                <asp:BoundField DataField="Used" HeaderText="Used" SortExpression="Used" />
            </Columns>
        </asp:GridView>

    </div>
    </form>
</body>
</html>









Declarative Syntax
<asp:EntityDataSource
    AutoGenerateOrderByClause="True|False"
    AutoGenerateWhereClause="True|False"
    AutoPage="True|False"
    AutoSort="True|False"
    CommandText="string"
    ConnectionString="string"
    ContextType="typed ObjectContext"
    ContextTypeName="string"
    DefaultContainerName="string"
    EnableDelete="True|False"
    EnableInsert="True|False"
    EnableUpdate="True|False"
    EnableViewState="True|False"
    EntitySetName="string"
    EntityTypeFilter="string"
    GroupBy="string"
    Include="string"
    OnContextCreated="ContextCreated event handler"
    OnContextCreating="ContextCreating event handler"
    OnContextDisposing="ContextDisposing event handler"
    OnDataBinding="DataBinding event handler"
    OnDeleted="Deleted event handler"
    OnDeleting="Deleting event handler"
    OnException="IDynamicDataSource.Exception event handler"
    OnInserted="Inserted event handler"
    OnInserting="Inserting event handler"
    OnSelected="Selected event handler"
    OnSelecting="Selecting event handler"
    OnUpdated="Updated event handler"
    OnUpdating="Updating event handler"
    OrderBy="string"
    runat="server"
    Select="string"
    StoreOriginalValuesInViewState="True|False"
    Where="string"
>
        <CommandParameters />
        <DeleteParameters />
        <GroupByParameters />
        <InsertParameters />
        <OrderByParameters />
        <SelectParameters />
        <UpdateParameters />
        <WhereParameters />
</asp:EntityDataSource>
