CI เชื่อมต่อ SQL SERVER Express

ติดตั้ง Server 2012 R2
Host จริงแนะนำ OS ให้เป็น Server (ในที่นี่ผมใช้ SERVER 2012 R2)
คลิก Next
ติดตั้ง Server 2012-Part1
เลือก Server with a GUI
ติดตั้ง Server 2012-Part2
เลือก Custom: Install Windows Only
ติดตั้ง Server 2012-Part3
New->Format คลิก Next
ติดตั้ง Server 2012-Part4
Installing...
ติดตั้ง Server 2012-Part5
ตั้งรหัสผ่าน
ติดตั้ง Server 2012-Part6
จบขั้นตอนติดตัั้ง SERVER 2012 R2 แบบ Basic


ติดตั้ง Microsoft® SQL Server® 2017 Express
ดาวน์โหลด
https://www.microsoft.com/en-us/download/details.aspx?id=55994
หลังจากเราดาวน์โหลดมาแล้ว ก็มาติดตั้งกันเลย
หมายเหตุ: ติดตั้งต้องใช้ Internet ด้วยนะครับ
sql-1
เลือก Basic (Config ภายหลังได้)
sql-2
คลิก Accept
sql-3
Installing...รอยาวๆไป
sql-4
Installation Completed. ให้ Restart 1 ที
sql-5


ติดตั้ง Microsoft SQL SERVER Management Studio
ดาวน์โหลดตาม Link
https://go.microsoft.com/fwlink/?linkid=873126
คลิก Install
ssms-1
Installing...รอยาวไป
ssms-2
Installation Complete. Restart อีกรอบ
ssms-3

SQL SERVER Configuration Manager
-เปิด SQL SERVER Configuration Manager ขึ้นมา
-Start Service: SQL SERVER (SQLEXPRESS), SQL SERVER BROWSER ตามรูป
config-1
คลิกขวาที่ SQL Server BROWSER \ Properties ไปที่ Tap: Service->Start Mode เลือก Automatic
config-2

ตั้งค่า Network Configuration: ที่หัวข้อ SQL Server Network Configuration
ให้ Enabled 3 Protocal ตามรูป
config-4
ตั้งค่า TCP/IP: คลิกขวา->Properties->ที่ Tap: IP Addresses
กำหนด TCP Port: 1433 ทุกหัวข้อ IP
ที่หัวข้อ IPALL
TCP Dynamic Ports: ว่าง
config-5
ตั้งค่า Firewall: Control Panel->Windows Firewall->Advance Settings->Inbound Rules
-New Rule->Port คลิก Next
-Specific Local Ports: 1433
-คลิก Next, Next, Next ตั้งค่า Name: Allow SQL Server
firewall


เริ่มใช้งาน SQL Server Management Studio (SSMS)
SQL Server Management Studio ขอเรียกสั้นๆว่า SSMS
-เปิดโปรแกรมขึ้นมา Authentication: เลือก Windows Authentication ไปก่อน
ssms-1
-ตั้งค่า SQL SERVER + Windows Authen:
-คลิกว่าที่ SQL SERVER->Properties
ssms-2

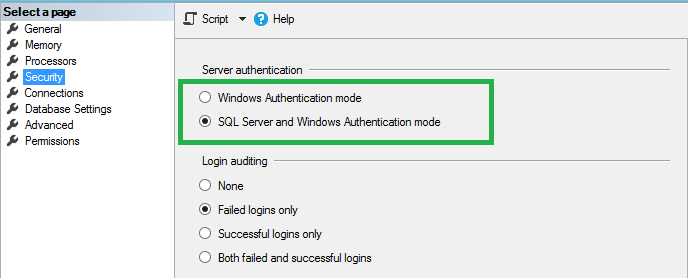

-ที่หัวข้อ Security: เลือก SQL Server and Windows Authentication mode ตามรูป
ssms-3


Add new User:
-ที่หัวข้อ Security: คลิกขวา->New Login
authen-1
-กรอก Login Name: admin
-ติ๊กเครื่องหมายถูกที่หน้า Enforce Password Policy ออก
authen-2
-กำหนด Server Rules, User Mapping
-status->login: Enabled
authen-3
-Restart Service 1 รอบ
authen-4

-จากนั้นทดสอบ Login จากเครื่องในวง LAN: SQL Server Mode
login
-ตั้ง SSMS เพิ่มเติม: เพื่อให้สามารถ Save แก้ไข Table ได้
-Tools->Options...
option-1
-Designer: Table and Database Designers
ติ๊กเครื่องหมายถูกที่หน้า: Prevent saving changes that require table re-creation ออก
option-2


ทดสอบ สร้าง Database:
-Create Database: คลิกขวา Database->New Database...
create-db
ตั้งชื่อ Database name: test
-new-db
ตั้งค่า Options->Collation: Thai_CI_AS
collation
-คลิก OK


ทดสอบ สร้าง Table:
-คลิกขวาที่ Tables->Table...
new-table
exam
-ทดสอบเพิ่มข้อมูล
Code (PHP)
INSERT ข้อมูล INSERT INTO (datail) VALUES ('xxxx');

insert


ฝั่ง Hosting:

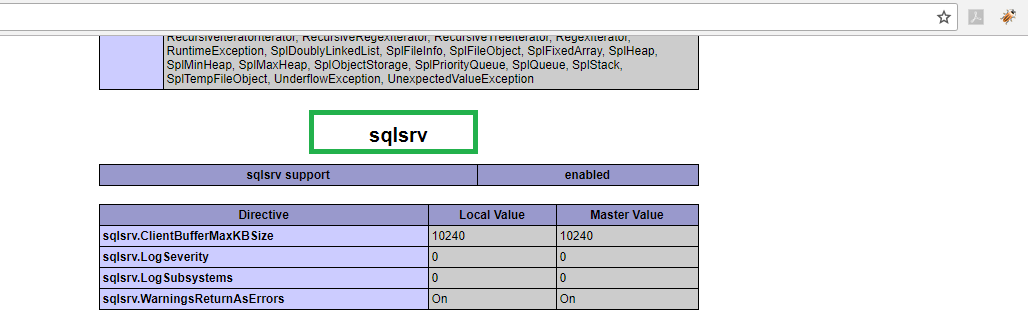

-extension จะต้อง support: sqlsvr
extension
-หากไม่มี php_sqlsvr แจ้ง PM มานะครับ เด๋วส่ง e-mail ให้ 555


ฝั่ง CI Framework:
Config->Database:
Code (PHP)
$active_group = 'default';
$active_record = TRUE;

$db['default']['hostname'] = "192.168.0.6";
$db['default']['port'] = 1433;
$db['default']['username'] = 'admin';
$db['default']['password'] = '123456';
$db['default']['database'] = 'test';
$db['default']['dbdriver'] = 'sqlsrv';
$db['default']['dbprefix'] = '';
$db['default']['pconnect'] = FALSE;
$db['default']['db_debug'] = TRUE;
$db['default']['cache_on'] = FALSE;
$db['default']['cachedir'] = '';
$db['default']['char_set'] = 'utf8';
$db['default']['dbcollat'] = 'utf8_general_ci';
$db['default']['swap_pre'] = '';
$db['default']['autoinit'] = TRUE;
$db['default']['stricton'] = FALSE;


เพื่อความสะดวก config: autoload->database เพิ่มอีกนิด
Code (PHP)
$autoload['libraries'] = array('database', 'session');


ทดสอบ Connect: ที่ Controller เขียนแบบง่ายละกัน ใช้คำสั่ง Active Record เหมือน MySQL เลยครับ
ตัว Test ผมเขียน Query ที่ Controller เลยละกัน (ปกติจะนิยมเขียนที่ Model)
Code (PHP)
<?php if ( ! defined('BASEPATH')) exit('No direct script access allowed');

class Test extends CI_Controller {

	public function __construct()
	{
		parent::__construct();
	}

	public function index()
	{
		$data['data'] = $this->db->query("SELECT * FROM exam")->result();
		$this->load->view('test_view', $data);
	}
}


View: ก็ทดสอบง่ายๆเช่นกัน อิอิ
Code (PHP)
<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Test View</title>
</head>
<body>
<?php
foreach ($data as $row):
	echo $row->id,': ',$row->detail,'<br>';
endforeach;
?>
</body>
</html>


Result:
result

เพียงแค่นี้ก็สามารถเปลี่ยน Database จาก MySQL มาเป็น MSSQL ได้แล้วครับ
