HOME > บทความจากสมาชิก > PHP Create - Call Web Service สร้างและเรียกเว็บเซอร์วิส ด้วย PHP (NuSoap and Soap)




Clound SSD Virtual Server

PHP Create - Call Web Service สร้างและเรียกเว็บเซอร์วิส ด้วย PHP (NuSoap and Soap)

PHP Create - Call Web Service สร้างและเรียกเว็บเซอร์วิส ด้วย PHP (NuSoap and Soap) บทความการสร้าง Web Service และการเรียกใช้งาน Web Service ด้วย PHP แบบง่าย ๆ ผ่าน Library ของ NuSoap /Soap และฟังก์ชั่น soap_server ใน php การเรียกใช้งาน Web Service ฝั่ง Server หรือ Client จะต้องเรียกผ่าน wsdl ซึ่งเป็น XML Format ที่บ่งบอกและอธิบายเกี่ยวกับ Web Service ที่ใหบริการอยู่ว่ามีรูปแบบและการเรียกใช้งานอย่างไรบ้าง เช่น Service Name , Method หรือ ค่า Parameters ต่าง ที่ให้บริการอยู่ในขณะนั้น และเมื่อเราสร้างไฟล์ Web Service ที่มีนามสกุล .php และเรียก URL ตามด้วย file.php?wsdl ก็จะได้ XML Format ออกมา ซึ่ง Web Service ที่ได้จะสามารถเรียกและใช้งานได้กับทุกภาษาที่มีมาตฐานการติดต่อผ่านรูปแบบ wsdl

ตัวอย่างที่ 1 ใช้ NuSoap

PHP Create - Calling Web Service

Download Library ของ NuSoap


หรือจะดาวน์โหลดได้จากในส่วนล่างของบทความนี้

สำหรับการสร้าง Web Service ในตัวอย่างนี้จะแบ่งออกเป็น 2 ประเภทคือ
- Web Service ฝั่ง Server ที่ให้บริการ
- Web Service ฝั่ง Client ที่เรียกใช้ Web Service ฝั่ง Server

Web Service ฝั่ง Server

WebServiceServer.php
<?php
		require_once("lib/nusoap.php");

		//Create a new soap server
		$server = new soap_server();

		//Define our namespace
		$namespace = "http://localhost/nusoap/index.php";
		$server->wsdl->schemaTargetNamespace = $namespace;

		//Configure our WSDL
		$server->configureWSDL("HelloWorld");

		// Register our method and argument parameters
        $varname = array(
                   'strName' => "xsd:string",
				   'strEmail' => "xsd:string"
        );
		$server->register('HelloWorld',$varname, array('return' => 'xsd:string'));

		function HelloWorld($strName,$strEmail)
		{
			return "Hello, World! Khun ($strName , Your email : $strEmail)";
		}

		// Get our posted data if the service is being consumed
		// otherwise leave this data blank.
		$POST_DATA = isset($GLOBALS['HTTP_RAW_POST_DATA']) ? $GLOBALS['HTTP_RAW_POST_DATA'] : '';

		// pass our posted data (or nothing) to the soap service
		$server->service($POST_DATA);
		exit();
?>


จาก Code มีการสร้าง Service ชื่อว่า HelloWorld และประกอบด้วย Method ชื่อว่า HelloWorld รับค่า argument 2 ตัวคือ $strName และ $strName และทำการ return return "Hello, World! Khun ($strName , Your email : $strEmail)";

ในไฟล์นี้จะจัดเก็บไว้ในโฟเดอร์ \nusoap\WebServiceServer.php

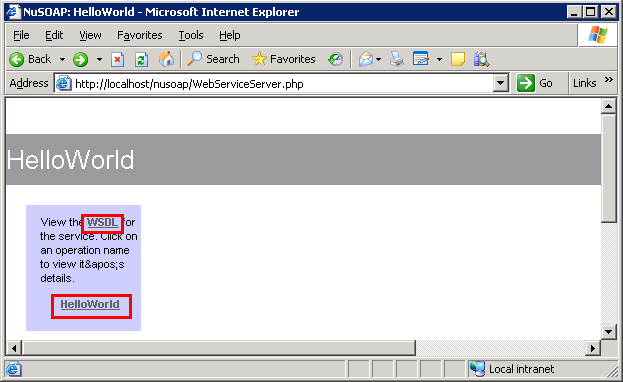

ทดสอบการรัน Web Service


PHP Create - Calling Web Service

ในตัวอย่างจะเห็น URL ของ Web Service ประกอบด้วย Method ชื่อว่า HellowWorld ให้คลิกที่ WSDL เพื่อดูรูปแบบของ XML

PHP Create - Calling Web Service

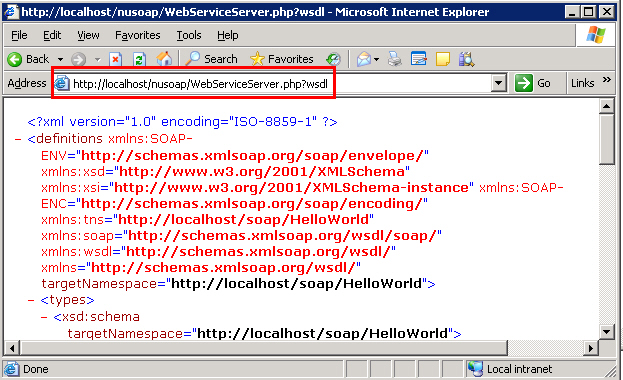

เมื่อรัน URL ของ Web Service ตามด้วย ?wsdl จะได้ XML ที่ประกอบด้วย Format ของ wsdl ดังรูป ซึ่งตอนที่นำไปใช้งานจริง ๆ เราจะใช้ URL นี้

รูปแบบ XML ที่ได้
  <?xml version="1.0" encoding="ISO-8859-1" ?>
  <definitions xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:tns="http://localhost/soap/HelloWorld" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns="http://schemas.xmlsoap.org/wsdl/" targetNamespace="http://localhost/soap/HelloWorld">
  <types>
  <xsd:schema targetNamespace="http://localhost/soap/HelloWorld">
  <xsd:import namespace="http://schemas.xmlsoap.org/soap/encoding/" />
  <xsd:import namespace="http://schemas.xmlsoap.org/wsdl/" />
  </xsd:schema>
  </types>
  <message name="HelloWorldRequest">
  <part name="strName" type="xsd:string" />
  <part name="strEmail" type="xsd:string" />
  </message>
  <message name="HelloWorldResponse">
  <part name="return" type="xsd:string" />
  </message>
  <portType name="HelloWorldPortType">
  <operation name="HelloWorld">
  <input message="tns:HelloWorldRequest" />
  <output message="tns:HelloWorldResponse" />
  </operation>
  </portType>
  <binding name="HelloWorldBinding" type="tns:HelloWorldPortType">
  <soap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http" />
  <operation name="HelloWorld">
  <soap:operation soapAction="http://localhost/nusoap/WebServiceServer.php/HelloWorld" style="rpc" />
  <input>
  <soap:body use="encoded" namespace="" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" />
  </input>
  <output>
  <soap:body use="encoded" namespace="" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" />
  </output>
  </operation>
  </binding>
  <service name="HelloWorld">
  <port name="HelloWorldPort" binding="tns:HelloWorldBinding">
  <soap:address location="http://localhost/nusoap/WebServiceServer.php" />
  </port>
  </service>
  </definitions>





Web Service ฝั่ง Client

สร้างไฟล์สำหรับ Client เพื่อทดสอบเรียก Web Sevice

WebServiceClient.php
<html>
<head>
<title>ThaiCreate.Com</title>
</head>
<body>
<?php
		require_once("lib/nusoap.php");
        $client = new nusoap_client("http://localhost/nusoap/WebServiceServer.php?wsdl",true);
        $params = array(
                   'strName' => "Weerachai Nukitram",
				   'strEmail' => "[email protected]"
        );
       $data = $client->call("HelloWorld",$params);
       echo $data;
?>
</body>
</html>


ในตัวอย่าง มีการระบุ URL ของ Web Service ในส่วนของ new nusoap_client

$client->call("HelloWorld",$params);
// HelloWorld คือ Method ที่อยู่ใน Web Service
// $params คือ argument หรือ parameter ที่จะต้องส่งไป


เมื่อลอง echo $data; ก็จะได้สิ่งที่ Web Service ตอบกลับมา ซึ่งอาจจะอยู่ในรูปแบบของ XML หรือ String

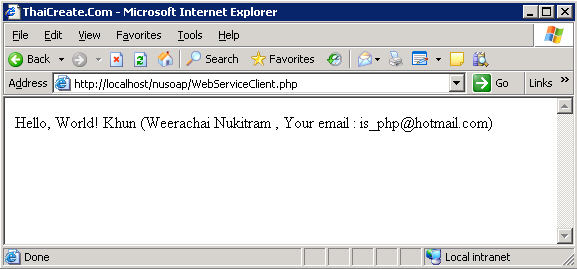

Screenshot

PHP Create - Calling Web Service

Download Code !!












ตัวอย่างที่ 2 ใช้ Soap

PHP Create - Calling Web Service

วิธีนี้จะใช้ Class ที่ชื่อว่า SoapServer ที่อยู่ใน php_soap.dll วิธีใช้งานจะต้องดาวน์โหลด extension ตัวนี้มาติดตั้งก่อน

Download php_soap.dll


หลังจากดาวน์โหลดแล้วให้แตกไฟล์และ Copy ไปไว้ในโฟเดอร์ของ extension ถ้าอยากรู้ว่าอยู่ที่ไหน ก็ให้เปิดไฟล์ php.ini

C:\Windows\php.ini
; Directory in which the loadable extensions (modules) reside.
extension_dir = "D:/AppServ\php5\ext"


หาบรรทัดที่มีคำว่า extension_dir ซึ่งจะบอกว่า Path ของ extension ถูกจัดเก็บไว้ที่ไหน

หลังจาก Copy เรียบร้อยแล้วให้เพิ่มบรรทัดนี้ใน php.ini

C:\Windows\php.ini
extension=php_soap.dll

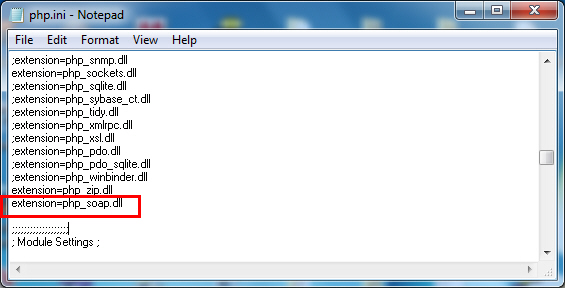

php_soap.dll and php.ini

หรือดูภาพประกอบ

หลังจากแก้ไขเรียบร้อยแล้วให้ Restart Web Server หรือ Apache ซะ 1 ครั้ง

กรณี Error Class ของ SoapClient
Fatal error: Class 'SoapServer' not found in C:\AppServ\www\SoapServer\WebServiceServer.php on line 2


เริ่มต้นการสร้าง Web Service ด้วย Soap

ขั้นตอนแรกให้สร้างไฟล์ helloworld.wsdl

helloworld.wsdl
<?xml version="1.0" encoding="ISO-8859-1" ?>
 <definitions xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"
	xmlns:xsd="http://www.w3.org/2001/XMLSchema"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"
	xmlns:tns="http://localhost/SoapServer/HelloWorld"
	xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
	xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
	xmlns="http://schemas.xmlsoap.org/wsdl/"
	targetNamespace="http://localhost/soap/HelloWorld">
  <types>
  <xsd:schema targetNamespace="http://localhost/soap/HelloWorld">
  <xsd:import namespace="http://schemas.xmlsoap.org/soap/encoding/" />
  <xsd:import namespace="http://schemas.xmlsoap.org/wsdl/" />
  </xsd:schema>
  </types>

  <message name="HelloWorldRequest">
	  <part name="strName" type="xsd:string" />
	  <part name="strEmail" type="xsd:string" />
  </message>

  <message name="HelloWorldResponse">
	<part name="return" type="xsd:string" />
  </message>

  <portType name="HelloWorldPortType">
  <operation name="HelloWorld">
	  <input message="tns:HelloWorldRequest" />
	  <output message="tns:HelloWorldResponse" />
  </operation>
  </portType>

  <binding name="HelloWorldBinding" type="tns:HelloWorldPortType">
	  <soap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http" />
	  <operation name="HelloWorld">
	  <soap:operation soapAction="http://localhost/SoapServer/WebServiceServer.php/HelloWorld" style="rpc" />
	  <input>
		<soap:body use="encoded" namespace="" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" />
	  </input>
	  <output>
		 <soap:body use="encoded" namespace="" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" />
	  </output>
	  </operation>
  </binding>

  <service name="HelloWorld">
 <port name="HelloWorldPort" binding="tns:HelloWorldBinding">
	<soap:address location="http://localhost/SoapServer/WebServiceServer.php" />
  </port>
  </service>
</definitions>


สำหรับไฟล์ wsdl อ่านรายละเอียดได้ที่
http://wiki.nectec.or.th/setec/Knowledge/WSDL
http://oreilly.com/catalog/webservess/chapter/ch06.html
http://www.basic-skill.com/content.php?cont_id=74&sec_id=3


สร้างไฟล์ Web Service ฝั่ง Server

WebServiceServer.php
<?php
$server = new SoapServer("helloworld.wsdl");

	function HelloWorld($strName,$strEmail){
		 return "Hello, World! Khun ($strName , Your email : $strEmail) ";
	}

$server->AddFunction("HelloWorld");
$server->handle();
?>


Save ไฟล์ไว้ที่ \SoapServer\WebServiceServer.php อยู่ภายใต้ root ของ Server

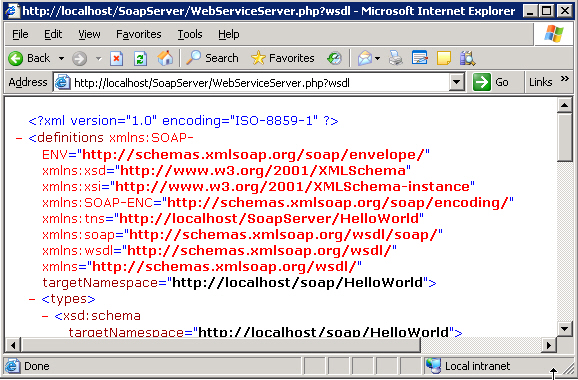

ทดสอบรัน URL ของ Web Service



PHP Create - Calling Web Service

ผลลพัทธ์ที่ได้เมื่อทอสอบรัน URL ของ Web Service



Web Service ฝั่ง Client

WebServiceClient.php
<html>
<head>
<title>ThaiCreate.Com</title>
</head>
<body>
<?php
	$client = new SoapClient("http://localhost/SoapServer/WebServiceServer.php?wsdl",
			array(
			  "trace"      => 1,		// enable trace to view what is happening
			  "exceptions" => 0,		// disable exceptions
			  "cache_wsdl" => 0) 		// disable any caching on the wsdl, encase you alter the wsdl server
		  );

        $params = array(
                   'strName' => "Weerachai Nukitram",
				   'strEmail' => "[email protected]"
        );

		$data = $client->HelloWorld($params);

       print_r($data);
?>
</body>
</html>

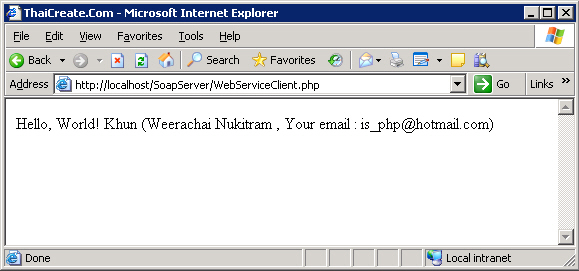

ทดสอบการเรียก URL ของ Web Service ฝั่ง Client

Screenshot

PHP Create - Calling Web Service


Download Code !!


บทความนี้เป็นเพียงพื้นฐานการสร้าง Web Service แบบง่าย ๆ แต่ทั้งนี้สามารถนำไปประยุกต์กับการใช้งานที่ซับซ้อน เช่นการใช้งานร่วมกับ MySQL ซึ่งไว้มีโอกาสจะลองเขียนบทความให้หลากหลายเพื่อเป็นตัวอย่างไว้ให้ศึกษา


สรุปถ้าจะให้เลือกใช้ระหว่าง NuSoap และ Soap ผมแนะนำให้ใช้ NuSoap ดีกว่า เพราะใช้งานและเข้าใจง่ายกกว่าครับ

และผิดพลาดประการใดขออภัยมา ณ ที่นี้ด้วยครับ
