Java Menu Item/RadioButton (JRadioButtonMenuItem) - Swing Example

Java Menu Item/RadioButton (JRadioButtonMenuItem) - Swing Example สำหรับ Menu Item/RadioButton หรือ JRadioButtonMenuItem (javax.swing.JRadioButtonMenuItem) จัดอยู่ในกลุ่มของ Swing Menu ใช้สร้าง Menu Item แบบ Radio Button ซึ่งการใช้งาน JRadioButtonMenuItem จะต้องใช้ควบคู่กับ ButtonGroup ซึ่งจะทำให้การจัดกลุ่มของ Radio สามารถเลือกได้เฉพาะเพียงหนึ่งรายการเท่านั้น และ Menu Item แบบ Radio Button มี Property ที่สำคุณคือ JRadioButtonMenuItem.isVisible() คือใช้ตรวจสอบว่า Radio Button มีการเลือก Item หรือ Option นั้น ๆ หรือไม่

Java Menu Item/RadioButton  (JRadioButtonMenuItem)

Java Menu Item/RadioButton (JRadioButtonMenuItem) - Swing Example


Syntax
ButtonGroup group = new ButtonGroup();
final JRadioButtonMenuItem rdo1 = new JRadioButtonMenuItem("Option 1");
final JRadioButtonMenuItem rdo2 = new JRadioButtonMenuItem("Option 2");
group.add(rdo1);
group.add(rdo2);


Controls Icon Tools

Java Menu Item/RadioButton  (JRadioButtonMenuItem)

Example 1 การสร้าง Menu Item แบบ Radio Button ด้วย JRadioButtonMenuItem แบบง่าย ๆ

MyForm.java
package com.java.myapp;

import java.awt.EventQueue;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyEvent;

import javax.swing.ButtonGroup;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JMenu;
import javax.swing.JMenuBar;
import javax.swing.JMenuItem;
import javax.swing.JOptionPane;
import javax.swing.KeyStroke;
import javax.swing.JRadioButtonMenuItem;

public class MyForm extends JFrame {

	/**
	 * Launch the application.
	 */
	public static void main(String[] args) {
		EventQueue.invokeLater(new Runnable() {
			public void run() {
				MyForm frame = new MyForm();
				frame.setVisible(true);
			}
		});
	}

	/**
	 * Create the frame.
	 */
	public MyForm() {
		setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		setBounds(100, 100, 362, 249);
		setTitle("ThaiCreate.Com Java GUI Tutorial");
		getContentPane().setLayout(null);

		// Menu Bar
        JMenuBar menuBar=new JMenuBar();

        JMenu menu = new JMenu("File");
        menu.setMnemonic(KeyEvent.VK_F);

        // Open
        ImageIcon openExit = new ImageIcon(getClass().getResource("open.gif"));
        JMenuItem menuOpen = new JMenuItem("Open",openExit);
        menuOpen.setMnemonic(KeyEvent.VK_O);
        menuOpen.setToolTipText("Open Application");
        menuOpen.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent event) {
            	JOptionPane.showMessageDialog(null,
            			"Open Command");
            }
        });

        // Radio
        zButtonGroup group = new ButtonGroup();
        final JRadioButtonMenuItem rdo1 = new JRadioButtonMenuItem("Option 1");
        final JRadioButtonMenuItem rdo2 = new JRadioButtonMenuItem("Option 2");
        group.add(rdo1);
        group.add(rdo2);

        // Exit
        ImageIcon iconExit = new ImageIcon(getClass().getResource("exit.gif"));
        JMenuItem menuExit = new JMenuItem("Exit",iconExit);
        menuExit.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_E,
        	    ActionEvent.CTRL_MASK));
        menuExit.setToolTipText("Exit Application");
        menuExit.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent event) {
            	System.exit(0);
            }
        });

        // Create menu
        menu.add(menuOpen); // Open
        menu.addSeparator();
        menu.add(rdo1);  // Radio
        menu.add(rdo2);  // Radio
        menu.addSeparator();
        menu.add(menuExit); // Exit

        menuBar.add(menu);


        setJMenuBar(menuBar);
	}
}

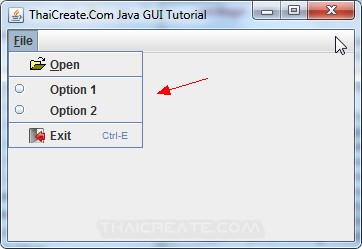

Output

Java Menu Item/RadioButton  (JRadioButtonMenuItem)

แสดง Menu Item แบบ Radio Button








Example 2 การสร้าง Menu Item แบบ Radio Button และการสร้าง Event Handler

Event Handler
// Radio 1
JRadioButtonMenuItem rdo1 = new JRadioButtonMenuItem("Option 1");
rdo1.addActionListener(new ActionListener() {
	public void actionPerformed(ActionEvent event) {
	  if (rdo1.isVisible()) {
		  JOptionPane.showMessageDialog(null,
				"Option 1 is Checked");
	  }
	}

});

// Radio 2
JRadioButtonMenuItem rdo2 = new JRadioButtonMenuItem("Option 2");
rdo2.addActionListener(new ActionListener() {
	public void actionPerformed(ActionEvent event) {
	  if (rdo2.isVisible()) {
		  JOptionPane.showMessageDialog(null,
				"Option 2 is Checked");
	  }
	}

});


MyForm.java
package com.java.myapp;

import java.awt.EventQueue;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyEvent;

import javax.swing.ButtonGroup;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JMenu;
import javax.swing.JMenuBar;
import javax.swing.JMenuItem;
import javax.swing.JOptionPane;
import javax.swing.KeyStroke;
import javax.swing.JRadioButtonMenuItem;

public class MyForm extends JFrame {

	/**
	 * Launch the application.
	 */
	public static void main(String[] args) {
		EventQueue.invokeLater(new Runnable() {
			public void run() {
				MyForm frame = new MyForm();
				frame.setVisible(true);
			}
		});
	}

	/**
	 * Create the frame.
	 */
	public MyForm() {
		setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		setBounds(100, 100, 362, 249);
		setTitle("ThaiCreate.Com Java GUI Tutorial");
		getContentPane().setLayout(null);

		// Menu Bar
        JMenuBar menuBar=new JMenuBar();

        JMenu menu = new JMenu("File");
        menu.setMnemonic(KeyEvent.VK_F);

        // Open
        ImageIcon openExit = new ImageIcon(getClass().getResource("open.gif"));
        JMenuItem menuOpen = new JMenuItem("Open",openExit);
        menuOpen.setMnemonic(KeyEvent.VK_O);
        menuOpen.setToolTipText("Open Application");
        menuOpen.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent event) {
            	JOptionPane.showMessageDialog(null,
            			"Open Command");
            }
        });

        // Group
        ButtonGroup group = new ButtonGroup();

        // Radio 1
        final JRadioButtonMenuItem rdo1 = new JRadioButtonMenuItem("Option 1");
        rdo1.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent event) {
              if (rdo1.isVisible()) {
            	  JOptionPane.showMessageDialog(null,
              			"Option 1 is Checked");
              }
            }

        });

        // Radio 2
        final JRadioButtonMenuItem rdo2 = new JRadioButtonMenuItem("Option 2");
        rdo2.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent event) {
              if (rdo2.isVisible()) {
            	  JOptionPane.showMessageDialog(null,
              			"Option 2 is Checked");
              }
            }

        });

        group.add(rdo1);
        group.add(rdo2);

        // Exit
        ImageIcon iconExit = new ImageIcon(getClass().getResource("exit.gif"));
        JMenuItem menuExit = new JMenuItem("Exit",iconExit);
        menuExit.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_E,
        	    ActionEvent.CTRL_MASK));
        menuExit.setToolTipText("Exit Application");
        menuExit.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent event) {
            	System.exit(0);
            }
        });

        // Create menu
        menu.add(menuOpen); // Open
        menu.addSeparator();
        menu.add(rdo1);  // Radio
        menu.add(rdo2);  // Radio
        menu.addSeparator();
        menu.add(menuExit); // Exit

        menuBar.add(menu);


        setJMenuBar(menuBar);
	}
}

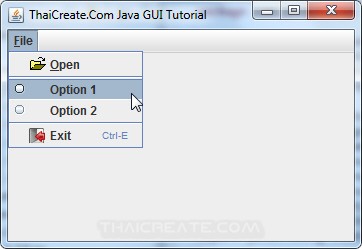

Output

Java Menu Item/RadioButton  (JRadioButtonMenuItem)

แสดง Menu Item แบบ Radio Button

Java Menu Item/RadioButton  (JRadioButtonMenuItem)

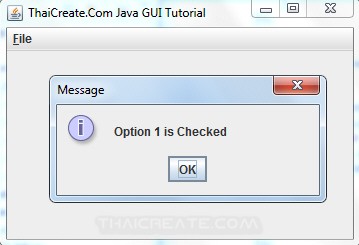

เมื่อคลิกเลือกที่รายการของ Radio Button จะแสดง Event Handler ที่กำหนดขึ้น








แนะนำให้อ่านบทความนี้เพิ่มเติม เกี่ยวกับการสร้าง JMenu และการใช้งาน jMenu
