Android and Custom ProgressBar

Android and Custom ProgressBar ในการสร้าง Custom ProgressBar บน Android ใน Version 4.x ตัว ProgressBar ที่เป็นแบบ Horizontal (แนวนอนแถบแสดงสถานะการทำงาน) จะมีหน้าตาไม่ค่อยส่วนนัก โดยค่า Default เป็นเพียงแค่แถบสนน้ำเงิน ๆ เล็ก ๆ แสดงในขณะทำงานเท่านั้น แต่ถ้าจะทำ Custom ProgressBar แบบ Horizontal และ ProgressDialog ก็สามารถทำได้ไม่ยาก ลองมาดูตัวอย่าง

Android and Custom ProgressBar


Step การทำ Custom ProgressBar

หลัก ๆ แล้วสร้าง Style ขึ้นมาแค่ชุดเดียว โดยในตัวอย่างนี้ชื่อว่า custom_progress.xml จัดเก็บไว้ที่

/res/drawable/custom_progress.xml
<?xml version="1.0" encoding="UTF-8"?>
<layer-list
	xmlns:android="http://schemas.android.com/apk/res/android">
	<item
		android:id="@android:id/background">
		<shape>
			<corners
				android:radius="5dip" />
			<gradient
				android:startColor="#ffffffff"
				android:centerColor="#ffdddddd"
				android:centerY="0.50"
				android:endColor="#ffffffff"
				android:angle="270" />
		</shape>
	</item>
	<item
		android:id="@android:id/secondaryProgress">
		<clip>
			<shape>
				<corners
					android:radius="5dip" />
				<gradient
					android:startColor="#770e75af"
					android:endColor="#771997e1"
					android:angle="90" />
			</shape>
		</clip>
	</item>
	<item
		android:id="@android:id/progress">
		<clip>
			<shape>
				<corners
					android:radius="5dip" />
				<gradient
					android:startColor="#ff0e75af"
					android:endColor="#ff1997e1"
					android:angle="90" />
			</shape>
		</clip>
	</item>
</layer-list>


Android and Custom ProgressBar

โครงสร้างของไฟล์ทั้งหมด จัดเก็บตาม Path และ Directory ดังภาพ


Example 1 ทดสอบกับ ProgressBar แบบ Horizontal แบบง่าย ๆ

Android and Custom ProgressBar

activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <Button
        android:id="@+id/button1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical|center_horizontal|center"
        android:text="Do Work!" />

    <ProgressBar
        android:id="@+id/progressBar1"
        style="?android:attr/progressBarStyleHorizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:progressDrawable="@drawable/custom_progress" />

</LinearLayout>

ใน Widgets ของ ProgressBar จะมีการเรียกใช้ android:progressDrawable="@drawable/custom_progress"








MainActivity.java
package com.myapp;

import android.os.Bundle;
import android.os.Handler;
import android.app.Activity;
import android.view.View;
import android.widget.Button;
import android.widget.ProgressBar;

public class MainActivity extends Activity {

		Button btnDoWork;
		ProgressBar progressBar;
		private int progressBarStatus = 0;
		private Handler progressBarHandler = new Handler();


		@Override
		public void onCreate(Bundle savedInstanceState) {
			super.onCreate(savedInstanceState);
			setContentView(R.layout.activity_main);

			progressBar = (ProgressBar) findViewById(R.id.progressBar1);

			progressBar.setVisibility(View.INVISIBLE);  // Hide ProgressBar

			// button1 Do Work
			btnDoWork = (Button) findViewById(R.id.button1);
			btnDoWork.setOnClickListener(new View.OnClickListener() {
		            public void onClick(View v) { // Start Event onClick

		            	progressBar.setVisibility(View.VISIBLE);
						progressBar.setProgress(0);
						progressBar.setMax(100);
						progressBar.setProgressDrawable(v.getResources().getDrawable(
				                R.drawable.custom_progress));


						progressBarStatus = 0;

								new Thread(new Runnable() {
								  public void run() {
									while (progressBarStatus < 100) {

									  // process some tasks
									  progressBarStatus = DoWork();

										try {
											Thread.sleep(300);
										} catch (InterruptedException e) {
											e.printStackTrace();
										}

									  // Update the progress bar
									  progressBarHandler.post(new Runnable() {
										public void run() {
										  progressBar.setProgress(progressBarStatus);
										}
									  });
									}

						  }
					   }).start();


		            } // End Event onClick

		        });

		}



		// DoWork & Set Status Progress Bar
		public int DoWork() {

			// Do some work EG: Save , Download , Insert , ..
			// **** Work
			// **** Work
			// **** Work
			// **** Work
			progressBarStatus++; // Work process and return status

			if( progressBarStatus < 100)
			{
				return progressBarStatus;
			}

			// When Finish
			try {
				Thread.sleep(1000);
			} catch (InterruptedException e) {
				e.printStackTrace();
			}

			return 100;

		}

	}



Screenshot

Android and Custom ProgressBar

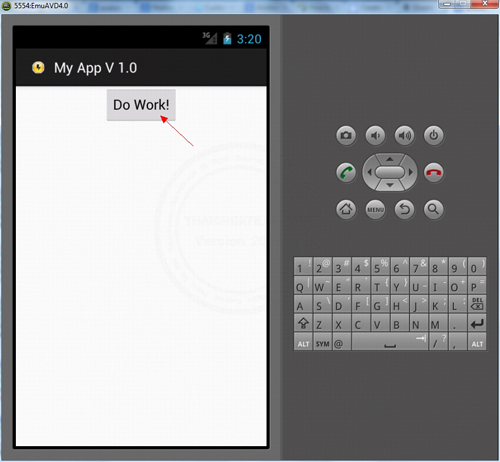

ค่าเริ่มต้น ProgressBar จะยังไม่แสดง และเมื่อคลิกที่ปุ่ม Do Work! จะเริ่มการทำงานของ ProgressBar

Android and Custom ProgressBar

ProgressBar กำลังทำงาน




Example 2 ทดสอบการ ProgressBar แบบ Dialog (ProgressDialog)

Android and Custom ProgressBar

activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <Button
        android:id="@+id/button1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical|center_horizontal|center"
        android:text="Do Work!" />


</LinearLayout>


MainActivity.java
package com.myapp;

import android.os.Bundle;
import android.os.Handler;
import android.app.Activity;
import android.app.ProgressDialog;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

		Button btnDoWork;
		ProgressDialog progressBar;
		private int progressBarStatus = 0;
		private Handler progressBarHandler = new Handler();


		@Override
		public void onCreate(Bundle savedInstanceState) {
			super.onCreate(savedInstanceState);
			setContentView(R.layout.activity_main);

			// button1 Do Work
			btnDoWork = (Button) findViewById(R.id.button1);
			btnDoWork.setOnClickListener(new View.OnClickListener() {
		            public void onClick(View v) { // Start Event onClick

		    			progressBar = new ProgressDialog(v.getContext());
						progressBar.setCancelable(true);
						progressBar.setMessage("Working... ...");
						progressBar.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
						progressBar.setProgress(0);
						progressBar.setMax(100);
						progressBar.setProgressDrawable(v.getResources().getDrawable(
				                R.drawable.custom_progress));
						progressBar.show();


						progressBarStatus = 0;

								new Thread(new Runnable() {
								  public void run() {
									while (progressBarStatus < 100) {

									  // process some tasks
									  progressBarStatus = DoWork();

										try {
											Thread.sleep(300);
										} catch (InterruptedException e) {
											e.printStackTrace();
										}

									  // Update the progress bar
									  progressBarHandler.post(new Runnable() {
										public void run() {
										  progressBar.setProgress(progressBarStatus);
										}
									  });
									}

						  }
					   }).start();


		            } // End Event onClick

		        });

		}



		// DoWork & Set Status Progress Bar
		public int DoWork() {

			// Do some work EG: Save , Download , Insert , ..
			// **** Work
			// **** Work
			// **** Work
			// **** Work
			progressBarStatus++; // Work process and return status

			if( progressBarStatus < 100)
			{
				return progressBarStatus;
			}

			// When Finish
			try {
				Thread.sleep(1000);
			} catch (InterruptedException e) {
				e.printStackTrace();
			}
			progressBar.dismiss();

			return 100;

		}

	}



Screenshot

Android and Custom ProgressBar

คลิกที่ Do Work! เพื่อแสดง ProgressDialog








Android and Custom ProgressBar

แสดง ProgressBar แบบ Dialog และเมื่อทำงานเรียบร้อยก็จะหายไป
