ViewSwitcher - Android Widgets Example

ViewSwitcher - Android Widgets สำหรับ ViewSwitcher เป็น Widget ใช้สำหรับ แสดงมุมมองของ Widgets ระหว่าง 2 ตัว โดยจะทำงานสลับกันไปมาระหว่าง มุมมอง (View) หรือ Widgets ที่อยู่ภายใต้ ViewSwitcher นั้น ๆ ส่วนถ้ากรณีมากกว่า 2 ตัวให้ใช้ ViewAnimator หรือ ViewFlipper เพราะใน Widgets 3-4 ตัวนี้การทำงานจะคล้าย ๆ กัน แต่ถ้าได้ใช้งานจริง ๆ จะเข้าใจเลยว่า จะมีความสามารถบางตัว ที่มีไม่เหมือนกันและวัตถุประสงค์ก็ต่างกันด้วยเช่นเดียวกัน

ViewSwitcher - Android Widgets

XML Syntax
    <ViewSwitcher
        android:id="@+id/viewSwitcher1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

Example 1 การใช้ ViewSwitcher ควบคุมการแสดงผล Widgets ของ ImageView แบบง่าย ๆ

ViewSwitcher - Android Widgets

ออกแบบหน้าจอ GraphicalLayout ด้วย Widget ตามรูป

activity_main.xml (XML Layout)
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

        <LinearLayout
            android:id="@+id/LinearLayout02"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_centerHorizontal="true"
            android:layout_marginTop="75dp" >

        	<ViewSwitcher
           		android:id="@+id/viewSwitcher1"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content" >

		            <ImageView
		            android:id="@+id/imageView1"
		            android:layout_width="wrap_content"
		            android:layout_height="wrap_content"
		            android:src="@drawable/pic_a" />
		            <ImageView
		            android:id="@+id/imageView2"
		            android:layout_width="wrap_content"
		            android:layout_height="wrap_content"
		            android:src="@drawable/pic_b" />

            </ViewSwitcher>

        </LinearLayout>

</RelativeLayout>


XML Layout ที่ได้ออกแบบไว้

ViewSwitcher - Android Widgets

จากรูปจะเห็นว่า imageView1 และ imageView2 อยู่ภายใต้ ViewSwitcher ซึ่งเมื่อตอนทำงาน ViewSwitcher จะแสดงผลสลับไปสลับมาระหว่าง imageView1 และ imageView2

MainActivity.java (Java Code)
package com.myapp;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.MotionEvent;
import android.view.View;
import android.view.animation.AlphaAnimation;
import android.view.animation.Animation;
import android.widget.Button;
import android.widget.ViewSwitcher;

public class MainActivity extends Activity {

	Button next;
    Button previous;
    ViewSwitcher vs;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        vs = (ViewSwitcher) findViewById(R.id.viewSwitcher1);
    	Animation inAnim = new AlphaAnimation(0, 1);
    	inAnim.setDuration(2000);
    	Animation outAnim = new AlphaAnimation(1, 0);
    	outAnim.setDuration(2000);

    	vs.setInAnimation(inAnim);
    	vs.setOutAnimation(outAnim);

    	vs.setOnClickListener(new View.OnClickListener() {
            public void onClick(View v) {
            	vs.showNext();
            }
        });

    }

	@Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}


Code ที่เป็น Java

    	vs.setOnClickListener(new View.OnClickListener() {
            public void onClick(View v) {
            	vs.showNext();
            }
        });

จะเห็นว่า ViewSwitcher มีการกำหนด Event ที่เป็น OnClick และมี Property ชื่อว่า showNext(); เพื่อแสดงมุมมองถัดไป และในกรณีที่จะมีแค่ 2 มุมมอง ก็จะเป็นการแสดงข้อมูลสลับไปสลับมา

Screenshot

ViewSwitcher - Android Widgets

แสสดงมุมมอง (View) แรก

ViewSwitcher - Android Widgets

เมื่อคลิกก็จะเปลี่ยนการแสดงผลเป็นมุมมอง (View) สอง




Example 2 การใช้ ViewSwitcher ควบคุมการแสดงผลมุมมอง (View) ที่เป็น TableLayout โดยมี tableLayout1 และ tableLayout2 และภายในแต่ล่ะ TableLayout ก็จะประกอบด้วย Widgets ต่าง ๆ ที่แต้สำคัญคือใน tableLayout1 จะมี ProgressBar ซึ่งวัตถประสงค์ก็คือ เราต้องการให้แสดง tableLayout1 ที่มี ProgressBar ซึ่งจะแสดงการทำงานหรือ Loading ประมาณ 5 วินาที จากนั้นค่อยแสดงผล tableLayout2

ViewSwitcher - Android Widgets

ออกแบบหน้าจอ GraphicalLayout ด้วย Widget ตามรูป

activity_main.xml (XML Layout)
<ViewSwitcher xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/viewSwitcher1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent">

	<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
	    xmlns:tools="http://schemas.android.com/tools"
	    android:id="@+id/tableLayout1"
	    android:layout_width="match_parent"
	    android:layout_height="match_parent"
	    android:layout_marginTop="50dp" >

		<ProgressBar
		    android:id="@+id/progressBar1"
		    style="?android:attr/progressBarStyleLarge"
		    android:layout_width="wrap_content"
		    android:layout_height="wrap_content" />

     </TableLayout>


	<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
	    xmlns:tools="http://schemas.android.com/tools"
	    android:id="@+id/tableLayout2"
	    android:layout_width="match_parent"
	    android:layout_height="match_parent"
	    android:layout_marginTop="50dp" >

        <TextView
            android:id="@+id/textView1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:gravity="center"
            android:text="Welcome to My App"
            android:textAppearance="?android:attr/textAppearanceMedium" />

        <ImageView
            android:id="@+id/imageView1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/pic_a"
            android:layout_marginTop="10dp"  />

        <TextView
            android:id="@+id/textView2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:gravity="center"
            android:text="CopyRight 2012 www.ThaiCreate.Com"
            android:textAppearance="?android:attr/textAppearanceSmall" />

        <Button
		    android:id="@+id/button1"
		    android:layout_width="wrap_content"
		    android:layout_height="wrap_content"
		    android:text="Reload again" />

    </TableLayout>

</ViewSwitcher>


จาก XML Layout จะเห็นว่า tableLayout1 และ tableLayout2 อยู่ภายใต้ ViewSwitcher

MainActivity.java (Java Code)
package com.myapp;

import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.ViewSwitcher;

public class MainActivity extends Activity {

    ViewSwitcher Vs;
    private static final int REFRESH_SCREEN = 1;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // viewSwitcher1
        Vs = (ViewSwitcher) findViewById(R.id.viewSwitcher1);
        startScan();

        // Reload again
        Button btn1 = (Button) findViewById(R.id.button1);
        btn1.setOnClickListener(new View.OnClickListener() {
            public void onClick(View v) {
            	Vs.showPrevious();
            	startScan();
            }
        });

    }

	public void startScan() {
		new Thread() {
			public void run() {
				try{
					Thread.sleep(5000);
					hRefresh.sendEmptyMessage(REFRESH_SCREEN);
				}catch(Exception e){
				}
			}
		}.start();
	}

	@SuppressLint("HandlerLeak")
	Handler hRefresh = new Handler(){
		public void handleMessage(Message msg) {
			switch(msg.what){
			case REFRESH_SCREEN:
				Vs.showNext();
				break;
			default:
				break;
			}
		}
	};

	@Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}


ในการทำงานจะใช้ Thread Sleep เพื่อหยุดการทำงานของมุมมอง (View) tableLayout1 แรก ประมาณ 5 วินาที จากนั้นค่อยแสดงผล tableLayout2

Screenshot

ViewSwitcher - Android Widgets

กำลังแสดง ProgressBar ซึ่งจะทำงานประมาณ 5 วินาที

ViewSwitcher - Android Widgets

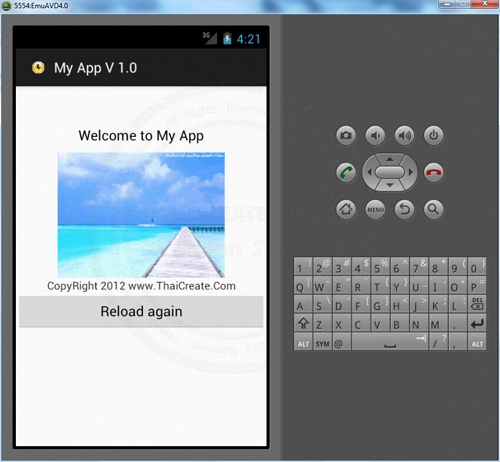

แสดงมุมมองที่สอง
