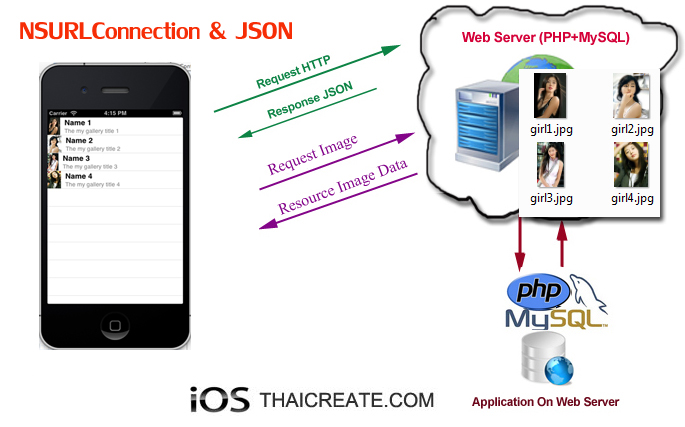

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView) บทความนี้จะเป็นการ Apply ใช้ NSURLConnection กับการเชื่อมต่อข้อมูลของ MySQL Database ที่ถูกจัดเก็บไว้บน Web Server โดยใช้ php ทำหน้าที่ในการอ่านข้อมูลจาก MySQL แล้งแปลงเป็น JSON เพื่อจะรอ Client เข้าไปทำการ Request ข้อมูลผ่าน URL (Webiste) ที่มีนามสกุล .php โดยในตัวอย่างนี้เราจะได้เรียนรู้และ Apply การใช้งานอยู่ 3-4 ตัวเช่น NSURLConnection , PHP MySQL และการใช้ JSON Parser และการนำข้อมูลเหล่านั้นแสดงผลบน Table View (UITableView)

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)


และเพื่อความเข้าใจในบทความนี้ อยากจะแนะนำให้อ่านบทความต่าง ๆ เหล่านี้ที่เกี่ยวข้อง เช่น NSURLConnection , JSON Parser , และ Table View แต่ถ้าเข้าใจแล้วก็สามารถข้ามบทความเหล่านั้นได้เลย

iOS/iPhone NSURLConnection (Objective-C)

iOS/iPhone and JSON (Create JSON and JSON Parsing , Objective-C)

iOS/iPhone Display Image on Table View from JSON URL (Web Site)


Example ตัวอย่างการใช้ NSURLConnection และ PHP MySQL / JSON (TableView,UITableView)

MySQL Database
CREATE TABLE `gallery` (
  `GalleryID` int(3) NOT NULL auto_increment,
  `Name` varchar(50) NOT NULL,
  `TitleName` varchar(150) NOT NULL,
  `Thumbnail` varchar(100) NOT NULL,
  PRIMARY KEY  (`GalleryID`)
) ENGINE=MyISAM  AUTO_INCREMENT=5 ;

--
-- Dumping data for table `gallery`
--

INSERT INTO `gallery` VALUES (1, 'Name 1', 'The my gallery title 1', 'https://www.thaicreate.com/url/girl1.jpg');
INSERT INTO `gallery` VALUES (2, 'Name 2', 'The my gallery title 2', 'https://www.thaicreate.com/url/girl2.jpg');
INSERT INTO `gallery` VALUES (3, 'Name 3', 'The my gallery title 3', 'https://www.thaicreate.com/url/girl3.jpg');
INSERT INTO `gallery` VALUES (4, 'Name 4', 'The my gallery title 4', 'https://www.thaicreate.com/url/girl4.jpg');

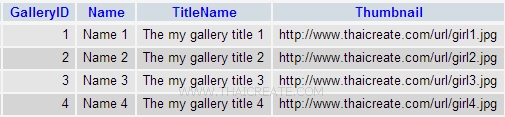

โครงสร้างของ MySQL Database

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

getGallery.php
<?php
	$objConnect = mysql_connect("localhost","root","root");
	$objDB = mysql_select_db("mydatabase");
	$strSQL = "SELECT * FROM gallery WHERE 1  ";
	$objQuery = mysql_query($strSQL);
	$intNumField = mysql_num_fields($objQuery);
	$resultArray = array();
	while($obResult = mysql_fetch_array($objQuery))
	{
		$arrCol = array();
		for($i=0;$i<$intNumField;$i++)
		{
			$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
		}
		array_push($resultArray,$arrCol);
	}

	mysql_close($objConnect);

	echo json_encode($resultArray);
?>

ไฟล์ php สำหรับอ่านข้อมูลจาก MySQL และแปลงให้เป็น JSON








iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

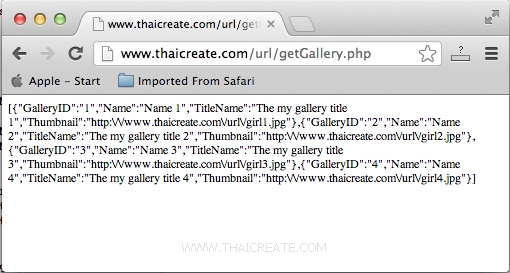

เมื่อเรียกไฟล์ php ผ่าน URL ของ Web Browser

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

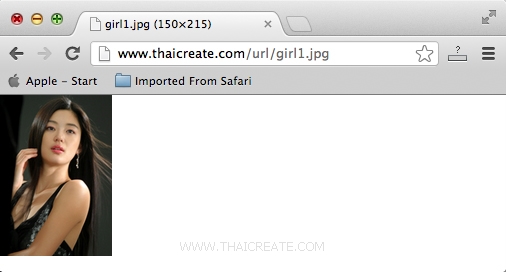

ตัวอย่างนี้จะแสดงรูปภาพด้วย และทดสอบการเรียกรูปภาพผ่าน Web Browser

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

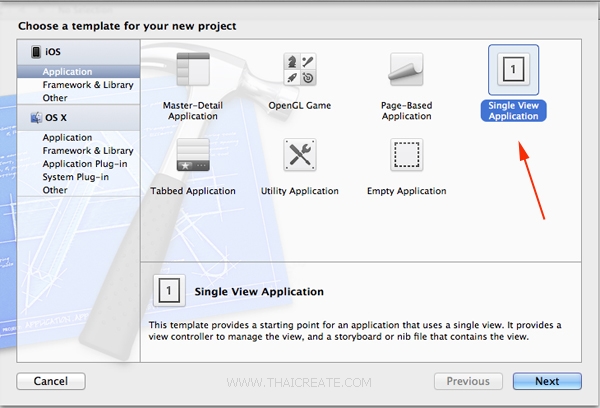

เริ่มต้นด้วยการสร้าง Application บน Xcode แบบ Single View Application

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

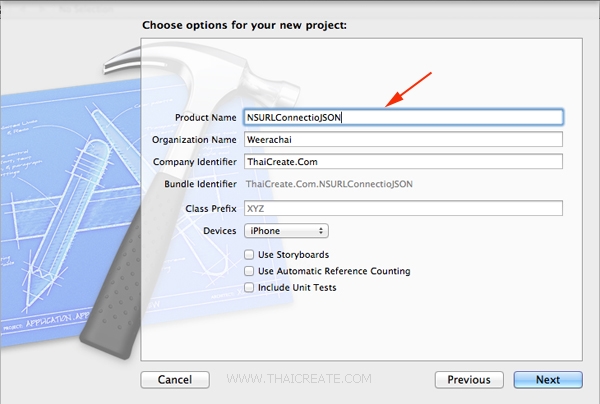

เลือกและไม่เลือกรายการดังรูป

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

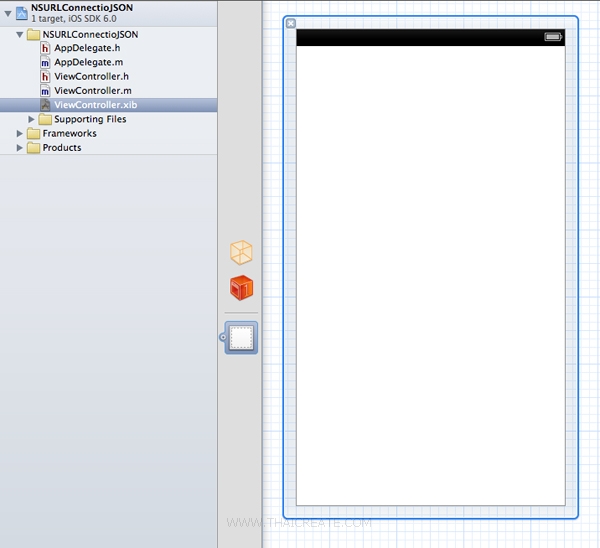

ตอนนี้หน้าจอ View จะยังว่าง ๆ

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

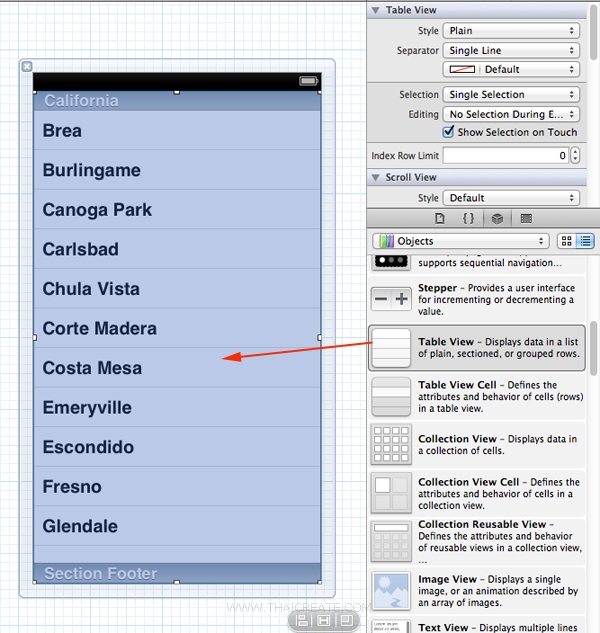

ลาก Table View (UITableView) มาวางไว้บนหน้าจอ

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

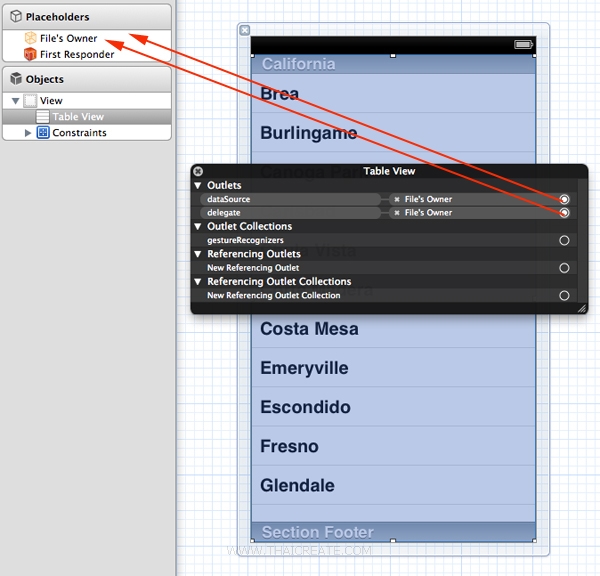

คลิกขวาที่ Table View ให้ทำการเชื่อม dataSource และ delegate กับ File's Owner

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

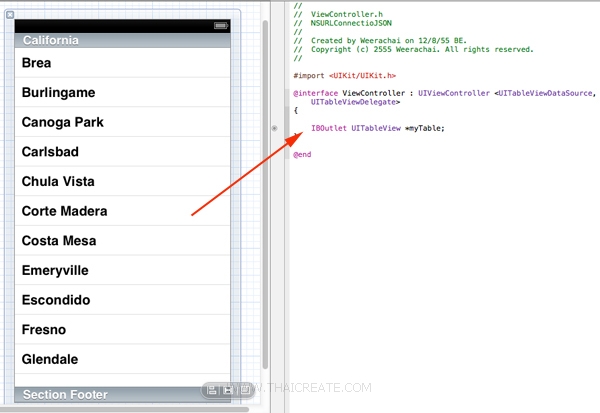

ใน Class ของ .h ให้เชื่อม IBOutlet ให้เรียบร้อย จากนั้นให้เขียน Code ของ Objective-C ทั้งหมดดังนี้

ViewController.h
//
//  ViewController.h
//  NSURLConnectioJSON
//
//  Created by Weerachai on 12/8/55 BE.
//  Copyright (c) 2555 Weerachai. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface ViewController : UIViewController <UITableViewDataSource,UITableViewDelegate>
{

    IBOutlet UITableView *myTable;

}

@property(nonatomic,assign) NSMutableData *receivedData;

@end


ViewController.m
//
//  ViewController.m
//  NSURLConnectioJSON
//
//  Created by Weerachai on 12/8/55 BE.
//  Copyright (c) 2555 Weerachai. All rights reserved.
//

#import "ViewController.h"

@interface ViewController ()
{
    NSMutableArray *myObject;

    // A dictionary object
    NSDictionary *dict;

    // Define keys
    NSString *galleryid;
    NSString *name;
    NSString *titlename;
    NSString *thumbnail;
}

@end

@implementation ViewController

@synthesize receivedData;

- (void)viewDidLoad
{
    [super viewDidLoad];

    // Do any additional setup after loading the view, typically from a nib.

    // Define keys
    galleryid = @"GalleryID";
    name = @"Name";
    titlename = @"TitleName";
    thumbnail = @"Thumbnail";

    // Create array to hold dictionaries
    myObject = [[NSMutableArray alloc] init];


    NSURLRequest *theRequest =
    [NSURLRequest requestWithURL:[NSURL URLWithString:@"https://www.thaicreate.com/url/getGallery.php"]
                     cachePolicy:NSURLRequestReloadIgnoringLocalCacheData
                 timeoutInterval:10.0];

    NSURLConnection *theConnection=[[NSURLConnection alloc] initWithRequest:theRequest delegate:self];


    if (theConnection) {
        self.receivedData = nil;
    } else {
		UIAlertView *connectFailMessage = [[UIAlertView alloc] initWithTitle:@"NSURLConnection " message:@"Failed in viewDidLoad"  delegate: self cancelButtonTitle:@"Ok" otherButtonTitles: nil];
		[connectFailMessage show];
		[connectFailMessage release];
    }

}

- (void)connection:(NSURLConnection *)connection didReceiveResponse:(NSURLResponse *)response
{
    receivedData = [[NSMutableData alloc] init];
}

- (void)connection:(NSURLConnection *)connection didReceiveData:(NSData *)data
{
    [receivedData appendData:data];
}

- (void)connection:(NSURLConnection *)connection didFailWithError:(NSError *)error
{

    [connection release];
    [receivedData release];

    // inform the user
    UIAlertView *didFailWithErrorMessage = [[UIAlertView alloc] initWithTitle: @"NSURLConnection " message: @"didFailWithError"  delegate: self cancelButtonTitle: @"Ok" otherButtonTitles: nil];
    [didFailWithErrorMessage show];
    [didFailWithErrorMessage release];

    //inform the user
    NSLog(@"Connection failed! Error - %@", [error localizedDescription]);

}

- (void)connectionDidFinishLoading:(NSURLConnection *)connection
{
    if(receivedData)
    {
        //NSLog(@"%@",receivedData);
        //NSString *dataString = [[NSString alloc] initWithData:receivedData encoding:NSASCIIStringEncoding];
        //NSLog(@"%@",dataString);

        id jsonObjects = [NSJSONSerialization JSONObjectWithData:receivedData options:NSJSONReadingMutableContainers error:nil];

        // values in foreach loop
        for (NSDictionary *dataDict in jsonObjects) {
            NSString *strGalleryID = [dataDict objectForKey:@"GalleryID"];
            NSString *strName = [dataDict objectForKey:@"Name"];
            NSString *strTitleName = [dataDict objectForKey:@"TitleName"];
            NSString *strThumbnail = [dataDict objectForKey:@"Thumbnail"];

            dict = [NSDictionary dictionaryWithObjectsAndKeys:
                    strGalleryID, galleryid,
                    strName, name,
                    strTitleName, titlename,
                    strThumbnail, thumbnail,
                    nil];
            [myObject addObject:dict];
        }

        [myTable reloadData];
    }


    // release the connection, and the data object
    [connection release];
    [receivedData release];
}

- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
{

    int nbCount = [myObject count];
    if (nbCount == 0)
        return 1;
    else
        return [myObject count];

}

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
{

    int nbCount = [myObject count];

    static NSString *CellIdentifier = @"Cell";

    UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:CellIdentifier];
    if (cell == nil) {
        // Use the default cell style.
        cell = [[[UITableViewCell alloc] initWithStyle : UITableViewCellStyleSubtitle
                                       reuseIdentifier : CellIdentifier] autorelease];
    }

    if (nbCount ==0)
        cell.textLabel.text = @"Loading Data";
    else
    {
        NSDictionary *tmpDict = [myObject objectAtIndex:indexPath.row];

        NSURL *url = [NSURL URLWithString:[tmpDict objectForKey:thumbnail]];
        NSData *data = [NSData dataWithContentsOfURL:url];
        UIImage *img = [[UIImage alloc] initWithData:data];
        cell.imageView.image = img;

        cell.textLabel.text = [tmpDict objectForKey:name];
        cell.detailTextLabel.text= [tmpDict objectForKey:titlename];
    }

    //[tmpDict objectForKey:galleryid]
    //[tmpDict objectForKey:name]
    //[tmpDict objectForKey:titlename]
    //[tmpDict objectForKey:thumbnail]

    return cell;
}



- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

- (void)dealloc {
    [myTable release];
    [super dealloc];
}
@end









Screenshot

iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)

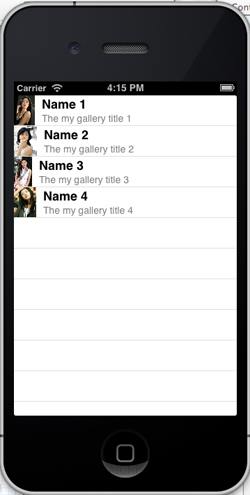

แสดงข้อมูลบน Table View ซึ่งอ่านมาจาก URL ทำงานด้วย PHP กับ MySQL ผ่าน Class ของ NSURLConnection


Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-12-13 09:49:21 / 2017-03-26 08:57:24
  Download : Download  iOS/iPhone NSURLConnection and PHP MySQL / JSON (TableView,UITableView)
