Chapter 15. MySQL Cluster

Table of Contents

15.1. MySQL Cluster Overview
15.1.1. MySQL Cluster Core Concepts
15.1.2. MySQL Cluster Nodes, Node Groups, Replicas, and Partitions
15.2. Simple Multi-Computer How-To
15.2.1. Hardware, Software, and Networking
15.2.2. Multi-Computer Installation
15.2.3. Multi-Computer Configuration
15.2.4. Initial Startup
15.2.5. Loading Sample Data and Performing Queries
15.2.6. Safe Shutdown and Restart
15.3. MySQL Cluster Configuration
15.3.1. Building MySQL Cluster from Source Code
15.3.2. Installing the Cluster Software
15.3.3. Quick Test Setup of MySQL Cluster
15.3.4. Configuration File
15.3.5. Overview of Cluster Configuration Parameters
15.3.6. Configuring Parameters for Local Checkpoints
15.4. MySQL Cluster Options and Variables
15.4.1. MySQL Cluster Server Option and Variable Reference
15.4.2. MySQL Cluster-Related Command Options for mysqld
15.4.3. MySQL Cluster System Variables
15.4.4. MySQL Cluster Status Variables
15.5. Upgrading and Downgrading MySQL Cluster
15.5.1. Performing a Rolling Restart of the Cluster
15.5.2. MySQL Cluster 4.1 Upgrade and Downgrade Compatibility
15.6. Process Management in MySQL Cluster
15.6.1. MySQL Server Process Usage for MySQL Cluster
15.6.2. ndbd — The Storage Engine Node Process
15.6.3. ndb_mgmd — The Management Server Process
15.6.4. ndb_mgm — The Management Client Process
15.6.5. Command Options for MySQL Cluster Processes
15.7. Management of MySQL Cluster
15.7.1. Summary of MySQL Cluster Start Phases
15.7.2. Commands in the MySQL Cluster Management Client
15.7.3. Event Reports Generated in MySQL Cluster
15.7.4. Single User Mode
15.7.5. Quick Reference: MySQL Cluster SQL Statements
15.8. MySQL Cluster Security Issues
15.8.1. MySQL Cluster Security and Networking Issues
15.8.2. MySQL Cluster and MySQL Privileges
15.8.3. MySQL Cluster and MySQL Security Procedures
15.9. On-line Backup of MySQL Cluster
15.9.1. Cluster Backup Concepts
15.9.2. Using The Management Client to Create a Backup
15.9.3. ndb_restore — Restore a Cluster Backup
15.9.4. Configuration for Cluster Backup
15.9.5. Backup Troubleshooting
15.10. Cluster Utility Programs
15.10.1. ndb_config — Extract NDB Configuration Information
15.10.2. ndb_cpcd — Automate Testing for NDB Development
15.10.3. ndb_delete_all — Delete All Rows from NDB Table
15.10.4. ndb_desc — Describe NDB Tables
15.10.5. ndb_drop_index — Drop Index from NDB Table
15.10.6. ndb_drop_table — Drop NDB Table
15.10.7. ndb_error_reporter — NDB Error-Reporting Utility
15.10.8. ndb_print_backup_file — Print NDB Backup File Contents
15.10.9. ndb_print_schema_file — Print NDB Schema File Contents
15.10.10. ndb_print_sys_file — Print NDB System File Contents
15.10.11. ndb_select_all — Print Rows from NDB Table
15.10.12. ndb_select_count — Print Row Counts for NDB Tables
15.10.13. ndb_show_tables — Display List of NDB Tables
15.10.14. ndb_size.pl — NDBCLUSTER Size Requirement Estimator
15.10.15. ndb_waiter — Wait for Cluster to Reach a Given Status
15.11. Using High-Speed Interconnects with MySQL Cluster
15.11.1. Configuring MySQL Cluster to use SCI Sockets
15.11.2. MySQL Cluster Interconnects and Performance
15.12. Known Limitations of MySQL Cluster
15.12.1. Non-Compliance In SQL Syntax
15.12.2. Limits and Differences from Standard MySQL Limits
15.12.3. Limits Relating to Transaction Handling
15.12.4. Error Handling
15.12.5. Limits Associated with Database Objects
15.12.6. Unsupported Or Missing Features
15.12.7. Limitations Relating to Performance
15.12.8. Issues Exclusive to MySQL Cluster
15.12.9. Limitations Relating to Multiple Cluster Nodes
15.13. MySQL 4.1 FAQ — MySQL Cluster
15.14. MySQL Cluster Glossary

MySQL Cluster is a high-availability, high-redundancy version of MySQL adapted for the distributed computing environment. It uses the NDBCLUSTER storage engine to enable running several MySQL servers in a cluster. This storage engine is available and in binary releases from MySQL-Max 4.1.3. Beginning with MySQL 4.1.10a, it is also available in RPMs compatible with most modern Linux distributions. (If you install using RPM files, note that both the mysql-server and mysql-max RPMs must be installed to have MySQL Cluster capability.)

MySQL Cluster is currently available and supported on a number of platforms, including Linux, Solaris, Mac OS X, HP-UX, and other Unix-style operating systems on a variety of hardware. For exact levels of support available for on specific combinations of operating system versions, operating system distributions, and hardware platforms, please refer to the Cluster Supported Platforms list maintained by the MySQL Support Team on the MySQL AB Web site.

MySQL Cluster is not currently supported on Microsoft Windows. We are working to make Cluster available on all operating systems supported by MySQL, including Windows, and will update the information provided here as this work continues.

This chapter represents a work in progress, and its contents are subject to revision as MySQL Cluster continues to evolve. Additional information regarding MySQL Cluster can be found on the MySQL AB Web site at http://www.mysql.com/products/cluster/.

Additional resources.  More information may be found in the following places:

15.1. MySQL Cluster Overview

MySQL Cluster is a technology that enables clustering of in-memory databases in a shared-nothing system. The shared-nothing architecture allows the system to work with very inexpensive hardware, and with a minimum of specific requirements for hardware or software.

MySQL Cluster is designed not to have any single point of failure. For this reason, each component is expected to have its own memory and disk, and the use of shared storage mechanisms such as network shares, network filesystems, and SANs is not recommended or supported.

MySQL Cluster integrates the standard MySQL server with an in-memory clustered storage engine called NDB. In our documentation, the term NDB refers to the part of the setup that is specific to the storage engine, whereas “MySQL Cluster” refers to the combination of MySQL and the NDB storage engine.

A MySQL Cluster consists of a set of computers, each running a one or more processes which may include a MySQL server, a data node, a management server, and (possibly) a specialized data access programs. The relationship of these components in a cluster is shown here:

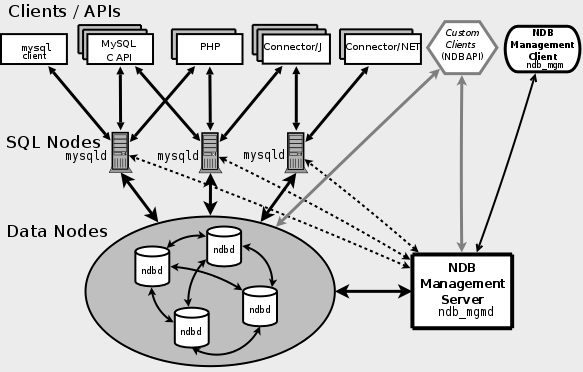

MySQL Cluster Components

All these programs work together to form a MySQL Cluster. When data is stored in the NDBCLUSTER storage engine, the tables are stored in the data nodes. Such tables are directly accessible from all other MySQL servers in the cluster. Thus, in a payroll application storing data in a cluster, if one application updates the salary of an employee, all other MySQL servers that query this data can see this change immediately.

The data stored in the data nodes for MySQL Cluster can be mirrored; the cluster can handle failures of individual data nodes with no other impact than that a small number of transactions are aborted due to losing the transaction state. Because transactional applications are expected to handle transaction failure, this should not be a source of problems.

15.1.1. MySQL Cluster Core Concepts

NDB is an in-memory storage engine offering high-availability and data-persistence features.

The NDB storage engine can be configured with a range of failover and load-balancing options, but it is easiest to start with the storage engine at the cluster level. MySQL Cluster's NDB storage engine contains a complete set of data, dependent only on other data within the cluster itself.

The cluster portion of MySQL Cluster is currently configured independently of the MySQL servers. In a MySQL Cluster, each part of the cluster is considered to be a node.

Note

In many contexts, the term “node” is used to indicate a computer, but when discussing MySQL Cluster it means a process. It is possible to run any number of nodes on a single computer, for which we use the term cluster host.

(However, it should be noted MySQL does not currently support the use of multiple data nodes on a single computer in a production setting. See Section 15.12.9, “Limitations Relating to Multiple Cluster Nodes”.)

There are three types of cluster nodes, and in a minimal MySQL Cluster configuration, there will be at least three nodes, one of each of these types:

  • Management node (MGM node): The role of this type of node is to manage the other nodes within the MySQL Cluster, performing such functions as providing configuration data, starting and stopping nodes, running backup, and so forth. Because this node type manages the configuration of the other nodes, a node of this type should be started first, before any other node. An MGM node is started with the command ndb_mgmd.

  • Data node: This type of node stores cluster data. There are as many data nodes as there are replicas, times the number of fragments. For example, with two replicas, each having two fragments, you will need four data nodes. It is not necessary to have more than one replica. A data node is started with the command ndbd.

  • SQL node: This is a node that accesses the cluster data. In the case of MySQL Cluster, an SQL node is a traditional MySQL server that uses the NDB Cluster storage engine. An SQL node is typically started with the command mysqld --ndbcluster or by using mysqld with the ndbcluster option added to my.cnf.

    An SQL node is actually just a specialised type of API node, which designates any application which accesses Cluster data. One example of an API node is the ndb_restore utility that is used to restore a cluster backup. It is possible to write such applications using the NDB API.

Important

It is not realistic to expect to employ a three-node setup in a production environment. Such a configuration provides no redundancy; in order to benefit from MySQL Cluster's high-availability features, you must use multiple data and SQL nodes. The use of multiple management nodes is also highly recommended.

For a brief introduction to the relationships between nodes, node groups, replicas, and partitions in MySQL Cluster, see Section 15.1.2, “MySQL Cluster Nodes, Node Groups, Replicas, and Partitions”.

Configuration of a cluster involves configuring each individual node in the cluster and setting up individual communication links between nodes. MySQL Cluster is currently designed with the intention that data nodes are homogeneous in terms of processor power, memory space, and bandwidth. In addition, to provide a single point of configuration, all configuration data for the cluster as a whole is located in one configuration file.

The management server (MGM node) manages the cluster configuration file and the cluster log. Each node in the cluster retrieves the configuration data from the management server, and so requires a way to determine where the management server resides. When interesting events occur in the data nodes, the nodes transfer information about these events to the management server, which then writes the information to the cluster log.

In addition, there can be any number of cluster client processes or applications. These are of two types:

  • Standard MySQL clients.  These are no different for MySQL Cluster than they are for standard (non-Cluster) MySQL. In other words, MySQL Cluster can be accessed from existing MySQL applications written in PHP, Perl, C, C++, Java, Python, Ruby, and so on.

  • Management clients.  These clients connect to the management server and provide commands for starting and stopping nodes gracefully, starting and stopping message tracing (debug versions only), showing node versions and status, starting and stopping backups, and so on.

15.1.2. MySQL Cluster Nodes, Node Groups, Replicas, and Partitions

This section discusses the manner in which MySQL Cluster divides and duplicates data for storage.

Central to an understanding of this topic are the following concepts, listed here with brief definitions:

  • (Data) Node.  An ndbd process, which stores a replica —that is, a copy of the partition (see below) assigned to the node group of which the node is a member.

    Each data node should be located on a separate computer. While it is also possible to host multiple ndbd processes on a single computer, such a configuration is not supported.

    It is common for the terms “node” and “data node” to be used interchangeably when referring to an ndbd process; where mentioned, management (MGM) nodes (ndb_mgmd processes) and SQL nodes (mysqld processes) are specified as such in this discussion.

  • Node Group.  A node group consists of one or more nodes, and stores partitions, or sets of replicas (see next item).

    Note

    All node groups in a cluster must have the same number of nodes.

  • Partition.  This is a portion of the data stored by the cluster. There are as many cluster partitions as nodes participating in the cluster. Each node is responsible for keeping at least one copy of any partitions assigned to it (that is, at least one replica) available to the cluster.

    A replica belongs entirely to a single node; a node can (and usually does) store several replicas.

  • Replica.  This is a copy of a cluster partition. Each node in a node group stores a replica. Also sometimes known as a partition replica. The number of replicas is equal to the number of nodes per node group.

The following diagram illustrates a MySQL Cluster with four data nodes, arranged in two node groups of two nodes each; nodes 1 and 2 belong to node group 0, and nodes 3 and 4 belong to node group 1. Note that only data (ndbd) nodes are shown here; although a working cluster requires an ndb_mgm process for cluster management and at least one SQL node to access the data stored by the cluster, these have been omitted in the figure for clarity.

A MySQL Cluster, with 2 node groups having 2
        nodes each

The data stored by the cluster is divided into four partitions, numbered 0, 1, 2, and 3. Each partition is stored — in multiple copies — on the same node group. Partitions are stored on alternate node groups:

  • Partition 0 is stored on node group 0; a primary replica (primary copy) is stored on node 1, and a backup replica (backup copy of the partition) is stored on node 2.

  • Partition 1 is stored on the other node group (node group 1); this partition's primary replica is on node 3, and its backup replica is on node 4.

  • Partition 2 is stored on node group 0. However, the placing of its two replicas is reversed from that of Partition 0; for Partition 2, the primary replica is stored on node 2, and the backup on node 1.

  • Partition 3 is stored on node group 1, and the placement of its two replicas are reversed from those of partition 1. That is, its primary replica is located on node 4, with the backup on node 3.

What this means regarding the continued operation of a MySQL Cluster is this: so long as each node group participating in the cluster has at least one node operating, the cluster has a complete copy of all data and remains viable. This is illustrated in the next diagram.

Nodes required to keep a 2x2 cluster
        viable

In this example, where the cluster consists of two node groups of two nodes each, any combination of at least one node in node group 0 and at least one node in node group 1 is sufficient to keep the cluster “alive” (indicated by arrows in the diagram). However, if both nodes from either node group fail, the remaining two nodes are not sufficient (shown by the arrows marked out with an X); in either case, the cluster has lost an entire partition and so can no longer provide access to a complete set of all cluster data.

15.2. Simple Multi-Computer How-To

This section is a “How-To” that describes the basics for how to plan, install, configure, and run a MySQL Cluster. Whereas the examples in Section 15.3, “MySQL Cluster Configuration” provide more in-depth information on a variety of clustering options and configuration, the result of following the guidelines and procedures outlined here should be a usable MySQL Cluster which meets the minimum requirements for availability and safeguarding of data.

This section covers hardware and software requirements; networking issues; installation of MySQL Cluster; configuration issues; starting, stopping, and restarting the cluster; loading of a sample database; and performing queries.

Basic assumptions.  This How-To makes the following assumptions:

  1. The cluster is to be set up with four nodes, each on a separate host, and each with a fixed network address on a typical Ethernet network as shown here:

    NodeIP Address
    Management (MGM) node192.168.0.10
    MySQL server (SQL) node192.168.0.20
    Data (NDBD) node "A"192.168.0.30
    Data (NDBD) node "B"192.168.0.40

    This may be made clearer in the following diagram:

    MySQL Cluster Multi-Computer Setup

    In the interest of simplicity (and reliability), this How-To uses only numeric IP addresses. However, if DNS resolution is available on your network, it is possible to use hostnames in lieu of IP addresses in configuring Cluster. Alternatively, you can use the /etc/hosts file or your operating system's equivalent for providing a means to do host lookup if such is available.

    Note

    A common problem when trying to use hostnames for Cluster nodes arises because of the way in which some operating systems (including some Linux distributions) set up the system's own hostname in the /etc/hosts during installation. Consider two machines with the hostnames ndb1 and ndb2, both in the cluster network domain. Red Hat Linux (including some derivatives such as CentOS and Fedora) places the following entries in these machines' /etc/hosts files:

    #  ndb1 /etc/hosts:
    127.0.0.1   ndb1.cluster ndb1 localhost.localdomain localhost


    #  ndb2 /etc/hosts:
    127.0.0.1   ndb2.cluster ndb2 localhost.localdomain localhost


    SUSE Linux (including OpenSUSE) places these entries in the machines' /etc/hosts files:

    #  ndb1 /etc/hosts:
    127.0.0.1       localhost
    127.0.0.2       ndb1.cluster ndb1


    #  ndb2 /etc/hosts:
    127.0.0.1       localhost
    127.0.0.2       ndb2.cluster ndb2


    In both instances, ndb1 routes ndb1.cluster to a loopback IP address, but gets a public IP address from DNS for ndb2.cluster, while ndb2 routes ndb2.cluster to a loopback address and obtains a public address for ndb1.cluster. The result is that each data node connects to the management server, but cannot tell when any other data nodes have connected, and so the data nodes appear to hang while starting.

    You should also be aware that you cannot mix localhost and other hostnames or IP addresses in config.ini. For these reasons, the solution in such cases (other than to use IP addresses for all config.ini HostName entries) is to remove the fully qualified hostnames from /etc/hosts and use these in config.ini for all cluster hosts.

  2. Each host in our scenario is an Intel-based desktop PC running a common, generic Linux distribution installed to disk in a standard configuration, and running no unnecessary services. The core OS with standard TCP/IP networking capabilities should be sufficient. Also for the sake of simplicity, we also assume that the filesystems on all hosts are set up identically. In the event that they are not, you will need to adapt these instructions accordingly.

  3. Standard 100 Mbps or 1 gigabit Ethernet cards are installed on each machine, along with the proper drivers for the cards, and that all four hosts are connected via a standard-issue Ethernet networking appliance such as a switch. (All machines should use network cards with the same throughout. That is, all four machines in the cluster should have 100 Mbps cards or all four machines should have 1 Gbps cards.) MySQL Cluster will work in a 100 Mbps network; however, gigabit Ethernet will provide better performance.

    Note that MySQL Cluster is not intended for use in a network for which throughput is less than 100 Mbps. For this reason (among others), attempting to run a MySQL Cluster over a public network such as the Internet is not likely to be successful, and is not recommended.

  4. For our sample data, we will use the world database which is available for download from the MySQL AB Web site. As this database takes up a relatively small amount of space, we assume that each machine has 256MB RAM, which should be sufficient for running the operating system, host NDB process, and (for the data nodes) for storing the database.

Although we refer to a Linux operating system in this How-To, the instructions and procedures that we provide here should be easily adaptable to other supported operating systems. We also assume that you already know how to perform a minimal installation and configuration of the operating system with networking capability, or that you are able to obtain assistance in this elsewhere if needed.

We discuss MySQL Cluster hardware, software, and networking requirements in somewhat greater detail in the next section. (See Section 15.2.1, “Hardware, Software, and Networking”.)

15.2.1. Hardware, Software, and Networking

One of the strengths of MySQL Cluster is that it can be run on commodity hardware and has no unusual requirements in this regard, other than for large amounts of RAM, due to the fact that all live data storage is done in memory. (It is possible to reduce this requirement using Disk Data tables, which were implemented in MySQL 5.1; however, we do not intend to backport this feature to MySQL 4.1.) Naturally, multiple and faster CPUs will enhance performance. Memory requirements for other Cluster processes are relatively small.

The software requirements for Cluster are also modest. Host operating systems do not require any unusual modules, services, applications, or configuration to support MySQL Cluster. For supported operating systems, a standard installation should be sufficient. The MySQL software requirements are simple: all that is needed is a production release of MySQL-max 4.1.3 or newer; you must use the -max version of MySQL to have Cluster support. (See Section 5.2, “The mysqld-max Extended MySQL Server”.) It is not necessary to compile MySQL yourself merely to be able to use Cluster. In this How-To, we assume that you are using the server binary appropriate to your platform, available via the MySQL software downloads page at http://dev.mysql.com/downloads/.

For communication between nodes, Cluster supports TCP/IP networking in any standard topology, and the minimum expected for each host is a standard 100 Mbps Ethernet card, plus a switch, hub, or router to provide network connectivity for the cluster as a whole. We strongly recommend that a MySQL Cluster be run on its own subnet which is not shared with non-Cluster machines for the following reasons:

  • Security.  Communications between Cluster nodes are not encrypted or shielded in any way. The only means of protecting transmissions within a MySQL Cluster is to run your Cluster on a protected network. If you intend to use MySQL Cluster for Web applications, the cluster should definitely reside behind your firewall and not in your network's De-Militarized Zone (DMZ) or elsewhere.

    See Section 15.8.1, “MySQL Cluster Security and Networking Issues”, for more information.

  • Efficiency.  Setting up a MySQL Cluster on a private or protected network allows the cluster to make exclusive use of bandwidth between cluster hosts. Using a separate switch for your MySQL Cluster not only helps protect against unauthorized access to Cluster data, it also ensures that Cluster nodes are shielded from interference caused by transmissions between other computers on the network. For enhanced reliability, you can use dual switches and dual cards to remove the network as a single point of failure; many device drivers support failover for such communication links.

It is also possible to use the high-speed Scalable Coherent Interface (SCI) with MySQL Cluster, but this is not a requirement. See Section 15.11, “Using High-Speed Interconnects with MySQL Cluster”, for more about this protocol and its use with MySQL Cluster.

15.2.2. Multi-Computer Installation

Each MySQL Cluster host computer running an SQL node must have installed on it a MySQL binary. For management nodes and data nodes, it is not necessary to install the MySQL server binary, but management nodes require the management server daemon (ndb_mgmd) and data nodes require the data node daemon (ndbd). It is also a good idea to install the management client (ndb_mgm) on the management server host. This section covers the steps necessary to install the correct binaries for each type of Cluster node.

MySQL AB provides precompiled binaries that support Cluster, and there is generally no need to compile these yourself. However, we also include information relating to installing a MySQL Cluster after building MySQL from source. For setting up a cluster using MySQL's binaries, the first step in the installation process for each cluster host is to download the file mysql-max-4.1.25-pc-linux-gnu-i686.tar.gz from the MySQL downloads area. We assume that you have placed it in each machine's /var/tmp directory. (If you do require a custom binary, see Section 2.9.3, “Installing from the Development Source Tree”.)

RPMs are also available for both 32-bit and 64-bit Linux platforms. For a MySQL Cluster, four RPMs are required:

  • The Server RPM (for example, MySQL-server-4.1.25-0.glibc23.i386.rpm), which supplies the core files needed to run a MySQL Server.

  • The Server/Max RPM (for example, MySQL-Max-4.1.25-0.glibc23.i386.rpm), which provides a MySQL Server binary with clustering support.

  • The NDB Cluster - Storage engine RPM (for example, MySQL-ndb-storage-4.1.25-0.glibc23.i386.rpm), which supplies the MySQL Cluster data node binary (ndbd).

  • The NDB Cluster - Storage engine management RPM (for example, MySQL-ndb-management-4.1.25-0.glibc23.i386.rpm), which provides the MySQL Cluster management server binary (ndb_mgmd).

In addition, you should also obtain the NDB Cluster - Storage engine basic tools RPM (for example, MySQL-ndb-tools-4.1.25-0.glibc23.i386.rpm), which supplies several useful applications for working with a MySQL Cluster. The most important of the these is the MySQL Cluster management client (ndb_mgm). The NDB Cluster - Storage engine extra tools RPM (for example, MySQL-ndb-extra-4.1.25-0.glibc23.i386.rpm) contains some additional testing and monitoring programs, but is not required to install a MySQL Cluster. (For more information about these additional programs, see Section 15.10, “Cluster Utility Programs”.)

The MySQL version number in the RPM filenames (shown here as 4.1.25) can vary according to the version which you are actually using. It is very important that all of the Cluster RPMs to be installed have the same MySQL version number. The glibc version number (if present — shown here as glibc23), and architecture designation (shown here as i386) should be appropriate to the machine on which the RPM is to be installed.

See Section 2.4, “Installing MySQL from RPM Packages on Linux”, for general information about installing MySQL using RPMs supplied by MySQL AB.

After installing from RPM, you still need to configure the cluster as discussed in Section 15.2.3, “Multi-Computer Configuration”.

Note

After completing the installation, do not yet start any of the binaries. We show you how to do so following the configuration of all nodes.

Data and SQL Node Installation — .tar.gz Binary.  On each of the machines designated to host data or SQL nodes, perform the following steps as the system root user:

  1. Check your /etc/passwd and /etc/group files (or use whatever tools are provided by your operating system for managing users and groups) to see whether there is already a mysql group and mysql user on the system. Some OS distributions create these as part of the operating system installation process. If they are not already present, create a new mysql user group, and then add a mysql user to this group:

    shell> groupadd mysql
    shell> useradd -g mysql mysql


    The syntax for useradd and groupadd may differ slightly on different versions of Unix, or they may have different names such as adduser and addgroup.

  2. Change location to the directory containing the downloaded file, unpack the archive, and create a symlink to the mysql-max directory named mysql. Note that the actual file and directory names will vary according to the MySQL version number.

    shell> cd /var/tmp
    shell> tar -C /usr/local -xzvf mysql-max-4.1.25-pc-linux-gnu-i686.tar.gz
    shell> ln -s /usr/local/mysql-max-4.1.25-pc-linux-gnu-i686 /usr/local/mysql

  3. Change location to the mysql directory and run the supplied script for creating the system databases:

    shell> cd mysql
    shell> scripts/mysql_install_db --user=mysql

  4. Set the necessary permissions for the MySQL server and data directories:

    shell> chown -R root .
    shell> chown -R mysql data
    shell> chgrp -R mysql .


    Note that the data directory on each machine hosting a data node is /usr/local/mysql/data. This piece of information is essential when configuring the management node. (See Section 15.2.3, “Multi-Computer Configuration”.)

  5. Copy the MySQL startup script to the appropriate directory, make it executable, and set it to start when the operating system is booted up:

    shell> cp support-files/mysql.server /etc/rc.d/init.d/
    shell> chmod +x /etc/rc.d/init.d/mysql.server
    shell> chkconfig --add mysql.server


    (The startup scripts directory may vary depending on your operating system and version — for example, in some Linux distributions, it is /etc/init.d.)

    Here we use Red Hat's chkconfig for creating links to the startup scripts; use whatever means is appropriate for this purpose on your operating system and distribution, such as update-rc.d on Debian.

Remember that the preceding steps must be performed separately on each machine where an SQL node is to reside.

SQL node installation — RPM files.  On each machine to be used for hosting a cluster SQL node, install the MySQL Max RPM by executing the following command as the system root user, replacing the name shown for the RPM as necessary to match the name of the RPM downloaded from the MySQL AB web site:

shell> rpm -Uhv MySQL-server-4.1.25-0.glibc23.i386.rpm
shell> rpm -Uhv MySQL-Max-4.1.25-0.glibc23.i386.rpm
        This installs the MySQL Max server binary
        (mysqld-max) in the
        /usr/sbin directory, as well as all needed
        MySQL Server support files. It also installs the
        mysql.server and
        mysqld_safe startup scripts in
        /usr/share/mysql and
        /usr/bin, respectively. The RPM installer
        should take care of general configuration issues (such as
        creating the mysql user and group, if needed)
        automatically.

SQL node installation — building from source.  If you compile MySQL with clustering support (for example, by using the BUILD/compile-platform_name-max script appropriate to your platform), and perform the default installation (using make install as the root user), mysqld is placed in /usr/local/mysql/bin. Follow the steps given in Section 2.9, “MySQL Installation Using a Source Distribution” to make mysqld ready for use. If you want to run multiple SQL nodes, you can use a copy of the same mysqld executable and its associated support files on several machines. The easiest way to do this is to copy the entire /usr/local/mysql directory and all directories and files contained within it to the other SQL node host or hosts, then repeat the steps from Section 2.9, “MySQL Installation Using a Source Distribution” on each machine. If you configure the build with a non-default --prefix, you need to adjust the directory accordingly.

Data node installation — RPM Files.  On a computer that is to host a cluster data node it is necessary to install only the NDB Cluster - Storage engine RPM. To do so, copy this RPM to the data node host, and run the following command as the system root user, replacing the name shown for the RPM as necessary to match that of the RPM downloaded from the MySQL AB web site:

shell> rpm -Uhv MySQL-ndb-storage-4.1.25-0.glibc23.i386.rpm

The previous command installs the MySQL Cluster data node binary (ndbd) in the /usr/sbin directory.

Data node installation — building from source.  The only executable required on a data node host is ndbd (mysqld, for example, does not have to be present on the host machine). By default when doing a source build, this file is placed in the directory /usr/local/mysql/libexec. For installing on multiple data node hosts, only ndbd need be copied to the other host machine or machines. (This assumes that all data node hosts use the same architecture and operating system; otherwise you may need to compile separately for each different platform.) ndbd need not be in any particular location on the host's filesystem, as long as the location is known.

Management node installation — .tar.gz binary.  Installation of the management node does not require the mysqld binary. Only the binary for the management server is required, which can be found in the downloaded archive. You most likely want to install the management client as well; this can also be found in the .tar.gz archive. Again, we assume that you have placed this archive in /var/tmp.

As system root (that is, after using sudo, su root, or your system's equivalent for temporarily assuming the system administrator account's privileges), perform the following steps to install ndb_mgmd and ndb_mgm on the Cluster management node host:

  1. Change location to the /var/tmp directory, and extract the ndb_mgm and ndb_mgmd from the archive into a suitable directory such as /usr/local/bin:

    shell> cd /var/tmp
    shell> tar -zxvf mysql-4.1.25-pc-linux-gnu-i686.tar.gz
    shell> cd mysql-4.1.25-pc-linux-gnu-i686
    shell> cp /bin/ndb_mgm* /usr/local/bin


    (You can safely delete the directory created by unpacking the downloaded archive, and the files it contains, from /var/tmp once ndb_mgm and ndb_mgmd have been copied to the executables directory.)

  2. Change location to the directory into which you copied the files, and then make both of them executable:

    shell> cd /usr/local/bin
    shell> chmod +x ndb_mgm*


Management node installation — RPM file.  To install the MySQL Cluster management server, it is necessary only to use the NDB Cluster - Storage engine management RPM. Copy this RPM to the computer intended to host the management node, and then install it by running the following command as the system root user (replace the name shown for the RPM as necessary to match that of the Storage engine management RPM downloaded from the MySQL AB web site):

shell> rpm -Uhv MySQL-ndb-management-4.1.25-0.glibc23.i386.rpm

This installs the management server binary (ndb_mgmd) to the /usr/sbin directory.

You should also install the NDB management client, which is supplied by the Storage engine basic tools RPM. Copy this RPM to the same computer as the management node, and then install it by running the following command as the system root user (again, replace the name shown for the RPM as necessary to match that of the Storage engine basic tools RPM downloaded from the MySQL AB web site):

shell> rpm -Uhv MySQL-ndb-tools-4.1.25-0.glibc23.i386.rpm

The Storage engine basic tools RPM installs the MySQL Cluster management client (ndb_mgm) to the /usr/bin directory.

Management node installation — building from source.  When building from source and running the default make install, the management server binary (ndb_mgmd) is placed in /usr/local/mysql/libexec, while the management client binary (ndb_mgm) can be found in /usr/local/mysql/bin. Only ndb_mgmd is required to be present on a management node host; however, it is also a good idea to have ndb_mgm present on the same host machine. Neither of these executables requires a specific location on the host machine's filesystem.

In Section 15.2.3, “Multi-Computer Configuration”, we create configuration files for all of the nodes in our example Cluster.

15.2.3. Multi-Computer Configuration

For our four-node, four-host MySQL Cluster, it is necessary to write four configuration files, one per node host.

  • Each data node or SQL node requires a my.cnf file that provides two pieces of information: a connectstring that tells the node where to find the MGM node, and a line telling the MySQL server on this host (the machine hosting the data node) to run in NDB mode.

    For more information on connectstrings, see Section 15.3.4.2, “The Cluster Connectstring”.

  • The management node needs a config.ini file telling it how many replicas to maintain, how much memory to allocate for data and indexes on each data node, where to find the data nodes, where to save data to disk on each data node, and where to find any SQL nodes.

Configuring the Storage and SQL Nodes

The my.cnf file needed for the data nodes is fairly simple. The configuration file should be located in the /etc directory and can be edited using any text editor. (Create the file if it does not exist.) For example:

shell> vi /etc/my.cnf

We show vi being used here to create the file, but any text editor should work just as well.

For each data node and SQL node in our example setup, my.cnf should look like this:

# Options for mysqld process:
[mysqld]
ndbcluster                      # run NDB storage engine
ndb-connectstring=192.168.0.10  # location of management server

# Options for ndbd process:
[mysql_cluster]
ndb-connectstring=192.168.0.10  # location of management server

After entering the preceding information, save this file and exit the text editor. Do this for the machines hosting data node “A”, data node “B”, and the SQL node.

Important

Once you have started a mysqld process with the ndbcluster and ndb-connectstring parameters in the [mysqld] in the my.cnf file as shown previously, you cannot execute any CREATE TABLE or ALTER TABLE statements without having actually started the cluster. Otherwise, these statements will fail with an error. This is by design.

Configuring the management node.  The first step in configuring the MGM node is to create the directory in which the configuration file can be found and then to create the file itself. For example (running as root):

shell> mkdir /var/lib/mysql-cluster
shell> cd /var/lib/mysql-cluster
shell> vi config.ini

For our representative setup, the config.ini file should read as follows:

# Options affecting ndbd processes on all data nodes:
[ndbd default]
NoOfReplicas=2    # Number of replicas
DataMemory=80M    # How much memory to allocate for data storage
IndexMemory=18M   # How much memory to allocate for index storage
                  # For DataMemory and IndexMemory, we have used the
                  # default values. Since the "world" database takes up
                  # only about 500KB, this should be more than enough for
                  # this example Cluster setup.

# TCP/IP options:
[tcp default]
portnumber=2202   # This the default; however, you can use any
                  # port that is free for all the hosts in the cluster
                  # Note: It is recommended beginning with MySQL 5.0 that
                  # you do not specify the portnumber at all and simply allow
                  # the default value to be used instead

# Management process options:
[ndb_mgmd]
hostname=192.168.0.10           # Hostname or IP address of MGM node
datadir=/var/lib/mysql-cluster  # Directory for MGM node log files

# Options for data node "A":
[ndbd]
                                # (one [ndbd] section per data node)
hostname=192.168.0.30           # Hostname or IP address
datadir=/usr/local/mysql/data   # Directory for this data node's data files

# Options for data node "B":
[ndbd]
hostname=192.168.0.40           # Hostname or IP address
datadir=/usr/local/mysql/data   # Directory for this data node's data files

# SQL node options:
[mysqld]
hostname=192.168.0.20           # Hostname or IP address
                                # (additional mysqld connections can be
                                # specified for this node for various
                                # purposes such as running ndb_restore)

Note

The world database can be downloaded from http://dev.mysql.com/doc/, where it can be found listed under “Examples”.

After all the configuration files have been created and these minimal options have been specified, you are ready to proceed with starting the cluster and verifying that all processes are running. We discuss how this is done in Section 15.2.4, “Initial Startup”.

For more detailed information about the available MySQL Cluster configuration parameters and their uses, see Section 15.3.4, “Configuration File”, and Section 15.3, “MySQL Cluster Configuration”. For configuration of MySQL Cluster as relates to making backups, see Section 15.9.4, “Configuration for Cluster Backup”.

Note

The default port for Cluster management nodes is 1186; the default port for data nodes is 2202. In MySQL 4.1, ports for data nodes are allocated sequentially beginning with port 2202 and these ports must be available for the cluster to use.

15.2.4. Initial Startup

Starting the cluster is not very difficult after it has been configured. Each cluster node process must be started separately, and on the host where it resides. The management node should be started first, followed by the data nodes, and then finally by any SQL nodes:

  1. On the management host, issue the following command from the system shell to start the management node process:

    shell> ndb_mgmd -f /var/lib/mysql-cluster/config.ini


    Note

    ndb_mgmd must be told where to find its configuration file, using the -f or --config-file option. (See Section 15.6.3, “ndb_mgmd — The Management Server Process”, for details.)

    For additional options which can be used with ndb_mgmd, see Section 15.6.5, “Command Options for MySQL Cluster Processes”.

  2. On each of the data node hosts, run this command to start the ndbd process:

    shell> ndbd

  3. If you used RPM files to install MySQL on the cluster host where the SQL node is to reside, you can (and should) use the supplied startup script to start the MySQL server process on the SQL node. As mention previously, you must install the Server / Max RPM in addition to the Server RPM to obtain and run the mysqld-max server binary.

If all has gone well, and the cluster has been set up correctly, the cluster should now be operational. You can test this by invoking the ndb_mgm management node client. The output should look like that shown here, although you might see some slight differences in the output depending upon the exact version of MySQL that you are using:

shell> ndb_mgm
-- NDB Cluster -- Management Client --
ndb_mgm> SHOW
Connected to Management Server at: localhost:1186
Cluster Configuration
---------------------
[ndbd(NDB)]     2 node(s)
id=2    @192.168.0.30  (Version: 4.1.25, Nodegroup: 0, Master)
id=3    @192.168.0.40  (Version: 4.1.25, Nodegroup: 0)

[ndb_mgmd(MGM)] 1 node(s)
id=1    @192.168.0.10  (Version: 4.1.25)

[mysqld(SQL)]   1 node(s)
id=4   (Version: 4.1.25)

Note

The SQL node is referenced here as [mysqld(API)]. This is perfectly normal, and reflects the fact that the mysqld process is acting as a cluster API node.

You should now be ready to work with databases, tables, and data in MySQL Cluster. See Section 15.2.5, “Loading Sample Data and Performing Queries”, for a brief discussion.

15.2.5. Loading Sample Data and Performing Queries

Working with data in MySQL Cluster is not much different from doing so in MySQL without Cluster. There are two points to keep in mind:

  • For a table to be replicated in the cluster, it must use the NDBCLUSTER storage engine. To specify this, use the ENGINE=NDB or ENGINE=NDBCLUSTER table option. You can add this option when creating the table:

    CREATE TABLE tbl_name (col_name column_definitions) ENGINE=NDBCLUSTER;


    Alternatively, for an existing table that uses a different storage engine, use ALTER TABLE to change the table to use NDBCLUSTER:

    ALTER TABLE tbl_name ENGINE=NDBCLUSTER;

  • Each NDB table must have a primary key. If no primary key is defined by the user when a table is created, the NDBCLUSTER storage engine automatically generates a hidden one.

    Note

    This hidden key takes up space just as does any other table index. It is not uncommon to encounter problems due to insufficient memory for accommodating these automatically created indexes.)

If you are importing tables from an existing database using the output of mysqldump, you can open the SQL script in a text editor and add the ENGINE option to any table creation statements, or replace any existing ENGINE (or TYPE) options. Suppose that you have the world sample database on another MySQL server that does not support MySQL Cluster, and you want to export the City table:

shell> mysqldump --add-drop-table world City > city_table.sql

The resulting city_table.sql file will contain this table creation statement (and the INSERT statements necessary to import the table data):

DROP TABLE IF EXISTS `City`;
CREATE TABLE `City` (
  `ID` int(11) NOT NULL auto_increment,
  `Name` char(35) NOT NULL default '',
  `CountryCode` char(3) NOT NULL default '',
  `District` char(20) NOT NULL default '',
  `Population` int(11) NOT NULL default '0',
  PRIMARY KEY  (`ID`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1;

INSERT INTO `City` VALUES (1,'Kabul','AFG','Kabol',1780000);
INSERT INTO `City` VALUES (2,'Qandahar','AFG','Qandahar',237500);
INSERT INTO `City` VALUES (3,'Herat','AFG','Herat',186800);
(remaining INSERT statements omitted)

You need to make sure that MySQL uses the NDB storage engine for this table. There are two ways that this can be accomplished. One of these is to modify the table definition before importing it into the Cluster database. Using the City table as an example, modify the ENGINE option of the definition as follows:

DROP TABLE IF EXISTS `City`;
CREATE TABLE `City` (
  `ID` int(11) NOT NULL auto_increment,
  `Name` char(35) NOT NULL default '',
  `CountryCode` char(3) NOT NULL default '',
  `District` char(20) NOT NULL default '',
  `Population` int(11) NOT NULL default '0',
  PRIMARY KEY  (`ID`)
) ENGINE=NDBCLUSTER DEFAULT CHARSET=latin1;

INSERT INTO `City` VALUES (1,'Kabul','AFG','Kabol',1780000);
INSERT INTO `City` VALUES (2,'Qandahar','AFG','Qandahar',237500);
INSERT INTO `City` VALUES (3,'Herat','AFG','Herat',186800);
(remaining INSERT statements omitted)

This must be done for the definition of each table that is to be part of the clustered database. The easiest way to accomplish this is to do a search-and-replace on the file that contains the definitions and replace all instances of TYPE=engine_name or ENGINE=engine_name with ENGINE=NDBCLUSTER. If you do not want to modify the file, you can use the unmodified file to create the tables, and then use ALTER TABLE to change their storage engine. The particulars are given later in this section.

Assuming that you have already created a database named world on the SQL node of the cluster, you can then use the mysql command-line client to read city_table.sql, and create and populate the corresponding table in the usual manner:

shell> mysql world < city_table.sql

It is very important to keep in mind that the preceding command must be executed on the host where the SQL node is running (in this case, on the machine with the IP address 192.168.0.20).

To create a copy of the entire world database on the SQL node, use mysqldump on the non-cluster server to export the database to a file named world.sql; for example, in the /tmp directory. Then modify the table definitions as just described and import the file into the SQL node of the cluster like this:

shell> mysql world < /tmp/world.sql

If you save the file to a different location, adjust the preceding instructions accordingly.

It is important to note that NDBCLUSTER in MySQL 4.1 does not support autodiscovery of databases. (See Section 15.12, “Known Limitations of MySQL Cluster”.) This means that, once the world database and its tables have been created on one data node, you need to issue the CREATE DATABASE world statement followed by FLUSH TABLES on each SQL node in the cluster. This causes the node to recognize the database and read its table definitions.

Running SELECT queries on the SQL node is no different from running them on any other instance of a MySQL server. To run queries from the command line, you first need to log in to the MySQL Monitor in the usual way (specify the root password at the Enter password: prompt):

shell> mysql -u root -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1 to server version: 4.1.25

Type 'help;' or '\h' for help. Type '\c' to clear the buffer.

mysql>

We simply use the MySQL server's root account and assume that you have followed the standard security precautions for installing a MySQL server, including setting a strong root password. For more information, see Section 2.10.3, “Securing the Initial MySQL Accounts”.

It is worth taking into account that Cluster nodes do not make use of the MySQL privilege system when accessing one another. Setting or changing MySQL user accounts (including the root account) effects only applications that access the SQL node, not interaction between nodes. See Section 15.8.2, “MySQL Cluster and MySQL Privileges”, for more information.

If you did not modify the ENGINE clauses in the table definitions prior to importing the SQL script, you should run the following statements at this point:

mysql> USE world;
mysql> ALTER TABLE City ENGINE=NDBCLUSTER;
mysql> ALTER TABLE Country ENGINE=NDBCLUSTER;
mysql> ALTER TABLE CountryLanguage ENGINE=NDBCLUSTER;

Selecting a database and running a SELECT query against a table in that database is also accomplished in the usual manner, as is exiting the MySQL Monitor:

mysql> USE world;
mysql> SELECT Name, Population FROM City ORDER BY Population DESC LIMIT 5;
+-----------+------------+
| Name      | Population |
+-----------+------------+
| Bombay    |   10500000 |
| Seoul     |    9981619 |
| São Paulo |    9968485 |
| Shanghai  |    9696300 |
| Jakarta   |    9604900 |
+-----------+------------+
5 rows in set (0.34 sec)

mysql> \q
Bye

shell>

Applications that use MySQL can employ standard APIs to access NDB tables. It is important to remember that your application must access the SQL node, and not the management or data nodes. This brief example shows how we might execute the SELECT statement just shown by using the PHP 5.X mysqli extension running on a Web server elsewhere on the network:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
  "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
  <meta http-equiv="Content-Type"
        content="text/html; charset=iso-8859-1">
  <title>SIMPLE mysqli SELECT</title>
</head>
<body>
<?php
  # connect to SQL node:
  $link = new mysqli('192.168.0.20', 'root', 'root_password', 'world');
  # parameters for mysqli constructor are:
  #   host, user, password, database

  if( mysqli_connect_errno() )
    die("Connect failed: " . mysqli_connect_error());

  $query = "SELECT Name, Population
            FROM City
            ORDER BY Population DESC
            LIMIT 5";

  # if no errors...
  if( $result = $link->query($query) )
  {
?>
<table border="1" width="40%" cellpadding="4" cellspacing ="1">
  <tbody>
  <tr>
    <th width="10%">City</th>
    <th>Population</th>
  </tr>
<?
    # then display the results...
    while($row = $result->fetch_object())
      printf(<tr>\n  <td align=\"center\">%s</td><td>%d</td>\n</tr>\n",
              $row->Name, $row->Population);
?>
  </tbody
</table>
<?
  # ...and verify the number of rows that were retrieved
    printf("<p>Affected rows: %d</p>\n", $link->affected_rows);
  }
  else
    # otherwise, tell us what went wrong
    echo mysqli_error();

  # free the result set and the mysqli connection object
  $result->close();
  $link->close();
?>
</body>
</html>

We assume that the process running on the Web server can reach the IP address of the SQL node.

In a similar fashion, you can use the MySQL C API, Perl-DBI, Python-mysql, or MySQL AB's own Connectors to perform the tasks of data definition and manipulation just as you would normally with MySQL.

15.2.6. Safe Shutdown and Restart

To shut down the cluster, enter the following command in a shell on the machine hosting the management node:

shell> ndb_mgm -e shutdown

The -e option here is used to pass a command to the ndb_mgm client from the shell. (See Section 15.6.5, “Command Options for MySQL Cluster Processes”, for more information about this option.) The command causes the ndb_mgm, ndb_mgmd, and any ndbd processes to terminate gracefully. Any SQL nodes can be terminated using mysqladmin shutdown and other means.

To restart the cluster, run these commands:

  • On the management host (192.168.0.10 in our example setup):

    shell> ndb_mgmd -f /var/lib/mysql-cluster/config.ini

  • On each of the data node hosts (192.168.0.30 and 192.168.0.40):

    shell> ndbd

  • On the SQL host (192.168.0.20):

    shell> mysqld_safe &


In a production setting, it is usually not desirable to shut down the cluster completely. In many cases, even when making configuration changes, or performing upgrades to the cluster hardware or software (or both), which require shutting down individual host machines, it is possible to do so without shutting down the cluster as a whole by performing a rolling restart of the cluster. For more information about doing this, see Section 15.5.1, “Performing a Rolling Restart of the Cluster”.

15.3. MySQL Cluster Configuration

A MySQL server that is part of a MySQL Cluster differs in only one respect from a normal (non-clustered) MySQL server, in that it employs the NDBCLUSTER storage engine. This engine is also referred to simply as NDB, and the two forms of the name are synonymous.

To avoid unnecessary allocation of resources, the server is configured by default with the NDB storage engine disabled. To enable NDB, you must modify the server's my.cnf configuration file, or start the server with the --ndbcluster option.

For more information about --ndbcluster and other MySQL server options specific to MySQL Cluster, see Section 15.4.2, “MySQL Cluster-Related Command Options for mysqld.

The MySQL server is a part of the cluster, so it also must know how to access an MGM node to obtain the cluster configuration data. The default behavior is to look for the MGM node on localhost. However, should you need to specify that its location is elsewhere, this can be done in my.cnf or on the MySQL server command line. Before the NDB storage engine can be used, at least one MGM node must be operational, as well as any desired data nodes.

15.3.1. Building MySQL Cluster from Source Code

NDB, the Cluster storage engine, is available in binary distributions for Linux, Mac OS X, and Solaris. We are working to make Cluster run on all operating systems supported by MySQL, including Windows.

If you choose to build from a source tarball or one of the MySQL Cluster public development trees, be sure to use the --with-ndbcluster option when running configure. You can also use the BUILD/compile-pentium-max build script. Note that this script includes OpenSSL, so you must either have or obtain OpenSSL to build successfully, or else modify compile-pentium-max to exclude this requirement. Of course, you can also just follow the standard instructions for compiling your own binaries, and then perform the usual tests and installation procedure. See Section 2.9.3, “Installing from the Development Source Tree”.

You should also note that compile-pentium-max installs MySQL to the directory /usr/local/mysql, placing all MySQL Cluster executables, scripts, databases, and support files in subdirectories under this directory. If this is not what you desire, be sure to modify the script accordingly.

15.3.2. Installing the Cluster Software

In the next few sections, we assume that you are already familiar with installing MySQL, and here we cover only the differences between configuring MySQL Cluster and configuring MySQL without clustering. (See Chapter 2, Installing and Upgrading MySQL, if you require more information about the latter.)

You will find Cluster configuration easiest if you have already have all management and data nodes running first; this is likely to be the most time-consuming part of the configuration. Editing the my.cnf file is fairly straightforward, and this section will cover only any differences from configuring MySQL without clustering.

15.3.3. Quick Test Setup of MySQL Cluster

To familiarize you with the basics, we will describe the simplest possible configuration for a functional MySQL Cluster. After this, you should be able to design your desired setup from the information provided in the other relevant sections of this chapter.

First, you need to create a configuration directory such as /var/lib/mysql-cluster, by executing the following command as the system root user:

shell> mkdir /var/lib/mysql-cluster

In this directory, create a file named config.ini that contains the following information. Substitute appropriate values for HostName and DataDir as necessary for your system.

# file "config.ini" - showing minimal setup consisting of 1 data node,
# 1 management server, and 3 MySQL servers.
# The empty default sections are not required, and are shown only for
# the sake of completeness.
# Data nodes must provide a hostname but MySQL Servers are not required
# to do so.
# If you don't know the hostname for your machine, use localhost.
# The DataDir parameter also has a default value, but it is recommended to
# set it explicitly.
# Note: [db], [api], and [mgm] are aliases for [ndbd], [mysqld], and [ndb_mgmd],
# respectively. [db] is deprecated and should not be used in new installations.

[ndbd default]
NoOfReplicas= 1

[mysqld  default]
[ndb_mgmd default]
[tcp default]

[ndb_mgmd]
HostName= myhost.example.com

[ndbd]
HostName= myhost.example.com
DataDir= /var/lib/mysql-cluster

[mysqld]
[mysqld]
[mysqld]

You can now start the ndb_mgmd management server. By default, it attempts to read the config.ini file in its current working directory, so change location into the directory where the file is located and then invoke ndb_mgmd:

shell> cd /var/lib/mysql-cluster
shell> ndb_mgmd

Then start a single data node by running ndbd:

shell> ndbd

For command-line options which can be used when starting ndbd, see Section 15.6.5, “Command Options for MySQL Cluster Processes”.

By default, ndbd looks for the management server at localhost on port 1186. (Prior to MySQL 4.1.8, the default port was 2200.)

Note

If you have installed MySQL from a binary tarball, you will need to specify the path of the ndb_mgmd and ndbd servers explicitly. (Normally, these will be found in /usr/local/mysql/bin.)

Finally, change location to the MySQL data directory (usually /var/lib/mysql or /usr/local/mysql/data), and make sure that the my.cnf file contains the option necessary to enable the NDB storage engine:

[mysqld]
ndbcluster

You can now start the MySQL server as usual:

shell> mysqld_safe --user=mysql &

Wait a moment to make sure the MySQL server is running properly. If you see the notice mysql ended, check the server's .err file to find out what went wrong.

If all has gone well so far, you now can start using the cluster. Connect to the server and verify that the NDBCLUSTER storage engine is enabled:

shell> mysql
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1 to server version: 4.1.25-Max

Type 'help;' or '\h' for help. Type '\c' to clear the buffer.

mysql> SHOW ENGINES\G
...
*************************** 12. row ***************************
Engine: NDBCLUSTER
Support: YES
Comment: Clustered, fault-tolerant, memory-based tables
*************************** 13. row ***************************
Engine: NDB
Support: YES
Comment: Alias for NDBCLUSTER
...

The row numbers shown in the preceding example output may be different from those shown on your system, depending upon how your server is configured.

Try to create an NDBCLUSTER table:

shell> mysql
mysql> USE test;
Database changed

mysql> CREATE TABLE ctest (i INT) ENGINE=NDBCLUSTER;
Query OK, 0 rows affected (0.09 sec)

mysql> SHOW CREATE TABLE ctest \G
*************************** 1. row ***************************
       Table: ctest
Create Table: CREATE TABLE `ctest` (
  `i` int(11) default NULL
) ENGINE=ndbcluster DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

To check that your nodes were set up properly, start the management client:

shell> ndb_mgm

Use the SHOW command from within the management client to obtain a report on the cluster's status:

ndb_mgm> SHOW
Cluster Configuration
---------------------
[ndbd(NDB)]     1 node(s)
id=2    @127.0.0.1  (Version: 3.5.3, Nodegroup: 0, Master)

[ndb_mgmd(MGM)] 1 node(s)
id=1    @127.0.0.1  (Version: 3.5.3)

[mysqld(API)]   3 node(s)
id=3    @127.0.0.1  (Version: 3.5.3)
id=4 (not connected, accepting connect from any host)
id=5 (not connected, accepting connect from any host)

At this point, you have successfully set up a working MySQL Cluster. You can now store data in the cluster by using any table created with ENGINE=NDBCLUSTER or its alias ENGINE=NDB.

15.3.4. Configuration File

Configuring MySQL Cluster requires working with two files:

  • my.cnf: Specifies options for all MySQL Cluster executables. This file, with which you should be familiar with from previous work with MySQL, must be accessible by each executable running in the cluster.

  • config.ini: This file is read only by the MySQL Cluster management server, which then distributes the information contained therein to all processes participating in the cluster. config.ini contains a description of each node involved in the cluster. This includes configuration parameters for data nodes and configuration parameters for connections between all nodes in the cluster. For a quick reference to the sections that can appear in this file, and what sorts of configuration parameters may be placed in each section, see Sections of the config.ini File.

We are continuously making improvements in Cluster configuration and attempting to simplify this process. Although we strive to maintain backward compatibility, there may be times when introduce an incompatible change. In such cases we will try to let Cluster users know in advance if a change is not backward compatible. If you find such a change and we have not documented it, please report it in the MySQL bugs database using the instructions given in Section 1.7, “How to Report Bugs or Problems”.

15.3.4.1. Basic Example Configuration

To support MySQL Cluster, you will need to update my.cnf as shown in the following example. Note that the options shown here should not be confused with those that are used in config.ini files. You may also specify these parameters on the command line when invoking the executables.

From version 4.1.8 some simplifications in my.cnf were made, including new sections for ndbcluster executables. However, these should not be confused with those occurring in config.ini files. As always, you may specify these parameters when invoking those executables from the command line.

# my.cnf
# example additions to my.cnf for MySQL Cluster
# (valid from 4.1.8)

# enable ndbcluster storage engine, and provide connectstring for
# management server host (default port is 1186)
[mysqld]
ndbcluster
ndb-connectstring=ndb_mgmd.mysql.com


# provide connectstring for management server host (default port: 1186)
[ndbd]
connect-string=ndb_mgmd.mysql.com

# provide connectstring for management server host (default port: 1186)
[ndb_mgm]
connect-string=ndb_mgmd.mysql.com

# provide location of cluster configuration file
[ndb_mgmd]
config-file=/etc/config.ini

(For more information on connectstrings, see Section 15.3.4.2, “The Cluster Connectstring”.)

# my.cnf
# example additions to my.cnf for MySQL Cluster
# (will work on all versions)

# enable ndbcluster storage engine, and provide connectstring for management
# server host to the default port 1186
[mysqld]
ndbcluster
ndb-connectstring=ndb_mgmd.mysql.com:1186

Important

Once you have started a mysqld process with the ndbcluster and ndb-connectstring parameters in the [mysqld] in the my.cnf file as shown previously, you cannot execute any CREATE TABLE or ALTER TABLE statements without having actually started the cluster. Otherwise, these statements will fail with an error. This is by design.

Starting with MySQL 4.1.8, you may also use a separate [mysql_cluster] section in the cluster my.cnf file for settings to be read and used by all executables:

# cluster-specific settings
[mysql_cluster]
ndb-connectstring=ndb_mgmd.mysql.com:1186

For additional NDB variables that can be set in the my.cnf file, see Section 5.1.3, “System Variables”.

The configuration file is named config.ini by default. It is read by ndb_mgmd at startup and can be placed anywhere. Its location and name are specified by using --config-file=path_name on the ndb_mgmd command line. If the configuration file is not specified, ndb_mgmd by default tries to read a file named config.ini located in the current working directory.

Currently, the configuration file is in INI format, which consists of sections preceded by section headings (surrounded by square brackets), followed by the appropriate parameter names and values. One deviation from the standard INI format is that the parameter name and value can be separated by a colon (“:”) as well as the equals sign (“=”); however, the equals sign is preferred. Another deviation is that sections are not uniquely identified by section name. Instead, unique sections (such as two different nodes of the same type) are identified by a unique ID specified as a parameter within the section.

Default values are defined for most parameters, and can also be specified in config.ini. To create a default value section, simply add the word default to the section name. For example, an [ndbd] section contains parameters that apply to a particular data node, whereas an [ndbd default] section contains parameters that apply to all data nodes. Suppose that all data nodes should use the same data memory size. To configure them all, create an [ndbd default] section that contains a DataMemory line to specify the data memory size.

At a minimum, the configuration file must define the computers and nodes involved in the cluster and on which computers these nodes are located. An example of a simple configuration file for a cluster consisting of one management server, two data nodes and two MySQL servers is shown here:

# file "config.ini" - 2 data nodes and 2 SQL nodes
# This file is placed in the startup directory of ndb_mgmd (the
# management server)
# The first MySQL Server can be started from any host. The second
# can be started only on the host mysqld_5.mysql.com

[ndbd default]
NoOfReplicas= 2
DataDir= /var/lib/mysql-cluster

[ndb_mgmd]
Hostname= ndb_mgmd.mysql.com
DataDir= /var/lib/mysql-cluster

[ndbd]
HostName= ndbd_2.mysql.com

[ndbd]
HostName= ndbd_3.mysql.com

[mysqld]
[mysqld]
HostName= mysqld_5.mysql.com

Each node has its own section in the config.ini file. For example, this cluster has two data nodes, so the preceding configuration file contains two [ndbd] sections defining these nodes.

Note

Do not place comments on the same line as a section heading in the config.ini file; this causes the management server not to start because it cannot parse the configuration file in such cases.

Sections of the config.ini File

There are six different sections that you can use in the config.ini configuration file, as described in the following list:

You can define default values for each section. As of MySQL 4.1.5, all parameter names are case-insensitive, which differs from parameters specified in my.cnf or my.ini files.

15.3.4.2. The Cluster Connectstring

With the exception of the MySQL Cluster management server (ndb_mgmd), each node that is part of a MySQL Cluster requires a connectstring that points to the management server's location. This connectstring is used in establishing a connection to the management server as well as in performing other tasks depending on the node's role in the cluster. The syntax for a connectstring is as follows:

<connectstring> :=
    [<nodeid-specification>,]<host-specification>[,<host-specification>]

<nodeid-specification> := node_id

<host-specification> := host_name[:port_num]

node_id is an integer larger than 1 which identifies a node in config.ini. host_name is a string representing a valid Internet host name or IP address. port_num is an integer referring to a TCP/IP port number.

example 1 (long):    "nodeid=2,myhost1:1100,myhost2:1100,192.168.0.3:1200"
example 2 (short):   "myhost1"

All nodes will use localhost:1186 as the default connectstring value if none is provided. If port_num is omitted from the connectstring, the default port is 1186.

Note

Prior to MySQL 4.1.8, the default port was 2200.

This port should always be available on the network because it has been assigned by IANA for this purpose (see http://www.iana.org/assignments/port-numbers for details).

By listing multiple <host-specification> values, it is possible to designate several redundant management servers. A cluster node will attempt to contact successive management servers on each host in the order specified, until a successful connection has been established.

There are a number of different ways to specify the connectstring:

  • Each executable has its own command-line option which enables specifying the management server at startup. (See the documentation for the respective executable.)

  • Beginning with MySQL 4.1.8, it is also possible to set the connectstring for all nodes in the cluster at once by placing it in a [mysql_cluster] section in the management server's my.cnf file.

  • For backward compatibility, two other options are available, using the same syntax:

    1. Set the NDB_CONNECTSTRING environment variable to contain the connectstring.

    2. Write the connectstring for each executable into a text file named Ndb.cfg and place this file in the executable's startup directory.

    However, these are now deprecated and should not be used for new installations.

The recommended method for specifying the connectstring is to set it on the command line or in the my.cnf file for each executable.

The maximum length of a connectstring is 1024 characters.

15.3.4.3. Defining Cluster Computers

The [computer] section has no real significance other than serving as a way to avoid the need of defining host names for each node in the system. All parameters mentioned here are required.

  • Id

    This is an integer value, used to refer to the host computer elsewhere in the configuration file. This is not the same as the node ID.

  • HostName

    This is the computer's hostname or IP address.

15.3.4.4. Defining the Management Server

The [ndb_mgmd] section is used to configure the behavior of the management server. [mgm] can be used as an alias; the two section names are equivalent. All parameters in the following list are optional and assume their default values if omitted.

Note

If neither the ExecuteOnComputer nor the HostName parameter is present, the default value localhost will be assumed for both.

  • Id

    Each node in the cluster has a unique identity, which is represented by an integer value in the range 1 to 63 inclusive. This ID is used by all internal cluster messages for addressing the node.

  • ExecuteOnComputer

    This refers to the Id set for one of the computers defined in a [computer] section of the config.ini file.

  • PortNumber

    This is the port number on which the management server listens for configuration requests and management commands.

  • HostName

    Specifying this parameter defines the hostname of the computer on which the management node is to reside. To specify a hostname other than localhost, either this parameter or ExecuteOnComputer is required.

  • LogDestination

    This parameter specifies where to send cluster logging information. There are three options in this regard — CONSOLE, SYSLOG, and FILE — with FILE being the default:

    • CONSOLE outputs the log to stdout:

      CONSOLE

    • SYSLOG sends the log to a syslog facility, possible values being one of auth, authpriv, cron, daemon, ftp, kern, lpr, mail, news, syslog, user, uucp, local0, local1, local2, local3, local4, local5, local6, or local7.

      Note

      Not every facility is necessarily supported by every operating system.

      SYSLOG:facility=syslog

    • FILE pipes the cluster log output to a regular file on the same machine. The following values can be specified:

      • filename: The name of the log file.

      • maxsize: The maximum size (in bytes) to which the file can grow before logging rolls over to a new file. When this occurs, the old log file is renamed by appending .N to the filename, where N is the next number not yet used with this name.

      • maxfiles: The maximum number of log files.

      FILE:filename=cluster.log,maxsize=1000000,maxfiles=6


      The default value for the FILE parameter is FILE:filename=ndb_node_id_cluster.log,maxsize=1000000,maxfiles=6, where node_id is the ID of the node.

    It is possible to specify multiple log destinations separated by semicolons as shown here:

    CONSOLE;SYSLOG:facility=local0;FILE:filename=/var/log/mgmd

  • ArbitrationRank

    This parameter is used to define which nodes can act as arbitrators. Only management nodes and SQL nodes can be arbitrators. ArbitrationRank can take one of the following values:

    • 0: The node will never be used as an arbitrator.

    • 1: The node has high priority; that is, it will be preferred as an arbitrator over low-priority nodes.

    • 2: Indicates a low-priority node which be used as an arbitrator only if a node with a higher priority is not available for that purpose.

    Normally, the management server should be configured as an arbitrator by setting its ArbitrationRank to 1 (the default value) and that of all SQL nodes to 0.

  • ArbitrationDelay

    An integer value which causes the management server's responses to arbitration requests to be delayed by that number of milliseconds. By default, this value is 0; it is normally not necessary to change it.

  • DataDir

    This specifies the directory where output files from the management server will be placed. These files include cluster log files, process output files, and the daemon's process ID (PID) file. (For log files, this location can be overridden by setting the FILE parameter for LogDestination as discussed previously in this section.)

    The default value for this parameter is the directory in which ndb_mgmd is located.

15.3.4.5. Defining Data Nodes

The [ndbd] and[ndbd default]sections are used to configure the behavior of the cluster's data nodes. There are many parameters which control buffer sizes, pool sizes, timeouts, and so forth. The only mandatory parameters are:

  • Either ExecuteOnComputer or HostName, which must be defined in the local [ndbd] section.

  • The parameter NoOfReplicas, which must be defined in the[ndbd default]section, as it is common to all Cluster data nodes.

Most data node parameters are set in the [ndbd default] section. Only those parameters explicitly stated as being able to set local values are allowed to be changed in the [ndbd] section. Where present, HostName, Id and ExecuteOnComputer must be defined in the local [ndbd] section, and not in any other section of config.ini. In other words, settings for these parameters are specific to one data node.

For those parameters affecting memory usage or buffer sizes, it is possible to use K, M, or G as a suffix to indicate units of 1024, 1024×1024, or 1024×1024×1024. (For example, 100K means 100 × 1024 = 102400.) Parameter names and values are currently case-sensitive.

Identifying data nodes.  The Id value (that is, the data node identifier) can be allocated on the command line when the node is started or in the configuration file.

  • Id

    This is the node ID used as the address of the node for all cluster internal messages. For data nodes, this is an integer in the range 1 to 49 inclusive. Each node in the cluster must have a unique identity.

  • ExecuteOnComputer

    This refers to the Id set for one of the computers defined in a [computer] section.

  • HostName

    Specifying this parameter defines the hostname of the computer on which the data node is to reside. To specify a hostname other than localhost, either this parameter or ExecuteOnComputer is required.

  • ServerPort (OBSOLETE)

    Each node in the cluster uses a port to connect to other nodes. This port is used also for non-TCP transporters in the connection setup phase. The default port is allocated dynamically in such a way as to ensure that no two nodes on the same computer receive the same port number, so it should not normally be necessary to specify a value for this parameter.

  • NoOfReplicas

    This global parameter can be set only in the [ndbd default] section, and defines the number of replicas for each table stored in the cluster. This parameter also specifies the size of node groups. A node group is a set of nodes all storing the same information.

    Node groups are formed implicitly. The first node group is formed by the set of data nodes with the lowest node IDs, the next node group by the set of the next lowest node identities, and so on. By way of example, assume that we have 4 data nodes and that NoOfReplicas is set to 2. The four data nodes have node IDs 2, 3, 4 and 5. Then the first node group is formed from nodes 2 and 3, and the second node group by nodes 4 and 5. It is important to configure the cluster in such a manner that nodes in the same node groups are not placed on the same computer because a single hardware failure would cause the entire cluster to fail.

    If no node IDs are provided, the order of the data nodes will be the determining factor for the node group. Whether or not explicit assignments are made, they can be viewed in the output of the management client's SHOW statement.

    There is no default value for NoOfReplicas; the maximum possible value is 4. Currently, only the values 1 and 2 are actually supported (see Bug#18621).

    Important

    Setting NoOfReplicas to 1 means that there is only a single copy of all Cluster data; in this case, the loss of a single data node causes the cluster to fail because there are no additional copies of the data stored by that node.

    The value for this parameter must divide evenly into the number of data nodes in the cluster. For example, if there are two data nodes, then NoOfReplicas must be equal to either 1 or 2, since 2/3 and 2/4 both yield fractional values; if there are four data nodes, then NoOfReplicas must be equal to 1, 2, or 4.

  • DataDir

    This parameter specifies the directory where trace files, log files, pid files and error logs are placed.

  • FileSystemPath

    This parameter specifies the directory where all files created for metadata, REDO logs, UNDO logs and data files are placed. The default is the directory specified by DataDir.

    Note

    This directory must exist before the ndbd process is initiated.

    The recommended directory hierarchy for MySQL Cluster includes /var/lib/mysql-cluster, under which a directory for the node's filesystem is created. The name of this subdirectory contains the node ID. For example, if the node ID is 2, this subdirectory is named ndb_2_fs.

  • BackupDataDir

    This parameter specifies the directory in which backups are placed. If omitted, the default backup location is the directory named BACKUP under the location specified by the FileSystemPath parameter. (See above.)

Data Memory, Index Memory, and String Memory

DataMemory and IndexMemory are [ndbd] parameters specifying the size of memory segments used to store the actual records and their indexes. In setting values for these, it is important to understand how DataMemory and IndexMemory are used, as they usually need to be updated to reflect actual usage by the cluster:

  • DataMemory

    This parameter defines the amount of space (in bytes) available for storing database records. The entire amount specified by this value is allocated in memory, so it is extremely important that the machine has sufficient physical memory to accommodate it.

    The memory allocated by DataMemory is used to store both the actual records and indexes. Each record is currently of fixed size. (Even VARCHAR columns are stored as fixed-width columns.) There is a 16-byte overhead on each record; an additional amount for each record is incurred because it is stored in a 32KB page with 128 byte page overhead (see below). There is also a small amount wasted per page due to the fact that each record is stored in only one page.

    The maximum record size is currently 8052 bytes.

    The memory space defined by DataMemory is also used to store ordered indexes, which use about 10 bytes per record. Each table row is represented in the ordered index. A common error among users is to assume that all indexes are stored in the memory allocated by IndexMemory, but this is not the case: Only primary key and unique hash indexes use this memory; ordered indexes use the memory allocated by DataMemory. However, creating a primary key or unique hash index also creates an ordered index on the same keys, unless you specify USING HASH in the index creation statement. This can be verified by running ndb_desc -d db_name table_name in the management client.

    The memory space allocated by DataMemory consists of 32KB pages, which are allocated to table fragments. Each table is normally partitioned into the same number of fragments as there are data nodes in the cluster. Thus, for each node, there are the same number of fragments as are set in NoOfReplicas.

    In addition, due to the way in which new pages are allocated when the capacity of the current page is exhausted, there is an additional overhead of approximately 18.75%. When more DataMemory is required, more than one new page is allocated, according to the following formula:

    number of new pages = FLOOR(number of current pages × 0.1875) + 1


    For example, if 15 pages are currently allocated to a given table and an insert to this table requires additional storage space, the number of new pages allocated to the table is FLOOR(15 × 0.1875) + 1 = FLOOR(2.8125) + 1 = 2 + 1 = 3. Now 15 + 3 = 18 memory pages are allocated to the table. When the last of these 18 pages becomes full, FLOOR(18 × 0.1875) + 1 = FLOOR(3.3750) + 1 = 3 + 1 = 4 new pages are allocated, so the total number of pages allocated to the table is now 22.

    Once a page has been allocated, it is currently not possible to return it to the pool of free pages, except by deleting the table. (This also means that DataMemory pages, once allocated to a given table, cannot be used by other tables.) Performing a node recovery also compresses the partition because all records are inserted into empty partitions from other live nodes.

    The DataMemory memory space also contains UNDO information: For each update, a copy of the unaltered record is allocated in the DataMemory. There is also a reference to each copy in the ordered table indexes. Unique hash indexes are updated only when the unique index columns are updated, in which case a new entry in the index table is inserted and the old entry is deleted upon commit. For this reason, it is also necessary to allocate enough memory to handle the largest transactions performed by applications using the cluster. In any case, performing a few large transactions holds no advantage over using many smaller ones, for the following reasons:

    • Large transactions are not any faster than smaller ones

    • Large transactions increase the number of operations that are lost and must be repeated in event of transaction failure

    • Large transactions use more memory

    The default value for DataMemory is 80MB; the minimum is 1MB. There is no maximum size, but in reality the maximum size has to be adapted so that the process does not start swapping when the limit is reached. This limit is determined by the amount of physical RAM available on the machine and by the amount of memory that the operating system may commit to any one process. 32-bit operating systems are generally limited to 2–4GB per process; 64-bit operating systems can use more. For large databases, it may be preferable to use a 64-bit operating system for this reason.

  • IndexMemory

    This parameter controls the amount of storage used for hash indexes in MySQL Cluster. Hash indexes are always used for primary key indexes, unique indexes, and unique constraints. Note that when defining a primary key and a unique index, two indexes will be created, one of which is a hash index used for all tuple accesses as well as lock handling. It is also used to enforce unique constraints.

    The size of the hash index is 25 bytes per record, plus the size of the primary key. For primary keys larger than 32 bytes another 8 bytes is added.

    The default value for IndexMemory is 18MB. The minimum is 1MB.

  • StringMemory

    This parameter determines how much memory is allocated for strings such as table names, and is specified in an [ndbd] or [ndbd default] section of the config.ini file. A value between 0 and 100 inclusive is interpreted as a percent of the maximum default value, which is calculated based on a number of factors including the number of tables, maximum table name size, maximum size of .FRM files, MaxNoOfTriggers, maximum column name size, and maximum default column value. In general it is safe to assume that the maximum default value is approximately 5 MB for a MySQL Cluster having 1000 tables.

    A value greater than 100 is interpreted as a number of bytes.

    In MySQL 4.1, the default value is 100 — that is, 100 percent of the default maximum, or roughly 5 MB. It is possible to reduce this value safely, but it should never be less than 5 percent. If you encounter Error 773 Out of string memory, please modify StringMemory config parameter: Permanent error: Schema error, this means that means that you have set the StringMemory value too low. 25 (25 percent) is not excessive, and should prevent this error from recurring in all but the most extreme conditions, as when there are hundreds or thousands of NDB tables with names whose lengths and columns whose number approach their permitted maximums.

The following example illustrates how memory is used for a table. Consider this table definition:

CREATE TABLE example (
  a INT NOT NULL,
  b INT NOT NULL,
  c INT NOT NULL,
  PRIMARY KEY(a),
  UNIQUE(b)
) ENGINE=NDBCLUSTER;

For each record, there are 12 bytes of data plus 12 bytes overhead. Having no nullable columns saves 4 bytes of overhead. In addition, we have two ordered indexes on columns a and b consuming roughly 10 bytes each per record. There is a primary key hash index on the base table using roughly 29 bytes per record. The unique constraint is implemented by a separate table with b as primary key and a as a column. This other table consumes an additional 29 bytes of index memory per record in the example table as well 8 bytes of record data plus 12 bytes of overhead.

Thus, for one million records, we need 58MB for index memory to handle the hash indexes for the primary key and the unique constraint. We also need 64MB for the records of the base table and the unique index table, plus the two ordered index tables.

You can see that hash indexes takes up a fair amount of memory space; however, they provide very fast access to the data in return. They are also used in MySQL Cluster to handle uniqueness constraints.

Currently, the only partitioning algorithm is hashing and ordered indexes are local to each node. Thus, ordered indexes cannot be used to handle uniqueness constraints in the general case.

An important point for both IndexMemory and DataMemory is that the total database size is the sum of all data memory and all index memory for each node group. Each node group is used to store replicated information, so if there are four nodes with two replicas, there will be two node groups. Thus, the total data memory available is 2 × DataMemory for each data node.

It is highly recommended that DataMemory and IndexMemory be set to the same values for all nodes. Data distribution is even over all nodes in the cluster, so the maximum amount of space available for any node can be no greater than that of the smallest node in the cluster.

DataMemory and IndexMemory can be changed, but decreasing either of these can be risky; doing so can easily lead to a node or even an entire MySQL Cluster that is unable to restart due to there being insufficient memory space. Increasing these values should be acceptable, but it is recommended that such upgrades are performed in the same manner as a software upgrade, beginning with an update of the configuration file, and then restarting the management server followed by restarting each data node in turn.

Updates do not increase the amount of index memory used. Inserts take effect immediately; however, rows are not actually deleted until the transaction is committed.

Transaction parameters.  The next three [ndbd] parameters that we discuss are important because they affect the number of parallel transactions and the sizes of transactions that can be handled by the system. MaxNoOfConcurrentTransactions sets the number of parallel transactions possible in a node. MaxNoOfConcurrentOperations sets the number of records that can be in update phase or locked simultaneously.

Both of these parameters (especially MaxNoOfConcurrentOperations) are likely targets for users setting specific values and not using the default value. The default value is set for systems using small transactions, to ensure that these do not use excessive memory.

  • MaxNoOfConcurrentTransactions

    Each cluster data node requires a transaction record for each active transaction in the cluster. The task of coordinating transactions is distributed among all of the data nodes. The total number of transaction records in the cluster is the number of transactions in any given node times the number of nodes in the cluster.

    Transaction records are allocated to individual MySQL servers. Each connection to a MySQL server requires at least one transaction record, plus an additional transaction object per table accessed by that connection. This means that a reasonable minimum for this parameter is

    MaxNoOfConcurrentTransactions =
        (maximum number of tables accessed in any single transaction + 1)
        * number of cluster SQL nodes


    For example, suppose that there are 4 SQL nodes using the cluster. A single join involving 5 tables requires 6 transaction records; if there are 5 such joins in a transaction, then 5 * 6 = 30 transaction records are required for this transaction, per MySQL server, or 30 * 4 = 120 transaction records total.

    This parameter must be set to the same value for all cluster data nodes. This is due to the fact that, when a data node fails, the oldest surviving node re-creates the transaction state of all transactions that were ongoing in the failed node.

    Changing the value of MaxNoOfConcurrentTransactions requires a complete shutdown and restart of the cluster.

    The default value is 4096.

  • MaxNoOfConcurrentOperations

    It is a good idea to adjust the value of this parameter according to the size and number of transactions. When performing transactions of only a few operations each and not involving a great many records, there is no need to set this parameter very high. When performing large transactions involving many records need to set this parameter higher.

    Records are kept for each transaction updating cluster data, both in the transaction coordinator and in the nodes where the actual updates are performed. These records contain state information needed to find UNDO records for rollback, lock queues, and other purposes.

    This parameter should be set to the number of records to be updated simultaneously in transactions, divided by the number of cluster data nodes. For example, in a cluster which has four data nodes and which is expected to handle 1,000,000 concurrent updates using transactions, you should set this value to 1000000 / 4 = 250000.

    Read queries which set locks also cause operation records to be created. Some extra space is allocated within individual nodes to accommodate cases where the distribution is not perfect over the nodes.

    When queries make use of the unique hash index, there are actually two operation records used per record in the transaction. The first record represents the read in the index table and the second handles the operation on the base table.

    The default value is 32768.

    This parameter actually handles two values that can be configured separately. The first of these specifies how many operation records are to be placed with the transaction coordinator. The second part specifies how many operation records are to be local to the database.

    A very large transaction performed on an eight-node cluster requires as many operation records in the transaction coordinator as there are reads, updates, and deletes involved in the transaction. However, the operation records of the are spread over all eight nodes. Thus, if it is necessary to configure the system for one very large transaction, it is a good idea to configure the two parts separately. MaxNoOfConcurrentOperations will always be used to calculate the number of operation records in the transaction coordinator portion of the node.

    It is also important to have an idea of the memory requirements for operation records. These consume about 1KB per record.

  • MaxNoOfLocalOperations

    By default, this parameter is calculated as 1.1 × MaxNoOfConcurrentOperations. This fits systems with many simultaneous transactions, none of them being very large. If there is a need to handle one very large transaction at a time and there are many nodes, it is a good idea to override the default value by explicitly specifying this parameter.

Transaction temporary storage.  The next set of [ndbd] parameters is used to determine temporary storage when executing a statement that is part of a Cluster transaction. All records are released when the statement is completed and the cluster is waiting for the commit or rollback.

The default values for these parameters are adequate for most situations. However, users with a need to support transactions involving large numbers of rows or operations may need to increase these values to enable better parallelism in the system, whereas users whose applications require relatively small transactions can decrease the values to save memory.

  • MaxNoOfConcurrentIndexOperations

    For queries using a unique hash index, another temporary set of operation records is used during a query's execution phase. This parameter sets the size of that pool of records. Thus, this record is allocated only while executing a part of a query. As soon as this part has been executed, the record is released. The state needed to handle aborts and commits is handled by the normal operation records, where the pool size is set by the parameter MaxNoOfConcurrentOperations.

    The default value of this parameter is 8192. Only in rare cases of extremely high parallelism using unique hash indexes should it be necessary to increase this value. Using a smaller value is possible and can save memory if the DBA is certain that a high degree of parallelism is not required for the cluster.

  • MaxNoOfFiredTriggers

    The default value of MaxNoOfFiredTriggers is 4000, which is sufficient for most situations. In some cases it can even be decreased if the DBA feels certain the need for parallelism in the cluster is not high.

    A record is created when an operation is performed that affects a unique hash index. Inserting or deleting a record in a table with unique hash indexes or updating a column that is part of a unique hash index fires an insert or a delete in the index table. The resulting record is used to represent this index table operation while waiting for the original operation that fired it to complete. This operation is short-lived but can still require a large number of records in its pool for situations with many parallel write operations on a base table containing a set of unique hash indexes.

  • TransactionBufferMemory

    The memory affected by this parameter is used for tracking operations fired when updating index tables and reading unique indexes. This memory is used to store the key and column information for these operations. It is only very rarely that the value for this parameter needs to be altered from the default.

    The default value for TransactionBufferMemory is 1MB.

    Normal read and write operations use a similar buffer, whose usage is even more short-lived. The compile-time parameter ZATTRBUF_FILESIZE (found in ndb/src/kernel/blocks/Dbtc/Dbtc.hpp) set to 4000 × 128 bytes (500KB). A similar buffer for key information, ZDATABUF_FILESIZE (also in Dbtc.hpp) contains 4000 × 16 = 62.5KB of buffer space. Dbtc is the module that handles transaction coordination.

Scans and buffering.  There are additional [ndbd] parameters in the Dblqh module (in ndb/src/kernel/blocks/Dblqh/Dblqh.hpp) that affect reads and updates. These include ZATTRINBUF_FILESIZE, set by default to 10000 × 128 bytes (1250KB) and ZDATABUF_FILE_SIZE, set by default to 10000*16 bytes (roughly 156KB) of buffer space. To date, there have been neither any reports from users nor any results from our own extensive tests suggesting that either of these compile-time limits should be increased.

  • MaxNoOfConcurrentScans

    This parameter is used to control the number of parallel scans that can be performed in the cluster. Each transaction coordinator can handle the number of parallel scans defined for this parameter. Each scan query is performed by scanning all partitions in parallel. Each partition scan uses a scan record in the node where the partition is located, the number of records being the value of this parameter times the number of nodes. The cluster should be able to sustain MaxNoOfConcurrentScans scans concurrently from all nodes in the cluster.

    Scans are actually performed in two cases. The first of these cases occurs when no hash or ordered indexes exists to handle the query, in which case the query is executed by performing a full table scan. The second case is encountered when there is no hash index to support the query but there is an ordered index. Using the ordered index means executing a parallel range scan. The order is kept on the local partitions only, so it is necessary to perform the index scan on all partitions.

    The default value of MaxNoOfConcurrentScans is 256. The maximum value is 500.

  • MaxNoOfLocalScans

    Specifies the number of local scan records if many scans are not fully parallelized. If the number of local scan records is not provided, it is calculated as the product of MaxNoOfConcurrentScans and the number of data nodes in the system. The minimum value is 32.

  • BatchSizePerLocalScan

    This parameter is used to calculate the number of lock records used to handle concurrent scan operations.

    The default value is 64; this value has a strong connection to the ScanBatchSize defined in the SQL nodes.

  • LongMessageBuffer

    This is an internal buffer used for passing messages within individual nodes and between nodes. Although it is highly unlikely that this would need to be changed, it is configurable. By default, it is set to 1MB.

Logging and checkpointing.  These [ndbd] parameters control log and checkpoint behavior.

  • NoOfFragmentLogFiles

    This parameter sets the number of REDO log files for the node, and thus the amount of space allocated to REDO logging. Because the REDO log files are organized in a ring, it is extremely important that the first and last log files in the set (sometimes referred to as the “head” and “tail” log files, respectively) do not meet. When these approach one another too closely, the node begins aborting all transactions encompassing updates due to a lack of room for new log records.

    A REDO log record is not removed until three local checkpoints have been completed since that log record was inserted. Checkpointing frequency is determined by its own set of configuration parameters discussed elsewhere in this chapter.

    How these parameters interact and proposals for how to configure them are discussed in Section 15.3.6, “Configuring Parameters for Local Checkpoints”.

    The default parameter value is 8, which means 8 sets of 4 16MB files for a total of 512MB. In other words, REDO log space is always allocated in blocks of 64MB. In scenarios requiring a great many updates, the value for NoOfFragmentLogFiles may need to be set as high as 300 or even higher to provide sufficient space for REDO logs.

    If the checkpointing is slow and there are so many writes to the database that the log files are full and the log tail cannot be cut without jeopardizing recovery, all updating transactions are aborted with internal error code 410 (Out of log file space temporarily). This condition prevails until a checkpoint has completed and the log tail can be moved forward.

    Important

    This parameter cannot be changed “on the fly”; you must restart the node using --initial. If you wish to change this value for all data nodes in a running cluster, you can do so via a rolling node restart (using --initial when starting each data node).

  • MaxNoOfOpenFiles

    This parameter sets a ceiling on how many internal threads to allocate for open files. Any situation requiring a change in this parameter should be reported as a bug.

    The default value is 40.

  • MaxNoOfSavedMessages

    This parameter sets the maximum number of trace files that are kept before overwriting old ones. Trace files are generated when, for whatever reason, the node crashes.

    The default is 25 trace files.

Metadata objects.  The next set of [ndbd] parameters defines pool sizes for metadata objects, used to define the maximum number of attributes, tables, indexes, and trigger objects used by indexes, events, and replication between clusters. Note that these act merely as “suggestions” to the cluster, and any that are not specified revert to the default values shown.

  • MaxNoOfAttributes

    Defines the number of attributes that can be defined in the cluster.

    The default value is 1000, with the minimum possible value being 32. The maximum is 4294967039. Each attribute consumes around 200 bytes of storage per node due to the fact that all metadata is fully replicated on the servers.

    When setting MaxNoOfAttributes, it is important to prepare in advance for any ALTER TABLE statements that you might want to perform in the future. This is due to the fact, during the execution of ALTER TABLE on a Cluster table, 3 times the number of attributes as in the original table are used. For example, if a table requires 100 attributes, and you want to be able to alter it later, you need to set the value of MaxNoOfAttributes to 300. Assuming that you can create all desired tables without any problems, a good rule of thumb is to add two times the number of attributes in the largest table to MaxNoOfAttributes to be sure. You should also verify that this number is sufficient by trying an actual ALTER TABLE after configuring the parameter. If this is not successful, increase MaxNoOfAttributes by another multiple of the original value and test it again.

  • MaxNoOfTables

    A table object is allocated for each table, unique hash index, and ordered index. This parameter sets the maximum number of table objects for the cluster as a whole.

    For each attribute that has a BLOB data type an extra table is used to store most of the BLOB data. These tables also must be taken into account when defining the total number of tables.

    The default value of this parameter is 128. The minimum is 8 and the maximum is 1600. Each table object consumes approximately 20KB per node.

  • MaxNoOfOrderedIndexes

    For each ordered index in the cluster, an object is allocated describing what is being indexed and its storage segments. By default, each index so defined also defines an ordered index. Each unique index and primary key has both an ordered index and a hash index.

    The default value of this parameter is 128. Each object consumes approximately 10KB of data per node.

  • MaxNoOfUniqueHashIndexes

    For each unique index that is not a primary key, a special table is allocated that maps the unique key to the primary key of the indexed table. By default, an ordered index is also defined for each unique index. To prevent this, you must specify the USING HASH option when defining the unique index.

    The default value is 64. Each index consumes approximately 15KB per node.

  • MaxNoOfTriggers

    Internal update, insert, and delete triggers are allocated for each unique hash index. (This means that three triggers are created for each unique hash index.) However, an ordered index requires only a single trigger object. Backups also use three trigger objects for each normal table in the cluster.

    This parameter sets the maximum number of trigger objects in the cluster.

    The default value is 768.

  • MaxNoOfIndexes

    This parameter was deprecated in MySQL 4.1.5. In MySQL 4.1.6 and newer versions; you should use MaxNoOfOrderedIndexes and MaxNoOfUniqueHashIndexes instead.

    This parameter is used only by unique hash indexes. There needs to be one record in this pool for each unique hash index defined in the cluster.

    The default value of this parameter is 128.

Boolean parameters.  The behavior of data nodes is also affected by a set of [ndbd] parameters taking on boolean values. These parameters can each be specified as TRUE by setting them equal to 1 or Y, and as FALSE by setting them equal to 0 or N.

  • LockPagesInMainMemory

    For a number of operating systems, including Solaris and Linux, it is possible to lock a process into memory and so avoid any swapping to disk. This can be used to help guarantee the cluster's real-time characteristics.

    This feature is disabled by default.

  • StopOnError

    This parameter specifies whether an ndbd process should exit or perform an automatic restart when an error condition is encountered.

    This feature is enabled by default.

  • Diskless

    It is possible to specify MySQL Cluster tables as diskless, meaning that tables are not checkpointed to disk and that no logging occurs. Such tables exist only in main memory. A consequence of using diskless tables is that neither the tables nor the records in those tables survive a crash. However, when operating in diskless mode, it is possible to run ndbd on a diskless computer.

    Important

    This feature causes the entire cluster to operate in diskless mode.

    When this feature is enabled, Cluster online backup is disabled. In addition, a partial start of the cluster is not possible.

    Diskless is disabled by default.

  • RestartOnErrorInsert

    This feature is accessible only when building the debug version where it is possible to insert errors in the execution of individual blocks of code as part of testing.

    This feature is disabled by default.

Controlling Timeouts, Intervals, and Disk Paging

There are a number of [ndbd] parameters specifying timeouts and intervals between various actions in Cluster data nodes. Most of the timeout values are specified in milliseconds. Any exceptions to this are mentioned where applicable.

  • TimeBetweenWatchDogCheck

    To prevent the main thread from getting stuck in an endless loop at some point, a “watchdog” thread checks the main thread. This parameter specifies the number of milliseconds between checks. If the process remains in the same state after three checks, the watchdog thread terminates it.

    This parameter can easily be changed for purposes of experimentation or to adapt to local conditions. It can be specified on a per-node basis although there seems to be little reason for doing so.

    The default timeout is 4000 milliseconds (4 seconds).

  • StartPartialTimeout

    This parameter specifies how long the Cluster waits for all data nodes to come up before the cluster initialization routine is invoked. This timeout is used to avoid a partial Cluster startup whenever possible.

    The default value is 30000 milliseconds (30 seconds). 0 disables the timeout, in which case the cluster may start only if all nodes are available.

  • StartPartitionedTimeout

    If the cluster is ready to start after waiting for StartPartialTimeout milliseconds but is still possibly in a partitioned state, the cluster waits until this timeout has also passed.

    The default timeout is 60000 milliseconds (60 seconds).

  • StartFailureTimeout

    If a data node has not completed its startup sequence within the time specified by this parameter, the node startup fails. Setting this parameter to 0 (the default value) means that no data node timeout is applied.

    For nonzero values, this parameter is measured in milliseconds. For data nodes containing extremely large amounts of data, this parameter should be increased. For example, in the case of a data node containing several gigabytes of data, a period as long as 10–15 minutes (that is, 600000 to 1000000 milliseconds) might be required to perform a node restart.

  • HeartbeatIntervalDbDb

    One of the primary methods of discovering failed nodes is by the use of heartbeats. This parameter states how often heartbeat signals are sent and how often to expect to receive them. After missing three heartbeat intervals in a row, the node is declared dead. Thus, the maximum time for discovering a failure through the heartbeat mechanism is four times the heartbeat interval.

    The default heartbeat interval is 1500 milliseconds (1.5 seconds). This parameter must not be changed drastically and should not vary widely between nodes. If one node uses 5000 milliseconds and the node watching it uses 1000 milliseconds, obviously the node will be declared dead very quickly. This parameter can be changed during an online software upgrade, but only in small increments.

  • HeartbeatIntervalDbApi

    Each data node sends heartbeat signals to each MySQL server (SQL node) to ensure that it remains in contact. If a MySQL server fails to send a heartbeat in time it is declared “dead,” in which case all ongoing transactions are completed and all resources released. The SQL node cannot reconnect until all activities initiated by the previous MySQL instance have been completed. The three-heartbeat criteria for this determination are the same as described for HeartbeatIntervalDbDb.

    The default interval is 1500 milliseconds (1.5 seconds). This interval can vary between individual data nodes because each data node watches the MySQL servers connected to it, independently of all other data nodes.

  • TimeBetweenLocalCheckpoints

    This parameter is an exception in that it does not specify a time to wait before starting a new local checkpoint; rather, it is used to ensure that local checkpoints are not performed in a cluster where relatively few updates are taking place. In most clusters with high update rates, it is likely that a new local checkpoint is started immediately after the previous one has been completed.

    The size of all write operations executed since the start of the previous local checkpoints is added. This parameter is also exceptional in that it is specified as the base-2 logarithm of the number of 4-byte words, so that the default value 20 means 4MB (4 × 220) of write operations, 21 would mean 8MB, and so on up to a maximum value of 31, which equates to 8GB of write operations.

    All the write operations in the cluster are added together. Setting TimeBetweenLocalCheckpoints to 6 or less means that local checkpoints will be executed continuously without pause, independent of the cluster's workload.

  • TimeBetweenGlobalCheckpoints

    When a transaction is committed, it is committed in main memory in all nodes on which the data is mirrored. However, transaction log records are not flushed to disk as part of the commit. The reasoning behind this behavior is that having the transaction safely committed on at least two autonomous host machines should meet reasonable standards for durability.

    It is also important to ensure that even the worst of cases — a complete crash of the cluster — is handled properly. To guarantee that this happens, all transactions taking place within a given interval are put into a global checkpoint, which can be thought of as a set of committed transactions that has been flushed to disk. In other words, as part of the commit process, a transaction is placed in a global checkpoint group. Later, this group's log records are flushed to disk, and then the entire group of transactions is safely committed to disk on all computers in the cluster.

    This parameter defines the interval between global checkpoints. The default is 2000 milliseconds.

  • TimeBetweenInactiveTransactionAbortCheck

    Timeout handling is performed by checking a timer on each transaction once for every interval specified by this parameter. Thus, if this parameter is set to 1000 milliseconds, every transaction will be checked for timing out once per second.

    The default value is 1000 milliseconds (1 second).

  • TransactionInactiveTimeout

    This parameter states the maximum time that is permitted to lapse between operations in the same transaction before the transaction is aborted.

    The default for this parameter is zero (no timeout). For a real-time database that needs to ensure that no transaction keeps locks for too long, this parameter should be set to a relatively small value. The unit is milliseconds.

  • TransactionDeadlockDetectionTimeout

    When a node executes a query involving a transaction, the node waits for the other nodes in the cluster to respond before continuing. A failure to respond can occur for any of the following reasons:

    • The node is “dead

    • The operation has entered a lock queue

    • The node requested to perform the action could be heavily overloaded.

    This timeout parameter states how long the transaction coordinator waits for query execution by another node before aborting the transaction, and is important for both node failure handling and deadlock detection. In MySQL 4.1.18 and earlier versions, setting it too high could cause undesirable behavior in situations involving deadlocks and node failure. Beginning with MySQL 4.1.19, active transactions occurring during node failures are actively aborted by the Cluster Transaction Coordinator, and so high settings are no longer an issue with this parameter.

    The default timeout value is 1200 milliseconds (1.2 seconds).

  • NoOfDiskPagesToDiskAfterRestartTUP

    When executing a local checkpoint, the algorithm flushes all data pages to disk. Merely doing so as quickly as possible without any moderation is likely to impose excessive loads on processors, networks, and disks. To control the write speed, this parameter specifies how many pages per 100 milliseconds are to be written. In this context, a “page” is defined as 8KB. This parameter is specified in units of 80KB per second, so setting NoOfDiskPagesToDiskAfterRestartTUP to a value of 20 entails writing 1.6MB in data pages to disk each second during a local checkpoint. This value includes the writing of UNDO log records for data pages. That is, this parameter handles the limitation of writes from data memory. UNDO log records for index pages are handled by the parameter NoOfDiskPagesToDiskAfterRestartACC. (See the entry for IndexMemory for information about index pages.)

    In short, this parameter specifies how quickly to execute local checkpoints. It operates in conjunction with NoOfFragmentLogFiles, DataMemory, and IndexMemory.

    For more information about the interaction between these parameters and possible strategies for choosing appropriate values for them, see Section 15.3.6, “Configuring Parameters for Local Checkpoints”.

    The default value is 40 (3.2MB of data pages per second).

  • NoOfDiskPagesToDiskAfterRestartACC

    This parameter uses the same units as NoOfDiskPagesToDiskAfterRestartTUP and acts in a similar fashion, but limits the speed of writing index pages from index memory.

    The default value of this parameter is 20 (1.6MB of index memory pages per second).

  • NoOfDiskPagesToDiskDuringRestartTUP

    This parameter is used in a fashion similar to NoOfDiskPagesToDiskAfterRestartTUP and NoOfDiskPagesToDiskAfterRestartACC, only it does so with regard to local checkpoints executed in the node when a node is restarting. A local checkpoint is always performed as part of all node restarts. During a node restart it is possible to write to disk at a higher speed than at other times, because fewer activities are being performed in the node.

    This parameter covers pages written from data memory.

    The default value is 40 (3.2MB per second).

  • NoOfDiskPagesToDiskDuringRestartACC

    Controls the number of index memory pages that can be written to disk during the local checkpoint phase of a node restart.

    As with NoOfDiskPagesToDiskAfterRestartTUP and NoOfDiskPagesToDiskAfterRestartACC, values for this parameter are expressed in terms of 8KB pages written per 100 milliseconds (80KB/second).

    The default value is 20 (1.6MB per second).

  • ArbitrationTimeout

    This parameter specifies how long data nodes wait for a response from the arbitrator to an arbitration message. If this is exceeded, the network is assumed to have split.

    The default value is 1000 milliseconds (1 second).

Buffering and logging.  Several [ndbd] configuration parameters corresponding to former compile-time parameters were introduced in MySQL 4.1.5. These enable the advanced user to have more control over the resources used by node processes and to adjust various buffer sizes at need.

These buffers are used as front ends to the file system when writing log records to disk. If the node is running in diskless mode, these parameters can be set to their minimum values without penalty due to the fact that disk writes are “faked” by the NDB storage engine's filesystem abstraction layer.

  • UndoIndexBuffer

    The UNDO index buffer, whose size is set by this parameter, is used during local checkpoints. The NDB storage engine uses a recovery scheme based on checkpoint consistency in conjunction with an operational REDO log. To produce a consistent checkpoint without blocking the entire system for writes, UNDO logging is done while performing the local checkpoint. UNDO logging is activated on a single table fragment at a time. This optimization is possible because tables are stored entirely in main memory.

    The UNDO index buffer is used for the updates on the primary key hash index. Inserts and deletes rearrange the hash index; the NDB storage engine writes UNDO log records that map all physical changes to an index page so that they can be undone at system restart. It also logs all active insert operations for each fragment at the start of a local checkpoint.

    Reads and updates set lock bits and update a header in the hash index entry. These changes are handled by the page-writing algorithm to ensure that these operations need no UNDO logging.

    This buffer is 2MB by default. The minimum value is 1MB, which is sufficient for most applications. For applications doing extremely large or numerous inserts and deletes together with large transactions and large primary keys, it may be necessary to increase the size of this buffer. If this buffer is too small, the NDB storage engine issues internal error code 677 (Index UNDO buffers overloaded).

    Important

    It is not safe to decrease the value of this parameter during a rolling restart.

  • UndoDataBuffer

    This parameter sets the size of the UNDO data buffer, which performs a function similar to that of the UNDO index buffer, except the UNDO data buffer is used with regard to data memory rather than index memory. This buffer is used during the local checkpoint phase of a fragment for inserts, deletes, and updates.

    Because UNDO log entries tend to grow larger as more operations are logged, this buffer is also larger than its index memory counterpart, with a default value of 16MB.

    This amount of memory may be unnecessarily large for some applications. In such cases, it is possible to decrease this size to a minimum of 1MB.

    It is rarely necessary to increase the size of this buffer. If there is such a need, it is a good idea to check whether the disks can actually handle the load caused by database update activity. A lack of sufficient disk space cannot be overcome by increasing the size of this buffer.

    If this buffer is too small and gets congested, the NDB storage engine issues internal error code 891 (Data UNDO buffers overloaded).

    Important

    It is not safe to decrease the value of this parameter during a rolling restart.

  • RedoBuffer

    All update activities also need to be logged. The REDO log makes it possible to replay these updates whenever the system is restarted. The NDB recovery algorithm uses a “fuzzy” checkpoint of the data together with the UNDO log, and then applies the REDO log to play back all changes up to the restoration point.

    RedoBuffer sets the size of the buffer inwhich the REDO log is written, and is 8MB by default. The minimum value is 1MB.

    If this buffer is too small, the NDB storage engine issues error code 1221 (REDO log buffers overloaded).

    Important

    It is not safe to decrease the value of this parameter during a rolling restart.

Controlling log messages.  In managing the cluster, it is very important to be able to control the number of log messages sent for various event types to stdout. For each event category, there are 16 possible event levels (numbered 0 through 15). Setting event reporting for a given event category to level 15 means all event reports in that category are sent to stdout; setting it to 0 means that there will be no event reports made in that category.

By default, only the startup message is sent to stdout, with the remaining event reporting level defaults being set to 0. The reason for this is that these messages are also sent to the management server's cluster log.

An analogous set of levels can be set for the management client to determine which event levels to record in the cluster log.

  • LogLevelStartup

    The reporting level for events generated during startup of the process.

    The default level is 1.

  • LogLevelShutdown

    The reporting level for events generated as part of graceful shutdown of a node.

    The default level is 0.

  • LogLevelStatistic

    The reporting level for statistical events such as number of primary key reads, number of updates, number of inserts, information relating to buffer usage, and so on.

    The default level is 0.

  • LogLevelCheckpoint

    The reporting level for events generated by local and global checkpoints.

    The default level is 0.

  • LogLevelNodeRestart

    The reporting level for events generated during node restart.

    The default level is 0.

  • LogLevelConnection

    The reporting level for events generated by connections between cluster nodes.

    The default level is 0.

  • LogLevelError

    The reporting level for events generated by errors and warnings by the cluster as a whole. These errors do not cause any node failure but are still considered worth reporting.

    The default level is 0.

  • LogLevelInfo

    The reporting level for events generated for information about the general state of the cluster.

    The default level is 0.

Backup parameters.  The [ndbd] parameters discussed in this section define memory buffers set aside for execution of online backups.

  • BackupDataBufferSize

    In creating a backup, there are two buffers used for sending data to the disk. The backup data buffer is used to fill in data recorded by scanning a node's tables. Once this buffer has been filled to the level specified as BackupWriteSize (see below), the pages are sent to disk. While flushing data to disk, the backup process can continue filling this buffer until it runs out of space. When this happens, the backup process pauses the scan and waits until some disk writes have completed freed up memory so that scanning may continue.

    The default value is 2MB.

  • BackupLogBufferSize

    The backup log buffer fulfills a role similar to that played by the backup data buffer, except that it is used for generating a log of all table writes made during execution of the backup. The same principles apply for writing these pages as with the backup data buffer, except that when there is no more space in the backup log buffer, the backup fails. For that reason, the size of the backup log buffer must be large enough to handle the load caused by write activities while the backup is being made. See Section 15.9.4, “Configuration for Cluster Backup”.

    The default value for this parameter should be sufficient for most applications. In fact, it is more likely for a backup failure to be caused by insufficient disk write speed than it is for the backup log buffer to become full. If the disk subsystem is not configured for the write load caused by applications, the cluster is unlikely to be able to perform the desired operations.

    It is preferable to configure cluster nodes in such a manner that the processor becomes the bottleneck rather than the disks or the network connections.

    The default value is 2MB.

  • BackupMemory

    This parameter is simply the sum of BackupDataBufferSize and BackupLogBufferSize.

    The default value is 2MB + 2MB = 4MB.

    Important

    If BackupDataBufferSize and BackupLogBufferSize taken together exceed 4MB, then this parameter must be set explicitly in the config.ini file to their sum.

  • BackupWriteSize

    This parameter specifies the default size of messages written to disk by the backup log and backup data buffers.

    The default value is 32KB.

  • BackupMaxWriteSize

    This parameter specifies the maximum size of messages written to disk by the backup log and backup data buffers.

    The default value is 256KB.

Important

When specifying these parameters, the following relationships must hold true. Otherwise, the data node will be unable to start.

  • BackupDataBufferSize >= BackupWriteSize + 188KB

  • BackupLogBufferSize >= BackupWriteSize + 16KB

  • BackupMaxWriteSize >= BackupWriteSize

15.3.4.6. Defining SQL and Other API Nodes

The [mysqld] and [api] sections in the config.ini file define the behavior of the MySQL servers (SQL nodes) and other applications (API nodes) used to access cluster data. None of the parameters shown is required. If no computer or host name is provided, any host can use this SQL or API node.

Generally speaking, a [mysqld] section is used to indicate a MySQL server providing an SQL interface to the cluster, and an [api] section is used for applications other than mysqld processes accessing cluster data, but the two designations are actually synonomous; you can, for instance, list parameters for a MySQL server acting as an SQL node in an [api] section.

Note

For a discussion of MySQL server options for MySQL Cluster, see Section 15.4.2, “MySQL Cluster-Related Command Options for mysqld; for information about MySQL server system variables relating to MySQL Cluster, see Section 15.4.3, “MySQL Cluster System Variables”.

  • Id

    The Id value is used to identify the node in all cluster internal messages. It must be an integer in the range 1 to 63 inclusive, and must be unique among all node IDs within the cluster.

  • ExecuteOnComputer

    This refers to the Id set for one of the computers (hosts) defined in a [computer] section of the configuration file.

  • HostName

    Specifying this parameter defines the hostname of the computer on which the SQL node (API node) is to reside. To specify a hostname, either this parameter or ExecuteOnComputer is required.

    If no HostName or ExecuteOnComputer is specified in a given [mysql] or [api] section of the config.ini file, then an SQL or API node may connect using the corresponding “slot” from any host which can establish a network connection to the management server host machine. This differs from the default behavior for data nodes, where localhost is assumed for HostName unless otherwise specified.

  • ArbitrationRank

    This parameter defines which nodes can act as arbitrators. Both MGM nodes and SQL nodes can be arbitrators. A value of 0 means that the given node is never used as an arbitrator, a value of 1 gives the node high priority as an arbitrator, and a value of 2 gives it low priority. A normal configuration uses the management server as arbitrator, setting its ArbitrationRank to 1 (the default) and those for all SQL nodes to 0.

  • ArbitrationDelay

    Setting this parameter to any other value than 0 (the default) means that responses by the arbitrator to arbitration requests will be delayed by the stated number of milliseconds. It is usually not necessary to change this value.

  • BatchByteSize

    For queries that are translated into full table scans or range scans on indexes, it is important for best performance to fetch records in properly sized batches. It is possible to set the proper size both in terms of number of records (BatchSize) and in terms of bytes (BatchByteSize). The actual batch size is limited by both parameters.

    The speed at which queries are performed can vary by more than 40% depending upon how this parameter is set. In future releases, MySQL Server will make educated guesses on how to set parameters relating to batch size, based on the query type.

    This parameter is measured in bytes and by default is equal to 32KB.

  • BatchSize

    This parameter is measured in number of records and is by default set to 64. The maximum size is 992.

  • MaxScanBatchSize

    The batch size is the size of each batch sent from each data node. Most scans are performed in parallel to protect the MySQL Server from receiving too much data from many nodes in parallel; this parameter sets a limit to the total batch size over all nodes.

    The default value of this parameter is set to 256KB. Its maximum size is 16MB.

You can obtain some information from a MySQL server running as a Cluster SQL node using SHOW STATUS in the mysql client, as shown here:

mysql> SHOW STATUS LIKE 'ndb%';
+-----------------------------+---------------+
| Variable_name               | Value         |
+-----------------------------+---------------+
| Ndb_cluster_node_id         | 5             |
| Ndb_config_from_host        | 192.168.0.112 |
| Ndb_config_from_port        | 1186          |
| Ndb_number_of_storage_nodes | 4             |
+-----------------------------+---------------+
4 rows in set (0.02 sec)

For information about these Cluster system status variables, see Section 5.1.6, “Status Variables”.

15.3.4.7. Cluster TCP/IP Connections

TCP/IP is the default transport mechanism for establishing connections in MySQL Cluster. It is normally not necessary to define connections because Cluster automatically set ups a connection between each of the data nodes, between each data node and all MySQL server nodes, and between each data node and the management server. (For one exception to this rule, see Section 15.3.4.8, “TCP/IP Connections Using Direct Connections”.) [tcp] sections in the config.ini file explicitly define TCP/IP connections between nodes in the cluster.

It is necessary to define a connection only to override the default connection parameters. In that case, it is necessary to define at least NodeId1, NodeId2, and the parameters to change.

Important

Any [tcp] sections in the config.ini file should be listed last, following any other sections in the file. This is not required for a [tcp default] section. This is a known issue with the way in which the config.ini file is read by the cluster management server.

It is also possible to change the default values for these parameters by setting them in the [tcp default] section.

  • NodeId1, NodeId2

    To identify a connection between two nodes it is necessary to provide their node IDs in the [tcp] section of the configuration file. These are the same unique Id values for each of these nodes as described in Section 15.3.4.6, “Defining SQL and Other API Nodes”.

  • SendBufferMemory

    TCP transporters use a buffer to store all messages before performing the send call to the operating system. When this buffer reaches 64KB its contents are sent; these are also sent when a round of messages have been executed. To handle temporary overload situations it is also possible to define a bigger send buffer.

    The default size of the send buffer is 256 KB; 2MB is recommended in most situations in which it is necessary to set this parameter. The minimum size is 64 KB; the theoretical maximum is 4 GB.

  • SendSignalId

    To be able to retrace a distributed message datagram, it is necessary to identify each message. When this parameter is set to Y, message IDs are transported over the network. This feature is disabled by default in production builds, and enabled in -debug builds.

  • Checksum

    This parameter is a boolean parameter (enabled by setting it to Y or 1, disabled by setting it to N or 0). It is disabled by default. When it is enabled, checksums for all messages are calculated before they placed in the send buffer. This feature ensures that messages are not corrupted while waiting in the send buffer, or by the transport mechanism.

  • PortNumber (OBSOLETE)

    This formerly specified the port number to be used for listening for connections from other nodes. This parameter should no longer be used.

  • ReceiveBufferMemory

    Specifies the size of the buffer used when receiving data from the TCP/IP socket.

    The default value of this parameter from its of 64 KB; 1M is recommended in most situations where the size of the receive buffer needs to be set. The minimum possible value is 16K; the theoretical maximum is 4G.

15.3.4.8. TCP/IP Connections Using Direct Connections

Setting up a cluster using direct connections between data nodes requires specifying explicitly the crossover IP addresses of the data nodes so connected in the [tcp] section of the cluster config.ini file.

In the following example, we envision a cluster with at least four hosts, one each for a management server, an SQL node, and two data nodes. The cluster as a whole resides on the 172.23.72.* subnet of a LAN. In addition to the usual network connections, the two data nodes are connected directly using a standard crossover cable, and communicate with one another directly using IP addresses in the 1.1.0.* address range as shown:

# Management Server
[ndb_mgmd]
Id=1
HostName=172.23.72.20

# SQL Node
[mysqld]
Id=2
HostName=172.23.72.21

# Data Nodes
[ndbd]
Id=3
HostName=172.23.72.22

[ndbd]
Id=4
HostName=172.23.72.23

# TCP/IP Connections
[tcp]
NodeId1=3
NodeId2=4
HostName1=1.1.0.1
HostName2=1.1.0.2

The HostNameN parameter, where N is an integer, is used only when specifying direct TCP/IP connections.

The use of direct connections between data nodes can improve the cluster's overall efficiency by allowing the data nodes to bypass an Ethernet device such as a switch, hub, or router, thus cutting down on the cluster's latency. It is important to note that to take the best advantage of direct connections in this fashion with more than two data nodes, you must have a direct connection between each data node and every other data node in the same node group.

15.3.4.9. Shared-Memory Connections

Beginning with MySQL 4.1.9-max, MySQL Cluster will attempt to use the shared memory transporter and configure it automatically where possible. (In previous versions of MySQL Cluster, shared memory segments functioned only when the -max binary was built using --with-ndb-shm.) [shm] sections in the config.ini file explicitly define shared-memory connections between nodes in the cluster. When explicitly defining shared memory as the connection method, it is necessary to define at least NodeId1, NodeId2 and ShmKey. All other parameters have default values that should work well in most cases.

Important

SHM functionality is considered experimental only. It is not officially supported in MySQL 4.1. This means that you must determine for yourself or by using our free resources (forums, mailing lists) whether it can be made to work correctly in your specific case.

  • NodeId1, NodeId2

    To identify a connection between two nodes it is necessary to provide node identifiers for each of them, as NodeId1 and NodeId2.

  • ShmKey

    When setting up shared memory segments, a node ID, expressed as an integer, is used to identify uniquely the shared memory segment to use for the communication. There is no default value.

  • ShmSize

    Each SHM connection has a shared memory segment where messages between nodes are placed by the sender and read by the reader. The size of this segment is defined by ShmSize. The default value is 1MB.

  • SendSignalId

    To retrace the path of a distributed message, it is necessary to provide each message with a unique identifier. Setting this parameter to Y causes these message IDs to be transported over the network as well. This feature is disabled by default in production builds, and enabled in -debug builds.

  • Checksum

    This parameter is a boolean (Y/N) parameter which is disabled by default. When it is enabled, checksums for all messages are calculated before being placed in the send buffer.

    This feature prevents messages from being corrupted while waiting in the send buffer. It also serves as a check against data being corrupted during transport.

15.3.4.10. SCI Transport Connections

[sci] sections in the config.ini file explicitly define SCI (Scalable Coherent Interface) connections between cluster nodes. Using SCI transporters in MySQL Cluster is supported only when the MySQL-Max binaries are built using --with-ndb-sci=/your/path/to/SCI. The path should point to a directory that contains at a minimum lib and include directories containing SISCI libraries and header files. (See Section 15.11, “Using High-Speed Interconnects with MySQL Cluster” for more information about SCI.)

In addition, SCI requires specialized hardware.

It is strongly recommended to use SCI Transporters only for communication between ndbd processes. Note also that using SCI Transporters means that the ndbd processes never sleep. For this reason, SCI Transporters should be used only on machines having at least two CPUs dedicated for use by ndbd processes. There should be at least one CPU per ndbd process, with at least one CPU left in reserve to handle operating system activities.

  • NodeId1, NodeId2

    To identify a connection between two nodes it is necessary to provide node identifiers for each of them, as NodeId1 and NodeId2.

  • Host1SciId0

    This identifies the SCI node ID on the first Cluster node (identified by NodeId1).

  • Host1SciId1

    It is possible to set up SCI Transporters for failover between two SCI cards which then should use separate networks between the nodes. This identifies the node ID and the second SCI card to be used on the first node.

  • Host2SciId0

    This identifies the SCI node ID on the second Cluster node (identified by NodeId2).

  • Host2SciId1

    When using two SCI cards to provide failover, this parameter identifies the second SCI card to be used on the second node.

  • SharedBufferSize

    Each SCI transporter has a shared memory segment used for communication between the two nodes. Setting the size of this segment to the default value of 1MB should be sufficient for most applications. Using a smaller value can lead to problems when performing many parallel inserts; if the shared buffer is too small, this can also result in a crash of the ndbd process.

  • SendLimit

    A small buffer in front of the SCI media stores messages before transmitting them over the SCI network. By default, this is set to 8KB. Our benchmarks show that performance is best at 64KB but 16KB reaches within a few percent of this, and there was little if any advantage to increasing it beyond 8KB.

  • SendSignalId

    To trace a distributed message it is necessary to identify each message uniquely. When this parameter is set to Y, message IDs are transported over the network. This feature is disabled by default in production builds, and enabled in -debug builds.

  • Checksum

    This parameter is a boolean value, and is disabled by default. When Checksum is enabled, checksums are calculated for all messages before they are placed in the send buffer. This feature prevents messages from being corrupted while waiting in the send buffer. It also serves as a check against data being corrupted during transport.

15.3.5. Overview of Cluster Configuration Parameters

The next three sections provide summary tables of MySQL Cluster configuration parameters used in the config.ini file to govern the cluster's functioning. Each table lists the parameters for one of the Cluster node process types (ndbd, ndb_mgmd, and mysqld), and includes the parameter's type as well as its default, mimimum, and maximum values as applicable.

It is also stated what type of restart is required (node restart or system restart) — and whether the restart must be done with --initial — to change the value of a given configuration parameter. This information is provided in each table's Restart Type column, which contains one of the values shown in this list:

  • N: Node Restart

  • IN: Initial Node Restart

  • S: System Restart

  • IS: Initial System Restart

When performing a node restart or an initial node restart, all of the cluster's data nodes must be restarted in turn (also referred to as a rolling restart). It is possible to update cluster configuration parameters marked N or IN online — that is, without shutting down the cluster — in this fashion. An initial node restart requires restarting each ndbd process with the --initial option.

A system restart requires a complete shutdown and restart of the entire cluster. An initial system restart requires taking a backup of the cluster, wiping the cluster filesystem after shutdown, and then restoring from the backup following the restart.

In any cluster restart, all of the cluster's management servers must be restarted in order for them to read the updated configuration parameter values.

Important

Values for numeric cluster parameters can generally be increased without any problems, although it is advisable to do so progressively, making such adjustments in relatively small increments. However, decreasing the values of such parameters — particularly those relating to memory usage and disk space — is not to be undertaken lightly, and it is recommended that you do so only following careful planning and testing. In addition, it is the generally the case that parameters relating to memory and disk usage which can be raised using a simple node restart require an initial node restart to be lowered.

Because some of these parameters can be used for configuring more than one type of cluster node, they may appear in more than one of the tables.

(Note that 4294967039 — which often appears as a maximum value in these tables — is equal to 232 – 28 – 1.)

15.3.5.1. Data Node Configuration Parameters

The following table provides information about parameters used in the [ndbd] or [ndbd default] sections of a config.ini file for configuring MySQL Cluster data nodes. For detailed descriptions and other additional information about each of these parameters, see Section 15.3.4.5, “Defining Data Nodes”.

Restart Type Column Values

  • N: Node Restart

  • IN: Initial Node Restart

  • S: System Restart

  • IS: Initial System Restart

See Section 15.3.5, “Overview of Cluster Configuration Parameters”, for additional explanations of these abbreviations.

Parameter NameType/UnitsDefault ValueMinimum ValueMaximum ValueRestart Type
ArbitrationTimeoutmilliseconds1000104294967039N
BackupDataBufferSizebytes2M04294967039N
BackupDataDirstringFileSystemPath/BACKUPN/AN/AIN
BackupLogBufferSizebytes2M04294967039N
BackupMemorybytes4M04294967039N
BackupWriteSizebytes32K2K4294967039N
BackupMaxWriteSizebytes256K2K4294967039N
BatchSizePerLocalScaninteger641992N
DataDirstring/var/lib/mysql-clusterN/AN/AIN
DataMemorybytes80M1M1024G (subject to available system RAM and size of IndexMemory)N
Disklesstrue|false (1|0)001IS
ExecuteOnComputerinteger
FileSystemPathstringvalue specified for DataDirN/AN/AIN
HeartbeatIntervalDbApimilliseconds15001004294967039N
HeartbeatIntervalDbDbmilliseconds1500104294967039N
HostNamestringlocalhostN/AN/AS
IdintegerNone149N
IndexMemorybytes18M1M1024G (subject to available system RAM and size of DataMemory)N
LockPagesInMainMemorytrue|false (1|0)001N
LogLevelCheckpointinteger0015IN
LogLevelConnectioninteger0015N
LogLevelErrorinteger0015N
LogLevelInfointeger0015N
LogLevelNodeRestartinteger0015N
LogLevelShutdowninteger0015N
LogLevelStartupinteger1015N
LogLevelStatisticinteger0015N
LongMessageBufferbytes1M512K4294967039N
MaxNoOfAttributesinteger1000324294967039N
MaxNoOfConcurrentIndexOperationsinteger8K04294967039N
MaxNoOfConcurrentOperationsinteger32768324294967039N
MaxNoOfConcurrentScansinteger2562500N
MaxNoOfConcurrentTransactionsinteger4096324294967039N
MaxNoOfFiredTriggersinteger400004294967039N
MaxNoOfIndexes (DEPRECATED — use MaxNoOfOrderedIndexes or MaxNoOfUniqueHashIndexes instead)integer12804294967039N
MaxNoOfLocalOperationsintegerUNDEFINED324294967039N
MaxNoOfLocalScansintegerUNDEFINED (see description)324294967039N
MaxNoOfOrderedIndexesinteger12804294967039N
MaxNoOfSavedMessagesinteger2504294967039N
MaxNoOfTablesinteger12884294967039N
MaxNoOfTriggersinteger76804294967039N
MaxNoOfUniqueHashIndexesinteger6404294967039N
NoOfDiskPagesToDiskAfterRestartACCinteger (number of 8KB pages per 100 milliseconds)20 (= 20 * 80KB = 1.6MB/second)14294967039N
NoOfDiskPagesToDiskAfterRestartTUPinteger (number of 8KB pages per 100 milliseconds)40 (= 40 * 80KB = 3.2MB/second)14294967039N
NoOfDiskPagesToDiskDuringRestartACCinteger (number of 8KB pages per 100 milliseconds)20 (= 20 * 80KB = 1.6MB/second)14294967039N
NoOfDiskPagesToDiskDuringRestartTUPinteger (number of 8KB pages per 100 milliseconds)40 (= 40 * 80KB = 3.2MB/second)14294967039N
NoOfFragmentLogFilesinteger814294967039IN
NoOfReplicasintegerNone14 (theoretical); 2 (supported)IS
RedoBufferbytes8M1M4294967039N
RestartOnErrorInsert (DEBUG BUILDS ONLY)true|false (1|0)001N
ServerPort (OBSOLETE)integer118604294967039N
StartFailureTimeoutmilliseconds004294967039N
StartPartialTimeoutmilliseconds3000004294967039N
StartPartitionedTimeoutmilliseconds6000004294967039N
StopOnErrortrue|false (1|0)101N
TimeBetweenGlobalCheckpointsmilliseconds20001032000N
TimeBetweenInactiveTransactionAbortCheckmilliseconds100010004294967039N
TimeBetweenLocalCheckpointsinteger (number of 4-byte words as a base-2 logarithm)20 (= 4 * 220 = 4MB write operations)031N
TimeBetweenWatchDogCheckmilliseconds4000704294967039N
TransactionBufferMemorybytes1M1K4294967039N
TransactionDeadlockDetectionTimeoutmilliseconds1200504294967039N
TransactionInactiveTimeoutmilliseconds004294967039N
UndoDataBufferbytes16M1M4294967039N
UndoIndexBufferbytes2M1M4294967039N

15.3.5.2. Management Node Configuration Parameters

The following table provides information about parameters used in the [ndb_mgmd] or [mgm] sections of a config.ini file for configuring MySQL Cluster management nodes. For detailed descriptions and other additional information about each of these parameters, see Section 15.3.4.4, “Defining the Management Server”.

Restart Type Column Values

  • N: Node Restart

  • IN: Initial Node Restart

  • S: System Restart

  • IS: Initial System Restart

See Section 15.3.5, “Overview of Cluster Configuration Parameters”, for additional explanations of these abbreviations.

Parameter NameType/UnitsDefault ValueMinimum ValueMaximum ValueRestart Type
ArbitrationDelaymilliseconds004294967039N
ArbitrationRankinteger102N
DataDirstring./ (ndb_mgmd directory)N/AN/AIN
ExecuteOnComputerinteger
HostNamestringlocalhostN/AN/AIN
IdintegerNone163IN
LogDestinationCONSOLE, SYSLOG, or FILEFILE (see Section 15.3.4.4, “Defining the Management Server”)N/AN/AN
PortNumberinteger1186 (prior to MySQL 4.1.8: 2200)165535S

15.3.5.3. SQL Node and API Node Configuration Parameters

The following table provides information about parameters used in the [SQL] and [api] sections of a config.ini file for configuring MySQL Cluster SQL nodes and API nodes. For detailed descriptions and other additional information about each of these parameters, see Section 15.3.4.6, “Defining SQL and Other API Nodes”.

Note

For a discussion of MySQL server options for MySQL Cluster, see Section 15.4.2, “MySQL Cluster-Related Command Options for mysqld; for information about MySQL server system variables relating to MySQL Cluster, see Section 15.4.3, “MySQL Cluster System Variables”.

Restart Type Column Values

  • N: Node Restart

  • IN: Initial Node Restart

  • S: System Restart

  • IS: Initial System Restart

See Section 15.3.5, “Overview of Cluster Configuration Parameters”, for additional explanations of these abbreviations.

Parameter NameType/UnitsDefault ValueMinimum ValueMaximum ValueRestart Type
ArbitrationDelaymilliseconds004294967039N
ArbitrationRankinteger002N
BatchByteSizebytes32K1K1MN
BatchSizeinteger641992N
ExecuteOnComputerinteger
HostNamestringNoneN/AN/AIN
IdintegerNone163IN
MaxScanBatchSizebytes256K32K16MN

15.3.6. Configuring Parameters for Local Checkpoints

The parameters discussed in Logging and Checkpointing and in Data Memory, Index Memory, and String Memory that are used to configure local checkpoints for a MySQL Cluster do not exist in isolation, but rather are very much interdepedent on each other. In this section, we illustrate how these parameters — including DataMemory, IndexMemory, NoOfDiskPagesToDiskAfterRestartTUP, NoOfDiskPagesToDiskAfterRestartACC, and NoOfFragmentLogFiles — relate to one another in a working Cluster.

In this example, we assume that our application performs the following numbers of types of operations per hour:

  • 50000 selects

  • 15000 inserts

  • 15000 updates

  • 15000 deletes

We also make the following assumptions about the data used in the application:

  • We are working with a single table having 40 columns.

  • Each column can hold up to 32 bytes of data.

  • A typical UPDATE run by the application affects the values of 5 columns.

  • No NULL values are inserted by the application.

A good starting point is to determine the amount of time that should elapse between local checkpoints (LCPs). It worth noting that, in the event of a system restart, it takes 40-60 percent of this interval to execute the REDO log — for example, if the time between LCPs is 5 minutes (300 seconds), then it should take 2 to 3 minutes (120 to 180 seconds) for the REDO log to be read.

The maximum amount of data per node can be assumed to be the size of the DataMemory parameter. In this example, we assume that this is 2 GB. The NoOfDiskPagesToDiskAfterRestartTUP parameter represents the amount of data to be checkpointed per unit time — however, this parameter is actually expressed as the number of 8K memory pages to be checkpointed per 100 milliseconds. 2 GB per 300 seconds is approximately 6.8 MB per second, or 700 KB per 100 milliseconds, which works out to roughly 85 pages per 100 milliseconds.

Similarly, we can calculate NoOfDiskPagesToDiskAfterRestartACC in terms of the time for local checkpoints and the amount of memory required for indexes — that is, the IndexMemory. Assuming that we allow 512 MB for indexes, this works out to approximately 20 8-KB pages per 100 milliseconds for this parameter.

Next, we need to determine the number of REDO log files required — that is, fragment log files — the corresponding parameter being NoOfFragmentLogFiles. We need to make sure that there are sufficient REDO log files for keeping records for at least 3 local checkpoints. In a production setting, there are always uncertainties — for instance, we cannot be sure that disks always operate at top speed or with maximum throughput. For this reason, it is best to err on the side of caution, so we double our requirement and calculate a number of fragment log files which should be enough to keep records covering 6 local checkpoints.

It is also important to remember that the disk also handles writes to the REDO log and UNDO log, so if you find that the amount of data being written to disk as detemined by the values of NoOfDiskPagesToDiskAfterRestartACC and NoOfDiskPagesToDiskAfterRestartTUP is approaching the amount of disk bandwidth available, you may wish to increase the time between local checkpoints.

Given 5 minutes (300 seconds) per local checkpoint, this means that we need to support writing log records at maximum speed for 6 * 300 = 1800 seconds. The size of a REDO log record is 72 bytes plus 4 bytes per updated column value plus the maximum size of the updated column, and there is one REDO log record for each table record updated in a transaction, on each node where the data reside. Using the numbers of operations set out previously in this section, we derive the following:

  • 50000 select operations per hour yields 0 log records (and thus 0 bytes), since SELECT statements are not recorded in the REDO log.

  • 15000 DELETE statements per hour is approximately 5 delete operations per second. (Since we wish to be conservative in our estimate, we round up here and in the following calculations.) No columns are updated by deletes, so these statements consume only 5 operations * 72 bytes per operation = 360 bytes per second.

  • 15000 UPDATE statements per hour is roughly the same as 5 updates per second. Each update uses 72 bytes, plus 4 bytes per column * 5 columns updated, plus 32 bytes per column * 5 columns — this works out to 72 + 20 + 160 = 252 bytes per operation, and multiplying this by 5 operation per second yields 1260 bytes per second.

  • 15000 INSERT statements per hour is equivalent to 5 insert operations per second. Each insert requires REDO log space of 72 bytes, plus 4 bytes per record * 40 columns, plus 32 bytes per column * 40 columns, which is 72 + 160 + 1280 = 1512 bytes per operation. This times 5 operations per second yields 7560 bytes per second.

So the total number of REDO log bytes being written per second is approximately 0 + 360 + 1260 + 7560 = 9180 bytes. Multiplied by 1800 seconds, this yields 16524000 bytes required for REDO logging, or approximately 15.75 MB. The unit used for NoOfFragmentLogFiles represents a set of 4 16-MB log files — that is, 64 MB. Thus, the minimum value (3) for this parameter is sufficient for the scenario envisioned in this example, since 3 times 64 = 192 MB, or about 12 times what is required; the default value of 8 (or 512 MB) is more than ample in this case.

A copy of each altered table record is kept in the UNDO log. In the scenario discussed above, the UNDO log would not require any more space than what is provided by the default seetings. However, given the size of disks, it is sensible to allocate at least 1 GB for it.

15.4. MySQL Cluster Options and Variables

This section provides information about MySQL server options, server and status variables that are specific to MySQL Cluster. For general information on using these, and for other options and variables not specific to MySQL Cluster, see Section 5.1, “The MySQL Server”.

For MySQL Cluster configuration parameters used in the cluster confiuration file (usually named config.ini), see Section 15.3, “MySQL Cluster Configuration”.

15.4.1. MySQL Cluster Server Option and Variable Reference

The following table provides a list of the command-line options, server and status variables applicable within mysqld when it is running as an SQL node in a MySQL Cluster. For a table showing all command-line options, server and status variables available for use with mysqld, see Section 5.1.1, “Option and Variable Reference”.

NameCmd-LineOption fileSystem VarStatus VarVar ScopeDynamic
Handler_discover    YesBothNo
have_ndbcluster   Yes GlobalNo
ndb_autoincrement_prefetch_sz Yes Yes Yes Both Yes
ndb_cache_check_time Yes Yes Yes Global Yes
ndbcluster Yes Yes Yes Both Yes
ndb_force_send Yes Yes Yes Both Yes
ndb_index_stat_cache_entries Yes Yes
ndb_index_stat_enable Yes Yes
ndb_index_stat_update_freq Yes Yes
ndb_optimized_node_selection Yes Yes
ndb_report_thresh_binlog_epoch_slip Yes Yes
ndb_report_thresh_binlog_mem_usage Yes Yes
ndb_use_exact_count   Yes Both Yes
ndb_use_transactions Yes Yes

15.4.2. MySQL Cluster-Related Command Options for mysqld

This section provides descriptions of mysqld server options relating to MySQL Cluster. For information about mysqld options not specific to MySQL Cluster, and for general information about the use of options with mysqld, see Section 5.1.2, “Command Options”.

For information about command-line options used with other MySQL Cluster processes (ndbd, ndb_mgmd, and ndb_mgm), see Section 15.6.5, “Command Options for MySQL Cluster Processes”. For information about command-line options used with NDB utility programs (such as ndb_desc, ndb_size.pl, and ndb_show_tables), see Section 15.10, “Cluster Utility Programs”.

  • --ndb-connectstring=connect_string

    When using the NDBCLUSTER storage engine, this option specifies the management server that distributes cluster configuration data.

  • --ndbcluster

    The NDBCLUSTER storage engine is necessary for using MySQL Cluster. If a mysqld binary includes support for the NDBCLUSTER storage engine, the engine is disabled by default. Use the --ndbcluster option to enable it. Use --skip-ndbcluster to explicitly disable the engine.

  • --skip-ndbcluster

    Disable the NDBCLUSTER storage engine. This is the default for binaries that were built with NDBCLUSTER storage engine support; the server allocates memory and other resources for this storage engine only if the --ndbcluster option is given explicitly. See Section 15.3.3, “Quick Test Setup of MySQL Cluster”, for an example of usage.

15.4.3. MySQL Cluster System Variables

This section provides detailed information about MySQL server system variables that are specific to MySQL Cluster and the NDB storage engine. For system variables not specific to MySQL Cluster, see Section 5.1.3, “System Variables”. For general information on using system variables, see Section 5.1.5, “Using System Variables”.

  • ndb_autoincrement_prefetch_sz

    Determines the probability of gaps in an autoincremented column. Set it to 1 to minimize this. Setting it to a high value for optimization — makes inserts faster, but decreases the likelihood that consecutive autoincrement numbers will be used in a batch of inserts. Default value: 32. Minimum value: 1.

  • ndb_cache_check_time

    The number of milliseconds that elapse between checks of MySQL Cluster SQL nodes by the MySQL query cache. Setting this to 0 (the default and minimum value) means that the query cache checks for validation on every query.

    The recommended maximum value for this variable is 1000, which means that the check is performed once per second. A larger value means that the check is performed and possibly invalidated due to updates on different SQL nodes less often. It is generally not desirable to set this to a value greater than 2000.

  • ndb_force_send

    Forces sending of buffers to NDB immediately, without waiting for other threads. Defaults to ON.

  • ndb_index_stat_cache_entries

    Sets the granularity of the statistics by determining the number of starting and ending keys to store in the statistics memory cache. Zero means no caching takes place; in this case, the data nodes are always queried directly. Default value: 32.

  • ndb_index_stat_enable

    Use NDB index statistics in query optimization. Defaults to ON.

  • ndb_index_stat_update_freq

    How often to query data nodes instead of the statistics cache. For example, a value of 20 (the default) means to direct every 20th query to the data nodes.

  • ndb_optimized_node_selection

    Causes an SQL node to use a data node on the same host machine as transaction coordinator. Enabled by default. Set to 0 or OFF to disable, in which case the SQL node uses each data node in the cluster in succession. When this option is disabled, or if there is no data node process running on the same host as the SQL node, the SQL node attempts to use a given data node 8 times before proceeding to the next one.

    Added in MySQL 4.1.9.

  • ndb_report_thresh_binlog_epoch_slip

    This is a threshold on the number of epochs to be behind before reporting binlog status. For example, a value of 3 (the default) means that if the difference between which epoch has been received from the storage nodes and which epoch has been applied to the binlog is 3 or more, a status message will be sent to the cluster log.

  • ndb_report_thresh_binlog_mem_usage

    This is a threshold on the percentage of free memory remaining before reporting binlog status. For example, a value of 10 (the default) means that if the amount of available memory for receiving binlog data from the data nodes falls below 10%, a status message will be sent to the cluster log.

  • ndb_use_exact_count

    Forces NDB to use a count of records during SELECT COUNT(*) query planning to speed up this type of query. The default value is ON. For faster queries overall, disable this feature by setting the value of ndb_use_exact_count to OFF.

  • ndb_use_transactions

    You can disable NDB transaction support by setting this variable's values to OFF (not recommended). The default is ON.

15.4.4. MySQL Cluster Status Variables

This section provides detailed information about MySQL server status variables that relate to MySQL Cluster and the NDB storage engine. For status variables not specific to MySQL Cluster, and for general information on using status variables, see Section 5.1.6, “Status Variables”.

  • have_ndbcluster

    YES if mysqld supports NDBCLUSTER tables. DISABLED if --skip-ndbcluster is used. This variable was added in MySQL 4.1.2.

  • Handler_discover

    The MySQL server can ask the NDBCLUSTER storage engine if it knows about a table with a given name. This is called discovery. Handler_discover indicates the number of times that tables have been discovered. This variable was added in MySQL 4.1.2.

15.5. Upgrading and Downgrading MySQL Cluster

This portion of the MySQL Cluster chapter covers upgrading and downgrading a MySQL Cluster from one MySQL 4.1 release to another, as well as MySQL CLuster upgrades and downgrades between MySQL 4.1 and 5.0. For information about upgrades and downgrades between more recent versions of MySQL Cluster, see the relevant version of the MySQL Manual.

The next few sections discuss different types of Cluster upgrades and downgrades, and provides a Cluster upgrade/downgrade compatibility matrix (see Section 15.5.2, “MySQL Cluster 4.1 Upgrade and Downgrade Compatibility”). You are expected already to be familiar with installing and configuring a MySQL Cluster prior to attempting an upgrade or downgrade. See Section 15.3, “MySQL Cluster Configuration”.

This section remains in development, and continues to be updated and expanded.

15.5.1. Performing a Rolling Restart of the Cluster

This section discusses how to perform a rolling restart of a MySQL Cluster installation, so called because it involves stopping and starting (or restarting) each node in turn, so that the cluster itself remains operational. This is often done as part of a rolling upgrade or rolling downgrade, where high availability of the cluster is mandatory and no downtime of the cluster as a whole is permissible. Where we refer to upgrades, the information provided here also generally applies to downgrades as well.

There are a number of reasons why a rolling restart might be desirable:

  • Cluster configuration change.  To make a change in the cluster's configuration, such as adding an SQL node to the cluster, or setting a configuration parameter to a new value.

  • Cluster software upgrade/downgrade.  To upgrade the cluster to a newer version of the MySQL Cluster software (or to downgrade it to an older version). This is usually referred to as a “rolling upgrade” (or “rolling downgrade”, when reverting to an older version of MySQL Cluster).

  • Change on node host.  To make changes in the hardware or operating system on which one or more cluster nodes are running

  • Cluster reset.  To reset the cluster because it has reached an undesirable state

  • Freeing of resources.  To allow memory allocated to a table by successive INSERT and DELETE operations to be freed for re-use by other Cluster tables

The process for performing a rolling restart may be generalized as follows:

  1. Stop all cluster management nodes (ndb_mgmd processes), reconfigure them, then restart them

  2. Stop, reconfigure, then restart each cluster data node (ndbd process) in turn

  3. Stop, reconfigure, then restart each cluster SQL node (mysqld process) in turn

The specifics for implementing a particular rolling upgrade depend upon the actual changes being made. A more detailed view of the process is presented here:

MySQL Cluster Rolling Restarts (By
        Type)

In the previous diagram, the Stop and Start steps indicate that the process must be stopped completely using a shell command (such as kill on most Unix systems) or the management client STOP command, then started again from a system shell by invoking the ndbd or ndb_mgmd executable as appropriate. Restart indicates the process may be restarted using the ndb_mgm management client RESTART command.

Important

When performing an upgrade or downgrade of the cluster software, you must upgrade or downgrade the management nodes first, then the data nodes, and finally the SQL nodes. Doing so in any other order may leave the cluster in an unusable state.

15.5.2. MySQL Cluster 4.1 Upgrade and Downgrade Compatibility

This section provides information about MySQL Cluster software and table file compatibility between MySQL 4.1 releases with regard to performing upgrades and downgrades.

Important

Only compatibility between MySQL versions with regard to NDBCLUSTER is taken into account in this section, and there are likely other issues to be considered. As with any other MySQL software upgrade or downgrade, you are strongly encouraged to review the relevant portions of the MySQL Manual for the MySQL versions from which and to which you intend to migrate, before attempting an upgrade or downgrade of the MySQL Cluster software. See Section 2.11, “Upgrading MySQL”.

The following table shows Cluster upgrade and downgrade compatibility between different releases of MySQL 4.1:

MySQL Cluster upgrade/downgrade compatibility,
        MySQL 4.1

Notes.

  • You cannot perform an online upgrade directly from 4.1.8 to 4.1.10 (or newer); you must first upgrade from 4.1.8 to 4.1.9, then upgrade to 4.1.10. Similarly, you cannot downgrade directly from 4.1.10 (or newer) to 4.1.8; you must first downgrade from 4.1.10 to 4.1.9, then downgrade from 4.1.9 to 4.1.8.

  • Online upgrades from MySQL Cluster versions previous to 4.1.8 are not supported; when upgrading from these, you must dump all NDBCLUSTER tables using mysqldump, install the new version of the software, and then reload the tables from the dump.

  • If you wish to upgrade a MySQL Cluster to 4.1.15, you must upgrade to 4.1.14 first, and you must upgrade to 4.1.15 before upgrading to 4.1.16 or newer.

  • Cluster downgrades from 4.1.15 to 4.1.14 (or earlier versions) are not supported.

  • Direct upgrades or downgrades between MySQL Cluster 4.1 and 5.0 are not supported; you must dump all NDBCLUSTER tables using mysqldump, install the new version of the software, and then reload the tables from the dump.

15.6. Process Management in MySQL Cluster

Understanding how to manage MySQL Cluster requires a knowledge of four essential processes. In the next few sections of this chapter, we cover the roles played by these processes in a cluster, how to use them, and what startup options are available for each of them:

15.6.1. MySQL Server Process Usage for MySQL Cluster

mysqld is the traditional MySQL server process. To be used with MySQL Cluster, mysqld needs to be built with support for the NDBCLUSTER storage engine, as it is in the precompiled -max binaries available from http://dev.mysql.com/downloads/ for MySQL versions 4.1.3 and newer. If you build MySQL from source, you must invoke configure with the --with-ndbcluster option to enable NDB Cluster storage engine support.

If the mysqld binary has been built with Cluster support, the NDBCLUSTER storage engine is still disabled by default. You can use either of two possible options to enable this engine:

  • Use --ndbcluster as a startup option on the command line when starting mysqld.

  • Insert a line containing ndbcluster in the [mysqld] section of your my.cnf file.

An easy way to verify that your server is running with the NDBCLUSTER storage engine enabled is to issue the SHOW ENGINES statement in the MySQL Monitor (mysql). You should see the value YES as the Support value in the row for NDBCLUSTER. If you see NO in this row or if there is no such row displayed in the output, you are not running an NDB-enabled version of MySQL. If you see DISABLED in this row, you need to enable it in either one of the two ways just described.

To read cluster configuration data, the MySQL server requires at a minimum three pieces of information:

  • The MySQL server's own cluster node ID

  • The hostname or IP address for the management server (MGM node)

  • The number of the TCP/IP port on which it can connect to the management server

Beginning with MySQL 4.1.5, node IDs can be dynamically allocated, in which case there is no need to specify them explicitly.

The mysqld parameter ndb-connectstring is used to specify the connectstring either on the command line when starting mysqld or in my.cnf. The connectstring contains the hostname or IP address where the management server can be found, as well as the TCP/IP port it uses.

In the following example, ndb_mgmd.mysql.com is the host where the management server resides, and the management server listens for cluster messages on port 1186:

shell> mysqld --ndbcluster --ndb-connectstring=ndb_mgmd.mysql.com:1186

See Section 15.3.4.2, “The Cluster Connectstring”, for more information on connectstrings.

Given this information, the MySQL server will be a full participant in the cluster. (We often refer to a mysqld process running in this manner as an SQL node.) It will be fully aware of all cluster data nodes as well as their status, and will establish connections to all data nodes. In this case, it is able to use any data node as a transaction coordinator and to read and update node data.

You can see in the mysql client whether a MySQL server is connected to the cluster using SHOW PROCESSLIST. If the MySQL server is connected to the cluster, and you have the PROCESS privilege, then the first row of the output is as shown here:

mysql> SHOW PROCESSLIST \G
*************************** 1. row ***************************
     Id: 1
   User: system user
   Host:
     db:
Command: Daemon
   Time: 1
  State: Waiting for event from ndbcluster
   Info: NULL

Important

To participate in a MySQL Cluster, the mysqld process must be started with both the options --ndbcluster and --ndb-connectstring (or their equivalents in my.cnf). If mysqld is started with only the --ndbcluster option, or if it is unable to contact the cluster, it is not possible to work with NDB tables, nor is it possible to create any new tables regardless of storage engine. The latter restriction is a safety measure intended to prevent the creation of tables having the same names as NDB tables while the SQL node is not connected to the cluster. If you wish to create tables using a different storage engine while the mysqld process is not participating in a MySQL Cluster, you must restart the server without the --ndbcluster option.

15.6.2. ndbd — The Storage Engine Node Process

ndbd is the process that is used to handle all the data in tables using the NDB Cluster storage engine. This is the process that empowers a data node to accomplish distributed transaction handling, node recovery, checkpointing to disk, online backup, and related tasks.

In a MySQL Cluster, a set of ndbd processes cooperate in handling data. These processes can execute on the same computer (host) or on different computers. The correspondences between data nodes and Cluster hosts is completely configurable.

In MySQL versions prior to 4.1.5, each ndbd process should be started in a separate directory, the reason for this being that ndbd generated a set of log files in its starting directory. In MySQL 4.1.5, this behavior was changed such that these files are placed in the directory specified by DataDir in the configuration file. Thus ndbd can be started from anywhere.

These log files are listed below. node_id is the node's unique identifier. Note that node_id represents the node's unique identifier. For example, ndb_2_error.log is the error log generated by the data node whose node ID is 2.

  • ndb_node_id_error.log (was error.log in version 4.1.3) is a file containing records of all crashes which the referenced ndbd process has encountered. Each record in this file contains a brief error string and a reference to a trace file for this crash. A typical entry in this file might appear as shown here:

    Date/Time: Saturday 30 July 2004 - 00:20:01
    Type of error: error
    Message: Internal program error (failed ndbrequire)
    Fault ID: 2341
    Problem data: DbtupFixAlloc.cpp
    Object of reference: DBTUP (Line: 173)
    ProgramName: NDB Kernel
    ProcessID: 14909
    TraceFile: ndb_2_trace.log.2
    ***EOM***


    Listings of possible ndbd exit codes and messages generated when a data node process shuts down prematurely can be found in ndbd Error Messages.

    Important

    The last entry in the error log file is not necessarily the newest one (nor is it likely to be). Entries in the error log are not listed in chronological order; rather, they correspond to the order of the trace files as determined in the ndb_node_id_trace.log.next file (see below). Error log entries are thus overwritten in a cyclical and not sequential fashion.

  • ndb_node_id_trace.log.trace_id (was NDB_TraceFile_trace_id.trace in version 4.1.3) is a trace file describing exactly what happened just before the error occurred. This information is useful for analysis by the MySQL Cluster development team.

    It is possible to configure the number of these trace files that will be created before old files are overwritten. trace_id is a number which is incremented for each successive trace file.

  • ndb_node_id_trace.log.next (was NextTraceFileNo.log in version 4.1.3) is the file that keeps track of the next trace file number to be assigned.

  • ndb_node_id_out.log is a file containing any data output by the ndbd process. This file is created only if ndbd is started as a daemon, which is the default behavior beginning with MySQL 4.1.5. This file was named nodenode_id.out in versions 4.1.3 and 4.1.4.

  • ndb_node_id.pid is a file containing the process ID of the ndbd process when started as a daemon. It also functions as a lock file to avoid the starting of nodes with the same identifier.

  • ndb_node_id_signal.log (was Signal.log in version 4.1.3) is a file used only in debug versions of ndbd, where it is possible to trace all incoming, outgoing, and internal messages with their data in the ndbd process.

It is recommended not to use a directory mounted through NFS because in some environments this can cause problems whereby the lock on the .pid file remains in effect even after the process has terminated.

To start ndbd, it may also be necessary to specify the hostname of the management server and the port on which it is listening. Optionally, one may also specify the node ID that the process is to use.

shell> ndbd --connect-string="nodeid=2;host=ndb_mgmd.mysql.com:1186"

See Section 15.3.4.2, “The Cluster Connectstring”, for additional information about this issue. Section 15.6.5, “Command Options for MySQL Cluster Processes”, describes other options for ndbd.

When ndbd starts, it actually initiates two processes. The first of these is called the “angel process”; its only job is to discover when the execution process has been completed, and then to restart the ndbd process if it is configured to do so. Thus, if you attempt to kill ndbd via the Unix kill command, it is necessary to kill both processes, beginning with the angel process. The preferred method of terminating an ndbd process is to use the management client and stop the process from there.

The execution process uses one thread for reading, writing, and scanning data, as well as all other activities. This thread is implemented asynchronously so that it can easily handle thousands of concurrent activites. In addition, a watch-dog thread supervises the execution thread to make sure that it does not hang in an endless loop. A pool of threads handles file I/O, with each thread able to handle one open file. Threads can also be used for transporter connections by the transporters in the ndbd process. In a multi-processor system performing a large number of operations (including updates), the ndbd process can consume up to 2 CPUs if permitted to do so.

For a machine with many CPUs it is possible to use several ndbd processes which belong to different node groups; however, such a configuration is still considered experimental and is not supported for MySQL 4.1 in a production setting. See Section 15.12, “Known Limitations of MySQL Cluster”.

15.6.3. ndb_mgmd — The Management Server Process

The management server is the process that reads the cluster configuration file and distributes this information to all nodes in the cluster that request it. It also maintains a log of cluster activities. Management clients can connect to the management server and check the cluster's status.

As of MySQL 4.1.5, it is no longer necessary to specify a connectstring when starting the management server. However, if you are using more than one management server, a connectstring should be provided and each node in the cluster should specify its node ID explicitly.

See Section 15.3.4.2, “The Cluster Connectstring”, for information about using connectstrings. Section 15.6.5, “Command Options for MySQL Cluster Processes”, describes other options for ndb_mgmd.

The following files are created or used by ndb_mgmd in its starting directory. From MySQL 4.1.5, the log and PID files are placed in the DataDir as specified in the config.ini configuration file. In the list that follows, node_id is the unique node identifier.

  • config.ini is the configuration file for the cluster as a whole. This file is created by the user and read by the management server. Section 15.3, “MySQL Cluster Configuration”, discusses how to set up this file.

  • ndb_node_id_cluster.log (was cluster.log in version 4.1.3) is the cluster events log file. Examples of such events include checkpoint startup and completion, node startup events, node failures, and levels of memory usage. A complete listing of cluster events with descriptions may be found in Section 15.7, “Management of MySQL Cluster”.

    When the size of the cluster log reaches one million bytes, the file is renamed to ndb_node_id_cluster.log.seq_id (was cluster.log.seq_id in version 4.1.3) where seq_id is the sequence number of the cluster log file. (For example: If files with the sequence numbers 1, 2, and 3 already exist, the next log file is named using the number 4.)

  • ndb_node_id_out.log (was node1.out in version 4.1.3) is the file used for stdout and stderr when running the management server as a daemon.

  • ndb_node_id.pid (was nodenode_id.pid in version 4.1.3) is the process ID file used when running the management server as a daemon.

15.6.4. ndb_mgm — The Management Client Process

The ndb_mgm management client process is actually not needed to run the cluster. Its value lies in providing a set of commands for checking the cluster's status, starting backups, and performing other administrative functions. The management client accesses the management server using a C API. Advanced users can also employ this API for programming dedicated management processes to perform tasks similar to those performed by ndb_mgm.

To start the management client, it is necessary to supply the hostname and port number of the management server:

shell> ndb_mgm [host_name [port_num]]

For example:

shell> ndb_mgm ndb_mgmd.mysql.com 1186

The default hostname and port number are localhost and 1186, respectively. (Prior to MySQL 4.1.8, the default Cluster port was 2200.)

Additional information about using ndb_mgm can be found in Section 15.6.5.3, “Command Options for ndb_mgm, and Section 15.7.2, “Commands in the MySQL Cluster Management Client”.

15.6.5. Command Options for MySQL Cluster Processes

All MySQL Cluster executables (except for mysqld) take the options described in this section as of MySQL 4.1.8. Users of earlier MySQL Cluster versions should note that some of these options have been changed to make consistent with one another as well as with mysqld. You can use the --help option with any MySQL Cluster executable to view a list of the options which it supports.

The following options are common to all MySQL Cluster executables:

  • --help --usage, -?

    Prints a short list with descriptions of the available command options.

  • --connect-string=connect_string

    connect_string sets the connectstring to the management server as a command option. Available with ndb_mgm beginning with MySQL 4.1.8.

    shell> ndbd --connect-string="nodeid=2;host=ndb_mgmd.mysql.com:1186"


    For more information, see Section 15.3.4.2, “The Cluster Connectstring”.

  • --debug[=options]

    This option can be used only for versions compiled with debugging enabled. It is used to enable output from debug calls in the same manner as for the mysqld process.

  • --execute=command, -e command

    Can be used to send a command to a Cluster executable from the system shell. For example, either of the following:

    shell> ndb_mgm -e "SHOW"


    or

    shell> ndb_mgm --execute="SHOW"


    is equivalent to

    ndb_mgm> SHOW


    This is analogous to how the --execute or -e option works with the mysql command-line client. See Section 4.2.3.1, “Using Options on the Command Line”.

  • --version, -V

    Prints the MySQL Cluster version number of the executable. The version number is relevant because not all versions can be used together, and the MySQL Cluster startup process verifies that the versions of the binaries being used can co-exist in the same cluster. This is also important when performing an online (rolling) software upgrade or downgrade of MySQL Cluster. (See Section 15.5.1, “Performing a Rolling Restart of the Cluster”).

The next few sections describe options specific to individual NDB programs.

See Section 15.4.2, “MySQL Cluster-Related Command Options for mysqld, for mysqld options relating to MySQL Cluster.

15.6.5.1. Command Options for ndbd

For options common to all NDB programs, see Section 15.6.5, “Command Options for MySQL Cluster Processes”.

  • --daemon, -d

    Instructs ndbd to execute as a daemon process. From MySQL 4.1.5 on, this is the default behavior, and --nodaemon can be used to prevent the process from running as a daemon.

  • --initial

    Instructs ndbd to perform an initial start. An initial start erases any files created for recovery purposes by earlier instances of ndbd. It also re-creates recovery log files. Note that on some operating systems this process can take a substantial amount of time.

    An --initial start is to be used only when starting the ndbd process under very special circumstances; this is because this option causes all files to be removed from the Cluster filesystem and all redo log files to be re-created. These circumstances are listed here:

    • When performing a software upgrade which has changed the contents of any files.

    • When restarting the node with a new version of ndbd.

    • As a measure of last resort when for some reason the node restart or system restart repeatedly fails. In this case, be aware that this node can no longer be used to restore data due to the destruction of the data files.

    Important

    This option does not affect any backup files that have already been created by the affected node.

    In older versions of MySQL Cluster, it was possible to use -i for this option. This shortcut was removed to prevent this option from being used by mistake.

    It is permissible to use this option when starting the cluster for the very first time (that is, before any data node files have been created); however, it is not necessary to do so.

  • --nodaemon

    Instructs ndbd not to start as a daemon process. This is useful when ndbd is being debugged and you want output to be redirected to the screen.

  • --nostart, -n

    Instructs ndbd not to start automatically. When this option is used, ndbd connects to the management server, obtains configuration data from it, and initializes communication objects. However, it does not actually start the execution engine until specifically requested to do so by the management server. This can be accomplished by issuing the proper START command in the management client (see Section 15.7.2, “Commands in the MySQL Cluster Management Client”).

15.6.5.2. Command Options for ndb_mgmd

For options common to NDB programs, see Section 15.6.5, “Command Options for MySQL Cluster Processes”.

  • --config-file=filename, -c filename, -f filename

    Instructs the management server as to which file it should use for its configuration file. By default, the management server looks for a file named config.ini in the same directory as the ndb_mgmd executable; otherwise the filename and location must be specified explicitly.

    Note

    The -f shortcut is available beginning with MySQL Cluster 4.1.8. This option also can be given as -c file_name, but this shortcut is obsolete and should not be used in new installations.

  • --daemon, -d

    Instructs ndb_mgmd to start as a daemon process. This is the default behavior.

  • --nodaemon

    Instructs ndb_mgmd not to start as a daemon process.

  • --print-full-config, -P

    Shows extended information regarding the configuration of the cluster. With this option on the command line the ndb_mgmd process prints information about the cluster setup including an extensive list of the cluster configuration sections as well as parameters and their values. Normally used together with the --config-file (-f) option.

15.6.5.3. Command Options for ndb_mgm

For options common to NDB programs, see Section 15.6.5, “Command Options for MySQL Cluster Processes”.

  • --try-reconnect=number

    If the connection to the management server is broken, the node tries to reconnect to it every 5 seconds until it succeeds. By using this option, it is possible to limit the number of attempts to number before giving up and reporting an error instead.

15.7. Management of MySQL Cluster

Managing a MySQL Cluster involves a number of tasks, the first of which is to configure and start MySQL Cluster. This is covered in Section 15.3, “MySQL Cluster Configuration”, and Section 15.6, “Process Management in MySQL Cluster”.

The following sections cover the management of a running MySQL Cluster.

For information about security issues relating to management and deployment of a MySQL Cluster, see Section 15.8, “MySQL Cluster Security Issues”.

There are essentially two methods of actively managing a running MySQL Cluster. The first of these is through the use of commands entered into the management client whereby cluster status can be checked, log levels changed, backups started and stopped, and nodes stopped and started. The second method involves studying the contents of the cluster log ndb_node_id_cluster.log; this is usually found in the management server's DataDir directory, but this location can be overridden using the LogDestination option — see Section 15.3.4.4, “Defining the Management Server”, for details. (Recall that node_id represents the unique identifier of the node whose activity is being logged.) The cluster log contains event reports generated by ndbd. It is also possible to send cluster log entries to a Unix system log.

In addition, some aspects of the cluster's operation can be monitored from an SQL node using the SHOW ENGINE NDB STATUS statement. See Section 12.5.4.7, “SHOW ENGINE Syntax”, for more information.

15.7.1. Summary of MySQL Cluster Start Phases

This section provides a simplified outline of the steps involved when MySQL Cluster data nodes are started. More complete information can be found in MySQL Cluster Start Phases.

These phases are the same as those reported in the output from the node_id STATUS command in the management client. (See Section 15.7.2, “Commands in the MySQL Cluster Management Client”, for more information about this command.)

Start types.  There are several different startup types and modes, as shown here:

  • Initial Start.  The cluster starts with a clean filesystem on all data nodes. This occurs either when the cluster started for the very first time, or when it all data nodes are restarted using the --initial option.

  • System Restart.  The cluster starts and reads data stored in the data nodes. This occurs when the cluster has been shut down after having been in use, when it is desired for the cluster to resume operations from the point where it left off.

  • Node Restart.  This is the online restart of a cluster node while the cluster itself is running.

  • Initial Node Restart.  This is the same as a node restart, except that the node is reinitialized and started with a clean filesystem.

Setup and initialization (Phase -1).  Prior to startup, each data node (ndbd process) must be initialized. Initialization consists of the following steps:

  1. Obtain a node ID

  2. Fetch configuration data

  3. Allocate ports to be used for inter-node communications

  4. Allocate memory according to settings obtained from the configuration file

When a data node or SQL node first connects to the management node, it reserves a cluster node ID. To make sure that no other node allocates the same node ID, this ID is retained until the node has managed to connect to the cluster and at least one ndbd reports that this node is connected. This retention of the node ID is guarded by the connection between the node in question and ndb_mgmd.

Normally, in the event of a problem with the node, the node disconnects from the management server, the socket used for the connection is closed, and the reserved node ID is freed. However, if a node is disconnected abruptly — for example, due to a hardware failure in one of the cluster hosts, or because of network issues — the normal closing of the socket by the operating system may not take place. In this case, the node ID continues to be reserved and not released until a TCP timeout occurs 10 or so minutes later.

To take care of this problem, you can use PURGE STALE SESSIONS. Running this statement forces all reserved node IDs to be checked; any that are not being used by nodes actually connected to the cluster are then freed.

Beginning with MySQL 5.1.11, timeout handling of node ID assignments is implemented. This performs the ID usage checks automatically after approximately 20 seconds, so that PURGE STALE SESSIONS should no longer be necessary in a normal Cluster start.

After each data node has been initialized, the cluster startup process can proceed. The stages which the cluster goes through during this process are listed here:

  • Phase 0.  The NDBFS and NDBCNTR blocks start (see NDB Kernel Blocks). The cluster filesystem is cleared, if the cluster was started with the --initial option.

  • Phase 1.  In this stage, all remaining NDB kernel blocks are started. Cluster connections are set up, inter-block communications are established, and Cluster heartbeats are started. In the case of a node restart, API node connections are also checked.

    Note

    When one or more nodes hang in Phase 1 while the remaining node or nodes hang in Phase 2, this often indicates network problems. One possible cause of such issues is one or more cluster hosts having multiple network interfaces. Another common source of problems causing this condition is the blocking of TCP/IP ports needed for communications between cluster nodes. In the latter case, this is often due to a misconfigured firewall.

  • Phase 2.  The NDBCNTR kernel block checks the states of all existing nodes. The master node is chosen, and the cluster schema file is initialized.

  • Phase 3.  The DBLQH and DBTC kernel blocks set up communications between them. The startup type is determined; if this is a restart, the DBDIH block obtains permission to perform the restart.

  • Phase 4.  For an initial start or initial node restart, the redo log files are created. The number of these files is equal to NoOfFragmentLogFiles.

    For a system restart:

    • Read schema or schemas.

    • Read data from the local checkpoint.

    • Apply all redo information until the latest restorable global checkpoint has been reached.

    For a node restart, find the tail of the redo log.

  • Phase 5.  Most of the database-related portion of a data node start is perfomed during this phase. For an initial start or system restart, a local checkpoint is executed, followed by a global checkpoint. Periodic checks of memory usage begin during this phase, and any required node takeovers are performed.

  • Phase 6.  In this phase, node groups are defined and set up.

  • Phase 7.  The arbitrator node is selected and begins to function. The next backup ID is set, as is the backup disk write speed. Nodes reaching this start phase are marked as Started. It is now possible for API nodes (including SQL nodes) to connect to the cluster. connect.

  • Phase 8.  If this is a system restart, all indexes are rebuilt (by DBDIH).

  • Phase 9.  The node internal startup variables are reset.

  • Phase 100 (OBSOLETE).  Formerly, it was at this point during a node restart or initial node restart that API nodes could connect to the node and begin to receive events. Currently, this phase is empty.

  • Phase 101.  At this point in a node restart or initial node restart, event delivery is handed over to the node joining the cluster. The newly-joined node takes over responsibility for delivering its primary data to subscribers. This phase is also referred to as SUMA handover phase.

After this process is completed for an initial start or system restart, transaction handling is enabled. For a node restart or initial node restart, completion of the startup process means that the node may now act as a transaction coordinator.

15.7.2. Commands in the MySQL Cluster Management Client

In addition to the central configuration file, a cluster may also be controlled through a command-line interface available through the management client ndb_mgm. This is the primary administrative interface to a running cluster.

Commands for the event logs are given in Section 15.7.3, “Event Reports Generated in MySQL Cluster”; commands for creating backups and restoring from backup are provided in Section 15.9, “On-line Backup of MySQL Cluster”.

The management client has the following basic commands. In the listing that follows, node_id denotes either a database node ID or the keyword ALL, which indicates that the command should be applied to all of the cluster's data nodes.

  • HELP

    Displays information on all available commands.

  • SHOW

    Displays information on the cluster's status.

    Note

    In a cluster where multiple management nodes are in use, this command displays information only for data nodes that are actually connected to the current management server.

  • node_id START

    Brings online the data node identified by node_id (or all data nodes).

    Important

    To use this command to bring a data node online, the data node must have been started using ndbd --nostart or ndbd -n.

  • node_id STOP

    Stops the data node identified by node_id (or all data nodes). A data node affected by this command disconnects from the cluster, and its associated ndbd process terminates.

  • node_id RESTART [-n] [-i] [-a]

    Restarts the data node identified by node_id (or all data nodes).

    Using the -i option with RESTART causes the data node to perform an initial restart; that is, the node's filesystem is deleted and recreated. The effect is the same as that obtained from stopping the data node process and then starting it again using ndbd --initial from the system shell.

    Using the -n option causes the data node process to be restarted, but the data node is not actually brought online until the appropriate START command is issued. The effect of this option is the same as that obtained from stopping the data node and then starting it again using ndbd --nostart or ndbd -n from the system shell.

    Using the -a causes all current transactions relying on this node to be aborted. No GCP check is done when the node rejoins the cluster.

  • node_id STATUS

    Displays status information for the data node identified by node_id (or for all data nodes).

  • ENTER SINGLE USER MODE node_id

    Enters single user mode, whereby only the MySQL server identified by the node ID node_id is allowed to access the database.

    Important

    Do not attempt to have data nodes join the cluster while it is running in single user mode. Doing so can cause subsequent multiple node failures. (See Bug#20395 for more information.)

  • EXIT SINGLE USER MODE

    Exits single user mode, allowing all SQL nodes (that is, all running mysqld processes) to access the database.

  • QUIT, EXIT

    Terminates the management client.

    This command does not affect any nodes connected to the cluster.

  • SHUTDOWN

    Shuts down all cluster data nodes and management nodes. To exit the management client after this has been done, use EXIT or QUIT.

    This command does not shut down any SQL nodes or API nodes that are connected to the cluster.

15.7.3. Event Reports Generated in MySQL Cluster

In this section, we discuss the types of event logs provided by MySQL Cluster, and the types of events that are logged.

MySQL Cluster provides two types of event log:

  • The cluster log, which includes events generated by all cluster nodes. The cluster log is the log recommended for most uses because it provides logging information for an entire cluster in a single location.

    By default, the cluster log is saved to a file named ndb_node_id_cluster.log, (where node_id is the node ID of the management server) in the same directory where the ndb_mgm binary resides.

    Cluster logging information can also be sent to stdout or a syslog facility in addition to or instead of being saved to a file, as determined by the values set for the DataDir and LogDestination configuration parameters. See Section 15.3.4.4, “Defining the Management Server”, for more information about these parameters.

  • Node logs are local to each node.

    Output generated by node event logging is written to the file ndb_node_id_out.log (where node_id is the node's node ID) in the node's DataDir. Node event logs are generated for both management nodes and data nodes.

    Node logs are intended to be used only during application development, or for debugging application code.

Both types of event logs can be set to log different subsets of events.

Each reportable event can be distinguished according to three different criteria:

  • Category: This can be any one of the following values: STARTUP, SHUTDOWN, STATISTICS, CHECKPOINT, NODERESTART, CONNECTION, ERROR, or INFO.

  • Priority: This is represented by one of the numbers from 1 to 15 inclusive, where 1 indicates “most important” and 15 “least important.

  • Severity Level: This can be any one of the following values: ALERT, CRITICAL, ERROR, WARNING, INFO, or DEBUG.

Both the cluster log and the node log can be filtered on these properties.

The format used in the cluster log is as shown here:

2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 1: Data usage is 2%(60 32K pages of total 2560)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 1: Index usage is 1%(24 8K pages of total 2336)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 1: Resource 0 min: 0 max: 639 curr: 0
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 2: Data usage is 2%(76 32K pages of total 2560)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 2: Index usage is 1%(24 8K pages of total 2336)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 2: Resource 0 min: 0 max: 639 curr: 0
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 3: Data usage is 2%(58 32K pages of total 2560)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 3: Index usage is 1%(25 8K pages of total 2336)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 3: Resource 0 min: 0 max: 639 curr: 0
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 4: Data usage is 2%(74 32K pages of total 2560)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 4: Index usage is 1%(25 8K pages of total 2336)
2007-01-26 19:35:55 [MgmSrvr] INFO     -- Node 4: Resource 0 min: 0 max: 639 curr: 0
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 4: Node 9 Connected
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 1: Node 9 Connected
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 1: Node 9: API version 5.1.15
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 2: Node 9 Connected
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 2: Node 9: API version 5.1.15
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 3: Node 9 Connected
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 3: Node 9: API version 5.1.15
2007-01-26 19:39:42 [MgmSrvr] INFO     -- Node 4: Node 9: API version 5.1.15
2007-01-26 19:59:22 [MgmSrvr] ALERT    -- Node 2: Node 7 Disconnected
2007-01-26 19:59:22 [MgmSrvr] ALERT    -- Node 2: Node 7 Disconnected

Each line in the cluster log contains the following information:

  • A timestamp in YYYY-MM-DD HH:MM:SS format.

  • The type of node which is performing the logging. In the cluster log, this is always [MgmSrvr].

  • The severity of the event.

  • The ID of the node reporting the event.

  • A description of the event. The most common types of events to appear in the log are connections and disconnections between different nodes in the cluster, and when checkpoints occur. In some cases, the description may contain status information.

15.7.3.1. Logging Management Commands

The following management commands are related to the cluster log:

  • CLUSTERLOG ON

    Turns the cluster log on.

  • CLUSTERLOG OFF

    Turns the cluster log off.

  • CLUSTERLOG INFO

    Provides information about cluster log settings.

  • node_id CLUSTERLOG category=threshold

    Logs category events with priority less than or equal to threshold in the cluster log.

  • CLUSTERLOG FILTER severity_level

    Toggles cluster logging of events of the specified severity_level.

The following table describes the default setting (for all data nodes) of the cluster log category threshold. If an event has a priority with a value lower than or equal to the priority threshold, it is reported in the cluster log.

Note that events are reported per data node, and that the threshold can be set to different values on different nodes.

CategoryDefault threshold (All data nodes)
STARTUP7
SHUTDOWN7
STATISTICS7
CHECKPOINT7
NODERESTART7
CONNECTION7
ERROR15
INFO7

The STATISTICS category can provide a great deal of useful data. See Section 15.7.3.3, “Using CLUSTERLOG STATISTICS, for more information.

Thresholds are used to filter events within each category. For example, a STARTUP event with a priority of 3 is not logged unless the threshold for STARTUP is set to 3 or higher. Only events with priority 3 or lower are sent if the threshold is 3.

The following table shows the event severity levels.

Note

These correspond to Unix syslog levels, except for LOG_EMERG and LOG_NOTICE, which are not used or mapped.

1ALERTA condition that should be corrected immediately, such as a corrupted system database
2CRITICALCritical conditions, such as device errors or insufficient resources
3ERRORConditions that should be corrected, such as configuration errors
4WARNINGConditions that are not errors, but that might require special handling
5INFOInformational messages
6DEBUGDebugging messages used for NDBCLUSTER development

Event severity levels can be turned on or off (using CLUSTERLOG FILTER — see above). If a severity level is turned on, then all events with a priority less than or equal to the category thresholds are logged. If the severity level is turned off then no events belonging to that severity level are logged.

Important

Cluster log levels are set on a per ndb_mgmd, per subscriber basis. This means that, in a MySQL Cluster with multiple management servers, using a CLUSTERLOG command in an instance of ndb_mgm connected to one management server affects only logs generated by that management server but not by any of the others. This also means that, should one of the management servers be restarted, only logs generated by that management server are affected by the resetting of log levels caused by the restart.

15.7.3.2. Log Events

An event report reported in the event logs has the following format:

datetime [string] severity -- message

For example:

09:19:30 2005-07-24 [NDB] INFO -- Node 4 Start phase 4 completed

This section discusses all reportable events, ordered by category and severity level within each category.

In the event descriptions, GCP and LCP mean “Global Checkpoint” and “Local Checkpoint,” respectively.

CONNECTION Events

These events are associated with connections between Cluster nodes.

EventPrioritySeverity LevelDescription
data nodes connected8INFOData nodes connected
data nodes disconnected8INFOData nodes disconnected
Communication closed8INFOSQL node or data node connection closed
Communication opened8INFOSQL node or data node connection opened

CHECKPOINT Events

The logging messages shown here are associated with checkpoints.

EventPrioritySeverity LevelDescription
LCP stopped in calc keep GCI0ALERTLCP stopped
Local checkpoint fragment completed11INFOLCP on a fragment has been completed
Global checkpoint completed10INFOGCP finished
Global checkpoint started9INFOStart of GCP: REDO log is written to disk
Local checkpoint completed8INFOLCP completed normally
Local checkpoint started7INFOStart of LCP: data written to disk
Report undo log blocked7INFOUNDO logging blocked; buffer near overflow

STARTUP Events

The following events are generated in response to the startup of a node or of the cluster and of its success or failure. They also provide information relating to the progress of the startup process, including information concerning logging activities.

EventPrioritySeverity LevelDescription
Internal start signal received STTORRY15INFOBlocks received after completion of restart
Undo records executed15INFO
New REDO log started10INFOGCI keep X, newest restorable GCI Y
New log started10INFOLog part X, start MB Y, stop MB Z
Node has been refused for inclusion in the cluster8INFONode cannot be included in cluster due to misconfiguration, inability to establish communication, or other problem
data node neighbors8INFOShows neighboring data nodes
data node start phase X completed4INFOA data node start phase has been completed
Node has been successfully included into the cluster3INFODisplays the node, managing node, and dynamic ID
data node start phases initiated1INFONDB Cluster nodes starting
data node all start phases completed1INFONDB Cluster nodes started
data node shutdown initiated1INFOShutdown of data node has commenced
data node shutdown aborted1INFOUnable to shut down data node normally

NODERESTART Events

The following events are generated when restarting a node and relate to the success or failure of the node restart process.

EventPrioritySeverity LevelDescription
Node failure phase completed8ALERTReports completion of node failure phases
Node has failed, node state was X8ALERTReports that a node has failed
Report arbitrator results2ALERTThere are eight different possible results for arbitration attempts:
  • Arbitration check failed — less than 1/2 nodes left

  • Arbitration check succeeded — node group majority

  • Arbitration check failed — missing node group

  • Network partitioning — arbitration required

  • Arbitration succeeded — affirmative response from node X

  • Arbitration failed - negative response from node X

  • Network partitioning - no arbitrator available

  • Network partitioning - no arbitrator configured

Completed copying a fragment10INFO
Completed copying of dictionary information8INFO
Completed copying distribution information8INFO
Starting to copy fragments8INFO
Completed copying all fragments8INFO
GCP takeover started7INFO
GCP takeover completed7INFO
LCP takeover started7INFO
LCP takeover completed (state = X)7INFO
Report whether an arbitrator is found or not6INFOThere are seven different possible outcomes when seeking an arbitrator:
  • Management server restarts arbitration thread [state=X]

  • Prepare arbitrator node X [ticket=Y]

  • Receive arbitrator node X [ticket=Y]

  • Started arbitrator node X [ticket=Y]

  • Lost arbitrator node X - process failure [state=Y]

  • Lost arbitrator node X - process exit [state=Y]

  • Lost arbitrator node X <error msg> [state=Y]

STATISTICS Events

The following events are of a statistical nature. They provide information such as numbers of transactions and other operations, amount of data sent or received by individual nodes, and memory usage.

EventPrioritySeverity LevelDescription
Report job scheduling statistics9INFOMean internal job scheduling statistics
Sent number of bytes9INFOMean number of bytes sent to node X
Received # of bytes9INFOMean number of bytes received from node X
Report transaction statistics8INFONumbers of: transactions, commits, reads, simple reads, writes, concurrent operations, attribute information, and aborts
Report operations8INFONumber of operations
Report table create7INFO
Memory usage5INFOData and index memory usage (80%, 90%, and 100%)

ERROR Events

These events relate to Cluster errors and warnings. The presence of one or more of these generally indicates that a major malfunction or failure has occurred.

EventPrioritySeverityDescription
Dead due to missed heartbeat8ALERTNode X declared “dead” due to missed heartbeat
Transporter errors2ERROR
Transporter warnings8WARNING
Missed heartbeats8WARNINGNode X missed heartbeat #Y
General warning events2WARNING

INFO Events

These events provide general information about the state of the cluster and activities associated with Cluster maintenance, such as logging and heartbeat transmission.

EventPrioritySeverityDescription
Sent heartbeat12INFOHeartbeat sent to node X
Create log bytes11INFOLog part, log file, MB
General information events2INFO

15.7.3.3. Using CLUSTERLOG STATISTICS

The NDB management client's CLUSTERLOG STATISTICS command can provide a number of useful statistics in its output. The following statistics are reported by the transaction coordinator:

StatisticDescription (Number of...)
Trans. CountTransactions attempted with this node as coordinator
Commit CountTransactions committed with this node as coordinator
Read CountPrimary key reads (all)
Simple Read CountPrimary key reads reading the latest committed value
Write CountPrimary key writes (includes all INSERT, UPDATE, and DELETE operations)
AttrInfoCountData words used to describe all reads and writes received
Concurrent OperationsAll concurrent operations ongoing at the moment the report is taken
Abort CountTransactions with this node as coordinator that were aborted
ScansScans (all)
Range ScansIndex scans

The ndbd process has a scheduler that runs in an infinite loop. During each loop scheduler performs the following tasks:

  1. Read any incoming messages from sockets into a job buffer.

  2. Check whether there are any timed messages to be executed; if so, put these into the job buffer as well.

  3. Execute (in a loop) any messages in the job buffer.

  4. Send any distributed messages that were generated by executing the messages in the job buffer.

  5. Wait for any new incoming messages.

The number of loops executed in the third step is reported as the Mean Loop Counter. This statistic increases in size as the utilisation of the TCP/IP buffer improves. You can use this to monitor performance as you add new processes to the cluster.

The Mean send size and Mean receive size statistics allow you to gauge the efficiency of writes and reads (respectively) between nodes. These values are given in bytes. Higher values mean a lower cost per byte sent or received; the maximum is 64k.

To cause all cluster log statistics to be logged, you can use the following command in the NDB management client:

ndb_mgm> ALL CLUSTERLOG STATISTICS=15

Note

Setting the threshold for STATISTICS to 15 causes the cluster log to become very verbose, and to gow quite rapidly in size, in direct proportion to the number of cluster nodes and the amount of activity on the cluster.

15.7.4. Single User Mode

Single user mode allows the database administrator to restrict access to the database system to a single API node, such as a MySQL server (SQL node) or an instance of ndb_restore. When entering single user mode, connections to all other API nodes are closed gracefully and all running transactions are aborted. No new transactions are permitted to start.

Once the cluster has entered single user mode, only the designated API node is granted access to the database.

You can use the ALL STATUS command to see when the cluster has entered single user mode.

Example:

ndb_mgm> ENTER SINGLE USER MODE 5

After this command has executed and the cluster has entered single user mode, the API node whose node ID is 5 becomes the cluster's only permitted user.

The node specified in the preceding command must be an API node; attempting to specify any other type of node will be rejected.

Note

When the preceding command is invoked, all transactions running on the designated node are aborted, the connection is closed, and the server must be restarted.

The command EXIT SINGLE USER MODE changes the state of the cluster's data nodes from single user mode to normal mode. API nodes — such as MySQL Servers — waiting for a connection (that is, waiting for the cluster to become ready and available), are again permitted to connect. The API node denoted as the single-user node continues to run (if still connected) during and after the state change.

Example:

ndb_mgm> EXIT SINGLE USER MODE

There are two recommended ways to handle a node failure when running in single user mode:

  • Method 1:

    1. Finish all single user mode transactions

    2. Issue the EXIT SINGLE USER MODE command

    3. Restart the cluster's data nodes

  • Method 2:

    Restart database nodes prior to entering single user mode.

15.7.5. Quick Reference: MySQL Cluster SQL Statements

This section discusses several SQL statements that can prove useful in managing and monitoring a MySQL server that is connected to a MySQL Cluster, and in some cases provide information about the cluster itself.

  • SHOW ENGINE NDB STATUS, SHOW ENGINE NDBCLUSTER STATUS

    The output of this statement contains information about the server's connection to the cluster, creation and usage of MySQL Cluster objects, and binary logging for MySQL Cluster replication.

    See Section 12.5.4.7, “SHOW ENGINE Syntax”, for a usage example and more detailed information.

  • SHOW ENGINES [LIKE 'NDB%']

    This statement can be used to determine whether or not clustering support is enabled in the MySQL server, and if so, whether it is active.

    See Section 12.5.4.8, “SHOW ENGINES Syntax”, for more detailed information.

  • SHOW VARIABLES LIKE 'NDB%'

    This statement provides a list of most server system variables relating to the NDB storage engine, and their values, as shown here:

    mysql> SHOW VARIABLES LIKE 'NDB%';
    +-------------------------------------+-------+
    | Variable_name                       | Value |
    +-------------------------------------+-------+
    | ndb_autoincrement_prefetch_sz       | 32    |
    | ndb_cache_check_time                | 0     |
    | ndb_extra_logging                   | 0     |
    | ndb_force_send                      | ON    |
    | ndb_index_stat_cache_entries        | 32    |
    | ndb_index_stat_enable               | OFF   |
    | ndb_index_stat_update_freq          | 20    |
    | ndb_report_thresh_binlog_epoch_slip | 3     |
    | ndb_report_thresh_binlog_mem_usage  | 10    |
    | ndb_use_copying_alter_table         | OFF   |
    | ndb_use_exact_count                 | ON    |
    | ndb_use_transactions                | ON    |
    +-------------------------------------+-------+


    See Section 5.1.3, “System Variables”, for more information.

  • SHOW STATUS LIKE 'NDB%'

    This statement shows at a glance whether or not the MySQL server is acting as a cluster SQL node, and if so, it provides the MySQL server's cluster node ID, the hostname and port for the cluster management server to which it is connected, and the number of data nodes in the cluster, as shown here:

    mysql> SHOW STATUS LIKE 'NDB%';
    +--------------------------+---------------+
    | Variable_name            | Value         |
    +--------------------------+---------------+
    | Ndb_cluster_node_id      | 10            |
    | Ndb_config_from_host     | 192.168.0.103 |
    | Ndb_config_from_port     | 1186          |
    | Ndb_number_of_data_nodes | 4             |
    +--------------------------+---------------+


    If the MySQL server was built with clustering support, but it is not connected to a cluster, all rows in the output of this statement contain a zero or an empty string:

    mysql> SHOW STATUS LIKE 'NDB%';
    +--------------------------+-------+
    | Variable_name            | Value |
    +--------------------------+-------+
    | Ndb_cluster_node_id      | 0     |
    | Ndb_config_from_host     |       |
    | Ndb_config_from_port     | 0     |
    | Ndb_number_of_data_nodes | 0     |
    +--------------------------+-------+


    See also Section 12.5.4.17, “SHOW STATUS Syntax”.

15.8. MySQL Cluster Security Issues

This section discusses security considerations to take into account when setting up and running MySQL Cluster.

Topics to be covered in this chapter include the following:

  • MySQL Cluster and network security issues

  • Configuration issues relating to running MySQL Cluster securely

  • MySQL Cluster and the MySQL privilege system

  • MySQL standard security procedures as applicable to MySQL Cluster

15.8.1. MySQL Cluster Security and Networking Issues

In this section, we discuss basic network security issues as they relate to MySQL Cluster. It is extremely important to remember that MySQL Cluster “out of the box” is not secure; you or your network administrator must take the proper steps to insure that your cluster cannot be compromised over the network.

Cluster communication protocols are inherently insecure, and no encryption or similar security measures are used in communications between nodes in the cluster. Because network speed and latency have a direct impact on the cluster's efficiency, it is also not advisable to employ SSL or other encryption to network connections between nodes, as such schemes will effectively slow communications.

It is also true that no authentication is used for controlling API node access to a MySQL Cluster. As with encryption, the overhead of imposing authentication requirements would have an adverse impact on Cluster performance.

In addition, there is no checking of the source IP address for either of the following when accessing the cluster:

  • SQL or API nodes using “free slots” created by empty [mysqld] or [api] sections in the config.ini file

    This means that, if there are any empty [mysqld] or [api] sections in the config.ini file, then any API nodes (including SQL nodes) that know the management server's hostname (or IP address) and port can connect to the cluster and access its data without restriction. (See Section 15.8.2, “MySQL Cluster and MySQL Privileges”, for more information about this and related issues.)

    Note

    You can exercise some control over SQL and API node access to the cluster by specifying a HostName parameter for all [mysqld] and [api] sections in the config.ini file. However, this also means that, should you wish to connect an API node to the cluster from a previously unused host, you need to add an [api] section containing its hostname to the config.ini file.

    More information is available elsewhere in this chapter about the HostName parameter. Also see Section 15.3.3, “Quick Test Setup of MySQL Cluster”, for configuration examples using HostName with API nodes.

  • Any ndb_mgm client

    This means that any cluster management client that is given the management server's hostname (or IP address) and port (if not the standard port) can connect to the cluster and execute any management client command. This includes commands such as ALL STOP and SHUTDOWN.

For these reasons, it is necessary to protect the cluster on the network level. The safest network configuration for Cluster is one which isolates connections between Cluster nodes from any other network communications. This can be accomplished by any of the following methods:

  1. Keeping Cluster nodes on a network that is physically separate from any public networks. This option is the most dependable; however, it is the most expensive to implement.

    We show an example of a MySQL Cluster setup using such a physically segregated network here:

    MySQL Cluster on a private network
                protected with a hardware firewall

    This setup has two networks, one private (solid box) for the Cluster management servers and data nodes, and one public (dotted box) where the SQL nodes reside. (We show the management and data nodes connected using a gigabit switch since this provides the best performance.) Both networks are protected from the outside by a hardware firewall, sometimes also known as a network-based firewall.

    This network setup is safest because no packets can reach the cluster's management or data nodes from outside the network — and none of the cluster's internal communications can reach the outside — without going through the SQL nodes, as long as the SQL nodes do not allow any packets to be forwarded. This means, of course, that all SQL nodes must be secured against hacking attempts.

    Important

    With regard to potential security vulnerabilities, an SQL node is no different from any other MySQL server. See Section 5.4.2, “Making MySQL Secure Against Attackers”, for a description of techniques you can use to secure MySQL servers.

  2. Using one or more software firewalls (also known as host-based firewalls) to control which packets pass through to the cluster from portions of the network that do not require access to it. In this type of setup, a software firewall must be installed on every host in the cluster which might otherwise be accessible from outside the local network.

    The host-based option is the least expensive to implement, but relies purely on software to provide protection and so is the most difficult to keep secure.

    This type of network setup for MySQL Cluster is illustrated here:

    MySQL Cluster deployed on a network
                using software firewalls to create public and private
                zones

    Using this type of network setup means that there are two zones of MySQL Cluster hosts. Each cluster host must be able to communicate with all of the other machines in the cluster, but only those hosting SQL nodes (dotted box) can be permitted to have any contact with the outside, while those in the zone containing the data nodes and management nodes (solid box) must be isolated from any machines that are not part of the cluster. Applications using the cluster and user of those applications must not be permitted to have direct access to the management and data node hosts.

    To accomplish this, you must set up software firewalls that limit the traffic to the type or types shown in the following table, according to the type of node that is running on each cluster host computer:

    Type of Node to be AccessedTraffic to Allow
    SQL or API node
    • It originates from the IP address of a management or data node (using any TCP or UDP port).

    • It originates from within the network in which the cluster resides and is on the port that your application is using.

    Data node or Management node
    • It originates from the IP address of a management or data node (using any TCP or UDP port).

    • It originates from the IP address of an SQL or API node.

    Any traffic other than that shown in the table for a given node type should be denied.

    The specifics of configuring a firewall vary from firewall application to firewall application, and are beyond the scope of this Manual. iptables is a very common and reliable firewall application, which is often used with APF as a front end to make configuration easier. You can (and should) consult the documentation for the software firewall that you employ, should you choose to implement a MySQL Cluster network setup of this type, or of a “mixed” type as discussed under the next item.

  3. It is also possible to employ a combination of the first two methods, using both hardware and software to secure the cluster — that is, using both network-based and host-based firewalls. This is between the first two schemes in terms of both security level and cost. This type of network setup keeps the cluster behind the hardware firewall, but allows incoming packets to travel beyond the router connecting all cluster hosts in order to reach the SQL nodes.

    One possible network deployment of a MySQL Cluster using hardware and software firewalls in combination is shown here:

    Network setup for MySQL Cluster using
                a combination of hardware and software firewalls to
                provide protection

    In this case, you can set the rules in the hardware firewall to deny any external traffic except to SQL nodes and API nodes, and then allow traffic to them only on the ports required by your application.

Whatever network configuration you use, remember that your objective from the viewpoint of keeping the cluster secure remains the same — to prevent any unessential traffic from reaching the cluster while ensuring the most efficient communication between the nodes in the cluster.

Because MySQL Cluster requires large numbers of ports to be open for communications between nodes, the recommended option is to use a segregated network. This represents the simplest way to prevent unwanted traffic from reaching the cluster.

Note

If you wish to administer a MySQL Cluster remotely (that is, from outside the local network), the recommended way to do this is to use ssh or another secure login shell to access an SQL node host. From this host, you can then run the management client to access the management server safely, from within the Cluster's own local network.

Even though it is possible to do so in theory, it is not recommended to use ndb_mgm to manage a Cluster directly from outside the local network on which the Cluster is running. Since neither authentication nor encryption takes place between the management client and the management server, this represents an extremely insecure means of managing the cluster, and is almost certain to be compromised sooner or later.

15.8.2. MySQL Cluster and MySQL Privileges

In this section, we discuss how the MySQL privilege system works in relation to MySQL Cluster and the implications of this for keeping a MySQL Cluster secure.

Standard MySQL privileges apply to MySQL Cluster tables. This includes all MySQL privilege types (SELECT privilege, UPDATE privilege, DELETE privilege, and so on) granted on the database, table, and column level. As with any other MySQL Server, user and privilege information is stored in the mysql system database. The SQL statements used to grant and revoke privileges on NDB tables, databases containing such tables, and columns within such tables are identical in all respects with the GRANT and REVOKE statements used in connection with database objects involving any (other) MySQL storage engine. The same thing is true with respect to the CREATE USER and DROP USER statements.

It is important to keep in mind that the MySQL grant tables use the MyISAM storage engine. Because of this, those tables are not duplicated or shared among MySQL servers acting as SQL nodes in a MySQL Cluster. By way of example, suppose that two SQL nodes A and B are connected to the same MySQL Cluster, which has an NDB table named mytable in a database named mydb, and that you execute an SQL statement on server A that creates a new user jon@localhost and grants this user the SELECT privilege on that table:

mysql> GRANT SELECT ON mydb.mytable
    ->   TO jon@localhost IDENTIFIED BY 'mypass';

This user is not created on server B. In order for this to take place, the statement must also be run on server B. Similarly, statements run on server A and affecting the privileges of existing users on server A do not affect users on server B unless those statements are actually run on server B as well.

In other words, changes in users and their privileges do not automatically propagate between SQL nodes. Synchronization of privileges between SQL nodes must be done either manually or by scripting an application that periodically synchronizes the privilege tables on all SQL nodes in the cluster.

Conversely, because there is no way in MySQL to deny privileges (privileges can either be revoked or not granted in the first place, but not denied as such), there is no special protection for NDB tables on one SQL node from users that have privileges on another SQL node. The most far-reaching example of this is the MySQL root account, which can perform any action on any database object. In combination with empty [mysqld] or [api] sections of the config.ini file, this account can be especially dangerous. To understand why, consider the following scenario:

  • The config.ini file contains at least one empty [mysqld] or [api] section. This means that the Cluster management server performs no checking of the host from which a MySQL Server (or other API node) accesses the MySQL Cluster.

  • There is no firewall, or the firewall fails to protect against access to the Cluster from hosts external to the network.

  • The hostname or IP address of the Cluster's management server is known or can be determined from outside the network.

If these conditions are true, then anyone, anywhere can start a MySQL Server with --ndbcluster --ndb-connectstring=management_host and access the Cluster. Using the MySQL root account, this person can then perform the following actions:

  • Execute a SHOW DATABASES statement to obtain a list of all databases that exist in the cluster

  • Execute a SHOW TABLES FROM some_database statement to obtain a list of all NDB tables in a given database

  • Run any legal MySQL statements on any of those tables, such as:

    • SELECT * FROM some_table to read all the data from any table

    • DELETE FROM some_table to delete all the data from a table

    • DESCRIBE some_table or SHOW CREATE TABLE some_table to determine the table schema

    • UPDATE some_table SET column1 = any_value1 to fill a table column with “garbage” data; this could actually cause much greater damage than simply deleting all the data

      Even more insidious variations might include statements like these:

      UPDATE some_table SET an_int_column = an_int_column + 1


      or


      UPDATE some_table SET a_varchar_column = REVERSE(a_varchar_column)


      Such malicious statements are limited only by the imagination of the attacker.

    The only tables that would be safe from this sort of mayhem would be those tables that were created using storage engines other than NDB, and so not visible to a “rogue” SQL node.

    Note

    A user who can log in as root can also access the INFORMATION_SCHEMA database and its tables, and so obtain information about databases, tables, stored routines, scheduled events, and any other database objects for which metadata is stored in INFORMATION_SCHEMA.

    It is also a very good idea to use different passwords for the root accounts on different cluster SQL nodes.

In sum, you cannot have a safe MySQL Cluster if it is directly accessible from outside your local network.

Important

Never leave the MySQL root account password empty. This is just as true when running MySQL as a MySQL Cluster SQL node as it is when running it as a standalone (non-Cluster) MySQL Server, and should be done as part of the MySQL installation process before configuring the MySQL Server as an SQL node in a MySQL Cluster.

You should never convert the system tables in the mysql database to use the NDB storage engine. There are a number of reasons why you should not do this, but the most important reason is this: Many of the SQL statements that affect mysql tables storing information about user privileges, stored routines, scheduled events, and other database objects cease to function if these tables are changed to use any storage engine other than MyISAM. This is a consequence of various MySQL Server internals which are not expected to change in the foreseeable future.

If you need to synchronize mysql system tables between SQL nodes, you can use standard MySQL replication to do so, or employ a script to copy table entries between the MySQL servers.

Summary.  The two most important points to remember regarding the MySQL privilege system with regard to MySQL Cluster are:

  1. Users and privileges established on one SQL node do not automatically exist or take effect on other SQL nodes in the cluster.

    Conversely, removing a user or privilege on one SQL node in the cluster does not remove the user or privilege from any other SQL nodes.

  2. Once a MySQL user is granted privileges on an NDB table from one SQL node in a MySQL Cluster, that user can “see” any data in that table regardless of the SQL node from which the data originated.

15.8.3. MySQL Cluster and MySQL Security Procedures

In this section, we discuss MySQL standard security procedures as they apply to running MySQL Cluster.

In general, any standard procedure for running MySQL securely also applies to running a MySQL Server as part of a MySQL Cluster. First and foremost, you should always run a MySQL Server as the mysql system user; this is no different from running MySQL in a standard (non-Cluster) environment. The mysql system account should be uniquely and clearly defined. Fortunately, this is the default behavior for a new MySQL installation. You can verify that the mysqld process is running as the system user mysql by using the system command such as the one shown here:

shell> ps aux | grep mysql
root     10467  0.0  0.1   3616  1380 pts/3    S    11:53   0:00 \
  /bin/sh ./mysqld_safe --ndbcluster --ndb-connectstring=localhost:1186
mysql    10512  0.2  2.5  58528 26636 pts/3    Sl   11:53   0:00 \
  /usr/local/mysql/libexec/mysqld --basedir=/usr/local/mysql \
  --datadir=/usr/local/mysql/var --user=mysql --ndbcluster \
  --ndb-connectstring=localhost:1186 --pid-file=/usr/local/mysql/var/mothra.pid \
  --log-error=/usr/local/mysql/var/mothra.err
jon      10579  0.0  0.0   2736   688 pts/0    S+   11:54   0:00 grep mysql

If the mysqld process is running as any other user than mysql, you should immediately shut it down and restart it as the mysql user. If this user does not exist on the system, the mysql user account should be created, and this user should be part of the mysql user group; in this case, you should also make sure that the MySQL DataDir on this system is owned by the mysql user, and that the SQL node's my.cnf file includes user=mysql in the [mysqld] section. Alternatively, you can start the server with --user=mysql on the command line, but it is preferable to use the my.cnf option, since you might forget to use the command-line option and so have mysqld running as another user unintentionally. The mysqld_safe startup script forces MySQL to run as the mysql user.

Important

Never run mysqld as the system root user. Doing so means that potentially any file on the system can be read by MySQL, and thus — should MySQL be compromised — by an attacker.

As mentioned in the previous section (see Section 15.8.2, “MySQL Cluster and MySQL Privileges”), you should always set a root password for the MySQL Server as soon as you have it running. You should also delete the anonymous user account that is installed by default. You can accomplish these tasks via the following statements:

shell< mysql -u root

mysql> UPDATE mysql.user
    ->     SET Password=PASSWORD('secure_password')
    ->     WHERE User='root';

mysql> DELETE FROM mysql.user
    ->     WHERE User='';

mysql> FLUSH PRIVILEGES;

Be very careful when executing the DELETE statement not to omit the WHERE clause, or you risk deleting all MySQL users. Be sure to run the FLUSH PRIVILEGES statement as soon as you have modified the mysql.user table, so that the changes take immediate effect. Without FLUSH PRIVILEGES, the changes do not take effect until the next time that the server is restarted.

Note

Many of the MySQL Cluster utilities such as ndb_show_tables, ndb_desc, and ndb_select_all also work without authentication and can reveal table names, schemas, and data. By default these are installed on Unix-style systems with the permissions wxr-xr-x (755), which means they can be executed by any user that can access the mysql/bin directory.

See Section 15.10, “Cluster Utility Programs”, for more information about these utilities.

15.9. On-line Backup of MySQL Cluster

This section describes how to create a backup and how to restore the database from a backup at a later time.

15.9.1. Cluster Backup Concepts

A backup is a snapshot of the database at a given time. The backup consists of three main parts:

  • Metadata.  The names and definitions of all database tables

  • Table records.  The data actually stored in the database tables at the time that the backup was made

  • Transaction log.  A sequential record telling how and when data was stored in the database

Each of these parts is saved on all nodes participating in the backup. During backup, each node saves these three parts into three files on disk:

  • BACKUP-backup_id.node_id.ctl

    A control file containing control information and metadata. Each node saves the same table definitions (for all tables in the cluster) to its own version of this file.

  • BACKUP-backup_id-0.node_id.data

    A data file containing the table records, which are saved on a per-fragment basis. That is, different nodes save different fragments during the backup. The file saved by each node starts with a header that states the tables to which the records belong. Following the list of records there is a footer containing a checksum for all records.

  • BACKUP-backup_id.node_id.log

    A log file containing records of committed transactions. Only transactions on tables stored in the backup are stored in the log. Nodes involved in the backup save different records because different nodes host different database fragments.

In the listing above, backup_id stands for the backup identifier and node_id is the unique identifier for the node creating the file.

15.9.2. Using The Management Client to Create a Backup

Before starting a backup, make sure that the cluster is properly configured for performing one. (See Section 15.9.4, “Configuration for Cluster Backup”.)

Creating a backup using the management client involves the following steps:

  1. Start the management client (ndb_mgm), if it not running already.

  2. Execute the START BACKUP command. This produces several lines of output indicating the progress of the backup, as shown here:

    ndb_mgm> START BACKUP
    Waiting for completed, this may take several minutes
    Node 2: Backup 1 started from node 1
    Node 2: Backup 1 started from node 1 completed
     StartGCP: 177 StopGCP: 180
     #Records: 7362 #LogRecords: 0
     Data: 453648 bytes Log: 0 bytes
    ndb_mgm>


    The first line printed indicates that the management client is waiting for the backup to be completed before returning control to the client. This behavior is the default for the START BACKUP command, but can be changed. To specify when START BACKUP command should return control to the client, append NOWAIT, WAIT STARTED, or WAIT COMPLETED to the command. The effects that each of these has differs as follows:

    • If NOWAIT is specified, the management client displays a prompt immediately, as seen here:

      ndb_mgm> START BACKUP NOWAIT
      ndb_mgm>


      In this case, the management client can be used even while it prints progress information from the backup process.

    • With WAIT STARTED the management client waits until the backup has started before returning control to the user, as shown here:

      ndb_mgm> START BACKUP WAIT STARTED
      Waiting for started, this may take several minutes
      Node 2: Backup 3 started from node 1
      ndb_mgm>


    • WAIT COMPLETED explicitly specifies the default behavior — that is, it causes the management client to wait until the backup process is complete before returning control to the user.

  3. When the backup has started the management client displays this message:

    Backup backup_id started from node node_id


    backup_id is the unique identifier for this particular backup. This identifier is saved in the cluster log, if it has not been configured otherwise. node_id is the identifier of the management server that is coordinating the backup with the data nodes. At this point in the backup process the cluster has received and processed the backup request. It does not mean that the backup has finished. An example of this statement is shown here:


    Node 2: Backup 1 started from node 1


  4. The management client indicates that the backup has completed with a message in the following format:

    Backup backup_id started from node node_id completed


    As is the case for the notification that the backup has started, backup_id is the unique identifier for this particular backup, and node_id is the node ID of the management server that is coordinating the backup with the data nodes. This output is accompanied by additional information including relevant global checkpoints, the number of records backed up, and the size of the data, as shown here:


    Node 2: Backup 1 started from node 1 completed
     StartGCP: 177 StopGCP: 180
     #Records: 7362 #LogRecords: 0
     Data: 453648 bytes Log: 0 bytes


Cluster backups are created by default in the BACKUP subdirectory of the DataDir on each data node. This can be overridden for one or more data nodes individually, or for all cluster data nodes in the config.ini file using the BackupDataDir configuration parameter as discussed in Identifying Data Nodes. The backup files created for a backup with a given backup_id are stored in a subdirectory named BACKUP-backup_id in the backup directory.

To abort a backup that is already in progress:

  1. Start the management client.

  2. Execute this command:

    ndb_mgm> ABORT BACKUP backup_id


    The number backup_id is the identifier of the backup that was included in the response of the management client when the backup was started (in the message Backup backup_id started from node management_node_id).

  3. The management client will acknowledge the abort request with Abort of backup backup_id ordered.

    Note

    At this point, the management client has not yet received a response from the cluster data nodes to this request, and the backup has not yet actually been aborted.

  4. After the backup has been aborted, the management client will report this fact in a manner similar to what is shown here:

    Node 1: Backup 3 started from 5 has been aborted. Error: 1321 - Backup aborted by user request: Permanent error: User defined error
    Node 3: Backup 3 started from 5 has been aborted. Error: 1323 - 1323: Permanent error: Internal error
    Node 2: Backup 3 started from 5 has been aborted. Error: 1323 - 1323: Permanent error: Internal error
    Node 4: Backup 3 started from 5 has been aborted. Error: 1323 - 1323: Permanent error: Internal error


    In this example, we have shown sample output for a cluster with 4 data nodes, where the sequence number of the backup to be aborted is 3, and the management node to which the cluster management client is connected has the node ID 5. The first node to complete its part in aborting the backup reports that the reason for the abort was due to a request by the user. (The remaining nodes report that the backup was aborted due to an unspecified internal error.)

    Note

    There is no guarantee that the cluster nodes respond to an ABORT BACKUP command in any particular order.

    The Backup backup_id started from node management_node_id has been aborted messages mean that the backup has been terminated and that all files relating to this backup have been removed from the cluster filesystem.

It is also possible to abort a backup in progress from a system shell using this command:

shell> ndb_mgm -e "ABORT BACKUP backup_id"

Note

If there is no backup with ID backup_id running when an ABORT BACKUP is issued, the management client makes no response, nor is it indicated in the cluster log that an invalid abort command was sent.

15.9.3. ndb_restore — Restore a Cluster Backup

The cluster restoration program is implemented as a separate command-line utility ndb_restore, which can normally be found in the MySQL bin directory. This program reads the files created as a result of the backup and inserts the stored information into the database.

ndb_restore must be executed once for each of the backup files that were created by the START BACKUP command used to create the backup (see Section 15.9.2, “Using The Management Client to Create a Backup”). This is equal to the number of data nodes in the cluster at the time that the backup was created.

Note

Before using ndb_restore, it is recommended that the cluster be running in single user mode, unless you are restoring multiple data nodes in parallel. See Section 15.7.4, “Single User Mode”, for more information about single user mode.

Typical options for this utility are shown here:

ndb_restore [-c connectstring] -n node_id [-m] -b backup_id -r [backup_path=]/path/to/backup/files

The -c option is used to specify a connectstring which tells ndb_restore where to locate the cluster management server. (See Section 15.3.4.2, “The Cluster Connectstring”, for information on connectstrings.) If this option is not used, then ndb_restore attempts to connect to a management server on localhost:1186. This utility acts as a cluster API node, and so requires a free connection “slot” to connect to the cluster management server. This means that there must be at least one [api] or [mysqld] section that can be used by it in the cluster config.ini file. It is a good idea to keep at least one empty [api] or [mysqld] section in config.ini that is not being used for a MySQL server or other application for this reason (see Section 15.3.4.6, “Defining SQL and Other API Nodes”).

You can verify that ndb_restore is connected to the cluster by using the SHOW command in the ndb_mgm management client. You can also accomplish this from a system shell, as shown here:

shell> ndb_mgm -e "SHOW"

-n is used to specify the node ID of the data node on which the backups were taken.

The first time you run the ndb_restore restoration program, you also need to restore the metadata. In other words, you must re-create the database tables — this can be done by running it with the -m option. Note that the cluster should have an empty database when starting to restore a backup. (In other words, you should start ndbd with --initial prior to performing the restore.)

The -b option is used to specify the ID or sequence number of the backup, and is the same number shown by the management client in the Backup backup_id completed message displayed upon completion of a backup. (See Section 15.9.2, “Using The Management Client to Create a Backup”.)

The path to the backup directory is required, and must include the subdirectory corresponding to the ID backup of the backup to be restored. For example, if the data node's DataDir is /var/lib/mysql-cluster, then the backup directory is /var/lib/mysql-cluster/BACKUP, and the backup files for the backup with the ID 3 can be found in /var/lib/mysql-cluster/BACKUP/BACKUP-3. The path may be absolute or relative to the directory in which the ndb_restore executable is located, and may be optionally prefixed with backup_path=.

Important

When restoring cluster backups, you must be sure to restore all data nodes from backups having the same backup ID. Using files from different backups will at best result in restoring the cluster to an inconsistent state, and may fail altogether.

Important

It is not possible to restore a backup made from a newer version of MySQL Cluster using an older version of ndb_restore. You can restore a backup made from a newer version of MySQL to an older cluster, but you must use a copy of ndb_restore from the newer MySQL Cluster version to do so.

For example, to restore a cluster backup taken from a cluster running MySQL 4.1.22 to a cluster running MySQL Cluster 4.1.20, you must use a copy of ndb_restore from the 4.1.22 distribution.

It is possible to restore a backup to a database with a different configuration than it was created from. For example, suppose that a backup with backup ID 12, created in a cluster with two database nodes having the node IDs 2 and 3, is to be restored to a cluster with four nodes. Then ndb_restore must be run twice — once for each database node in the cluster where the backup was taken. However, ndb_restore cannot always restore backups made from a cluster running one version of MySQL to a cluster running a different MySQL version. See Section 15.5.2, “MySQL Cluster 4.1 Upgrade and Downgrade Compatibility”, for more information.

Note

For more rapid restoration, the data may be restored in parallel, provided that there is a sufficient number of cluster connections available. That is, when restoring to multiple nodes in parallel, you must have an [api] or [mysqld] section in the cluster config.ini file available for each concurrent ndb_restore process. However, the data files must always be applied before the logs.

Most of the options available for this program are shown in the following table:

Long FormShort FormDescriptionDefault Value
--backup-id-bBackup sequence ID0
--backup_pathNonePath to backup files./
--character-sets-dirNoneSpecify the directory where character set information can be foundNone
--connect, --connectstring, or --ndb-connectstring-c or -CSet the connectstring in [nodeid=node_id;][host=]host[:port] formatlocalhost:1186
--core-fileNoneWrite a core file in the event of an errorTRUE
--debug-#Output debug logd:t:O,/tmp/ndb_restore.trace
--help or --usage-?Display help message with available options and current values, then exit[N/A]
--ndb-mgmd-hostNoneSet the host and port in host[:port] format for the management server to connect to; this is the same as --connect, --connectstring, or --ndb-connectstring, but without a way to specify the nodeidNone
--ndb-nodeidNoneSpecify a node ID for the ndb_restore process0
--ndb-optimized-node-selectionNoneOptimize selection of nodes for transactionsTRUE
--ndb-shmNoneUse shared memory connections when availableFALSE
--nodeid-nUse backup files from node with the specified ID0
--parallelism-pSet from 1 to 1024 parallel transactions to be used during the restoration process128
--printNonePrint metadata, data, and log to stdoutFALSE
--print_dataNonePrint data to stdoutFALSE
--print_logNonePrint log to stdoutFALSE
--print_metaNonePrint metadata to stdoutFALSE
--restore_data-rRestore data and logsFALSE
--restore_meta-mRestore table metadataFALSE
--version-VOutput version information and exit[N/A]

Note

If a table has no explicit primary key, then the output generated when using the --print includes the table's hidden primary key.

Note

ndb_restore reports both temporary and permanent errors. In the case of temporary errors, it may able to recover from them. Beginning with MySQL 4.1.22, it reports Restore successful, but encountered temporary error, please look at configuration in such cases.

15.9.4. Configuration for Cluster Backup

Five configuration parameters are essential for backup:

  • BackupDataBufferSize

    The amount of memory used to buffer data before it is written to disk.

  • BackupLogBufferSize

    The amount of memory used to buffer log records before these are written to disk.

  • BackupMemory

    The total memory allocated in a database node for backups. This should be the sum of the memory allocated for the backup data buffer and the backup log buffer.

  • BackupWriteSize

    The default size of blocks written to disk. This applies for both the backup data buffer and the backup log buffer.

  • BackupMaxWriteSize

    The maximum size of blocks written to disk. This applies for both the backup data buffer and the backup log buffer.

More detailed information about these parameters can be found in Backup Parameters.

15.9.5. Backup Troubleshooting

If an error code is returned when issuing a backup request, the most likely cause is insufficient memory or disk space. You should check that there is enough memory allocated for the backup.

Important

If you have set BackupDataBufferSize and BackupLogBufferSize and their sum is greater than 4MB, then you must also set BackupMemory as well. See BackupMemory.

You should also make sure that there is sufficient space on the hard drive partition of the backup target.

NDB does not support repeatable reads, which can cause problems with the restoration process. Although the backup process is “hot”, restoring a MySQL Cluster from backup is not a 100% “hot” process. This is due to the fact that, for the duration of the restore process, running transactions get non-repeatable reads from the restored data. This means that the state of the data is inconsistent while the restore is in progress.

15.10. Cluster Utility Programs

This section discusses the MySQL Cluster utility programs that can be found in the mysql/bin directory. Each of these — except for ndb_size.pl and ndb_error_reporter — is a standalone binary that can be used from a system shell, and that does not need to connect to a MySQL server (nor even requires that a MySQL server be connected to the cluster).

These utilities can also serve as examples for writing your own applications using the NDB API. The source code for most of these programs may be found in the ndb/tools directory of the MySQL 4.1 tree (see Section 2.9, “MySQL Installation Using a Source Distribution”). The NDB API is not covered in this manual; please refer to the NDB API Guide for information about this API.

All of the NDB utilities are listed here with brief descriptions:

  • ndb_config: Retrieves Cluster configuration option values.

  • ndb_cpcd: Used in testing and debugging MySQL Cluster.

  • ndb_delete_all: Deletes all rows from a given table.

  • ndb_desc: Lists all properties of an NDB table.

  • ndb_drop_index: Drops the specified index from an NDB table.

  • ndb_drop_table: Drops an NDB table.

  • ndb_error_reporter: Can be used to gather information useful for diagnosing problems with the cluster.

  • ndb_mgm: This is the MySQL Cluster management client, which is discussed in Section 15.7.2, “Commands in the MySQL Cluster Management Client”.

  • ndb_print_backup_file: Prints diagnostic information obtained from cluster backup files.

  • ndb_print_schema_file: Prints diagnostic information obtained from cluster schema files.

  • ndb_print_sys_file: Prints diagnostic information obtained from cluster system files.

  • ndb_restore: This utility is used to restore a cluster from backup. See Section 15.9.3, “ndb_restore — Restore a Cluster Backup”, for more information.

  • ndb_select_all: Prints all rows from an NDB table.

  • ndb_select_count: Gets the number of rows in one or more NDB tables.

  • ndb_show_tables: Shows all NDB tables anywhere in the cluster.

  • ndb_size.pl: Examines all the tables in a given non-Cluster database and calculates the amount of storage each would require if it were converted to use the NDB storage engine.

  • ndb_waiter: Reports on the status of cluster data nodes in a manner similar to that of the management client command ALL STATUS.

Most of these utilities need to connect to a Cluster management server in order to function. The exceptions are ndb_size.pl (see below), and the following utilities which access a cluster data node filesystem and so need to be run on a data node host:

  • ndb_print_backup_file

  • ndb_print_schema_file

  • ndb_print_sys_file

ndb_size.pl is a Perl script which is also intended to be used from the shell; however it is a MySQL application and must be able to connect to a MySQL server. See Section 15.10.14, “ndb_size.pl — NDBCLUSTER Size Requirement Estimator”, for additional requirements for using this script.

ndb_error_reporter is also a Perl script. It is used to gather cluster data node and management node logs together into a tarball to submit along with a bug report. It can use ssh or scp to access the node filesystems remotely.

Additional information about each of these utilities (except for ndb_mgm and ndb_restore) can be found in the sections that follow.

Note

All of these utilities (except for ndb_size.pl and ndb_config) can use the options discussed in Section 15.6.5, “Command Options for MySQL Cluster Processes”. Additional options specific to each utility program are discussed in the individual program listings.

The order in which these options are used is generally not important. For example, all of these commands produce exactly the same output:

  • ndb_desc -c localhost fish -d test

  • ndb_desc fish -c localhost -d test

  • ndb_desc -d test fish -c localhost

15.10.1. ndb_config — Extract NDB Configuration Information

This tool extracts configuration information for data nodes, SQL nodes, and API nodes from a cluster management node (and possibly its config.ini file).

Usage:

ndb_config options

The options available for this utility differ somewhat from those used with the other utilities, and so are listed in their entirety in the next section, followed by some examples.

Options:

  • --usage, --help, or -?

    Causes ndb_config to print a list of available options, and then exit.

  • --version, -V

    Causes ndb_config to print a version information string, and then exit.

  • --ndb-connectstring=connect_string

    Specifies the connectstring to use in connecting to the management server. The format for the connectstring is the same as described in Section 15.3.4.2, “The Cluster Connectstring”, and defaults to localhost:1186.

    Note

    The use of -c as a short version for this option is not currently supported with ndb_config.

  • --config-file=path-to-file

    Gives the path to the management server's configuration file (config.ini). This may be a relative or absolute path. If the management node resides on a different host from the one on which ndb_config is invoked, then an absolute path must be used.

  • --query=query-options, -q query-options

    This is a comma-delimited list of query options — that is, a list of one or more node attributes to be returned. These include id (node ID), type (node type — that is, ndbd, mysqld, or ndb_mgmd), and any configuration parameters whose values are to be obtained.

    For example, --query=id,type,indexmemory,datamemory would return the node ID, node type, DataMemory, and IndexMemory for each node.

    Note

    If a given parameter is not applicable to a certain type of node, than an empty string is returned for the corresponding value. See the examples later in this section for more information.

  • --host=hostname

    Specifies the hostname of the node for which configuration information is to be obtained.

  • --id=node_id, --nodeid=node_id

    Used to specify the node ID of the node for which configuration information is to be obtained.

  • --nodes

    (Tells ndb_config to print information from parameters defined in [ndbd] sections only. Currently, using this option has no affect, since these are the only values checked, but it may become possible in future to query parameters set in [tcp] and other sections of cluster configuration files.)

  • --type=node_type

    Filters results so that only configuration values applying to nodes of the specified node_type (ndbd, mysqld, or ndb_mgmd) are returned.

  • --fields=delimiter, -f delimiter

    Specifies a delimiter string used to separate the fields in the result. The default is “,” (the comma character).

    Note

    If the delimiter contains spaces or escapes (such as \n for the linefeed character), then it must be quoted.

  • --rows=separator, -r separator

    Specifies a separator string used to separate the rows in the result. The default is a space character.

    Note

    If the separator contains spaces or escapes (such as \n for the linefeed character), then it must be quoted.

Examples:

  1. To obtain the node ID and type of each node in the cluster:

    shell> ./ndb_config --query=id,type --fields=':' --rows='\n'
    1:ndbd
    2:ndbd
    3:ndbd
    4:ndbd
    5:ndb_mgmd
    6:mysqld
    7:mysqld
    8:mysqld
    9:mysqld


    In this example, we used the --fields options to separate the ID and type of each node with a colon character (:), and the --rows options to place the values for each node on a new line in the output.

  2. To produce a connectstring that can be used by data, SQL, and API nodes to connect to the management server:

    shell> ./ndb_config --config-file=usr/local/mysql/cluster-data/config.ini --query=hostname,portnumber --fields=: --rows=, --type=ndb_mgmd
    192.168.0.179:1186


  3. This invocation of ndb_config checks only data nodes (using the --type option), and shows the values for each node's ID and hostname, and its DataMemory, IndexMemory, and DataDir parameters:

    shell> ./ndb_config --type=ndbd --query=id,host,datamemory,indexmemory,datadir -f ' : ' -r '\n'
    1 : 192.168.0.193 : 83886080 : 18874368 : /usr/local/mysql/cluster-data
    2 : 192.168.0.112 : 83886080 : 18874368 : /usr/local/mysql/cluster-data
    3 : 192.168.0.176 : 83886080 : 18874368 : /usr/local/mysql/cluster-data
    4 : 192.168.0.119 : 83886080 : 18874368 : /usr/local/mysql/cluster-data


    In this example, we used the short options -f and -r for setting the field delimiter and row separator, respectively.

  4. To exclude results from any host except one in particular, use the --host option:

    shell> ./ndb_config --host=192.168.0.176 -f : -r '\n' -q id,type
    3:ndbd
    5:ndb_mgmd


    In this example, we also used the short form -q to determine the attributes to be queried.

    Similarly, you can limit results to a node with a specific ID using the --id or --nodeid option.

15.10.2. ndb_cpcd — Automate Testing for NDB Development

This utility is found in the libexec directory. It is part of an internal automated test framework used in testing and bedugging MySQL Cluster. Because it can control processes on remote systems, it is not advisable to use ndb_cpcd in a production cluster.

The source files for ndb_cpcd may be found in the directory ndb/src/cw/cpcd, in the MySQL 4.1 source tree.

15.10.3. ndb_delete_all — Delete All Rows from NDB Table

ndb_delete_all deletes all rows from the given NDB table. In some cases, this can be much faster than DELETE or even TRUNCATE.

Usage:

ndb_delete_all -c connect_string tbl_name -d db_name

This deletes all rows from the table named tbl_name in the database named db_name. It is exactly equivalent to executing TRUNCATE db_name.tbl_name in MySQL.

Additional Options:

  • --transactional, -t

    Use of this option causes the delete operation to be performed as a single transaction.

    Warning

    With very large tables, using this option may cause the number of operations available to the cluster to be exceeded.

15.10.4. ndb_desc — Describe NDB Tables

ndb_desc provides a detailed description of one or more NDB tables.

Usage:

ndb_desc -c connect_string tbl_name -d db_name [-p]

Sample Output:

MySQL table creation and population statements:

USE test;

CREATE TABLE fish (
    id INT(11) NOT NULL AUTO_INCREMENT,
    name VARCHAR(20),

    PRIMARY KEY pk (id),
    UNIQUE KEY uk (name)
) ENGINE=NDBCLUSTER;

INSERT INTO fish VALUES
    ('','guppy'), ('','tuna'), ('','shark'),
    ('','manta ray'), ('','grouper'), ('','puffer');

Output from ndb_desc:

shell> ./ndb_desc -c localhost fish -d test -p
-- fish --
Version: 16777221
Fragment type: 5
K Value: 6
Min load factor: 78
Max load factor: 80
Temporary table: no
Number of attributes: 2
Number of primary keys: 1
Length of frm data: 268
Row Checksum: 1
Row GCI: 1
TableStatus: Retrieved
-- Attributes --
id Int PRIMARY KEY DISTRIBUTION KEY AT=FIXED ST=MEMORY
name Varchar(20;latin1_swedish_ci) NULL AT=SHORT_VAR ST=MEMORY

-- Indexes --
PRIMARY KEY(id) - UniqueHashIndex
uk(name) - OrderedIndex
PRIMARY(id) - OrderedIndex
uk$unique(name) - UniqueHashIndex

-- Per partition info --
Partition  Row count  Commit count  Frag fixed memory  Frag varsized memory
2          2          2             65536              327680
1          2          2             65536              327680
3          2          2             65536              327680

NDBT_ProgramExit: 0 - OK

Additional Options:

  • --extra-partition-info, -p

    Prints additional information about the table's partitions.

  • Information about multiple tables can be obtained in a single invocation of ndb_desc by using their names, separated by spaces. All of the tables must be in the same database.

15.10.5. ndb_drop_index — Drop Index from NDB Table

ndb_drop_index drops the specified index from an NDB table. It is recommended that you use this utility only as an example for writing NDB API applications — see the Warning later in this section for details.

Usage:

ndb_drop_index -c connect_string table_name index -d db_name

The statement shown above drops the index named index from the table in the database.

Additional Options: None that are specific to this application.

Warning

Operations performed on Cluster table indexes using the NDB API are not visible to MySQL and make the table unusable by a MySQL server. If you use this program to drop an index, then try to access the table from an SQL node, an error results, as shown here:

shell> ./ndb_drop_index -c localhost dogs ix -d ctest1
Dropping index dogs/idx...OK

NDBT_ProgramExit: 0 - OK

shell> ./mysql -u jon -p ctest1
Enter password: *******
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 7 to server version: 5.1.12-beta-20060817

Type 'help;' or '\h' for help. Type '\c' to clear the buffer.

mysql> SHOW TABLES;
+------------------+
| Tables_in_ctest1 |
+------------------+
| a                |
| bt1              |
| bt2              |
| dogs             |
| employees        |
| fish             |
+------------------+
6 rows in set (0.00 sec)

mysql> SELECT * FROM dogs;
ERROR 1296 (HY000): Got error 4243 'Index not found' from NDBCLUSTER

In such a case, your only option for making the table available to MySQL again is to drop the table and re-create it. You can use either the SQL statementDROP TABLE or the ndb_drop_table utility (see Section 15.10.6, “ndb_drop_table — Drop NDB Table”) to drop the table.

15.10.6. ndb_drop_table — Drop NDB Table

ndb_drop_table drops the specified NDB table. (If you try to use this on a table created with a storage engine other than NDB, it fails with the error 723: No such table exists.) This operation is extremely fast — in some cases, it can be an order of magnitude faster than using DROP TABLE on an NDB table from MySQL.

Usage:

ndb_drop_table -c connect_string tbl_name -d db_name

Additional Options: None.

15.10.7. ndb_error_reporter — NDB Error-Reporting Utility

ndb_error_reporter creates an archive from data node and management node log files that can be used to help diagnose bugs or other problems with a cluster. It is highly recommended that you make use of this utility when filing reports of bugs in MySQL Cluster.

Usage:

ndb_error_reporter path/to/config-file [username] [--fs]

This utility is intended for use on a management node host, and requires the path to the management host configuration file (config.ini). Optionally, you can supply the name of a user that is able to access the cluster's data nodes via SSH, in order to copy the data node log files. ndb_error_reporter then includes all of these files in archive that is created in the same directory in which it is run. The archive is named ndb_error_report_YYYYMMDDHHMMSS.tar.bz2, where YYYYMMDDHHMMSS is a datetime string.

If the --fs is used, then the data node filesystems are also copied to the management host and included in the archive that is produced by this script. As data node filesystems can be extremely large even after being compressed, we ask that you please do not send archives created using this option to MySQL AB unless you are specifically requested to do so.

15.10.8. ndb_print_backup_file — Print NDB Backup File Contents

ndb_print_backup_file obtains diagnostic information from a cluster backup file.

Usage:

ndb_print_backup_file file_name

file_name is the name of a cluster backup file. This can be any of the files (.Data, .ctl, or .log file) found in a cluster backup directory. These files are found in the data node's backup directory under the subdirectory BACKUP-#, where # is the sequence number for the backup. For more information about cluster backup files and their contents, see Section 15.9.1, “Cluster Backup Concepts”.

Like ndb_print_schema_file and ndb_print_sys_file (and unlike most of the other NDB utilities that are intended to be run on a management server host or to connect to a management server) ndb_print_backup_file must be run on a cluster data node, since it accesses the data node filesystem directly. Because it does not make use of the management server, this utility can be used when the management server is not running, and even when the cluster has been completely shut down.

Additional Options: None.

15.10.9. ndb_print_schema_file — Print NDB Schema File Contents

ndb_print_schema_file obtains diagnostic information from a cluster schema file.

Usage:

ndb_print_schema_file file_name

file_name is the name of a cluster schema file. For more information about cluster schema files, see Cluster Data Node FileSystemDir Files.

Like ndb_print_backup_file and ndb_print_sys_file (and unlike most of the other NDB utilities that are intended to be run on a management server host or to connect to a management server) ndb_schema_backup_file must be run on a cluster data node, since it accesses the data node filesystem directly. Because it does not make use of the management server, this utility can be used when the management server is not running, and even when the cluster has been completely shut down.

Additional Options: None.

15.10.10. ndb_print_sys_file — Print NDB System File Contents

ndb_print_sys_file obtains diagnostic information from a cluster system file.

Usage:

ndb_print_sys_file file_name

file_name is the name of a cluster system file (sysfile). Cluster system files are located in a data node's data directory (DataDir); the path under this directory to system files matches the pattern ndb_#_fs/D#/DBDIH/P#.sysfile. In each case, the # represents a number (not necessarily the same number). For more information, see Cluster Data Node FileSystemDir Files.

Like ndb_print_backup_file and ndb_print_schema_file (and unlike most of the other NDB utilities that are intended to be run on a management server host or to connect to a management server) ndb_print_backup_file must be run on a cluster data node, since it accesses the data node filesystem directly. Because it does not make use of the management server, this utility can be used when the management server is not running, and even when the cluster has been completely shut down.

Additional Options: None.

15.10.11. ndb_select_all — Print Rows from NDB Table

ndb_select_all prints all rows from an NDB table to stdout.

Usage:

ndb_select_all -c connect_string tbl_name -d db_name [> file_name]

Additional Options:

  • --lock=lock_type, -l lock_type

    Employs a lock when reading the table. Possible values for lock_type are:

    • 0: Read lock

    • 1: Read lock with hold

    • 2: Exclusive read lock

    There is no default value for this option.

  • --order=index_name, -o index_name

    Orders the output according to the index named index_name. Note that this is the name of an index, not of a column, and that the index must have been explicitly named when created.

  • --descending, -z

    Sorts the output in descending order. This option can be used only in conjunction with the -o (--order) option.

  • --header=FALSE

    Excludes column headers from the output.

  • --useHexFormat -x

    Causes all numeric values to be displayed in hexadecimal format. This does not affect the output of numerals contained in strings or datetime values.

  • --delimiter=character, -D character

    Causes the character to be used as a column delimiter. Only table data columns are separated by this delimiter.

    The default delimiter is the tab character.

  • --rowid

    Adds a ROWID column providing information about the fragments in which rows are stored.

  • --gci

    Adds a column to the output showing the global checkpoint at which each row was last updated. See Section 15.14, “MySQL Cluster Glossary”, and Section 15.7.3.2, “Log Events”, for more information about checkpoints.

  • --tupscan, -t

    Scan the table in the order of the tuples.

  • --nodata

    Causes any table data to be omitted.

Sample Output:

Output from a MySQL SELECT statement:

mysql> SELECT * FROM ctest1.fish;
+----+-----------+
| id | name      |
+----+-----------+
|  3 | shark     |
|  6 | puffer    |
|  2 | tuna      |
|  4 | manta ray |
|  5 | grouper   |
|  1 | guppy     |
+----+-----------+
6 rows in set (0.04 sec)

Output from the equivalent invocation of ndb_select_all:

shell> ./ndb_select_all -c localhost fish -d ctest1
id      name
3       [shark]
6       [puffer]
2       [tuna]
4       [manta ray]
5       [grouper]
1       [guppy]
6 rows returned

NDBT_ProgramExit: 0 - OK

Note that all string values are enclosed by square brackets (“[...]”) in the output of ndb_select_all. For a further example, consider the table created and populated as shown here:

CREATE TABLE dogs (
    id INT(11) NOT NULL AUTO_INCREMENT,
    name VARCHAR(25) NOT NULL,
    breed VARCHAR(50) NOT NULL,
    PRIMARY KEY pk (id),
    KEY ix (name)
)
ENGINE=NDB;

INSERT INTO dogs VALUES
    ('', 'Lassie', 'collie'),
    ('', 'Scooby-Doo', 'Great Dane'),
    ('', 'Rin-Tin-Tin', 'German Shepherd'),
    ('', 'Rosscoe', 'Mutt');

This demonstrates the use of several additional ndb_select_all options:

shell> ./ndb_select_all -d ctest1 dogs -o ix -z --gci
GCI     id name           breed
834461  2  [Scooby-Doo]   [Great Dane]
834878  4  [Rosscoe]      [Mutt]
834463  3  [Rin-Tin-Tin]  [German Shepherd]
835657  1  [Lassie]       [Collie]
4 rows returned

NDBT_ProgramExit: 0 - OK

15.10.12. ndb_select_count — Print Row Counts for NDB Tables

ndb_select_count prints the number of rows in one or more NDB tables. With a single table, the result is equivalent to that obtained by using the MySQL statement SELECT COUNT(*) FROM tbl_name.

Usage:

ndb_select_count [-c connect_string] -ddb_name tbl_name[, tbl_name2[, ...]]

Additional Options: None that are specific to this application. However, you can obtain row counts from multiple tables in the same database by listing the table names separated by spaces when invoking this command, as shown under Sample Output.

Sample Output:

shell> ./ndb_select_count -c localhost -d ctest1 fish dogs
6 records in table fish
4 records in table dogs

NDBT_ProgramExit: 0 - OK

15.10.13. ndb_show_tables — Display List of NDB Tables

ndb_show_tables displays a list of all NDB database objects in the cluster. By default, this includes not only both user-created tables and NDB system tables, but NDB-specific indexes, and internal triggers, as well.

Usage:

ndb_show_tables [-c connect_string]

Additional Options:

  • --loops, -l

    Specifies the number of times the utility should execute. This is 1 when this option is not specified, but if you do use the option, you must supply an integer argument for it.

  • --parsable, -p

    Using this option causes the output to be in a format suitable for use with LOAD DATA INFILE.

  • --type, -t

    Can be used to restrict the output to one type of object, specified by an integer type code as shown here:

    • 1: System table

    • 2: User-created table

    • 3: Unique hash index

    Any other value causes all NDB database objects to be listed (the default).

  • --unqualified, -u

    If specified, this causes unqualified object names to be displayed.

Note

Only user-created Cluster tables may be accessed from MySQL; system tables such as SYSTAB_0 are not visible to mysqld. However, you can examine the contents of system tables using NDB API applications such as ndb_select_all (see Section 15.10.11, “ndb_select_all — Print Rows from NDB Table”).

15.10.14. ndb_size.pl — NDBCLUSTER Size Requirement Estimator

This is a Perl script that can be used to estimate the amount of space that would be required by a MySQL database if it were converted to use the NDBCLUSTER storage engine. Unlike the other utilities discussed in this section, it does not require access to a MySQL Cluster (in fact, there is no reason for it to do so). However, it does need to access the MySQL server on which the database to be tested resides.

Requirements:

  • A running MySQL server. The server instance does not have to provide support for MySQL Cluster.

  • A working installation of Perl.

  • The DBI and HTML::Template modules, both of which can be obtained from CPAN if they are not already part of your Perl installation. (Many Linux and other operating system distributions provide their own packages for one or both of these libraries.)

  • The ndb_size.tmpl template file, which you should be able to find in the share/mysql directory of your MySQL installation. This file should be copied or moved into the same directory as ndb_size.pl — if it is not there already — before running the script.

  • A MySQL user account having the necessary privileges. If you do not wish to use an existing account, then creating one using GRANT USAGE ON db_name.* — where db_name is the name of the database to be examined — is sufficient for this purpose.

ndb_size.pl and ndb_size.tmpl can also be found in the MySQL sources in storage/ndb/tools. If these files are not present in your MySQL installation, you can obtain them from the MySQL Forge project page.

Usage:

perl ndb_size.pl db_name hostname username password > file_name.html

The command shown connects to the MySQL server at hostname using the account of the user username having the password password, analyzes all of the tables in database db_name, and generates a report in HTML format which is directed to the file file_name.html. (Without the redirection, the output is sent to stdout.) This figure shows partial sample output as viewed in a Web browser:

Partial sample output from
            ndb_size.pl as viewed in a Web
            browser.

The output from this script includes:

  • Minimum values for the DataMemory, IndexMemory, MaxNoOfTables, MaxNoOfAttributes, MaxNoOfOrderedIndexes, MaxNoOfUniqueHashIndexes, and MaxNoOfTriggers configuration parameters required to accommodate the tables analyzed.

  • Memory requirements for all of the tables, attributes, ordered indexes, and unique hash indexes defined in the database.

  • The IndexMemory and DataMemory required per table and table row.

15.10.15. ndb_waiter — Wait for Cluster to Reach a Given Status

ndb_waiter repeatedly (each 100 milliseconds) prints out the status of all cluster data nodes until either the cluster reaches a given status or the --timeout limit is exceeded, then exits. By default, it waits for the cluster to achieve STARTED status, in which all nodes have started and connected to the cluster. This can be overridden using the --no-contact and --not-started options (see Additional Options).

The node states reported by this utility are as follows:

  • NO_CONTACT: The node cannot be contacted.

  • UNKNOWN: The node can be contacted, but its status is not yet known. Usually, this means that the node has received a START or RESTART command from the management server, but has not yet acted on it.

  • NOT_STARTED: The node has stopped, but remains in contact with the cluster. This is seen when restarting the node using the management client's RESTART command.

  • STARTING: The node's ndbd process has started, but the node has not yet joined the cluster.

  • STARTED: The node is operational, and has joined the cluster.

  • SHUTTING_DOWN: The node is shutting down.

  • SINGLE USER MODE: This is shown for all cluster data nodes when the cluster is in single user mode.

Usage:

ndb_waiter [-c connect_string]

Additional Options:

  • --no-contact, -n

    Instead of waiting for the STARTED state, ndb_waiter continues running until the cluster reaches NO_CONTACT status before exiting.

  • --not-started

    Instead of waiting for the STARTED state, ndb_waiter continues running until the cluster reaches NOT_STARTED status before exiting.

  • --timeout=seconds, -t seconds

    Time to wait. The program exits if the desired state is not achieved within this number of seconds. The default is 120 seconds (1200 reporting cycles).

Sample Output.  Shown here is the output from ndb_waiter when run against a 4-node cluster in which two nodes have been shut down and then started again manually. Duplicate reports (indicated by “...”) are omitted.

shell> ./ndb_waiter -c localhost

Connecting to mgmsrv at (localhost)
State node 1 STARTED
State node 2 NO_CONTACT
State node 3 STARTED
State node 4 NO_CONTACT
Waiting for cluster enter state STARTED

...

State node 1 STARTED
State node 2 UNKNOWN
State node 3 STARTED
State node 4 NO_CONTACT
Waiting for cluster enter state STARTED

...

State node 1 STARTED
State node 2 STARTING
State node 3 STARTED
State node 4 NO_CONTACT
Waiting for cluster enter state STARTED

...

State node 1 STARTED
State node 2 STARTING
State node 3 STARTED
State node 4 UNKNOWN
Waiting for cluster enter state STARTED

...

State node 1 STARTED
State node 2 STARTING
State node 3 STARTED
State node 4 STARTING
Waiting for cluster enter state STARTED

...

State node 1 STARTED
State node 2 STARTED
State node 3 STARTED
State node 4 STARTING
Waiting for cluster enter state STARTED

...

State node 1 STARTED
State node 2 STARTED
State node 3 STARTED
State node 4 STARTED
Waiting for cluster enter state STARTED

NDBT_ProgramExit: 0 - OK

Note

If no connectstring is specified, then ndb_waiter tries to connect to a management on localhost, and reports Connecting to mgmsrv at (null).

15.11. Using High-Speed Interconnects with MySQL Cluster

Even before design of NDBCLUSTER began in 1996, it was evident that one of the major problems to be encountered in building parallel databases would be communication between the nodes in the network. For this reason, NDBCLUSTER was designed from the very beginning to allow for the use of a number of different data transport mechanisms. In this Manual, we use the term transporter for these.

The MySQL Cluster codebase includes support for four different transporters:

Most users today employ TCP/IP over Ethernet because it is ubiquitous. TCP/IP is also by far the best-tested transporter for use with MySQL Cluster.

We are working to make sure that communication with the ndbd process is made in “chunks” that are as large as possible because this benefits all types of data transmission.

For users who desire it, it is also possible to use cluster interconnects to enhance performance even further. There are two ways to achieve this: Either a custom transporter can be designed to handle this case, or you can use socket implementations that bypass the TCP/IP stack to one extent or another. We have experimented with both of these techniques using the SCI (Scalable Coherent Interface) technology developed by Dolphin.

15.11.1. Configuring MySQL Cluster to use SCI Sockets

In this section, we show how to adapt a cluster configured for normal TCP/IP communication to use SCI Sockets instead. This documentation is based on SCI Sockets version 2.3.0 as of 01 October 2004.

Prerequisites.  Any machines with which you wish to use SCI Sockets must be equipped with SCI cards.

No special builds (other than the -max builds) are needed for SCI Sockets because it uses normal TCP/IP socket calls which are already available in MySQL Cluster. However, SCI Sockets are currently supported only on the Linux 2.4 and 2.6 kernels. For other operating systems, you can use SCI Transporters, but this requires that the server be built using --with-ndb-sci=/opt/DIS.

There are essentially four requirements for SCI Sockets:

  • Building the SCI Socket libraries.

  • Installation of the SCI Socket kernel libraries.

  • Installation of one or two configuration files.

  • The SCI Socket kernel library must be enabled either for the entire machine or for the shell where the MySQL Cluster processes are started.

This process needs to be repeated for each machine in the cluster where you plan to use SCI Sockets for inter-node communication.

Two packages need to be retrieved to get SCI Sockets working:

  • The source code package containing the DIS support libraries for the SCI Sockets libraries.

  • The source code package for the SCI Socket libraries themselves.

Currently, these are available only in source code format. The latest versions of these packages at the time of this writing were available as (respectively) DIS_GPL_2_5_0_SEP_10_2004.tar.gz and SCI_SOCKET_2_3_0_OKT_01_2004.tar.gz. You should be able to find these (or possibly newer versions) at http://www.dolphinics.com/support/downloads.html.

Package Installation.  Once you have obtained the library packages, the next step is to unpack them into appropriate directories, with the SCI Sockets library unpacked into a directory below the DIS code. Next, you need to build the libraries. This example shows the commands used on Linux/x86 to perform this task:

shell> tar xzf DIS_GPL_2_5_0_SEP_10_2004.tar.gz
shell> cd DIS_GPL_2_5_0_SEP_10_2004/src/
shell> tar xzf ../../SCI_SOCKET_2_3_0_OKT_01_2004.tar.gz
shell> cd ../adm/bin/Linux_pkgs
shell> ./make_PSB_66_release

It is possible to build these libraries for some 64-bit procesors. To build the libraries for Opteron CPUs using the 64-bit extensions, run make_PSB_66_X86_64_release rather than make_PSB_66_release. If the build is made on an Itanium machine, you should use make_PSB_66_IA64_release. The X86-64 variant should work for Intel EM64T architectures but this has not yet (to our knowledge) been tested.

Once the build process is complete, the compiled libraries will be found in a zipped tar file with a name along the lines of DIS-<operating-system>-time-date. It is now time to install the package in the proper place. In this example we will place the installation in /opt/DIS. You most likely need to run the following as the system root user.)

shell> cp DIS_Linux_2.4.20-8_181004.tar.gz /opt/
shell> cd /opt
shell> tar xzf DIS_Linux_2.4.20-8_181004.tar.gz
shell> mv DIS_Linux_2.4.20-8_181004 DIS

Network Configuration.  Now that all the libraries and binaries are in their proper place, we need to ensure that the SCI cards have proper node IDs within the SCI address space.

It is also necessary to decide on the network structure before proceeding. There are three types of network structures which can be used in this context:

  • A simple one-dimensional ring

  • One or more SCI switches with one ring per switch port

  • A two- or three-dimensional torus.

Each of these topologies has its own method for providing node IDs. We discuss each of them in brief.

A simple ring uses node IDs which are non-zero multiples of 4: 4, 8, 12,...

The next possibility uses SCI switches. An SCI switch has 8 ports, each of which can support a ring. It is necessary to make sure that different rings use different node ID spaces. In a typical configuration, the first port uses node IDs below 64 (4 – 60), the next 64 node IDs (68 – 124) are assigned to the next port, and so on, with node IDs 452 – 508 being assigned to the eighth port.

Two- and three-dimensional torus network structures take into account where each node is located in each dimension, incrementing by 4 for each node in the first dimension, by 64 in the second dimension, and (where applicable) by 1024 in the third dimension. See Dolphin's Web site for more thorough documentation.

In our testing we have used switches, although most large cluster installations use 2- or 3-dimensional torus structures. The advantage provided by switches is that, with dual SCI cards and dual switches, it is possible to build with relative ease a redundant network where the average failover time on the SCI network is on the order of 100 microseconds. This is supported by the SCI transporter in MySQL Cluster and is also under development for the SCI Socket implementation.

Failover for the 2D/3D torus is also possible but requires sending out new routing indexes to all nodes. However, this requires only 100 milliseconds or so to complete and should be acceptable for most high-availability cases.

By placing cluster data nodes properly within the switched architecture, it is possible to use 2 switches to build a structure whereby 16 computers can be interconnected and no single failure can hinder more than one of them. With 32 computers and 2 switches it is possible to configure the cluster in such a manner that no single failure can cause the loss of more than two nodes; in this case, it is also possible to know which pair of nodes is affected. Thus, by placing the two nodes in separate node groups, it is possible to build a “safe” MySQL Cluster installation.

To set the node ID for an SCI card use the following command in the /opt/DIS/sbin directory. In this example, -c 1 refers to the number of the SCI card (this is always 1 if there is only 1 card in the machine); -a 0 refers to adapter 0; and 68 is the node ID:

shell> ./sciconfig -c 1 -a 0 -n 68

If you have multiple SCI cards in the same machine, you can determine which card has which slot by issuing the following command (again we assume that the current working directory is /opt/DIS/sbin):

shell> ./sciconfig -c 1 -gsn

This will give you the SCI card's serial number. Then repeat this procedure with -c 2, and so on, for each card in the machine. Once you have matched each card with a slot, you can set node IDs for all cards.

After the necessary libraries and binaries are installed, and the SCI node IDs are set, the next step is to set up the mapping from hostnames (or IP addresses) to SCI node IDs. This is done in the SCI sockets configuration file, which should be saved as /etc/sci/scisock.conf. In this file, each SCI node ID is mapped through the proper SCI card to the hostname or IP address that it is to communicate with. Here is a very simple example of such a configuration file:

#host           #nodeId
alpha           8
beta            12
192.168.10.20   16

It is also possible to limit the configuration so that it applies only to a subset of the available ports for these hosts. An additional configuration file /etc/sci/scisock_opt.conf can be used to accomplish this, as shown here:

#-key                        -type        -values
EnablePortsByDefault                yes
EnablePort                  tcp           2200
DisablePort                 tcp           2201
EnablePortRange             tcp           2202 2219
DisablePortRange            tcp           2220 2231

Driver Installation.  With the configuration files in place, the drivers can be installed.

First, the low-level drivers and then the SCI socket driver need to be installed:

shell> cd DIS/sbin/
shell> ./drv-install add PSB66
shell> ./scisocket-install add

If desired, the installation can be checked by invoking a script which verifies that all nodes in the SCI socket configuration files are accessible:

shell> cd /opt/DIS/sbin/
shell> ./status.sh

If you discover an error and need to change the SCI socket configuration, it is necessary to use ksocketconfig to accomplish this task:

shell> cd /opt/DIS/util
shell> ./ksocketconfig -f

For more information about ksocketconfig, consult the documentation available from http://www.dolphinics.com/support/documentation.html.

Testing the Setup.  To ensure that SCI sockets are actually being used, you can employ the latency_bench test program. Using this utility's server component, clients can connect to the server to test the latency of the connection. Determining whether SCI is enabled should be fairly simple from observing the latency.

Note

Before using latency_bench, it is necessary to set the LD_PRELOAD environment variable as shown later in this section.

To set up a server, use the following:

shell> cd /opt/DIS/bin/socket
shell> ./latency_bench -server

To run a client, use latency_bench again, except this time with the -client option:

shell> cd /opt/DIS/bin/socket
shell> ./latency_bench -client server_hostname

SCI socket configuration should now be complete and MySQL Cluster ready to use both SCI Sockets and the SCI transporter (see Section 15.3.4.10, “SCI Transport Connections”).

Starting the Cluster.  The next step in the process is to start MySQL Cluster. To enable usage of SCI Sockets it is necessary to set the environment variable LD_PRELOAD before starting ndbd, mysqld, and ndb_mgmd. This variable should point to the kernel library for SCI Sockets.

To start ndbd in a bash shell, do the following:

bash-shell> export LD_PRELOAD=/opt/DIS/lib/libkscisock.so
bash-shell> ndbd

In a tcsh environment the same thing can be accomplished with:

tcsh-shell> setenv LD_PRELOAD=/opt/DIS/lib/libkscisock.so
tcsh-shell> ndbd

Note

MySQL Cluster can use only the kernel variant of SCI Sockets.

15.11.2. MySQL Cluster Interconnects and Performance

The ndbd process has a number of simple constructs which are used to access the data in a MySQL Cluster. We have created a very simple benchmark to check the performance of each of these and the effects which various interconnects have on their performance.

There are four access methods:

  • Primary key access.  This is access of a record through its primary key. In the simplest case, only one record is accessed at a time, which means that the full cost of setting up a number of TCP/IP messages and a number of costs for context switching are borne by this single request. In the case where multiple primary key accesses are sent in one batch, those accesses share the cost of setting up the necessary TCP/IP messages and context switches. If the TCP/IP messages are for different destinations, additional TCP/IP messages need to be set up.

  • Unique key access.  Unique key accesses are similar to primary key accesses, except that a unique key access is executed as a read on an index table followed by a primary key access on the table. However, only one request is sent from the MySQL Server, and the read of the index table is handled by ndbd. Such requests also benefit from batching.

  • Full table scan.  When no indexes exist for a lookup on a table, a full table scan is performed. This is sent as a single request to the ndbd process, which then divides the table scan into a set of parallel scans on all cluster ndbd processes. In future versions of MySQL Cluster, an SQL node will be able to filter some of these scans.

  • Range scan using ordered index

    When an ordered index is used, it performs a scan in the same manner as the full table scan, except that it scans only those records which are in the range used by the query transmitted by the MySQL server (SQL node). All partitions are scanned in parallel when all bound index attributes include all attributes in the partitioning key.

With benchmarks developed internally by MySQL for testing simple and batched primary and unique key accesses, we have found that using SCI sockets improves performance by approximately 100% over TCP/IP, except in rare instances when communication performance is not an issue. This can occur when scan filters make up most of processing time or when very large batches of primary key accesses are achieved. In that case, the CPU processing in the ndbd processes becomes a fairly large part of the overhead.

Using the SCI transporter instead of SCI Sockets is only of interest in communicating between ndbd processes. Using the SCI transporter is also only of interest if a CPU can be dedicated to the ndbd process because the SCI transporter ensures that this process will never go to sleep. It is also important to ensure that the ndbd process priority is set in such a way that the process does not lose priority due to running for an extended period of time, as can be done by locking processes to CPUs in Linux 2.6. If such a configuration is possible, the ndbd process will benefit by 10–70% as compared with using SCI sockets. (The larger figures will be seen when performing updates and probably on parallel scan operations as well.)

There are several other optimized socket implementations for computer clusters, including Myrinet, Gigabit Ethernet, Infiniband and the VIA interface. However, we have tested MySQL Cluster so far only with SCI sockets. See Section 15.11.1, “Configuring MySQL Cluster to use SCI Sockets”, for information on how to set up SCI sockets using ordinary TCP/IP for MySQL Cluster.

15.12. Known Limitations of MySQL Cluster

In the sections that follow, we discuss known limitations in MySQL 4.1 Cluster releases as compared with the features available when using the MyISAM and InnoDB storage engines. Currently, there are no plans to address these in coming releases of MySQL 4.1; however, we will attempt to supply fixes for these issues in subsequent release series. If you check the “Cluster” category in the MySQL bugs database at http://bugs.mysql.com, you can find known bugs which (if marked “4.1”) we intend to correct in upcoming releases of MySQL 4.1.

This information is intended to be complete with respect to the conditions just set forth. You can report any discrepancies that you encounter to the MySQL bugs database using the instructions given in Section 1.7, “How to Report Bugs or Problems”. If we do not plan to fix the problem in MySQL 4.1, we will add it to the list.

15.12.1. Non-Compliance In SQL Syntax

Some SQL statements relating to certain MySQL features produce errors when used with NDB tables, as described in the following list:

  • Temporary tables.  Temporary tables are not supported. Trying either to create a temporary table that uses the NDB storage engine or to alter an existing temporary table to use NDB fails with the error Table storage engine 'ndbcluster' does not support the create option 'TEMPORARY'.

  • Indexes and keys in NDB tables.  Keys and indexes on MySQL Cluster tables are subject to the following limitations:

    • TEXT and BLOB columns.  You cannot create indexes on NDB table columns that use any of the TEXT or BLOB data types.

    • FULLTEXT indexes.  The NDB storage engine does not support FULLTEXT indexes, which are possible for MyISAM tables only.

      However, you can create indexes on VARCHAR columns of NDB tables.

    • There are no prefix indexes; only entire fields can be indexed.

    • BIT columns.  A BIT column cannot be a primary key, unique key, or index, nor can it be part of a composite primary key, unique key, or index.

    • AUTO_INCREMENT columns.  Like other MySQL storage engines, the NDB storage engine can handle a maximum of one AUTO_INCREMENT column per table. However, in the case of a Cluster table with no explicit primary key, an AUTO_INCREMENT column is automatically defined and used as a “hidden” primary key. For this reason, you cannot define a table that has an explicit AUTO_INCREMENT column unless that column is also declared using the PRIMARY KEY option. Attempting to create a table with an AUTO_INCREMENT column that is not the table's primary key, and using the NDB storage engine, fails with an error.

  • MySQL Cluster and geometry data types.  Geometry datatypes (WKT and WKB) are supported in NDB tables in MySQL 4.1. However, spatial indexes are not supported.

  • Character set support.  Not all charsets and collations are supported; see Section B.5.14, “Changes in MySQL Cluster-4.1.6 (10 October 2004)”, for a list of those that are supported.

    Character set directory.  ndbd searches only the default path (typically /usr/local/mysql/share/mysql/charsets) for character sets. Thus, it is not possible to install MySQL with Cluster support in a different path (in the case of the .tar.gz archives, other than /usr/local/mysql) if character sets that are not compiled into the MySQL Server need to be used.

  • Row-based replication.  When using row-based replication with MySQL Cluster, binary logging cannot be disabled. That is, the NDB storage engine ignores the value of SQL_LOG_BIN. (Bug#16680)

  • auto_increment_increment and auto_increment_offset The auto_increment_increment and auto_increment_offset server system variables are not supported for Cluster replication.

15.12.2. Limits and Differences from Standard MySQL Limits

In this section, we list limits found in MySQL Cluster that either differ from limits found in, or that are not found in, standard MySQL.

  • Memory usage and recovery.  Memory comsumed when data is inserted into an NDB table is not automatically recovered when deleted, as it is with other storage engines. Instead, the following rules hold true:

    • A DELETE statement on an NDB table makes the memory formerly used by the deleted rows available for re-use by inserts on the same table only. This memory cannot be used by other NDB tables.

    • A DROP TABLE or TRUNCATE operation on an NDB table frees the memory that was used by this table for re-use by any NDB table, either by the same table or by another NDB table.

      Note

      Recall that TRUNCATE drops and re-creates the table. See Section 12.2.9, “TRUNCATE Syntax”.

      Memory freed by DELETE operations but still allocated to a specific table can also be made available for general re-use by performing a rolling restart of the cluster. See Section 15.5.1, “Performing a Rolling Restart of the Cluster”.

    • Limits imposed by the cluster's configuration.  A number of hard limits exist which are configurable, but available main memory in the cluster sets limits. See the complete list of configuration parameters in Section 15.3.4, “Configuration File”. Most configuration parameters can be upgraded online. These hard limits include:

      • Database memory size and index memory size (DataMemory and IndexMemory, respectively).

        DataMemory is allocated as 32KB pages. As each DataMemory page is used, it is assigned to a specific table; once allocated, this memory cannot be freed except by dropping the table.

        See Section 15.3.4.5, “Defining Data Nodes”, for further information about DataMemory and IndexMemory.

      • The maximum number of operations that can be performed per transaction is set using the configuration parameters MaxNoOfConcurrentOperations and MaxNoOfLocalOperations.

        Note

        Bulk loading, TRUNCATE TABLE, and ALTER TABLE are handled as special cases by running multiple transactions, and so are not subject to this limitation.

      • Different limits related to tables and indexes. For example, the maximum number of ordered indexes per table is determined by MaxNoOfOrderedIndexes.

    • Memory usage.  All Cluster table rows are of fixed length. This means (for example) that if a table has one or more VARCHAR fields containing only relatively small values, more memory and disk space is required when using the NDB storage engine than would be the case for the same table and data using the MyISAM engine. (In other words, in the case of a VARCHAR column, the column requires the same amount of storage as a CHAR column of the same size.)

    • Node and data object maximums.  The following limits apply to numbers of cluster nodes and metadata objects:

      • The maximum number of data nodes is 48.

        A data node must have a node ID in the range of 1‐49, inclusive. (Management and API nodes may use any integer in the range of 1‐63 inclusive as a node ID.)

      • The total maximum number of nodes in a MySQL Cluster is 63. This number includes all SQL nodes (MySQL Servers), API nodes (applications accessing the cluster other than MySQL servers), data nodes, and management servers.

      • The maximum number of metadata objects is limited to 1600, including database tables, system tables, indexes and BLOB columns.

15.12.3. Limits Relating to Transaction Handling

A number of limitations exist in MySQL Cluster with regard to the handling of transactions. These include the following:

  • Transaction isolation level.  The NDBCLUSTER storage engine supports only the READ COMMITTED transaction isolation level. (InnoDB, for example, supports READ COMMITTED, READ UNCOMMITTED, REPEATABLE READ, and SERIALIZABLE.) See Section 15.9.5, “Backup Troubleshooting”, for information on how this can affect backing up and restoring Cluster databases.)

    Important

    If a SELECT from a Cluster table includes a BLOB or TEXT column, the READ COMMITTED transaction isolation level is converted to a read with read lock. This is done to guarantee consistency, due to the fact that parts of the values stored in columns of these types are actually read from a separate table.

  • Rollbacks.  There is no partial rollback of transactions. A duplicate key or similar error rolls back the entire transaction.

  • Transactions and memory usage.  As noted elsewhere in this chapter, MySQL Cluster does not handle large transactions well; it is better to perform a number of small transactions with a few operations each than to attempt a single large transaction containing a great many operations. Among other considerations, large transactions require very large amounts of memory. Because of this, the transactional behaviour of a number of MySQL statements is effected as described in the following list:

    • TRUNCATE is not transactional when used on NDB tables. If a TRUNCATE fails to empty the table, then it must be re-run until it is successful.

    • DELETE FROM (even with no WHERE clause) is transactional. For tables containing a great many rows, you may find that performance is improved by using several DELETE FROM ... LIMIT ... statements to “chunk” the delete operation. If your objective is to empty the table, then you may wish to use TRUNCATE instead.

    • LOAD DATA statements.  LOAD DATA INFILE is not transactional when used on NDB tables.

      Important

      When executing a LOAD DATA INFILE statement, the NDB engine performs commits at irregular intervals that enable better utilization of the communication network. It is not possible to know ahead of time when such commits take place.

      LOAD DATA FROM MASTER is not supported in MySQL Cluster.

    • ALTER TABLE and transactions.  When copying an NDB table as part of an ALTER TABLE, the creation of the copy is non-transactional. (In any case, this operation is rolled back when the copy is deleted.)

15.12.4. Error Handling

Starting, stopping, or restarting a node may give rise to temporary errors causing some transactions to fail. These include the following cases:

  • Temporary errors.  When first starting a node, it is possible that you may see Error 1204 Temporary failure, distribution changed and similar temporary errors.

  • Errors due to node failure.  The stopping or failure of any data node can result in a number of different node failure errors. (However, there should be no aborted transactions when performing a planned shutdown of the cluster.)

In either of these cases, any errors that are generated must be handled within the application. This should be done by retrying the transaction.

See also Section 15.12.2, “Limits and Differences from Standard MySQL Limits”.

15.12.5. Limits Associated with Database Objects

Some database objects such as tables and indexes have different limitations when using the NDBCLUSTER storage engine:

  • Identifiers.  Database names, table names and attribute names cannot be as long in NDB tables as when using other table handlers. Attribute names are truncated to 31 characters, and if not unique after truncation give rise to errors. Database names and table names can total a maximum of 122 characters. In other words, the maximum length for an NDB table name is 122 characters, less the number of characters in the name of the database of which that table is a part.

  • Table names containing special characters.  NDB tables whose names contain characters other than letters, numbers, dashes, and underscores and which are created on one SQL node may not be discovered correctly by other SQL nodes. (Bug#31470)

  • Number of tables.  The maximum number of tables in a Cluster database in MySQL 5.0 is limited to 1792.

  • Attributes per table.  The maximum number of attributes (that is, columns and indexes) per table is limited to 128.

  • Attributes per key.  The maximum number of attributes per key is 32.

  • Row size.  The maximum permitted size of any one row is 8KB. Note that each BLOB or TEXT column contributes 256 + 8 = 264 bytes towards this total.

15.12.6. Unsupported Or Missing Features

A number of features supported by other storage engines are not supported for NDB tables. Trying to use any of these features in MySQL Cluster does not cause errors in or of itself; however, errors may occur in applications that expects the features to be supported or enforced:

  • Foreign key constraints.  The foreign key construct is ignored, just as it is in MyISAM tables.

  • OPTIMIZE operations.  OPTIMIZE operations are not supported.

  • LOAD TABLE ... FROM MASTER LOAD TABLE ... FROM MASTER is not supported.

  • Savepoints and rollbacks.  Savepoints and rollbacks to savepoints are ignored as in MyISAM.

  • Durability of commits.  There are no durable commits on disk. Commits are replicated, but there is no guarantee that logs are flushed to disk on commit.

  • Replication.  Replication is not supported.

Note

See Section 15.12.3, “Limits Relating to Transaction Handling”, for more information relating to limitations on transaction handling in NDB.

15.12.7. Limitations Relating to Performance

The following performance issues are specific to or especially pronounced in MySQL Cluster:

  • Range scans.  There are query performance issues due to sequential access to the NDB storage engine; it is also relatively more expensive to do many range scans than it is with either MyISAM or InnoDB.

  • Query cache.  The query cache is disabled, since it is not invalidated if an update occurs on a different MySQL server.

  • Reliability of Records in range The Records in range statistic is available but is not completely tested or officially supported. This may result in non-optimal query plans in some cases. If necessary, you can employ USE INDEX or FORCE INDEX to alter the execution plan. See Section 12.2.7.2, “Index Hint Syntax”, for more information on how to do this.

  • Unique hash indexes.  Unique hash indexes created with USING HASH cannot be used for accessing a table if NULL is given as part of the key.

15.12.8. Issues Exclusive to MySQL Cluster

The following are limitations specific to the NDBCLUSTER storage engine:

  • Machine architecture.  The following issues relate to physical architecture of cluster hosts:

    • All machines used in the cluster must have the same architecture. That is, all machines hosting nodes must be either big-endian or little-endian, and you cannot use a mixture of both. For example, you cannot have a management node running on a PowerPC which directs a data node that is running on an x86 machine. This restriction does not apply to machines simply running mysql or other clients that may be accessing the cluster's SQL nodes.

    • Adding and dropping of data nodes.  Online adding or dropping of data nodes is not currently possible. In such cases, the entire cluster must be restarted.

    • Backup and restore between architectures.  It is also not possible to perform a Cluster backup and restore between different architectures. For example, you cannot back up a cluster running on a big-endian platform and then restore from that backup to a cluster running on a little-endian system. (Bug#19255)

  • Online schema changes.  It is not possible to make online schema changes such as those accomplished using ALTER TABLE or CREATE INDEX, as the NDB Cluster engine does not support autodiscovery of such changes. (However, you can import or create a table that uses a different storage engine, and then convert it to NDB using ALTER TABLE tbl_name ENGINE=NDBCLUSTER. In such a case, you must issue a FLUSH TABLES statement to force the cluster to pick up the change.)

  • Binary logging.  MySQL Cluster has the following limitations or restrictions with regard to binary logging:

    • SQL_LOG_BIN has no effect on data operations; however, it is supported for schema operations.

    • MySQL Cluster cannot produce a binlog for tables having BLOB columns but no primary key.

    • Only the following schema operations are logged in a cluster binlog which is not on the mysqld executing the statement:

      • CREATE TABLE

      • ALTER TABLE

      • DROP TABLE

      • CREATE DATABASE / CREATE SCHEMA

      • DROP DATABASE / DROP SCHEMA

See also Section 15.12.9, “Limitations Relating to Multiple Cluster Nodes”.

15.12.9. Limitations Relating to Multiple Cluster Nodes

Multiple SQL nodes.  The following are issues relating to the use of multiple MySQL servers as MySQL Cluster SQL nodes, and are specific to the NDBCLUSTER storage engine:

  • No distributed table locks.  A LOCK TABLES works only for the SQL node on which the lock is issued; no other SQL node in the cluster “sees” this lock. This is also true for a lock issued by any statement that locks tables as part of its operations. (See next item for an example.)

  • ALTER TABLE operations.  ALTER TABLE is not fully locking when running multiple MySQL servers (SQL nodes). (As discussed in the previous item, MySQL Cluster does not support distributed table locks.)

  • Replication.  MySQL replication will not work correctly if updates are done on multiple MySQL servers. However, if the database partitioning scheme is done at the application level and no transactions take place across these partitions, replication can be made to work.

  • Database autodiscovery.  Autodiscovery of databases is not supported for multiple MySQL servers accessing the same MySQL Cluster. However, autodiscovery of tables is supported in such cases. What this means is that after a database named db_name is created or imported using one MySQL server, you should issue a CREATE DATABASE db_name statement on each additional MySQL server that accesses the same MySQL Cluster. (As of MySQL 5.0.2, you may also use CREATE SCHEMA db_name.) Once this has been done for a given MySQL server, that server should be able to detect the database tables without error.

  • DDL operations.  DDL operations are not node failure safe. If a node fails while trying to peform one of these (such as CREATE TABLE or ALTER TABLE), the data dictionary is locked and no further DDL statements can be executed without restarting the cluster.

Multiple management nodes.  When using multiple management servers:

  • You must give nodes explicit IDs in connectstrings because automatic allocation of node IDs does not work across multiple management servers.

  • You must take extreme care to have the same configurations for all management servers. No special checks for this are performed by the cluster.

  • Prior to MySQL 4.1.15, all data nodes had to be restarted after bringing up the cluster in order for the management nodes to be able to see one another.

    (See Bug#12307 and Bug#13070 for more information.)

Multiple data node processes.  While it is possible to run multiple cluster processes concurrently on a single host, it is not always advisable to do so for reasons of performance and high availability, as well as other considerations. In particular, in MySQL 4.1, we do not support for production use any MySQL Cluster deployment in which more than one ndbd process is run on a single physical machine.

Note

We may support multiple data nodes per host in a future MySQL release, following additional testing. However, in MySQL 4.1, such configurations can be considered experimental only.

Multiple network addresses.  Multiple network addresses per data node are not supported. Use of these is liable to cause problems: In the event of a data node failure, an SQL node waits for confirmation that the data node went down but never receives it because another route to that data node remains open. This can effectively make the cluster inoperable.

Note

It is possible to use multiple network hardware interfaces (such as Ethernet cards) for a single data node, but these must be bound to the same address. This also means that it not possible to use more than one [tcp] section per connection in the config.ini file. See Section 15.3.4.7, “Cluster TCP/IP Connections”, for more information.

15.13. MySQL 4.1 FAQ — MySQL Cluster

In the following section, we answer questions that are frequently asked about MySQL Cluster and the NDBCLUSTER storage engine.

Questions

  • 16.13.1: Which versions of the MySQL software support Cluster? Do I have to compile from source?

  • 16.13.2: What does “NDB” mean?

  • 16.13.3: What is the difference between using MySQL Cluster vs using MySQL replication?

  • 16.13.4: Do I need to do any special networking to run MySQL Cluster? How do computers in a cluster communicate?

  • 16.13.5: How many computers do I need to run a MySQL Cluster, and why?

  • 16.13.6: What do the different computers do in a MySQL Cluster?

  • 16.13.7: With which operating systems can I use Cluster?

  • 16.13.8: What are the hardware requirements for running MySQL Cluster?

  • 16.13.9: How much RAM do I need to use MySQL Cluster? Is it possible to use disk memory at all?

  • 16.13.10: What filesystems can I use with MySQL Cluster? What about network filesystems or network shares?

  • 16.13.11: Can I run MySQL Cluster nodes inside virtual machines (such as those created by VMWare, Parallels, or Xen)?

  • 16.13.12: I am trying to populate a MySQL Cluster database. The loading process terminates prematurely and I get an error message like this one: ERROR 1114: The table 'my_cluster_table' is full Why is this happening?

  • 16.13.13: MySQL Cluster uses TCP/IP. Does this mean that I can run it over the Internet, with one or more nodes in remote locations?

  • 16.13.14: Do I have to learn a new programming or query language to use MySQL Cluster?

  • 16.13.15: How do I find out what an error or warning message means when using MySQL Cluster?

  • 16.13.16: Is MySQL Cluster transaction-safe? What isolation levels are supported?

  • 16.13.17: What storage engines are supported by MySQL Cluster?

  • 16.13.18: In the event of a catastrophic failure — say, for instance, the whole city loses power and my UPS fails — would I lose all my data?

  • 16.13.19: Is it possible to use FULLTEXT indexes with MySQL Cluster?

  • 16.13.20: Can I run multiple nodes on a single computer?

  • 16.13.21: Can I add data nodes to a MySQL Cluster without restarting it?

  • 16.13.22: Are there any limitations that I should be aware of when using MySQL Cluster?

  • 16.13.23: How do I import an existing MySQL database into a MySQL Cluster?

  • 16.13.24: How do cluster nodes communicate with one another?

  • 16.13.25: What is an arbitrator?

  • 16.13.26: What data types are supported by MySQL Cluster?

  • 16.13.27: How do I start and stop MySQL Cluster?

  • 16.13.28: What happens to MySQL Cluster data when the cluster is shut down?

  • 16.13.29: Is it a good idea to have more than one management node for a MySQL Cluster?

  • 16.13.30: Can I mix different kinds of hardware and operating systems in one MySQL Cluster?

  • 16.13.31: Can I run two data nodes on a single host? Two SQL nodes?

  • 16.13.32: Can I use hostnames with MySQL Cluster?

  • 16.13.33: How do I handle MySQL users in a MySQL Cluster having multiple MySQL servers?

  • 16.13.34: How do I continue to send queries in the event that one of the SQL nodes fails?

Questions and Answers

16.13.1: Which versions of the MySQL software support Cluster? Do I have to compile from source?

Beginning with MySQL 4.1.3, MySQL Cluster is supported in all MySQL-Max server binaries in the 4.1 release series for operating systems on which MySQL Cluster is available. See Section 4.3.1, “mysqld — The MySQL Server”. You can determine whether your server has NDB support using either either of the statements SHOW VARIABLES LIKE 'have_%' or SHOW ENGINES.

You can also obtain NDB support by compiling MySQL from source, but it is not necessary to do so simply to use MySQL Cluster. To download the latest binary, RPM, or source distribution in the MySQL 4.1 series, visit http://dev.mysql.com/downloads/mysql/4.1.html.

However, you should use MySQL NDB Cluster NDB 6.2 or 6.3 for new deployments, and if you are already using MySQL 4.1 with clustering support, to upgrade to one of these MySQL Cluster NDB 6.x release series. For an overview of improvements made in MySQL Cluster NDB 6.2 and 6.3, see MySQL 5.1 Manual: Features Added in MySQL Cluster NDB 6.2, and MySQL 5.1 Manual: Features Added in MySQL Cluster NDB 6.3.

16.13.2: What does “NDB” mean?

This stands for “Network Database”. NDB (also known as NDBCLUSTER) is the storage engine that enables clustering in MySQL.

16.13.3: What is the difference between using MySQL Cluster vs using MySQL replication?

In traditional MySQL replication, a master MySQL server updates one or more slaves. Transactions are committed sequentially, and a slow transaction can cause the slave to lag behind the master. This means that if the master fails, it is possible that the slave might not have recorded the last few transactions. If a transaction-safe engine such as InnoDB is being used, a transaction will either be complete on the slave or not applied at all, but replication does not guarantee that all data on the master and the slave will be consistent at all times. In MySQL Cluster, all data nodes are kept in synchrony, and a transaction committed by any one data node is committed for all data nodes. In the event of a data node failure, all remaining data nodes remain in a consistent state.

In short, whereas standard MySQL replication is asynchronous, MySQL Cluster is synchronous.

We have implemented (asynchronous) replication for Cluster in MySQL 5.1 and MySQL Cluster NDB 6.x. This includes the capability to replicate both between two clusters, and from a MySQL cluster to a non-Cluster MySQL server. However, we do not plan to backport this functionality to MySQL 4.1. See MySQL 5.1 Manual: MySQL Cluster Replication, for more information.

16.13.4: Do I need to do any special networking to run MySQL Cluster? How do computers in a cluster communicate?

MySQL Cluster is intended to be used in a high-bandwidth environment, with computers connecting via TCP/IP. Its performance depends directly upon the connection speed between the cluster's computers. The minimum connectivity requirements for MySQL Cluster include a typical 100-megabit Ethernet network or the equivalent. We recommend you use gigabit Ethernet whenever available.

The faster SCI protocol is also supported, but requires special hardware. See Section 15.11, “Using High-Speed Interconnects with MySQL Cluster”, for more information about SCI.

16.13.5: How many computers do I need to run a MySQL Cluster, and why?

A minimum of three computers is required to run a viable cluster. However, the minimum recommended number of computers in a MySQL Cluster is four: one each to run the management and SQL nodes, and two computers to serve as data nodes. The purpose of the two data nodes is to provide redundancy; the management node must run on a separate machine to guarantee continued arbitration services in the event that one of the data nodes fails.

To provide increased throughput and high availability, you should use multiple SQL nodes (MySQL Servers connected to the cluster). It is also possible (although not strictly necessary) to run multiple management servers.

16.13.6: What do the different computers do in a MySQL Cluster?

A MySQL Cluster has both a physical and logical organization, with computers being the physical elements. The logical or functional elements of a cluster are referred to as nodes, and a computer housing a cluster node is sometimes referred to as a cluster host. There are three types of nodes, each corresponding to a specific role within the cluster. These are:

  • Management node.  This node provides management services for the cluster as a whole, including startup, shutdown, backups, and configuration data for the other nodes. The management node server is implemented as the application ndb_mgmd; the management client used to control MySQL Cluster is ndb_mgm.

  • Data node.  This type of node stores and replicates data. Data node functionality is handled by instances of the NDB data node process ndbd.

  • SQL node.  This is simply an instance of MySQL Server (mysqld) that is built with support for the NDBCLUSTER storage engine and started with the --ndb-cluster option to enable the engine and the --ndb-connectstring option to enable it to connect to a MySQL Cluster management server. For more about these options, see Section 15.4.2, “MySQL Cluster-Related Command Options for mysqld.

    Note

    An API node is any application that makes direct use of Cluster data nodes for data storage and retrieval. An SQL node can thus be considered a type of API node that uses a MySQL Server to provide an SQL interface to the Cluster. You can write such applications (that do not depend on a MySQL Server) using the NDB API, which supplies a direct, object-oriented transaction and scanning interface to Cluster data; see The NDB API, for more information.

16.13.7: With which operating systems can I use Cluster?

MySQL Cluster is supported on most Unix-like operating systems, including Linux, Mac OS X, Solaris, and HP-UX. MySQL Cluster is not supported on Windows at this time. We are working to add MySQL Cluster support for other platforms, including Windows; eventually we intend to offer MySQL Cluster on all platforms for which MySQL itself is supported.

For more detailed information concerning the level of support which is offered for MySQL Cluster on various operating system versions, OS distributions, and hardware platforms, please refer to http://www.mysql.com/support/supportedplatforms/cluster.html.

16.13.8: What are the hardware requirements for running MySQL Cluster?

MySQL Cluster should run on any platform for which NDB-enabled binaries are available. For data nodes, faster CPUs and more memory are likely to improve performance, and 64-bit CPUs are likely to be more effective than 32-bit processors. There must be sufficient memory on machines used for data nodes to hold each node's share of the database (see How much RAM do I Need? for more information). Nodes can communicate via a standard TCP/IP network and hardware. For SCI support, special networking hardware is required (see Section 15.11, “Using High-Speed Interconnects with MySQL Cluster”).

16.13.9: How much RAM do I need to use MySQL Cluster? Is it possible to use disk memory at all?

In MySQL 4.1, Cluster is in-memory only. This means that all table data (including indexes) is stored in RAM. Therefore, if your data takes up 1 GB of space and you want to replicate it once in the cluster, you need 2 GB of memory to do so (1 GB per replica). This is in addition to the memory required by the operating system and any applications running on the cluster computers.

If a data node's memory usage exceeds what is available in RAM, then the system will attempt to use swap space up to the limit set for DataMemory. However, this will at best result in severely degraded performance, and may cause the node to be dropped due to slow response time (missed heartbeats). We do not recommend on relying on disk swapping in a production environment for this reason. In any case, once the DataMemory limit is reached, any operations requiring additional memory (such as inserts) will fail.

(We have implemented disk data storage for MySQL Cluster in MySQL 5.1, including MySQL Cluster NDB 6.2 and 6.3, but we have no plans to add this capability in MySQL 4.1. See MySQL 5.1 Manual: MySQL Cluster Disk Data Tables, for more information.)

You can use the following formula for obtaining a rough estimate of how much RAM is needed for each data node in the cluster:

(SizeofDatabase × NumberOfReplicas × 1.1 ) / NumberOfDataNodes

To calculate the memory requirements more exactly requires determining, for each table in the cluster database, the storage space required per row (see Section 10.5, “Data Type Storage Requirements”, for details), and multiplying this by the number of rows. You must also remember to account for any column indexes as follows:

  • Each primary key or hash index created for an NDBCLUSTER table requires 21–25 bytes per record. These indexes use IndexMemory.

  • Each ordered index requires 10 bytes storage per record, using DataMemory.

  • Creating a primary key or unique index also creates an ordered index, unless this index is created with USING HASH. In other words:

    • A primary key or unique index on a Cluster table normally takes up 31 to 35 bytes per record.

    • However, if the primary key or unique index is created with USING HASH, then it requires only 21 to 25 bytes per record.

Note that creating MySQL Cluster tables with USING HASH for all primary keys and unique indexes will generally cause table updates to run more quickly — in some cases by a much as 20 to 30 percent faster than updates on tables where USING HASH was not used in creating primary and unique keys. This is due to the fact that less memory is required (because no ordered indexes are created), and that less CPU must be utilized (because fewer indexes must be read and possibly updated). However, it also means that queries that could otherwise use range scans must be satisfied by other means, which can result in slower selects.

When calculating Cluster memory requirements, you may find useful the ndb_size.pl utility which is available in recent MySQL 4.1 releases. This Perl script connects to a current (non-Cluster) MySQL database and creates a report on how much space that database would require if it used the NDBCLUSTER storage engine. For more information, see Section 15.10.14, “ndb_size.pl — NDBCLUSTER Size Requirement Estimator”.

It is especially important to keep in mind that every MySQL Cluster table must have a primary key. The NDB storage engine creates a primary key automatically if none is defined, and this primary key is created without USING HASH.

There is no easy way to determine exactly how much memory is being used for storage of Cluster indexes at any given time; however, warnings are written to the Cluster log when 80% of available DataMemory or IndexMemory is in use, and again when use reaches 85%, 90%, and so on.

16.13.10: What filesystems can I use with MySQL Cluster? What about network filesystems or network shares?

Generally, any filesystem that is native to the host operating system should work well with MySQL Cluster. If you find that a given filesystem works particularly well (or not so especially well) with MySQL Cluster, we invite you to discuss your findings in the MySQL Cluster Forums.

We do not test MySQL Cluster with FAT or VFAT filesystems on Linux. Because of this, and due to the fact that these are not very useful for any purpose other than sharing disk partitions between Linux and Windows operating systems on multi-boot computers, we do not recommend their use with MySQL Cluster.

MySQL Cluster is implemented as a shared-nothing solution; the idea behind this is that the failure of a single piece of hardware should not cause the failure of multiple cluster nodes, or possibly even the failure of the cluster as a whole. For this reason, the use of network shares or network filesystems is not supported for MySQL Cluster. This also applies to shared storage devices such as SANs.

16.13.11: Can I run MySQL Cluster nodes inside virtual machines (such as those created by VMWare, Parallels, or Xen)?

This is possible but not recommended for a production environment.

We have found that running MySQL Cluster processes inside a virtual machine can give rise to issues with timing and disk subsystems that have a strong negative impact on the operation of the cluster. The behavior of the cluster is often unpredictable in these cases.

If an issue can be reproduced outside the virtual environment, then we may be able to provide assistance. Otherwise, we cannot support it at this time.

16.13.12: I am trying to populate a MySQL Cluster database. The loading process terminates prematurely and I get an error message like this one: ERROR 1114: The table 'my_cluster_table' is full Why is this happening?

The cause is very likely to be that your setup does not provide sufficient RAM for all table data and all indexes, including the primary key required by the NDB storage engine and automatically created in the event that the table definition does not include the definition of a primary key.

It is also worth noting that all data nodes should have the same amount of RAM, since no data node in a cluster can use more memory than the least amount available to any individual data node. For example, if there are four computers hosting Cluster data nodes, and three of these have 3GB of RAM available to store Cluster data while the remaining data node has only 1GB RAM, then each data node can devote at most 1GB to MySQL Cluster data and indexes.

16.13.13: MySQL Cluster uses TCP/IP. Does this mean that I can run it over the Internet, with one or more nodes in remote locations?

It is very unlikely that a cluster would perform reliably under such conditions, as MySQL Cluster was designed and implemented with the assumption that it would be run under conditions guaranteeing dedicated high-speed connectivity such as that found in a LAN setting using 100 Mbps or gigabit Ethernet — preferably the latter. We neither test nor warrant its performance using anything slower than this.

Also, it is extremely important to keep in mind that communications between the nodes in a MySQL Cluster are not secure; they are neither encrypted nor safeguarded by any other protective mechanism. The most secure configuration for a cluster is in a private network behind a firewall, with no direct access to any Cluster data or management nodes from outside. (For SQL nodes, you should take the same precautions as you would with any other instance of the MySQL server.) For more information, see Section 15.8, “MySQL Cluster Security Issues”.

16.13.14: Do I have to learn a new programming or query language to use MySQL Cluster?

No. Although some specialized commands are used to manage and configure the cluster itself, only standard (My)SQL queries and commands are required for the following operations:

  • Creating, altering, and dropping tables

  • Inserting, updating, and deleting table data

  • Creating, changing, and dropping primary and unique indexes

Some specialized configuration parameters and files are required to set up a MySQL Cluster — see Section 15.3.4, “Configuration File”, for information about these.

A few simple commands are used in the MySQL Cluster management client (ndb_mgm) for tasks such as starting and stopping cluster nodes. See Section 15.7.2, “Commands in the MySQL Cluster Management Client”.

16.13.15: How do I find out what an error or warning message means when using MySQL Cluster?

There are two ways in which this can be done:

  • From within the mysql client, use SHOW ERRORS or SHOW WARNINGS immediately upon being notified of the error or warning condition. Errors and warnings also be displayed in MySQL Query Browser.

  • From a system shell prompt, use perror --ndb error_code.

16.13.16: Is MySQL Cluster transaction-safe? What isolation levels are supported?

Yes: For tables created with the NDB storage engine, transactions are supported. Currently, MySQL Cluster supports only the READ COMMITTED transaction isolation level.

16.13.17: What storage engines are supported by MySQL Cluster?

Clustering with MySQL is supported only by the NDB storage engine. That is, in order for a table to be shared between nodes in a MySQL Cluster, the table must be created using ENGINE=NDB (or the equivalent option ENGINE=NDBCLUSTER).

It is possible to create tables using other storage engines (such as MyISAM or InnoDB) on a MySQL server being used with a MySQL Cluster, but these non-NDB tables do not participate in clustering; they are strictly local to the individual MySQL server instance on which they are created.

16.13.18: In the event of a catastrophic failure — say, for instance, the whole city loses power and my UPS fails — would I lose all my data?

All committed transactions are logged. Therefore, although it is possible that some data could be lost in the event of a catastrophe, this should be quite limited. Data loss can be further reduced by minimizing the number of operations per transaction. (It is not a good idea to perform large numbers of operations per transaction in any case.)

16.13.19: Is it possible to use FULLTEXT indexes with MySQL Cluster?

FULLTEXT indexing is not supported by any storage engine other than MyISAM. We are working to add this capability to MySQL Cluster tables in a future release.

16.13.20: Can I run multiple nodes on a single computer?

It is possible but not advisable. One of the chief reasons to run a cluster is to provide redundancy. To obtain the full benefits of this redundancy, each node should reside on a separate machine. If you place multiple nodes on a single machine and that machine fails, you lose all of those nodes. Given that MySQL Cluster can be run on commodity hardware loaded with a low-cost (or even no-cost) operating system, the expense of an extra machine or two is well worth it to safeguard mission-critical data. It also worth noting that the requirements for a cluster host running a management node are minimal. This task can be accomplished with a 200 MHz Pentium CPU and sufficient RAM for the operating system plus a small amount of overhead for the ndb_mgmd and ndb_mgm processes.

It is acceptable to run multiple cluster data nodes on a single host for learning about MySQL Cluster, or for testing purposes; however, this is not generally supported for production use.

16.13.21: Can I add data nodes to a MySQL Cluster without restarting it?

Not at present. A rolling restart is all that is required for adding new management or SQL nodes to a MySQL Cluster (see Section 15.5.1, “Performing a Rolling Restart of the Cluster”). Adding data nodes is more complex, and requires the following steps:

  1. Make a complete backup of all Cluster data.

  2. Completely shut down the cluster and all cluster node processes.

  3. Restart the cluster, using the --initial startup option for all instances of ndbd.

    Warning

    Never use the --initial when starting ndbd except when necessary to clear the data node filesystem. See Section 15.6.5.1, “Command Options for ndbd, for information about when this is required.

  4. Restore all cluster data from the backup.

In a future MySQL Cluster release series, we hope to implement a “hot” reconfiguration capability for MySQL Cluster to minimize (if not eliminate) the requirement for restarting the cluster when adding new nodes. However, this is not planned for MySQL 4.1.

16.13.22: Are there any limitations that I should be aware of when using MySQL Cluster?

Limitations on NDB tables in MySQL 4.1 include the following:

  • Temporary tables are not supported; a CREATE TEMPORARY TABLE statement using ENGINE=NDB or ENGINE=NDBCLUSTER fails with an error.

  • FULLTEXT indexes and index prefixes are not supported. Only complete columns may be indexed.

  • In MySQL 4.1, MySQL Cluster does not support spatial data types or spatial indexes. See Chapter 16, Spatial Extensions.

  • Only complete rollbacks for transactions are supported. Partial rollbacks and rollbacks to save points are not supported.

  • The maximum number of attributes allowed per table is 128, and attribute names cannot be any longer than 31 characters. For each table, the maximum combined length of the table and database names is 122 characters.

  • The maximum size for a table row is 8 kilobytes, not counting BLOB values. There is no set limit for the number of rows per table. Table size limits depend on a number of factors, in particular on the amount of RAM available to each data node.

  • The NDB engine does not support foreign key constraints. As with MyISAM tables, if these are specified in a CREATE TABLE or ALTER TABLE statement, they are ignored.

For a complete listing of limitations in MySQL Cluster, see Section 15.12, “Known Limitations of MySQL Cluster”.

16.13.23: How do I import an existing MySQL database into a MySQL Cluster?

You can import databases into MySQL Cluster much as you would with any other version of MySQL. Other than the limitations mentioned elsewhere in this FAQ, the only other special requirement is that any tables to be included in the cluster must use the NDB storage engine. This means that the tables must be created with ENGINE=NDB or ENGINE=NDBCLUSTER.

It is also possible to convert existing tables using other storage engines to NDBCLUSTER using one or more ALTER TABLE statement. However, the definition of the table must be compatible with the NDBCLUSTER storage engine prior to making the conversion. In MySQL 4.1, an additional workaround is also required.

See Section 15.12, “Known Limitations of MySQL Cluster”, for details.

16.13.24: How do cluster nodes communicate with one another?

Cluster nodes can communicate via any of three different transport mechanisms: TCP/IP, SHM (shared memory), and SCI (Scalable Coherent Interface). Where available, SHM is used by default between nodes residing on the same cluster host; however, this is considered experimental. SCI is a high-speed (1 gigabit per second and higher), high-availability protocol used in building scalable multi-processor systems; it requires special hardware and drivers. See Section 15.11, “Using High-Speed Interconnects with MySQL Cluster”, for more about using SCI as a transport mechanism for MySQL Cluster.

16.13.25: What is an arbitrator?

If one or more nodes in a cluster fail, it is possible that not all cluster nodes will be able to “see” one another. In fact, it is possible that two sets of nodes might become isolated from one another in a network partitioning, also known as a “split brain” scenario. This type of situation is undesirable because each set of nodes tries to behave as though it is the entire cluster.

When cluster nodes go down, there are two possibilities. If more than 50% of the remaining nodes can communicate with each other, we have what is sometimes called a “majority rules” situation, and this set of nodes is considered to be the cluster. The arbitrator comes into play when there is an even number of nodes: in such cases, the set of nodes to which the arbitrator belongs is considered to be the cluster, and nodes not belonging to this set are shut down.

The preceding information is somewhat simplified. A more complete explanation taking into account node groups follows:

When all nodes in at least one node group are alive, network partitioning is not an issue, because no one portion of the cluster can form a functional cluster. The real problem arises when no single node group has all its nodes alive, in which case network partitioning (the “split-brain” scenario) becomes possible. Then an arbitrator is required. All cluster nodes recognize the same node as the arbitrator, which is normally the management server; however, it is possible to configure any of the MySQL Servers in the cluster to act as the arbitrator instead. The arbitrator accepts the first set of cluster nodes to contact it, and tells the remaining set to shut down. Arbitrator selection is controlled by the ArbitrationRank configuration parameter for MySQL Server and management server nodes. (See Section 15.3.4.4, “Defining the Management Server”, for details.)

The role of arbitrator does not in and of itself impose any heavy demands upon the host so designated, and thus the arbitrator host does not need to be particularly fast or to have extra memory especially for this purpose.

16.13.26: What data types are supported by MySQL Cluster?

In MySQL 4.1, MySQL Cluster supports all of the usual MySQL data types, except for those associated with MySQL's spatial extensions. (Spatial data types and spatial indexes are supported only by MyISAM; see Chapter 16, Spatial Extensions, for more information.) In addition, there are some differences with regard to indexes when used with NDB tables.

Note

MySQL Cluster tables (that is, tables created with ENGINE=NDBCLUSTER) have only fixed-width rows. This means that (for example) each record containing a VARCHAR(255) column will require space for 255 characters (as required for the character set and collation being used for the table), regardless of the actual number of characters stored therein. This issue is expected to be fixed in a future MySQL release series.

See Section 15.12, “Known Limitations of MySQL Cluster”, for more information about these issues.

16.13.27: How do I start and stop MySQL Cluster?

It is necessary to start each node in the cluster separately, in the following order:

  1. Start the management node, using the ndb_mgmd command.

    You must include the -f or --config-file option to tell the management node where its configuration file can be found.

  2. Start each data node with the ndbd command.

    Each data node must be started with the -c or --connect-string option so that the data node knows how to connect to the management server.

  3. Start each MySQL Server (SQL node) using your preferred startup script, such as mysqld_safe.

    Each MySQL Server must be started with the --ndbcluster and --ndb-connectstring options. These options cause mysqld to enable NDBCLUSTER storage engine support and how to connect to the management server.

Each of these commands must be run from a system shell on the machine housing the affected node. (You do not have to be physically present at the machine — a remote login shell can be used for this purpose.) You can verify that the cluster is running by starting the NDB management client ndb_mgm on the machine housing the management node and issuing the SHOW or ALL STATUS command.

To shut down a running cluster, issue the command SHUTDOWN in the management client. Alternatively, you may enter the following command in a system shell:

shell> ndb_mgm -e "SHUTDOWN"

(The quotation marks are optional; in addition, the SHUTDOWN command is not case-sensitive.)

Either of these commands causes the ndb_mgm, ndb_mgm, and any ndbd processes to terminate gracefully. MySQL servers running as Cluster SQL nodes can be stopped using mysqladmin shutdown.

For more information, see Section 15.7.2, “Commands in the MySQL Cluster Management Client”, and Section 15.2.6, “Safe Shutdown and Restart”.

16.13.28: What happens to MySQL Cluster data when the cluster is shut down?

The data that was held in memory by the cluster's data nodes is written to disk, and is reloaded into memory the next time that the cluster is started.

16.13.29: Is it a good idea to have more than one management node for a MySQL Cluster?

It can be helpful as a fail-safe. Only one management node controls the cluster at any given time, but it is possible to configure one management node as primary, and one or more additional management nodes to take over in the event that the primary management node fails.

See Section 15.3.4, “Configuration File”, for information on how to configure MySQL Cluster management nodes.

16.13.30: Can I mix different kinds of hardware and operating systems in one MySQL Cluster?

Yes, as long as all machines and operating systems have the same “endianness” (all big-endian or all little-endian). We are working to overcome this limitation in a future MySQL Cluster release.

It is also possible to use software different MySQL Cluster releases on different nodes. However, we support this only as part of a rolling upgrade procedure (see Section 15.5.1, “Performing a Rolling Restart of the Cluster”).

16.13.31: Can I run two data nodes on a single host? Two SQL nodes?

Yes, it is possible to do this. In the case of multiple data nodes, it is advisable (but not required) for each node to use a different data directory. If you want to run multiple SQL nodes on one machine, each instance of mysqld must use a different TCP/IP port. However, running more than one cluster node of a given type per machine is generally not encouraged or supported for production use.

We also advise against running data nodes and SQL nodes together on the same host, since the ndbd and mysqld processes may compete for memory.

16.13.32: Can I use hostnames with MySQL Cluster?

Yes, it is possible to use DNS and DHCP for cluster hosts. However, if your application requires “five nines” availability, we recommend using fixed (numeric) IP addresses. Making communication between Cluster hosts dependent on services such as DNS and DHCP introduces additional potential points of failure.

16.13.33: How do I handle MySQL users in a MySQL Cluster having multiple MySQL servers?

MySQL user accounts and privileges are not automatically propagated between different MySQL servers accessing the same MySQL Cluster. Therefore, you must make sure that these are copied between the SQL nodes yourself. You can do this manually, or automate the task with scripts.

Warning

Do not attempt to work around this issue by converting the MySQL system tables to use the NDBCLUSTER storage engine. Only the MyISAM storage engine is supported for these tables.

16.13.34: How do I continue to send queries in the event that one of the SQL nodes fails?

MySQL Cluster does not provide any sort of automatic failover between SQL nodes. Your application must be prepared to handlethe loss of SQL nodes and to fail over between them.

15.14. MySQL Cluster Glossary

The following terms are useful to an understanding of MySQL Cluster or have specialized meanings when used in relation to it.

  • Cluster.  In its generic sense, a cluster is a set of computers functioning as a unit and working together to accomplish a single task.

    NDBCLUSTER This is the storage engine used in MySQL to implement data storage, retrieval, and management distributed among several computers.

    MySQL Cluster.  This refers to a group of computers working together using the NDB storage engine to support a distributed MySQL database in a shared-nothing architecture using in-memory storage.

  • Configuration files.  Text files containing directives and information regarding the cluster, its hosts, and its nodes. These are read by the cluster's management nodes when the cluster is started. See Section 15.3.4, “Configuration File”, for details.

  • Backup.  A complete copy of all cluster data, transactions and logs, saved to disk or other long-term storage.

  • Restore.  Returning the cluster to a previous state, as stored in a backup.

  • Checkpoint.  Generally speaking, when data is saved to disk, it is said that a checkpoint has been reached. More specific to Cluster, it is a point in time where all committed transactions are stored on disk. With regard to the NDB storage engine, there are two types of checkpoints which work together to ensure that a consistent view of the cluster's data is maintained:

    • Local Checkpoint (LCP).  This is a checkpoint that is specific to a single node; however, LCP's take place for all nodes in the cluster more or less concurrently. An LCP involves saving all of a node's data to disk, and so usually occurs every few minutes. The precise interval varies, and depends upon the amount of data stored by the node, the level of cluster activity, and other factors.

    • Global Checkpoint (GCP).  A GCP occurs every few seconds, when transactions for all nodes are synchronized and the redo-log is flushed to disk.

  • Cluster host.  A computer making up part of a MySQL Cluster. A cluster has both a physical structure and a logical structure. Physically, the cluster consists of a number of computers, known as cluster hosts (or more simply as hosts. See also Node and Node group below.

  • Node.  This refers to a logical or functional unit of MySQL Cluster, and is sometimes also referred to as a cluster node. In the context of MySQL Cluster, we use the term “node” to indicate a process rather than a physical component of the cluster. There are three node types required to implement a working MySQL Cluster:

    • Management nodes.  Manages the other nodes within the MySQL Cluster. It provides configuration data to the other nodes; starts and stops nodes; handles network partitioning; creates backups and restores from them, and so forth.

    • SQL nodes.  Instances of MySQL Server which serve as front ends to data kept in the cluster's data nodes. Clients desiring to store, retrieve, or update data can access an SQL node just as they would any other MySQL Server, employing the usual MySQL authentication methods and APIs; the underlying distribution of data between node groups is transparent to users and applications. SQL nodes access the cluster's databases as a whole without regard to the data's distribution across different data nodes or cluster hosts.

    • Data nodes.  These nodes store the actual data. Table data fragments are stored in a set of node groups; each node group stores a different subset of the table data. Each of the nodes making up a node group stores a replica of the fragment for which that node group is responsible. Currently, a single cluster can support up to 48 data nodes total.

    It is possible for more than one node to co-exist on a single machine. (In fact, it is even possible to set up a complete cluster on one machine, although one would almost certainly not want to do this in a production environment.) It may be helpful to remember that, when working with MySQL Cluster, the term host refers to a physical component of the cluster whereas a node is a logical or functional component (that is, a process).

    Note Regarding Terms.  In volder versions of the MySQL Cluster documentation, data nodes were sometimes referred to as “database nodes”. The term “storage nodes” has also been used. In addition, SQL nodes were sometimes known as “client nodes”. This older terminology has been deprecated to minimize confusion, and for this reason should be avoided. They are also often referred to as “API nodes” — an SQL node is actually an API node that provides an SQL interface to the cluster.

  • Node group.  A set of data nodes. All data nodes in a node group contain the same data (fragments), and all nodes in a single group should reside on different hosts. It is possible to control which nodes belong to which node groups.

    For more information, see Section 15.1.2, “MySQL Cluster Nodes, Node Groups, Replicas, and Partitions”.

  • Node failure.  MySQL Cluster is not solely dependent upon the functioning of any single node making up the cluster; the cluster can continue to run if one or more nodes fail. The precise number of node failures that a given cluster can tolerate depends upon the number of nodes and the cluster's configuration.

  • Node restart.  The process of restarting a failed cluster node.

  • Initial node restart.  The process of starting a cluster node with its filesystem removed. This is sometimes used in the course of software upgrades and in other special circumstances.

  • System crash (or system failure).  This can occur when so many cluster nodes have failed that the cluster's state can no longer be guaranteed.

  • System restart.  The process of restarting the cluster and reinitializing its state from disk logs and checkpoints. This is required after either a planned or an unplanned shutdown of the cluster.

  • Fragment.  A portion of a database table; in the NDB storage engine, a table is broken up into and stored as a number of fragments. A fragment is sometimes also called a “partition”; however, “fragment” is the preferred term. Tables are fragmented in MySQL Cluster in order to facilitate load balancing between machines and nodes.

  • Replica.  Under the NDB storage engine, each table fragment has number of replicas stored on other data nodes in order to provide redundancy. Currently, there may be up four replicas per fragment.

  • Transporter.  A protocol providing data transfer between nodes. MySQL Cluster currently supports four different types of transporter connections:

    • TCP/IP.  This is, of course, the familiar network protocol that underlies HTTP, FTP (and so on) on the Internet. TCP/IP can be used for both local and remote connections.

    • SCI.  Scalable Coherent Interface is a high-speed protocol used in building multiprocessor systems and parallel-processing applications. Use of SCI with MySQL Cluster requires specialized hardware, as discussed in Section 15.11.1, “Configuring MySQL Cluster to use SCI Sockets”. For a basic introduction to SCI, see this essay at dolphinics.com.

    • SHM.  Unix-style shared memory segments. Where supported, SHM is used automatically to connect nodes running on the same host. The Unix man page for shmop(2) is a good place to begin obtaining additional information about this topic.

    Note

    The cluster transporter is internal to the cluster. Applications using MySQL Cluster communicate with SQL nodes just as they do with any other version of MySQL Server (via TCP/IP, or through the use of Unix socket files or Windows named pipes). Queries can be sent and results retrieved using the standard MySQL client APIs.

  • NDB This stands for Network Database, and refers to the storage engine used to enable MySQL Cluster. The NDB storage engine supports all the usual MySQL data types and SQL statements, and is ACID-compliant. This engine also provides full support for transactions (commits and rollbacks).

  • Shared-nothing architecture.  The ideal architecture for a MySQL Cluster. In a true shared-nothing setup, each node runs on a separate host. The advantage such an arrangement is that there no single host or node can act as single point of failure or as a performance bottle neck for the system as a whole.

  • In-memory storage.  All data stored in each data node is kept in memory on the node's host computer. For each data node in the cluster, you must have available an amount of RAM equal to the size of the database times the number of replicas, divided by the number of data nodes. Thus, if the database takes up 1GB of memory, and you want to set up the cluster with four replicas and eight data nodes, a minimum of 500MB memory will be required per node. Note that this is in addition to any requirements for the operating system and any other applications that might be running on the host.

  • Table.  As is usual in the context of a relational database, the term “table” denotes a set of identically structured records. In MySQL Cluster, a database table is stored in a data node as a set of fragments, each of which is replicated on additional data nodes. The set of data nodes replicating the same fragment or set of fragments is referred to as a node group.

  • Cluster programs.  These are command-line programs used in running, configuring, and administering MySQL Cluster. They include both server daemons:

    • ndbd:

      The data node daemon (runs a data node process)

    • ndb_mgmd:

      The management server daemon (runs a management server process)

    and client programs:

    • ndb_mgm:

      The management client (provides an interface for executing management commands)

    • ndb_waiter:

      Used to verify status of all nodes in a cluster

    • ndb_restore:

      Restores cluster data from backup

    For more about these programs and their uses, see Section 15.6, “Process Management in MySQL Cluster”.

  • Event log.  MySQL Cluster logs events by category (startup, shutdown, errors, checkpoints, and so on), priority, and severity. A complete listing of all reportable events may be found in Section 15.7.3, “Event Reports Generated in MySQL Cluster”. Event logs are of two types:

    • Cluster log.  Keeps a record of all desired reportable events for the cluster as a whole.

    • Node log.  A separate log which is also kept for each individual node.

    Under normal circumstances, it is necessary and sufficient to keep and examine only the cluster log. The node logs need be consulted only for application development and debugging purposes.

  • Angel process.  When a data node is started, ndbd actually starts two processes. One of these is known as the “angel” process; its purpose is to check to make sure that the main ndbd process continues to run, and to restart the main process if it should stop for any reason.

  • Watchdog thread.  Each ndbd process has an internal watchdog thread which monitors the main worker thread, ensuring forward progress and a timely response to cluster protocols such as the cluster heartbeat. If the ndbd process is not being woken up promptly by the operating system when its sleep time expires, INFO and WARNING events, which are identifiable because they contain “Watchdog:...”, are written to the cluster log. Such messages are usually a symptom of an overloaded system; you should see what else is running on the system, and whether the ndbd process is being swapped out to disk. If ndbd cannot wake up regularly then it cannot respond to heartbeat messages on time, and other nodes eventually consider it “dead” due to the missed heartbeats, causing it to be excluded from the cluster.
