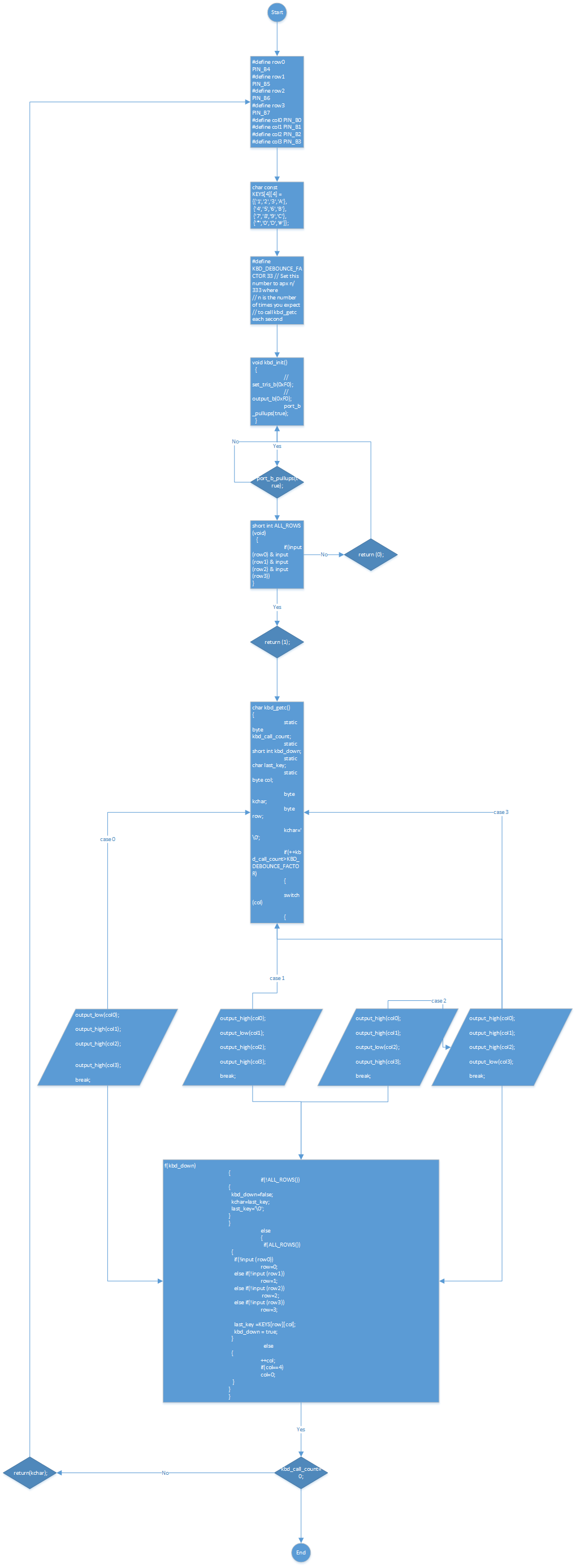

มีใครพอเขียน Flowchart Diagram เป็นมั่งใหมครับ ผมมี code อยู่อะครับ

//Keypad connection:
#define row0 PIN_B4
#define row1 PIN_B5
#define row2 PIN_B6
#define row3 PIN_B7
#define col0 PIN_B0
#define col1 PIN_B1
#define col2 PIN_B2
#define col3 PIN_B3

// Keypad layout:
char const KEYS[4][4] =
{{'1','2','3','A'},
 {'4','5','6','B'},
 {'7','8','9','C'},
 {'*','0','D','#'}};


#define KBD_DEBOUNCE_FACTOR 33 // Set this number to apx n/333 where
// n is the number of times you expect
// to call kbd_getc each second

void kbd_init()
  {
	//set_tris_b(0xF0);
 	//output_b(0xF0);
	port_b_pullups(true);
  }

short int ALL_ROWS (void)
   {
	if(input (row0) & input (row1) & input (row2) & input (row3))
   		return (0);
	else
   		return (1);
   }



char kbd_getc()
{
	static byte kbd_call_count;
	static short int kbd_down;
	static char last_key;
	static byte col;

	byte kchar;
	byte row;

	kchar='\0';

	if(++kbd_call_count>KBD_DEBOUNCE_FACTOR)
  	{
   		switch (col)
     		{
      			case 0:
        		  output_low(col0);
        		  output_high(col1);
        		  output_high(col2);
       			  output_high(col3);
        		  break;

      			case 1:
        		  output_high(col0);
        		  output_low(col1);
        		  output_high(col2);
        		  output_high(col3);
        		  break;

     			case 2:
        		  output_high(col0);
        		  output_high(col1);
        		  output_low(col2);
        		  output_high(col3);
        		  break;

      			case 3:
        		  output_high(col0);
        		  output_high(col1);
        		  output_high(col2);
        		  output_low(col3);
        		  break;
      		}

   	if(kbd_down)
     		{
      			if(!ALL_ROWS())
        		{
         		  kbd_down=false;
         		  kchar=last_key;
         		  last_key='\0';
        		}
     		}
   			else
     			{
      			  if(ALL_ROWS())
        		  {
         		    if(!input (row0))
            			row=0;
         		    else if(!input (row1))
            			row=1;
         		    else if(!input (row2))
           			 row=2;
         		    else if(!input (row3))
            			row=3;

         		    last_key =KEYS[row][col];
         		    kbd_down = true;
        		  }
      			  else
        		  {
         			++col;
         		   	if(col==4)
            			col=0;
        		   }
     		}
   	kbd_call_count=0;
  	}
     return(kchar);
}
