ตอนที่ 8 : How to use Java (JSP) Add Entity to a Table Storage - บันทึกข้อมูลลงตาราง

ตอนที่ 8 : How to use Java (JSP) Add Entity to a Table Storage - บันทึกข้อมูลลงตาราง บทความที่สองของ Windows Azure Table Storage กับ Java (JSP) จะเป็นตัวอย่างเกี่ยวกับการ Insert ข้อมูลลงใน Table Storage ของ Windows Azure ซึ่งจะเหมือนกับการ Insert ข้อมูลแบบ SQL ปกติ เพียงแต่เราจะใช้การ Insert ผ่าน Library ด้วยการเขียนคำสั่งเพียงง่าย ๆ ก็สามารถที่จะ Insert ลงใน Table ได้ทันที

How to use Java (JSP) Add Entity to a Table Storage

ตาราง Table ที่อยู่บน Windows Azure


ก่อนอื่นเราจะต้องสร้าง Class สำหรับเป็น Model ในการเชื่อมต่อระหว่า Table Storage กับ Java ด้วยการสร้าง Class แล้ว extends ไปยัง TableServiceEntity

How to use Java (JSP) Add Entity to a Table Storage

ขั้นตอนการสร้าง Package คลิกขวาที่ Project -> New -> Package

How to use Java (JSP) Add Entity to a Table Storage

ตั้งชื่อเป็น com.java.myapp








How to use Java (JSP) Add Entity to a Table Storage

ได้ Package ชื่อว่า com.java.myapp

How to use Java (JSP) Add Entity to a Table Storage

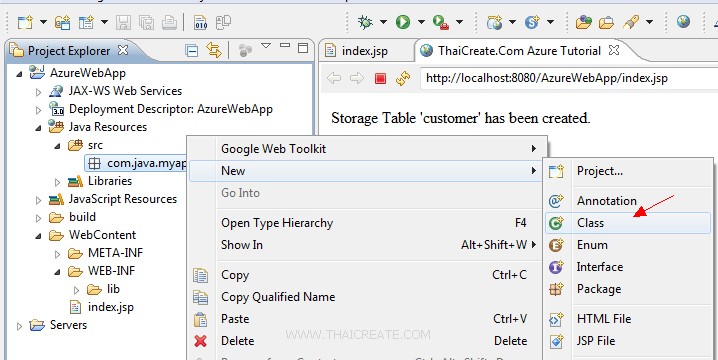

คลิกขวาที่ Package -> New -> Class

How to use Java (JSP) Add Entity to a Table Storage

ตั้งชื่อ Class ว่า CustomerEntity (ควรจะตั้งชื่อ Class ให้ชื่อเดียวกับชื่อของ Table)

How to use Java (JSP) Add Entity to a Table Storage

เราจะได้ไฟล์ Class ชื่อว่า CustomerEntity.java

CustomerEntity.java
package com.java.myapp;

import com.microsoft.windowsazure.services.table.client.*;

public class CustomerEntity extends TableServiceEntity {
    public CustomerEntity(String pKey, String rKey) {
        this.partitionKey = pKey;
        this.rowKey = rKey;
    }

    public CustomerEntity() { }

    String CustomerID;
    String Name;
    String Email;
    String CountryCode;
    String Budget;
    String Used;

    public String getCustomerID() {
        return this.CustomerID;
    }
    public void setCustomerID(String sCustomerID) {
        this.CustomerID = sCustomerID;
    }

    public String getName() {
        return this.Name;
    }
    public void setName(String sName) {
        this.Name = sName;
    }

    public String getEmail() {
        return this.Email;
    }
    public void setEmail(String sEmail) {
        this.Email = sEmail;
    }

    public String getCountryCode() {
        return this.CountryCode;
    }
    public void setCountryCode(String sCountryCode) {
        this.CountryCode = sCountryCode;
    }

    public String getBudget() {
        return this.Budget;
    }
    public void setBudget(String sBudget) {
        this.Budget = sBudget;
    }

    public String getUsed() {
        return this.Used;
    }
    public void setUsed(String sUsed) {
        this.Used = sUsed;
    }


}


ใน Table นี้จะประกอบด้วยฟิวด์

- CustomerID
- Name
- Email
- CountryCode
- Budget
- Used

แต่เราจะเห้ฯว่าจะมีชื่อ partitionKey และ rowKey ตัวนี้เปรียบเหสมือน Key ของ Table

Syntax การ Insert ข้อมูล
    CustomerEntity newEntiry = new CustomerEntity("myCustomer", "C001");
    newEntiry.setCustomerID("C001");
    newEntiry.setName("Win Weerachai");
    newEntiry.setEmail("[email protected]");
    newEntiry.setCountryCode("TH");
    newEntiry.setBudget("1000000.00");
    newEntiry.setUsed("600000.00");

จัดเก็บไว้ใน Table ชื่อว่า customer จะสังเกตุว่ามีการ Insert ข้อมูลที่เป็น PartitionKey และ RowKey ซึ่งตัวนี้เปรียบเหสมือน Key ของ Rows ควรเป็นค่าที่ไม่ซ้ำกัน ใช้ในการอ้างอิงถึง Key และ Index ทำให้สามารถอ่านข้อมูลได้อย่างรวดเร็ว

Example 1 เขียน Java (JSP) เพื่บันทึกข้อมูลลงใน Table Storage ของ Windows Azure

index.jsp
<%@ page import="com.microsoft.windowsazure.services.core.storage.*" %>
<%@ page import="com.microsoft.windowsazure.services.table.client.*" %>
<%@ page import="com.microsoft.windowsazure.services.table.client.TableQuery.*" %>
<%@ page import="com.java.myapp.CustomerEntity" %>

<html>
<head>
	<title>ThaiCreate.Com Azure Tutorial</title>
</head>
<body>
	<%

	String storageConnectionString =
    "DefaultEndpointsProtocol=http;" +
    "AccountName=[yourAccount];" +
    "AccountKey=[yourKey]";

 	// Retrieve storage account from connection-string
    CloudStorageAccount storageAccount = CloudStorageAccount.parse(storageConnectionString);

 	// Create the table client.
    CloudTableClient tableClient = storageAccount.createCloudTableClient();

    // Create a new customer entity.
    CustomerEntity newEntiry = new CustomerEntity("myCustomer", "C001");
    newEntiry.setCustomerID("C001");
    newEntiry.setName("Win Weerachai");
    newEntiry.setEmail("[email protected]");
    newEntiry.setCountryCode("TH");
    newEntiry.setBudget("1000000.00");
    newEntiry.setUsed("600000.00");

    // Create an operation to add the new customer to the customer table.
    TableOperation insertCustomer = TableOperation.insert(newEntiry);

    // Submit the operation to the table service.
    tableClient.execute("customer", insertCustomer);


    out.print("Storage Table 'customer' has been inserted.");

	%>
</body>
</html>


Screenshot

How to use Java (JSP) Add Entity to a Table Storage

แสดงการ Insert ข้อมูล

How to use Java (JSP) Add Entity to a Table Storage

ดูผ่านโปรแกรม Azure Storage Explorer เลือก Edit

How to use Java (JSP) Add Entity to a Table Storage

แสดงข้อมูลที่ถูก Insert ลงไปใน Table








Example 2 เขียน Java (JSP) สร้าง Form สำหรับ Insert ข้อมูลลงใน Azure Table Storage

index.jsp
<html>
<head>
<title>ThaiCreate.Com</title>
</head>
<body>
<form action="save.jsp" name="frmAdd" method="post">
<table width="600" border="1">
  <tr>
    <th width="91"> <div align="center">CustomerID </div></th>
    <th width="160"> <div align="center">Name </div></th>
    <th width="198"> <div align="center">Email </div></th>
    <th width="97"> <div align="center">CountryCode </div></th>
    <th width="70"> <div align="center">Budget </div></th>
    <th width="70"> <div align="center">Used </div></th>
  </tr>
  <tr>
    <td><div align="center"><input type="text" name="txtCustomerID" size="5"></div></td>
    <td><input type="text" name="txtName" size="20"></td>
    <td><input type="text" name="txtEmail" size="20"></td>
    <td><div align="center"><input type="text" name="txtCountryCode" size="2"></div></td>
    <td align="right"><input type="text" name="txtBudget" size="5"></td>
    <td align="right"><input type="text" name="txtUsed" size="5"></td>
  </tr>
  </table>
  <input type="submit" name="submit" value="submit">
  </form>
</body>
</html>

save.jsp
<%@ page import="com.microsoft.windowsazure.services.core.storage.*" %>
<%@ page import="com.microsoft.windowsazure.services.table.client.*" %>
<%@ page import="com.microsoft.windowsazure.services.table.client.TableQuery.*" %>
<%@ page import="com.java.myapp.CustomerEntity" %>

<html>
<head>
	<title>ThaiCreate.Com Azure Tutorial</title>
</head>
<body>
	<%

	String storageConnectionString =
    "DefaultEndpointsProtocol=http;" +
    "AccountName=[yourAccount];" +
    "AccountKey=[yourKey]";

 	// Retrieve storage account from connection-string
    CloudStorageAccount storageAccount = CloudStorageAccount.parse(storageConnectionString);

 	// Create the table client.
    CloudTableClient tableClient = storageAccount.createCloudTableClient();

 	// Get Param
 	String strCustomerID = request.getParameter("txtCustomerID");
    String strName = request.getParameter("txtName");
    String strEmail = request.getParameter("txtEmail");
    String strCountryCode = request.getParameter("txtCountryCode");
    String strBuget = request.getParameter("txtBudget");
    String strUsed = request.getParameter("txtUsed");

    // Create a new customer entity.
    CustomerEntity newEntity = new CustomerEntity("myCustomer", strCustomerID);
    newEntity.setCustomerID(strCustomerID);
    newEntity.setName(strName);
    newEntity.setEmail(strEmail);
    newEntity.setCountryCode(strCountryCode);
    newEntity.setBudget(strBuget);
    newEntity.setUsed(strUsed);

    // Create an operation to add the new customer to the customer table.
    TableOperation insertCustomer = TableOperation.insert(newEntity);

    // Submit the operation to the table service.
    tableClient.execute("customer", insertCustomer);


    out.print("Storage Table 'customer' has been inserted.");

	%>
</body>
</html>


How to use Java (JSP) Add Entity to a Table Storage

แสดง Form สำหรับ Insert ข้อมูล ซึ่งจะได้ผลลอัพธ์เดียวกับตัวอย่างแรก
