ตอนที่ 8 : อ่านข้อมูล Mobile Services แบบมีเงื่อนไข Where และแสดงผลบน Android

ตอนที่ 8 : อ่านข้อมูล Mobile Services แบบมีเงื่อนไข Where และแสดงผลบน Android App บทความนี้จะเป็นการใช้ Android อ่านข้อมูลจาก Table ของ Mobile Services บน Windows Azure โดยจะยกตัวอย่างการเลือกข้อมูลแบบมีเงื่อนไข (Where Clause) เหมือนกับการ Where ใน Query ของ Table ทั่ว ๆ ไป และจะนำผลลัพธ์ที่ได้ไปแสดงบนในหน้าจอของ Android ด้วยการใช้ ListView เพื่อแสดงรายการทั้งหมดที่ค้นพบ

รูปแบบการอ่านข้อมูลจาก Table แบบมีเงื่อนไข Where ของ Mobile Services ด้วย Android
mMyMember.where().field("status").eq("1").execute(new TableQueryCallback<MyMember>() {
	public void onCompleted(List<MyMember> result, int count, Exception exception, ServiceFilterResponse response) {

		if (exception == null) {
			mAdapter.clear();
			for (MyMember item : result) {
				mAdapter.add(item);
			}
		} else {
			Log.d("Error","Error Load Data from Mobile Service");
		}
	}
});

รูปแบบการใช้ Android อ่านข้อมูลจาก Mobile Services บน Windows Azure ด้วยใช้การ Where เงื่อนไข

Android Azure Mobile Services Read Data Table Where

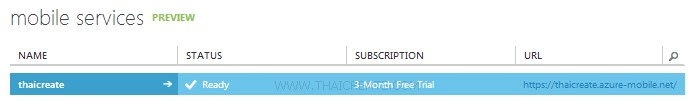

ตอนนี้เรามี Mobile Services อยู่ 1 ตัว

Android Azure Mobile Services Read Data Table Where

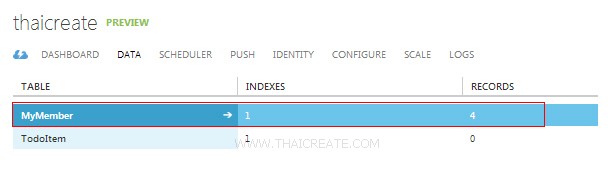

ชื่อตารางว่า MyMember

Android Azure Mobile Services Read Data Table Where

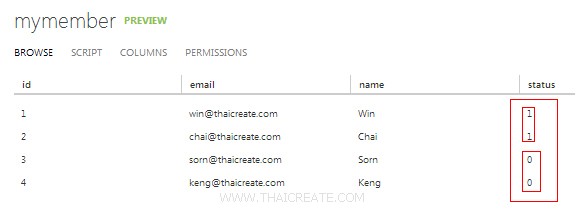

ข้อมูลในตาราง MyMember ประกอบด้วย Column ชื่อว่า id,name,email,status

Android Azure Mobile Services Read Data Table Where

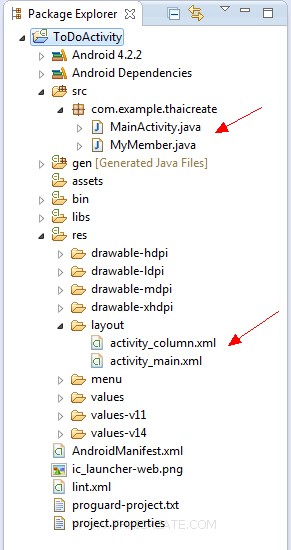

โครงสร้างไฟล์ทั้งหมด

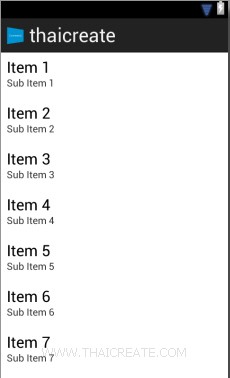

activity_main.xml

Android Azure Mobile Service Read Data Table Where

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
      android:orientation="horizontal"
      android:layout_width="fill_parent"
      android:layout_height="wrap_content"
      android:layout_weight="0.1">

   <ListView
       android:id="@+id/listView1"
       android:layout_width="match_parent"
       android:layout_height="wrap_content">
   </ListView>

</LinearLayout>

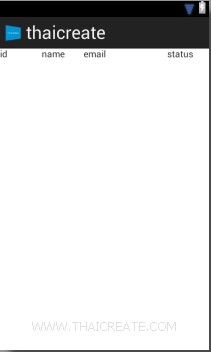

activity_column.xml

Android Azure Mobile Services Read Data Table Where

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
	android:id="@+id/linearLayout1"
	android:layout_width="fill_parent"
	android:layout_height="fill_parent" >

	<TextView
	android:id="@+id/col_id"
		android:layout_width="0dp"
		android:layout_height="wrap_content"
		android:layout_weight="1"
		android:text="id"/>

	<TextView
		android:id="@+id/col_name"
		android:layout_width="0dp"
		android:layout_height="wrap_content"
		android:layout_weight="1"
		android:text="name"/>

	<TextView
	    android:id="@+id/col_email"
	    android:layout_width="0dp"
	    android:layout_height="wrap_content"
	    android:layout_weight="2"
	    android:text="email" />

</LinearLayout>



MyMember.java
package com.example.thaicreate;

public class MyMember {

	@com.google.gson.annotations.SerializedName("id")
	private int mId;

	@com.google.gson.annotations.SerializedName("name")
	private String mName;

	@com.google.gson.annotations.SerializedName("email")
	private String mEmail;

	@com.google.gson.annotations.SerializedName("status")
	private String mStatus;

	public MyMember() {
		// empty
	}

	public MyMember(String name, String email) {
		this.setName(name);
		this.setEmail(email);
	}

	public int getId() {
		return mId;
	}

	public final void setName(String name) {
		mName = name;
	}
	public String getName() {
		return mName;
	}

	public final void setEmail(String email) {
		mEmail = email;
	}
	public String getEmail() {
		return mEmail;
	}

	public final void setStatus(String status) {
		mStatus = status;
	}
	public String getStatus() {
		return mStatus;
	}

}


Android Azure Mobile Services Read Data Table Where

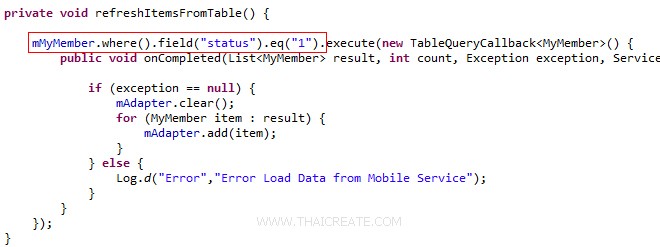

ในไฟล์ที่แสดงผลใส่เงื่อนไข Where เข้าไปใน Query

MainActivity.java
package com.example.thaicreate;

import java.net.MalformedURLException;
import java.util.List;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;

import com.microsoft.windowsazure.mobileservices.MobileServiceClient;
import com.microsoft.windowsazure.mobileservices.MobileServiceTable;
import com.microsoft.windowsazure.mobileservices.ServiceFilterResponse;
import com.microsoft.windowsazure.mobileservices.TableQueryCallback;

public class MainActivity extends Activity {

	private MobileServiceClient mClient;
	private MobileServiceTable<MyMember> mMyMember;
	private MyMemberAdapter mAdapter;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        /*** Create to Mobile Services ***/
        try {
			mClient = new MobileServiceClient(
				      "https://thaicreate.azure-mobile.net/",
				      "QUjngFknhHZjdaGgYAAzdoXkOzKoxi24",
				      this);

		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

        /*** Create getTable ***/
        mMyMember = mClient.getTable(MyMember.class);

        // listView1
        final ListView lstView1 = (ListView)findViewById(R.id.listView1);
        mAdapter = new MyMemberAdapter(this,R.layout.activity_column);
        lstView1.setAdapter(mAdapter);

        refreshItemsFromTable();

    }

	private void refreshItemsFromTable() {

		mMyMember.where().field("status").eq("1").execute(new TableQueryCallback<MyMember>() {
			public void onCompleted(List<MyMember> result, int count, Exception exception, ServiceFilterResponse response) {

				if (exception == null) {
					mAdapter.clear();
					for (MyMember item : result) {
						mAdapter.add(item);
					}
				} else {
					Log.d("Error","Error Load Data from Mobile Service");
				}
			}
		});
	}


	public class MyMemberAdapter extends ArrayAdapter<MyMember> {
		Context mContext;
		int mLayoutResourceId;

		public MyMemberAdapter(Context context, int layoutResourceId) {
			super(context, layoutResourceId);

			mContext = context;
			mLayoutResourceId = layoutResourceId;
		}

		@Override
		public View getView(int position, View convertView, ViewGroup parent) {
			View row = convertView;

			final MyMember currentItem = getItem(position);

			if (row == null) {
				LayoutInflater inflater = ((Activity) mContext).getLayoutInflater();
				row = inflater.inflate(mLayoutResourceId, parent, false);
			}

			row.setTag(currentItem);

			// Column id
			final TextView txt_id = (TextView) row.findViewById(R.id.col_id);
			txt_id.setText(String.valueOf(currentItem.getId()));

			// Column name
			final TextView txt_name = (TextView) row.findViewById(R.id.col_name);
			txt_name.setText(currentItem.getName());

			// Column email
			final TextView txt_email = (TextView) row.findViewById(R.id.col_email);
			txt_email.setText(currentItem.getEmail());

			// Column status
			final TextView txt_status = (TextView) row.findViewById(R.id.col_status);
			txt_status.setText(currentItem.getStatus());

			return row;
		}
	}


    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}

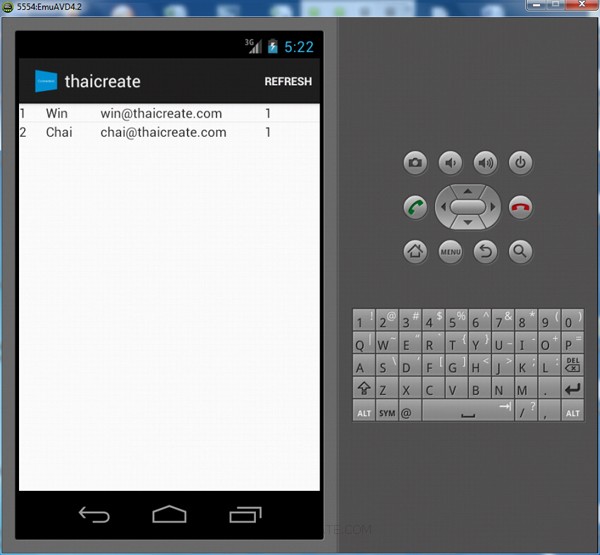

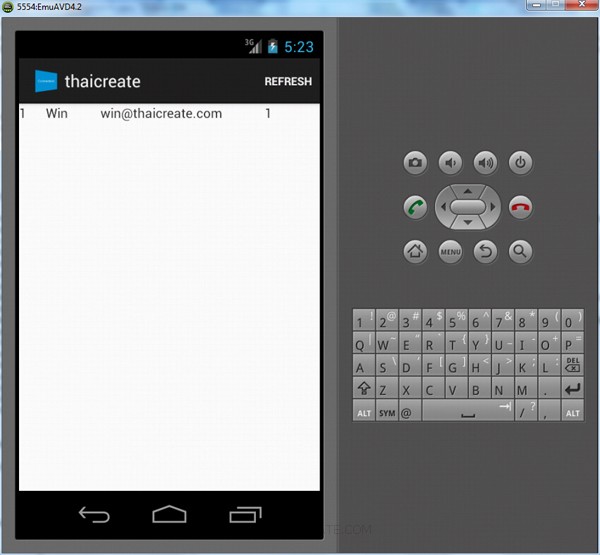

Screenshot

Android Azure Mobile Service Read Data Table Where

แสดงข้อมูลจาก Table ของ Mobile Service บน Android App เลือกเฉพาะ status = 1

ในกรณีที่ Where จาก id ก็ได้เช่นเดียวกัน

Android Azure Mobile Service Read Data Table Where

Screenshot

Android Azure Mobile Service Read Data Table Where

เพิ่มเติม ยอกจากนี้ยังสามารถใช้ And และ Order By ก็ได้

mMyMember.where().field("status").eq("1").and
.field("id").eq(3)
.orderByDescending('id');
.execute(new TableQueryCallback<MyMember>() {
	public void onCompleted(List<MyMember> result, int count, Exception exception, ServiceFilterResponse response) {

		if (exception == null) {
			mAdapter.clear();
			for (MyMember item : result) {
				mAdapter.add(item);
			}
		} else {
			Log.d("Error","Error Load Data from Mobile Service");
		}
	}
});
