ตอนที่ 15 : Show Case 3 : Update Data (iOS / iPhone and Mobile Services)

ตอนที่ 15 : Show Case 3 : Update Data (iOS / iPhone and Mobile Services) บทความการเขียน iOS เพื่อทำการ Update หรือแก้ไขข้อมูลในตารางของ Mobile Services ที่อยู่บน Windows Azure โดยในตัวอย่างนี้จะออกแบบ Viewเป็น 2 View ด้วยกัน คือ View แรกใช้ TableView แสดงรายการข้อมูลทั้งหมด ส่วน View ที่สองสำหรับแสดงข้อมูลที่ได้เลือก เพื่อทำการแสดงช่อง Textbox ไว้สำหรับแก้ไขข้อมูล

iOS iPhone Update Data Mobile Services

iOS iPhone Mobile Services Update Form

iOS iPhone Update Data Mobile Services

iOS iPhone Mobile Services Update Form


สำหรับขั้นตอนนั้นก็คือสร้าง Viewแรกด้วย TableView จากนั้นดึงข้อมูลมาจาก Mobile Services และแต่ล่ะ Item สามารถที่จะเลือกรายการเพื่อ Update ด้วยการส่งค่า id ไปยัง View ที่สอง ใน View นี้จะมีหน้าที่ไปดึงพวกรายละเอียดต่าง ๆ มาแสดงใน Textbox เพื่อรอทำการแก้ไข Update ข้อมูล








Example ตัวอย่างการทำระบบแก้ไข Update Data ที่อยู่บน Mobile Services ด้วย iOS

iOS iPhone Update Data Mobile Services

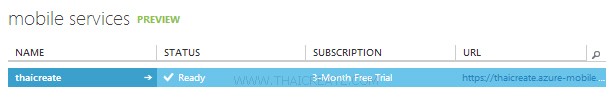

ตอนนี้เรามี Mobile Service อยู่ 1 รายการ

iOS iPhone Update Data Mobile Services

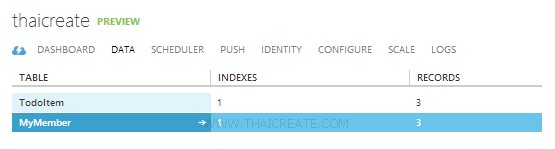

ชื่อตารางว่า MyMember

iOS iPhone Update Data Mobile Services

มีข้อมูลอยู่ทั้งหมด 3 รายการ


กลับมายัง Project ของ iOS บน Xcode

สำหรับพื้นฐานการสร้าง Project และการสร้าง Table รวมทั้งการติดต่อระหว่าง iOS กับ Mobile Services บน Windows Azure แนะนำให้อ่านบทความในตอนที่ 5

ตอนที่ 5: iOS / iPhone สร้างตาราง Table บน Mobile Services และการ Insert ข้อมูล


iOS iPhone Update Data Mobile Services

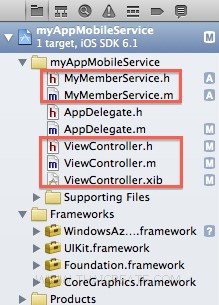

โครงสร้างไฟล์บน Xcode

iOS iPhone Update Data Mobile Services

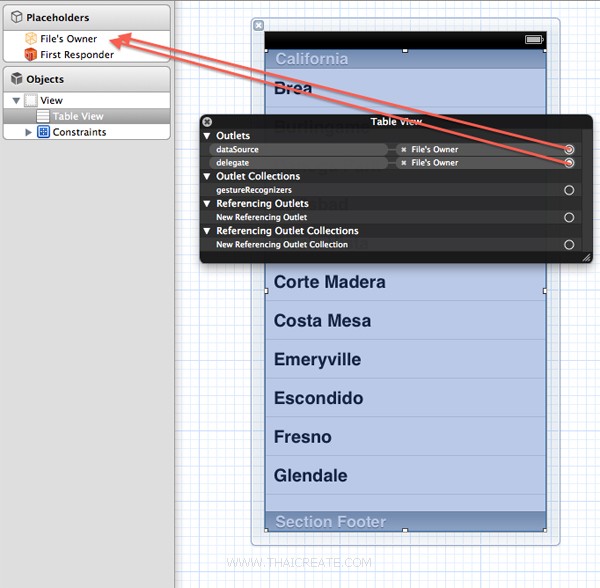

View แรกจะชื่อ ViewController.xib, ViewController.h และ ViewController.m ซึ่งไว้สำหรับแสดงข้อมูลทั้งหมดบน TableView ให้ทำการเชื่อม dataSource และ delegate ระหว่าง TableView กับ File's Owner

iOS iPhone Update Data Mobile Services

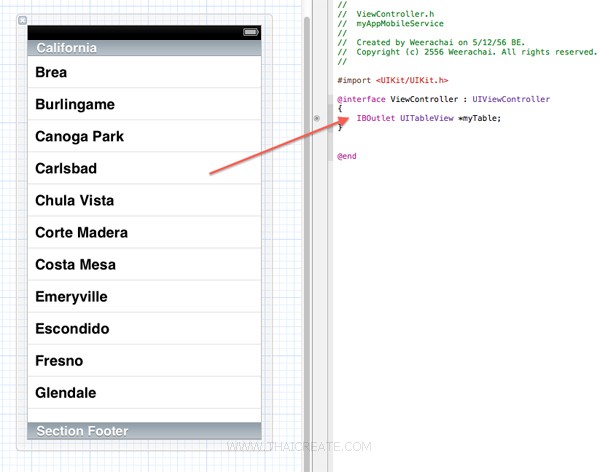

ใน TableView ทำการเชื่อม IBOutlet ให้เรียบร้อย

iOS iPhone Update Data Mobile Services

ในไฟล์ ViewController.h และ ViewController.m เขียน Code ดังนี้

ViewController.h
//
//  ViewController.h
//  myAppMobileService
//
//  Created by Weerachai on 5/12/56 BE.
//  Copyright (c) 2556 Weerachai. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface ViewController : UIViewController
{
    IBOutlet UITableView *myTable;
}


@end


ViewController.m
//
//  ViewController.m
//  myAppMobileService
//
//  Created by Weerachai on 5/12/56 BE.
//  Copyright (c) 2556 Weerachai. All rights reserved.
//

#import <WindowsAzureMobileServices/WindowsAzureMobileServices.h>
#import "MyMemberService.h"
#import "UpdateViewController.h"

#import "ViewController.h"

@interface ViewController ()

// Private properties
@property (strong, nonatomic)   MyMemberService   *memberService;

@end

@implementation ViewController

@synthesize memberService;


- (void)viewDidLoad
{
    [super viewDidLoad];

    // Start Service
    self.memberService = [MyMemberService defaultService];

    // Start Service
    self.memberService = [MyMemberService defaultService];
    [self.memberService refreshDataOnSuccess:^
     {
         [myTable reloadData];
     }];

}

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
{

    static NSString *CellIdentifier = @"Cell";

    UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:CellIdentifier];
    if (cell == nil) {
        cell = [[[UITableViewCell alloc] initWithStyle : UITableViewCellStyleSubtitle
                                       reuseIdentifier : CellIdentifier] autorelease];
    }

    NSDictionary *item = [self.memberService.items objectAtIndex:indexPath.row];
    cell.textLabel.text = [item objectForKey:@"username"];
    cell.detailTextLabel.text= [item objectForKey:@"name"];

    return cell;

}

- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView
{
    // Always a single section
    return 1;
}

- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
{
    // Return the number of items in the todoService items array
    return [self.memberService.items count];

}

- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath
{

    NSDictionary *item = [self.memberService.items objectAtIndex:indexPath.row];

    UpdateViewController *view2 = [[[UpdateViewController alloc] initWithNibName:nil bundle:nil] autorelease];
    view2.sid = [item objectForKey:@"id"];
    [self presentViewController:view2 animated:YES completion:NULL];

}

- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

- (void)dealloc {
    [myTable release];
    [super dealloc];
}


@end


iOS iPhone Update Data Mobile Services

เราจะสร้างชุดของ View และ Class ไว้สำหรับ แสดงรายละเอียดไว้เพื่อ Update ข้อมูล โดยใช้การส่งค่าผ่าน View เริ่มการสร้างโดยคลิกขวาที่ Project เลือก New

iOS iPhone Update Data Mobile Services

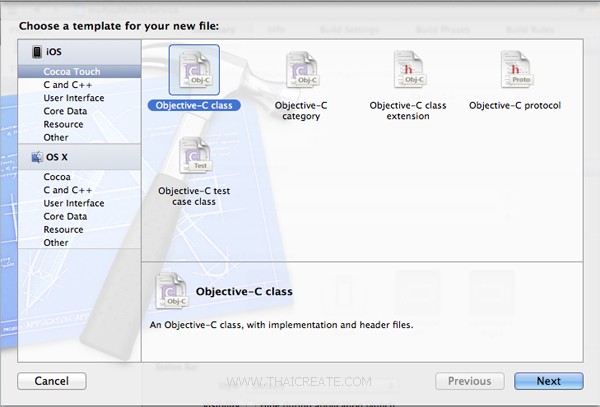

เลือกเป็น Objective-C Class

iOS iPhone Update Data Mobile Services

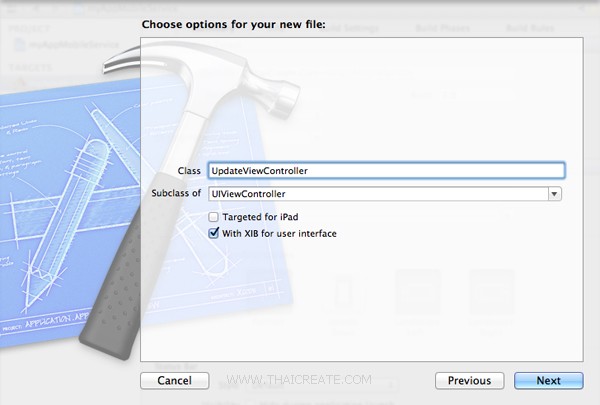

ตั้งชื่อว่า UpdateViewController โดยให้เลือก Subclass เป็นว่า UIViewController และอย่าลืมเลือก [x] Width XIB for user Interface

iOS iPhone Update Data Mobile Services

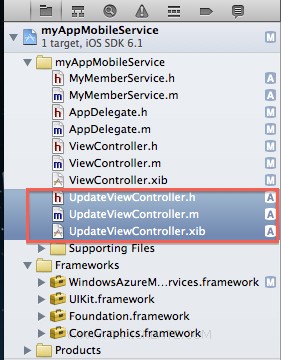

เราจะได้ไฟล์ขึ้นมา 1 ชุด UpdateViewController.xib , UpdateViewController.h และ UpdateViewController.m

iOS iPhone Update Data Mobile Services

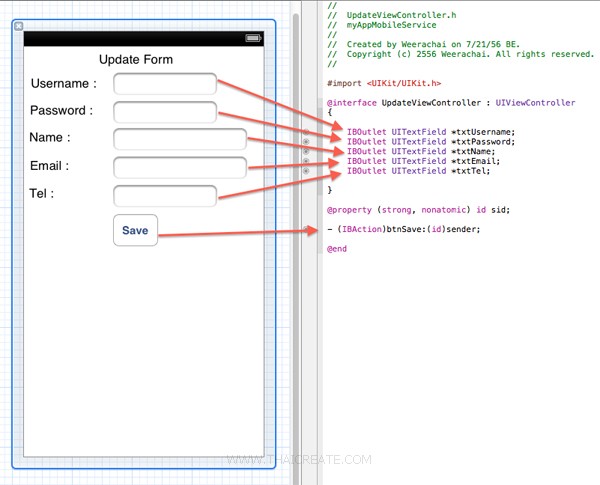

สร้าง Form สำหรับ Update ข้อมูลและทำการเชื่อม IBOutlet ให้เรียบร้อย








ในไฟล์ UpdateViewController.h และ UpdateViewController.m เขียน Code ดังนี้

UpdateViewController.h
//
//  UpdateViewController.h
//  myAppMobileService
//
//  Created by Weerachai on 7/21/56 BE.
//  Copyright (c) 2556 Weerachai. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface UpdateViewController : UIViewController
{

    IBOutlet UITextField *txtUsername;
    IBOutlet UITextField *txtPassword;
    IBOutlet UITextField *txtName;
    IBOutlet UITextField *txtEmail;
    IBOutlet UITextField *txtTel;

}

@property (nonatomic, strong)   NSArray *upItems;
@property (strong, nonatomic) id sid;

- (IBAction)btnSave:(id)sender;

@end


UpdateViewController.m
//
//  UpdateViewController.m
//  myAppMobileService
//
//  Created by Weerachai on 7/21/56 BE.
//  Copyright (c) 2556 Weerachai. All rights reserved.
//

#import <WindowsAzureMobileServices/WindowsAzureMobileServices.h>
#import "MyMemberService.h"
#import "ViewController.h"

#import "UpdateViewController.h"

@interface UpdateViewController ()

// Private properties
@property (strong, nonatomic)   MyMemberService   *memberService;

@end

@implementation UpdateViewController

@synthesize upItems;
@synthesize memberService;

- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil
{
    self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];
    if (self) {
        // Custom initialization
    }
    return self;
}

- (void)viewDidLoad
{
    [super viewDidLoad];
    // Do any additional setup after loading the view from its nib.

    // Start Service
    self.memberService = [MyMemberService defaultService];

    NSString *wid = [NSString stringWithFormat:@"id = %@",[self.sid description]];

    [self.memberService getUserInfo:wid completion:^
     {
         if(memberService.items.count > 0)
         {
             NSDictionary *item = [self.memberService.items objectAtIndex:0];
             txtUsername.text = [item objectForKey:@"username"];
             txtPassword.text = [item objectForKey:@"password"];
             txtName.text = [item objectForKey:@"name"];
             txtEmail.text = [item objectForKey:@"email"];
             txtTel.text = [item objectForKey:@"tel"];

         }
         else
         {
             UIAlertView *av =
             [[UIAlertView alloc]
              initWithTitle:@"Get Data"
              message:@"Not found data."
              delegate:nil
              cancelButtonTitle:@"OK"
              otherButtonTitles:nil
              ];
             [av show];
         }
     }];


    // Tap Gesture for Hide Keyboard
    UITapGestureRecognizer *oneTapGesture = [[UITapGestureRecognizer alloc]
                                             initWithTarget: self
                                             action: @selector(hideKeyboard:)];
    [oneTapGesture setNumberOfTouchesRequired:1];
    [[self view] addGestureRecognizer:oneTapGesture];
}

// Event Gesture for Hide Keyboard
- (void)hideKeyboard:(UITapGestureRecognizer *)sender {
    [txtPassword resignFirstResponder];
    [txtPassword resignFirstResponder];
    [txtName resignFirstResponder];
    [txtEmail resignFirstResponder];
    [txtTel resignFirstResponder];
}

- (IBAction)btnSave:(id)sender {

    // Find item that was commited for editing (update)
    NSDictionary *item = [self.memberService.items objectAtIndex:0];

    NSMutableArray *mutableItems = (NSMutableArray *) upItems;

    // Set the item to be complete (we need a mutable copy)
    NSMutableDictionary *mutable = [item mutableCopy];
    [mutable setObject:txtUsername.text forKey:@"username"];
    [mutable setObject:txtPassword.text forKey:@"password"];
    [mutable setObject:txtName.text forKey:@"name"];
    [mutable setObject:txtEmail.text forKey:@"email"];
    [mutable setObject:txtTel.text forKey:@"tel"];

    // Replace the original in the items array
    NSUInteger index = [upItems indexOfObjectIdenticalTo:item];
    [mutableItems replaceObjectAtIndex:index withObject:mutable];

    // Ask the todoService to set the item's complete value to YES, and remove the row if successful
    [self.memberService updateItem:mutable completion:^(NSUInteger index)
     {
         UIAlertView *av =
         [[UIAlertView alloc]
          initWithTitle:@"Update Data"
          message:@"Update Data Successfully."
          delegate: self
          cancelButtonTitle:@"OK"
          otherButtonTitles:nil
          ];
         [av show];

          //ViewController *view2 = [[[ViewController alloc] initWithNibName:nil bundle:nil] autorelease];
          //[self presentViewController:view2 animated:YES completion:NULL];

     }];

}

// Clock alert button
- (void)alertView:(UIAlertView *)alertView clickedButtonAtIndex:(NSInteger)buttonIndex {

    if(buttonIndex == 0)
    {
        ViewController *view2 = [[[ViewController alloc] initWithNibName:nil bundle:nil] autorelease];
        [self presentViewController:view2 animated:YES completion:NULL];
    }

}

- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

- (void)dealloc {
    [txtUsername release];
    [txtUsername release];
    [txtPassword release];
    [txtName release];
    [txtEmail release];
    [txtTel release];
    [super dealloc];
}

@end


Screenshot

iOS iPhone Update Data Mobile Services

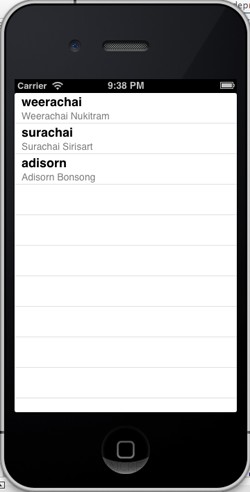

หน้าแสดงรายการข้อมูลทั้งหมดที่มาจาก Mobile Services ให้คลิกเพื่อเลือกทำการแก้ไขข้อมูล

iOS iPhone Update Data Mobile Services

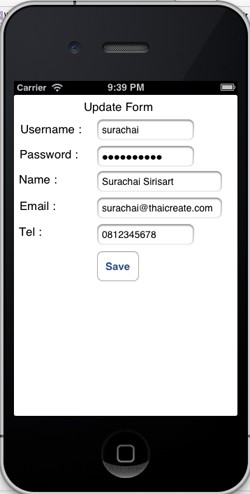

แสดง Viewสำหรับการแก้ไขข้อมูล

iOS iPhone Update Data Mobile Services

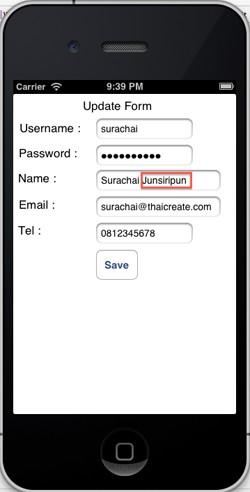

ทดสอบการแก้ไขข้อมูล และ Update ข้อมูลไปยัง Mobile Services

iOS iPhone Update Data Mobile Services

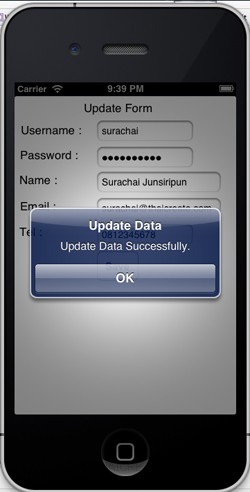

ผลการ Update ข้อมูล

iOS iPhone Update Data Mobile Services

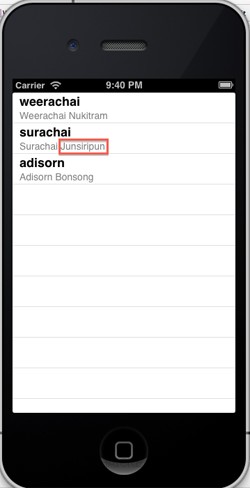

ในหน้า TableViewข้อมูลถูก Update เรียบร้อยแล้ว

iOS iPhone Update Data Mobile Services

เมื่อกลับไปยัง Mobile Services ที่อยู่บน Windows Azure ข้อมูลก็จะถูก Update เรียบร้อย

MyMemberService.h
//
//  MyMemberService.h
//  myAppMobileService
//
//  Created by Weerachai on 7/21/56 BE.
//  Copyright (c) 2556 Weerachai. All rights reserved.
//

#import <WindowsAzureMobileServices/WindowsAzureMobileServices.h>
#import <Foundation/Foundation.h>


typedef void (^QSCompletionBlock) ();
typedef void (^QSBusyUpdateBlock) (BOOL busy);


@interface MyMemberService : NSObject

@property (nonatomic, strong)   NSArray *items;
@property (nonatomic, strong)   MSClient *client;
@property (nonatomic, copy)     QSBusyUpdateBlock busyUpdate;


+ (MyMemberService *)defaultService;

- (void)refreshDataOnSuccess:(QSCompletionBlock)completion;

- (void)getUserInfo:(NSString *)sid
        completion:(QSCompletionBlock)completion;

- (void)updateItem:(NSMutableDictionary *)item
          completion:(QSCompletionBlock)completion;

- (void)handleRequest:(NSURLRequest *)request
                 next:(MSFilterNextBlock)next
             response:(MSFilterResponseBlock)response;

@end


MyMemberService.m
//
//  MyMemberService.m
//  myAppMobileService
//
//  Created by Weerachai on 7/21/56 BE.
//  Copyright (c) 2556 Weerachai. All rights reserved.
//

#import "MyMemberService.h"
#import <WindowsAzureMobileServices/WindowsAzureMobileServices.h>


@interface MyMemberService() <MSFilter>

@property (nonatomic, strong)   MSTable *table;
@property (nonatomic)           NSInteger busyCount;

@end

@implementation MyMemberService

@synthesize items;


+ (MyMemberService *)defaultService
{
    // Create a singleton instance of MyMemberService
    static MyMemberService* service;
    static dispatch_once_t onceToken;
    dispatch_once(&onceToken, ^{
        service = [[MyMemberService alloc] init];
    });

    return service;
}

-(MyMemberService *)init
{
    self = [super init];

    if (self)
    {
        // Initialize the Mobile Service client with your URL and key
        MSClient *client = [MSClient clientWithApplicationURLString:@"https://thaicreate.azure-mobile.net/"
        applicationKey:@"uJPAhkAkcTBuTyCNxaOSnDKFzkoYqB49"];

        // Add a Mobile Service filter to enable the busy indicator
        self.client = [client clientWithFilter:self];

        // Create an MSTable instance to allow us to work with the TodoItem table
        self.table = [_client tableWithName:@"MyMember"];

        self.items = [[NSMutableArray alloc] init];
        self.busyCount = 0;
    }

    return self;
}

- (void)refreshDataOnSuccess:(QSCompletionBlock)completion
{
    // Query the TodoItem table and update the items property with the results from the service
    [self.table readWithCompletion:^(NSArray *results, NSInteger totalCount, NSError *error)
     {
         [self logErrorIfNotNil:error];

         items = [results mutableCopy];

         // Let the caller know that we finished
         completion();
     }];

}

-(void)getUserInfo:(NSString *)sid completion:(QSCompletionBlock)completion
{
    // Create a predicate that finds items where username & password
    NSPredicate * predicate = [NSPredicate predicateWithFormat:sid];

    // Query the TodoItem table and update the items property with the results from the service
    [self.table readWithPredicate:predicate completion:^(NSArray *results, NSInteger totalCount, NSError *error)
     {
         [self logErrorIfNotNil:error];

         items = [results mutableCopy];

         // Let the caller know that we finished
         completion();
     }];
}

-(void)updateItem:(NSMutableDictionary *)mutable completion:(QSCompletionBlock)completion
{

    // Update the item in the TodoItem table and remove from the items array on completion
    [self.table update:mutable completion:^(NSDictionary *item, NSError *error) {

        [self logErrorIfNotNil:error];

        // Let the caller know that we have finished
        completion();
    }];
}

- (void)busy:(BOOL)busy
{
    // assumes always executes on UI thread
    if (busy)
    {
        if (self.busyCount == 0 && self.busyUpdate != nil)
        {
            self.busyUpdate(YES);
        }
        self.busyCount ++;
    }
    else
    {
        if (self.busyCount == 1 && self.busyUpdate != nil)
        {
            self.busyUpdate(FALSE);
        }
        self.busyCount--;
    }
}

- (void)logErrorIfNotNil:(NSError *) error
{
    if (error)
    {
        NSLog(@"ERROR %@", error);
    }
}


- (void)handleRequest:(NSURLRequest *)request
                 next:(MSFilterNextBlock)next
             response:(MSFilterResponseBlock)response
{
    // A wrapped response block that decrements the busy counter
    MSFilterResponseBlock wrappedResponse = ^(NSHTTPURLResponse *innerResponse, NSData *data, NSError *error)
    {
        [self busy:NO];
        response(innerResponse, data, error);
    };

    // Increment the busy counter before sending the request
    [self busy:YES];
    next(request, wrappedResponse);
}

@end


สามารถทำการดาวน์โหลด Code ทั้งหมดได้จากท้ายบทความ

บทความถัดไปที่แนะนำให้อ่าน




บทความที่เกี่ยวข้อง



Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2013-06-15 19:52:33 / 2017-03-24 11:58:19
  Download : Download  ตอนที่ 15 : Show Case 3 : Update Data (iOS / iPhone and Mobile Services)
 Sponsored Links / Related


ตอนที่ 1 : รู้จัก iOS กับ Mobile Services บน Windows Azure คืออะไร
Rating :


ตอนที่ 2 : เตรียมความพร้อมของ iOS / iPhone ก่อนที่จะเขียนบน Mobile Services
Rating :


ตอนที่ 3 : การสร้าง iOS / iPhone กับ Mobile Services และการเรียกใช้งานแบบง่าย ๆ
Rating :


ตอนที่ 4 : สร้าง Project iOS / iPhone และการเชื่อมต่อกับ Library ของ Mobile Services
Rating :


ตอนที่ 5 : iOS / iPhone สร้างตาราง Table บน Mobile Services และการ Insert ข้อมูล
Rating :


ตอนที่ 6 : iOS / iPhone อ่าน Data จาก Table ของ Mobile Service และแสดงผลบน App
Rating :


ตอนที่ 7 : อ่านข้อมูล Mobile Services แบบมีเงื่อนไข Where และแสดงผล iOS / iPhone
Rating :


ตอนที่ 8 : การทำ Authentication in Azure Mobile Services ด้วย iOS / iPhone
Rating :


ตอนที่ 9 : การทำ Push Notifications in Mobile Services ด้วย iOS / iPhone
Rating :


ตอนที่ 10 : การทำ Validate และ Modify data in Mobile Services บน iOS / iPhone
Rating :


ตอนที่ 11 : การทำ Refine Mobile Services queries with paging บน iOS / iPhone
Rating :


ตอนที่ 12 : การเขียน Scripts to authorize users in Mobile Services บน iOS / iPhone
Rating :


ตอนที่ 13 : Show Case 1 : Register Form (iOS / iPhone and Mobile Services)
Rating :


ตอนที่ 14 : Show Case 2 : Login User Password (iOS / iPhone and Mobile Services)
Rating :


ตอนที่ 16 : Show Case 4 : Delete Data (iOS / iPhone and Mobile Services)
Rating :


ตอนที่ 17 : บทความอื่น ๆ เกี่ยวกับ iOS / iPhone Mobile Services บน Windows Azure
Rating :


ThaiCreate.Com Forum


Comunity Forum Free Web Script
Jobs Freelance Free Uploads
Free Web Hosting Free Tools

สอน PHP ผ่าน Youtube ฟรี
สอน Android การเขียนโปรแกรม Android
สอน Windows Phone การเขียนโปรแกรม Windows Phone 7 และ 8
สอน iOS การเขียนโปรแกรม iPhone, iPad
สอน Java การเขียนโปรแกรม ภาษา Java
สอน Java GUI การเขียนโปรแกรม ภาษา Java GUI
สอน JSP การเขียนโปรแกรม ภาษา Java
สอน jQuery การเขียนโปรแกรม ภาษา jQuery
สอน .Net การเขียนโปรแกรม ภาษา .Net
Free Tutorial
สอน Google Maps Api
สอน Windows Service
สอน Entity Framework
สอน Android
สอน Java เขียน Java
Java GUI Swing
สอน JSP (Web App)
iOS (iPhone,iPad)
Windows Phone
Windows Azure
Windows Store
Laravel Framework
Yii PHP Framework
สอน jQuery
สอน jQuery กับ Ajax
สอน PHP OOP (Vdo)
Ajax Tutorials
SQL Tutorials
สอน SQL (Part 2)
JavaScript Tutorial
Javascript Tips
VBScript Tutorial
VBScript Validation
Microsoft Access
MySQL Tutorials
-- Stored Procedure
MariaDB Database
SQL Server Tutorial
SQL Server 2005
SQL Server 2008
SQL Server 2012
-- Stored Procedure
Oracle Database
-- Stored Procedure
SVN (Subversion)
แนวทางการทำ SEO
ปรับแต่งเว็บให้โหลดเร็ว


Hit Link








Load balance : Server 02
ThaiCreate.Com Logo
© www.ThaiCreate.Com. 2003-2024 All Rights Reserved.
ไทยครีเอทบริการ จัดทำดูแลแก้ไข Web Application ทุกรูปแบบ (PHP, .Net Application, VB.Net, C#)
[Conditions Privacy Statement] ติดต่อโฆษณา 081-987-6107 อัตราราคา คลิกที่นี่
