ตอนที่ 6 : Windows Phone (WP) อ่าน Data จาก Table ของ Azure Mobile Service

ตอนที่ 6 : Windows Phone (WP) อ่าน Data จาก Table ของ Azure Mobile Serviceบทความนี้จะเป็นการใช้ Windows Phone อ่านข้อมูลจาก Table ของ Mobile Services ที่อยู่บน Windows Azure โดยข้อมูลของ Table ได้ถูกจัดเก็บแบบ Column และ Rows คล้าย ๆ กับ Table ของ SQL Database ทั่ว ๆ ไป และใน Windows Phone จะมีการใช้ Listbox หรือ LongListSelector ซึ่งจะแสดงข้อมูลที่อยู่ในรูปแบบของ Object ด้วยการกำหนด DataSource ข้อมูลและนำข้อมูลที่ได้แสดงผลรายการใน LongListSelector

รูปแบบการอ่านข้อมูลจาก Table ของ Mobile Services ด้วย Windows Phone
	private MobileServiceCollection<MyMember, MyMember> items;
	private IMobileServiceTable<MyMember> memberTable = App.MobileService.GetTable<MyMember>();
	items = await memberTable.ToCollectionAsync();

รูปแบบการใช้ Windows Phone อ่านข้อมูลจาก Mobile Services บน Windows Azure

Windows Phone(WP) Mobile Services Read Table

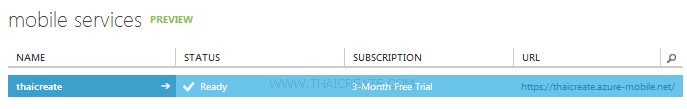

ตอนนี้เรามี Mobile Services อยู่ 1 ตัว

Windows Phone(WP) Mobile Services Read Table

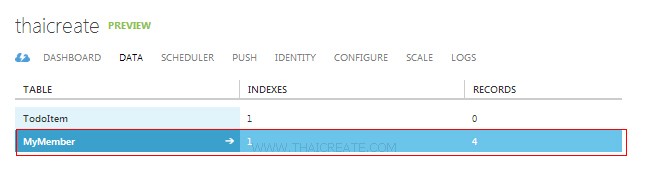

ชื่อตารางว่า MyMember

Windows Phone(WP) Mobile Services Read Table

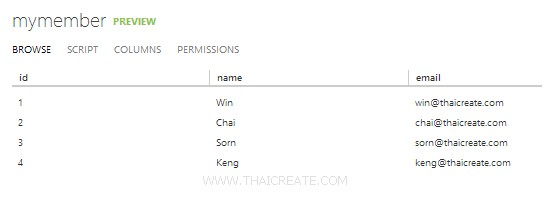

ข้อมูลในตาราง MyMember ประกอบด้วย Column ชื่อว่า id,name,email


กลับมายังหน้า Project บน Visual Studio

Windows Phone(WP) Mobile Services Read Table

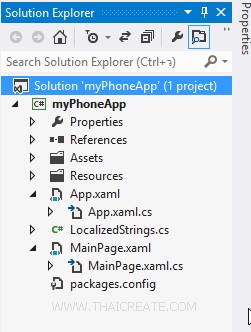

โครงสร้างไฟล์

Windows Phone(WP) Mobile Services Read Table

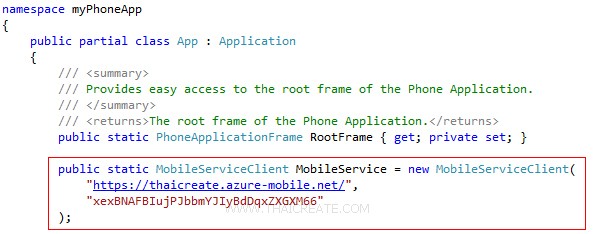

ในไฟล์ App.xaml.cs ให้กำหนด Url และ Key ลงไป








จากนั้นเขียน Code ทั้งหมดดังนี้

MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Navigation;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Shell;
using myPhoneApp.Resources;

using Microsoft.WindowsAzure.MobileServices;
using Newtonsoft.Json;

namespace myPhoneApp
{

    public class MyMember
    {
        public int Id { get; set; }

        [JsonProperty(PropertyName = "name")]
        public string Name { get; set; }

        [JsonProperty(PropertyName = "email")]
        public string Email { get; set; }
    }

    public partial class MainPage : PhoneApplicationPage
    {

        private MobileServiceCollection<MyMember, MyMember> items;
        private IMobileServiceTable<MyMember> memberTable = App.MobileService.GetTable<MyMember>();

        // Constructor
        public MainPage()
        {
            InitializeComponent();
        }

        private async void RefreshMemberItems()
        {
            try
            {
                items = await memberTable.ToCollectionAsync();
            }
            catch (MobileServiceInvalidOperationException e)
            {
                MessageBox.Show(e.Message, "Error loading items", MessageBoxButton.OK);
            }

            myListItems.ItemsSource = items;
        }

        protected override void OnNavigatedTo(NavigationEventArgs e)
        {
            RefreshMemberItems();
        }

    }

}

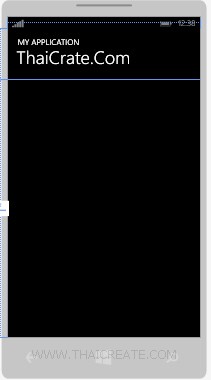

MainPage.xaml

Windows Phone(WP) Mobile Services Read Table

<phone:PhoneApplicationPage
    x:Class="myPhoneApp.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}" Margin="12,0"/>
            <TextBlock Text="ThaiCrate.Com" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}" FontSize="45"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <phone:LongListSelector Grid.Row="4" Grid.ColumnSpan="2" Name="myListItems">
                <phone:LongListSelector.ItemTemplate>
                    <DataTemplate>

                        <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                            <StackPanel Width="50">
                                <TextBlock Text="{Binding Id}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                            </StackPanel>
                            <StackPanel Width="80">
                                <TextBlock Text="{Binding Name}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                            </StackPanel>
                            <StackPanel Width="200">
                                <TextBlock Text="{Binding Email}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                            </StackPanel>
                        </StackPanel>

                    </DataTemplate>
                </phone:LongListSelector.ItemTemplate>
            </phone:LongListSelector>

        </Grid>

      </Grid>

</phone:PhoneApplicationPage>


Screenshot

Windows Phone(WP) Mobile Services Read Table

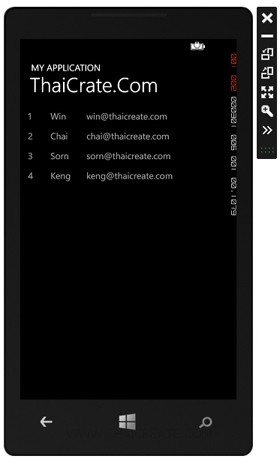

แสดงข้อมูลจาก Table ของ Mobile Services บน Windows Phone App
