Windows Store Apps DataBinding - GridView / Database Binding (C#)

Windows Store Apps DataBinding - GridView / Database Binding (C#) สำหรับ GridView เป็น Controls บน Windows Store Apps ที่ใช้สำหรับแสดงรายการ Item ในรูปแบบของ Grid คือประกอบด้วย Column และ Row หลาย ๆ รายการ ซึ่ง GridView นี้จะนิยมใช้แสดงพวกกล่องต่าง ๆ ที่เราเห็นบน Windows 8 อาจจะใช้แสดงพวกรูปภาพ หรือรายการที่ต้องการจัดรูปแบบการแสดงผลในรูปแบบของ Grid เป็นต้น โดยในบทความนี้จะยกตัวอย่างการใช้งาน GridView และการ Binding Data เพื่อแสดงรายการบน GridView ด้วยการใช้การสร้าง Data Source และแหล่งข้อมูลจากแหล่งต่าง ๆ เช่น การแสดงรายการจาก List Object จาก Storage ของ Windows Store Apps หรือจะเป็นจาก Database ของ MySQL

ปกติแล้วการสร้าง GridView สามารถสร้าง Item ต่าง ๆ ได้บน XAML ได้ทันที เช่น

<GridView x:Name="gdView">
    <x:String>Item 1</x:String>
    <x:String>Item 2</x:String>
    <x:String>Item 3</x:String>
    <x:String>Item 4</x:String>
</GridView>

จาก Tag นี้แสดงว่า GridView ประกอบด้วย 4 Item คือ Item 1 , Item 2 , Item 3 และ Item 4

แต่จะเห็นว่า Code นี้ถูกเขียนไว้บนหน้าจอ XAML ไม่สามารถเพิ่มหรือแก้ไขรายการ Item ต่าง ๆ ได้ ฉะนั้นการทำ DataBinding จึงมีความจำเป็นในการที่จะสร้าง Dynamic Data ให้แสดงข้อมูลหรือรับข้อมูลจากแหล่งต่าง ๆ ได้ มาลองดูตัวอย่างการทำ DataBinding บน GridView แบบง่าย ๆ








ซึ่งก่อนที่จะทำ DataBinding นั้น เราจะต้องมีแหล่ง Data Source หรือแหล่งที่มาของข้อมูลซะก่อน โดยข้อมูล อาจจะมาจากภายใน Application เอง เช่น การ Input ข้อมูล การอ่านข้อมูลมาจาก Local หรือจากภายนอก เช่น Database หรือผ่าน API ต่าง ๆ และอย่างที่เราทราบกันอยู่แล้วว่า Windows Store Apps จะไม่มีในส่วนของ ADO.NET และ System.Data ที่จะจัดการกับ DataSource ผ่าน DataSet หรือ DataTable แต่เรายังคงจะสามารถใช้ Collection หลาย ๆ ตัวที่สร้างชุดของ DataSource ได้ ซึ่งใน API ของ WinRT ก็มีอยู่หลายวิธี แต่วิธีที่ง่ายและได้รับความนิยมมาก คือการสร้าง Model ของ Class และ Mapping Data กับ List ซึ่งจะมีความยึดหยุ่นกับการเก็บข้อมูลได้หลากหลายรูปแบบ เก็บข้อมูลได้ทั้งแบบ Single Row และ Multi Rows ขึ้นอยู่กับ Model ที่ถูกออกแบบไว้ เช่น

    public class MyMember
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public string Email { get; set; }
    }

เป็นการสร้าง Class Model ชื่อว่า MyMember ประกอบด้วย Property ต่าง ๆ คือ Id, Name และ Email

            List<MyMember> items = new List<MyMember>();

            items.Add(new MyMember { Id = 1, Name = "Win", Email = "[email protected]" });

สร้าง List ที่เก็บ Model ของ MyMember ซึ่งตอนนี้เราจะได้ List ที่เป็น Object ของ Class MyMember ที่ประกอบด้วย Id, Name และ Email และเมื่อได้ List นี้แล้ว สามารถนำไปเป็น Data Source ให้กับ Control ต่าง ๆ ได้ทันที

Windows Store Apps DataBinding - GridView

สร้าง Control ของ GridView ในหน้า Page ด้วยการลากวางบนหน้าจอ Page

Example 1 GridView การ Binding ข้อมูลจาก List และแสดงผลบน GridView

MainPage.xaml
<Page
    x:Class="WindowsStoreApps.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">


    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

        <GridView x:Name="myGridView" HorizontalAlignment="Left" Margin="90,42,0,0" VerticalAlignment="Top" Width="711" Height="286">
            <GridView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                        <StackPanel Width="320">
                            <TextBlock Text="{Binding Name}"  TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0" />
                            <TextBlock Text="{Binding Email}" TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0"/>
                        </StackPanel>
                    </StackPanel>
                </DataTemplate>
            </GridView.ItemTemplate>
        </GridView>

    </Grid>

</Page>

MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Windows.Devices.Geolocation;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Core;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    ///

    public class MyMember
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
        }

        protected override void OnNavigatedTo(NavigationEventArgs e)
        {
            List<MyMember> items = new List<MyMember>();

            items.Add(new MyMember { Id = 1, Name = "Win", Email = "[email protected]" });
            items.Add(new MyMember { Id = 2, Name = "Chai", Email = "[email protected]" });
            items.Add(new MyMember { Id = 3, Name = "Sorn", Email = "[email protected]" });
            items.Add(new MyMember { Id = 4, Name = "Keng", Email = "[email protected]" });

            this.myGridView.ItemsSource = items;
        }

    }
}

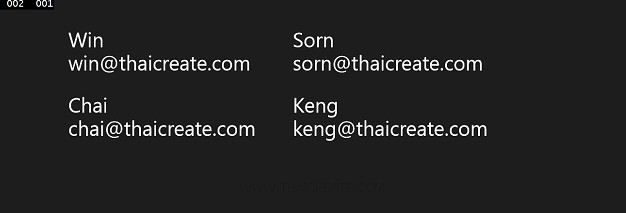

Screenshot

Windows Store Apps DataBinding - GridView

แสดง GridView และการ Binding ข้อมูลจาก List


Example 2 การ Binding รูปภาพจาก Storage และแสดงผลบน GridView

Local app data จัดเก็บไฟล์ลง Storage บน Windows Store Apps (C#)

Roaming app data จัดเก็บไฟล์ลง Storage บน Windows Store Apps (C#)

Temporary app data จัดเก็บไฟล์ลง Storage บน Windows Store Apps (C#)


MainPage.xaml
<Page
    x:Class="WindowsStoreApps.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">


    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

        <GridView x:Name="myGridView" HorizontalAlignment="Left" Margin="90,42,0,0" VerticalAlignment="Top" Width="711" Height="286">
            <GridView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                        <Image Height="70" Width="70" Source="{Binding Path=ImageUri}" Margin="12,0,9,0"/>
                        <StackPanel Width="320">
                            <TextBlock Text="{Binding No}"  TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0" />
                            <TextBlock Text="{Binding FileName}" TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0"/>
                        </StackPanel>
                    </StackPanel>
                </DataTemplate>
            </GridView.ItemTemplate>
        </GridView>

    </Grid>


</Page>


MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Windows.Devices.Geolocation;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Core;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

using Windows.UI.Xaml.Media.Imaging;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    ///

    public class MyPicture
    {
        public int No { get; set; }
        public string FileName { get; set; }
        public string FileType { get; set; }
        public BitmapImage ImageUri { get; set; }
    }

    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
        }

        protected async override void OnNavigatedTo(NavigationEventArgs e)
        {

            var folder = Windows.Storage.ApplicationData.Current.LocalFolder;
            var query = folder.CreateFileQuery();
            var files = await query.GetFilesAsync();

            List<MyPicture> items = new List<MyPicture>();
            int iNo = 1;

            for (int i = 0; i < files.Count; i++)
            {
                Windows.Storage.StorageFile file = files[i];
                if (file.FileType == ".jpg")
                {

                    // Image Source
                    Windows.Storage.StorageFolder temporaryFolder = Windows.Storage.ApplicationData.Current.LocalFolder;
                    Windows.Storage.StorageFile sampleFile = await temporaryFolder.GetFileAsync(file.Name);
                    Windows.Storage.Streams.IRandomAccessStream stream = await sampleFile.OpenReadAsync();
                    BitmapImage bitmapImage = new BitmapImage();
                    bitmapImage.SetSource(stream);

                    // Add Item
                    items.Add(new MyPicture { No = iNo,
                        FileName = file.Name,
                        FileType = file.FileType,
                        ImageUri = bitmapImage
                    });
                    iNo++;
                }
            }

            this.myGridView.ItemsSource = items;
        }

    }
}

Screenshot

Windows Store Apps DataBinding - GridView

แสดงรูปภาพที่อยู่ใน Storage ของ Local บน GridView ผ่านการ Binding


Example 3 การ Binding ข้อมูล GridView จาก MySql Database

MySQL ตอนที่ 1 : Windows Store Apps ติดต่อกับ MySQL Database (C#)


Windows Store Apps DataBinding - GridView

โครงสร้างของ Table และ Data

CREATE TABLE `member` (
  `ID` int(2) NOT NULL auto_increment,
  `Name` varchar(50) NOT NULL,
  `Email` varchar(150) NOT NULL,
  PRIMARY KEY  (`ID`)
) ENGINE=MyISAM  DEFAULT CHARSET=utf8 AUTO_INCREMENT=8 ;


INSERT INTO `member` VALUES (1, 'Win', '[email protected]');
INSERT INTO `member` VALUES (2, 'Chai', '[email protected]');
INSERT INTO `member` VALUES (3, 'Sorn', '[email protected]');
INSERT INTO `member` VALUES (4, 'Keng', '[email protected]');


MainPage.xaml
<Page
    x:Class="WindowsStoreApps.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">


    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

        <GridView x:Name="myGridView" HorizontalAlignment="Left" Margin="90,42,0,0" VerticalAlignment="Top" Width="711" Height="286">
            <GridView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                        <StackPanel Width="320">
                            <TextBlock Text="{Binding Name}"  TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0" />
                            <TextBlock Text="{Binding Email}" TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0"/>
                        </StackPanel>
                    </StackPanel>
                </DataTemplate>
            </GridView.ItemTemplate>
        </GridView>

    </Grid>


</Page>


MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Windows.Devices.Geolocation;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Core;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

using MySql.Data.MySqlClient;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    ///

    public class MyMember
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public string Email { get; set; }
    }

    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
        }

        protected override void OnNavigatedTo(NavigationEventArgs e)
        {
            List<MyMember> items = new List<MyMember>();

            string strConnection = "server=localhost;database=mydatabase;uid=root;password=root;";

            using (MySqlConnection connection = new MySqlConnection(strConnection))
            {
                connection.Open();

                MySqlCommand cmd = new MySqlCommand("SELECT * FROM member", connection);
                using (MySqlDataReader reader = cmd.ExecuteReader())
                {
                    while (reader.Read())
                    {
                        items.Add(new MyMember
                        {
                            Id = Convert.ToInt32(reader.GetString("ID"))
                            ,
                            Name = reader.GetString("Name")
                            ,
                            Email = reader.GetString("Email")
                        });
                    }
                }

            }

            this.myGridView.ItemsSource = items;
        }

    }
}

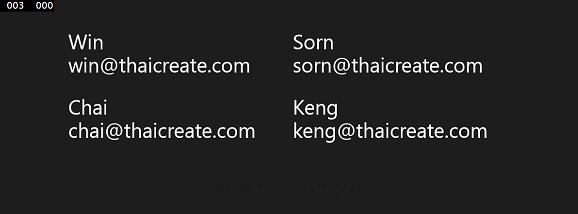

Screenshot

Windows Store Apps DataBinding - GridView

แสดงข้อมูลบน GridView ที่ผ่านการ Binding ข้อมูลจาก MySQL Database

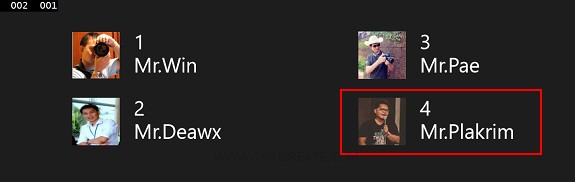

Example 4 การ Binding บน GridView ข้อมูลจาก MySQL Database และแสดงรูปภาพที่อยู่ในรูปแบบของ URL

MySQL ตอนที่ 1 : Windows Store Apps ติดต่อกับ MySQL Database (C#)


Windows Store Apps DataBinding - GridView

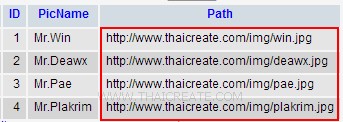

MySQL Database และ Path ของรูปภาพที่อยู่ในรูปแบบของ URL

CREATE TABLE `picture` (
  `ID` int(2) NOT NULL auto_increment,
  `PicName` varchar(50) NOT NULL,
  `Path` varchar(200) NOT NULL,
  PRIMARY KEY  (`ID`)
) ENGINE=MyISAM  DEFAULT CHARSET=utf8 AUTO_INCREMENT=5 ;

INSERT INTO `picture` VALUES (1, 'Mr.Win', 'https://www.thaicreate.com/img/win.jpg');
INSERT INTO `picture` VALUES (2, 'Mr.Deawx', 'https://www.thaicreate.com/img/deawx.jpg');
INSERT INTO `picture` VALUES (3, 'Mr.Pae', 'https://www.thaicreate.com/img/pae.jpg');
INSERT INTO `picture` VALUES (4, 'Mr.Plakrim', 'https://www.thaicreate.com/img/plakrim.jpg');


Windows Store Apps DataBinding - GridView

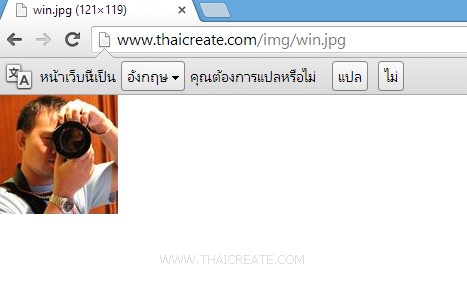

ทดสอบเรียกรุปภาพผ่าน Web Browser

MainPage.xaml
<Page
    x:Class="WindowsStoreApps.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">


    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

        <GridView x:Name="myGridView" HorizontalAlignment="Left" Margin="90,42,0,0" VerticalAlignment="Top" Width="711" Height="286">
            <GridView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                        <Image Height="70" Width="70" Source="{Binding Path=ImageUri}" Margin="12,0,9,0"/>
                        <StackPanel Width="320">
                            <TextBlock Text="{Binding ID}"  TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0" />
                            <TextBlock Text="{Binding PicName}" TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0"/>
                        </StackPanel>
                    </StackPanel>
                </DataTemplate>
            </GridView.ItemTemplate>
        </GridView>

    </Grid>


</Page>


MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Windows.Devices.Geolocation;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Core;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

using MySql.Data.MySqlClient;
using Windows.UI.Xaml.Media.Imaging;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    ///

    public class MyPicture
    {
        public int ID { get; set; }
        public string PicName { get; set; }
        public string Path { get; set; }
        public BitmapImage ImageUri { get; set; }
    }

    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
        }

        protected async override void OnNavigatedTo(NavigationEventArgs e)
        {
            List<MyPicture> items = new List<MyPicture>();

            string strConnection = "server=localhost;database=mydatabase;uid=root;password=root;";

            using (MySqlConnection connection = new MySqlConnection(strConnection))
            {
                connection.Open();

                MySqlCommand cmd = new MySqlCommand("SELECT * FROM picture", connection);
                using (MySqlDataReader reader = cmd.ExecuteReader())
                {
                    while (reader.Read())
                    {

                        // Image Source
                        string url = reader.GetString("Path");
                        BitmapImage bm = new BitmapImage(new Uri(url, UriKind.Absolute));

                        // Add Item
                        items.Add(new MyPicture
                        {
                            ID = Convert.ToInt32(reader.GetString("ID")),
                            PicName = reader.GetString("PicName"),
                            ImageUri = bm
                        });

                    }
                }

            }

            this.myGridView.ItemsSource = items;
        }


    }
}

Screenshot

Windows Store Apps DataBinding - GridView

แสดงการ Binding บน GridView กับ MySQL Database และรูปภาพที่มาจาก URL


Example 5 การ Binding ข้อมูลจาก MySQL Database และการส่งข้อมูลแบบ Master -> Detail

MySQL ตอนที่ 1 : Windows Store Apps ติดต่อกับ MySQL Database (C#)


Windows Store Apps DataBinding - GridView

สร้าง Page ขึ้นมา 2 Page คือ MainPage.xaml และ DetailPage.xaml ใช้สำหรับแสดง Master และ Detail

MainPage.xaml
<Page
    x:Class="WindowsStoreApps.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">


    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

        <GridView x:Name="myGridView" HorizontalAlignment="Left" Margin="90,42,0,0" VerticalAlignment="Top" Width="711" Height="286" SelectionChanged="myGridView_SelectionChanged">
            <GridView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                        <Image Height="70" Width="70" Source="{Binding Path=ImageUri}" Margin="12,0,9,0"/>
                        <StackPanel Width="320">
                            <TextBlock Text="{Binding ID}"  TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0" />
                            <TextBlock Text="{Binding PicName}" TextWrapping="Wrap" FontSize="30" Margin="12,-6,12,0"/>
                        </StackPanel>
                    </StackPanel>
                </DataTemplate>
            </GridView.ItemTemplate>
        </GridView>

    </Grid>


</Page>


MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Windows.Devices.Geolocation;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Core;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

using MySql.Data.MySqlClient;
using Windows.UI.Xaml.Media.Imaging;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    ///

    public class MyPicture
    {
        public int ID { get; set; }
        public string PicName { get; set; }
        public string Path { get; set; }
        public BitmapImage ImageUri { get; set; }
    }

    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
        }

        protected async override void OnNavigatedTo(NavigationEventArgs e)
        {
            List<MyPicture> items = new List<MyPicture>();

            string strConnection = "server=localhost;database=mydatabase;uid=root;password=root;";

            using (MySqlConnection connection = new MySqlConnection(strConnection))
            {
                connection.Open();

                MySqlCommand cmd = new MySqlCommand("SELECT * FROM picture", connection);
                using (MySqlDataReader reader = cmd.ExecuteReader())
                {
                    while (reader.Read())
                    {

                        // Image Source
                        string url = reader.GetString("Path");
                        BitmapImage bm = new BitmapImage(new Uri(url, UriKind.Absolute));

                        // Add Item
                        items.Add(new MyPicture
                        {
                            ID = Convert.ToInt32(reader.GetString("ID")),
                            PicName = reader.GetString("PicName"),
                            Path = reader.GetString("Path"),
                            ImageUri = bm
                        });

                    }
                }

            }

            this.myGridView.ItemsSource = items;
        }

        private void myGridView_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            MyPicture pic = (sender as GridView).SelectedItem as MyPicture;
            this.Frame.Navigate(typeof(DetailPage), pic);
        }


    }
}

DetailPage.xaml
<Page
    x:Class="WindowsStoreApps.DetailPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <TextBlock x:Name="lblPicName" HorizontalAlignment="Left" Margin="93,69,0,0" TextWrapping="Wrap" VerticalAlignment="Top" FontSize="30" Text="Result"/>
        <Image x:Name="imgView" Margin="97,142,969,380"/>
    </Grid>
</Page>

DetailPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

using Windows.UI.Xaml.Media.Imaging;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    public sealed partial class DetailPage : Page
    {
        public DetailPage()
        {
            this.InitializeComponent();
        }

        protected override void OnNavigatedTo(NavigationEventArgs e)
        {

            MyPicture pic = e.Parameter as MyPicture;

            // PicName
            this.lblPicName.Text = pic.PicName;

            // Image Source
            string url = pic.Path;
            BitmapImage bm = new BitmapImage(new Uri(url, UriKind.Absolute));

            this.imgView.Source = bm;

        }

    }
}

Screenshot

Windows Store Apps DataBinding - GridView

แสดงข้อมูลบน GridView ที่ผ่านการ Binding จาก MySQL Database โดยสามารถคลิกที่ Item เพื่อส่งค่าไป Page ที่สอง และแสดงรายละเอียดของ Item ที่ผ่านการคลิก

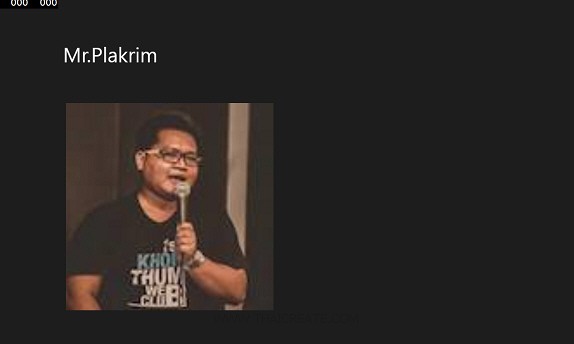

Windows Store Apps DataBinding - GridView

แสดงรายละเอียดที่ได้มาจากการคลิกส่งมาจาก Page แรก


.


Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2014-03-17 12:22:08 / 2017-03-19 14:50:05
  Download : No files
 Sponsored Links / Related


Local app data จัดเก็บไฟล์ลง Storage บน Windows Store Apps (C#)
Rating :


Roaming app data จัดเก็บไฟล์ลง Storage บน Windows Store Apps (C#)
Rating :


Temporary app data จัดเก็บไฟล์ลง Storage บน Windows Store Apps (C#)
Rating :


File Dialog และ Save จัดเก็บไฟล์ลง Storage ของ Windows Store Apps (C#)
Rating :


Copy ไฟล์ลง Storage แสดงชื่อไฟล์ใน Storage บน Windows Store Apps (C#)
Rating :


ดาวน์โหลดจัดเก็บไฟล์ลงบน Storage ของ Windows Store Apps (C#)
Rating :


การสร้าง Text file และการจัดเก็บบน Storage ของ Windows Store Apps (C#)
Rating :


MySQL ตอนที่ 1 : Windows Store Apps ติดต่อกับ MySQL Database (C#)
Rating :


MySQL ตอนที่ 2 : Windows Store Apps ทำการ Insert , Update , Delete (C#)
Rating :


MySQL ตอนที่ 3 : Windows Store Apps กับ MySQL ข้าม Host หรือ Server (C#)
Rating :


Windows Store Apps DataBinding - ListView / Database Binding (C#)
Rating :


Windows Store Apps DataBinding - ListBox / Database Binding (C#)
Rating :


Windows Store Apps Databinding - Retrieve Data Master and Detail (C#)
Rating :


SQLite : Windows Store Apps ติดต่อกลับ SQLite Database (C#)
Rating :


Windows Store Apps การอ่าน Text file และ CSV และการ Data Binding(C#)
Rating :


ThaiCreate.Com Forum


Comunity Forum Free Web Script
Jobs Freelance Free Uploads
Free Web Hosting Free Tools

สอน PHP ผ่าน Youtube ฟรี
สอน Android การเขียนโปรแกรม Android
สอน Windows Phone การเขียนโปรแกรม Windows Phone 7 และ 8
สอน iOS การเขียนโปรแกรม iPhone, iPad
สอน Java การเขียนโปรแกรม ภาษา Java
สอน Java GUI การเขียนโปรแกรม ภาษา Java GUI
สอน JSP การเขียนโปรแกรม ภาษา Java
สอน jQuery การเขียนโปรแกรม ภาษา jQuery
สอน .Net การเขียนโปรแกรม ภาษา .Net
Free Tutorial
สอน Google Maps Api
สอน Windows Service
สอน Entity Framework
สอน Android
สอน Java เขียน Java
Java GUI Swing
สอน JSP (Web App)
iOS (iPhone,iPad)
Windows Phone
Windows Azure
Windows Store
Laravel Framework
Yii PHP Framework
สอน jQuery
สอน jQuery กับ Ajax
สอน PHP OOP (Vdo)
Ajax Tutorials
SQL Tutorials
สอน SQL (Part 2)
JavaScript Tutorial
Javascript Tips
VBScript Tutorial
VBScript Validation
Microsoft Access
MySQL Tutorials
-- Stored Procedure
MariaDB Database
SQL Server Tutorial
SQL Server 2005
SQL Server 2008
SQL Server 2012
-- Stored Procedure
Oracle Database
-- Stored Procedure
SVN (Subversion)
แนวทางการทำ SEO
ปรับแต่งเว็บให้โหลดเร็ว


Hit Link








Load balance : Server 05
ThaiCreate.Com Logo
© www.ThaiCreate.Com. 2003-2024 All Rights Reserved.
ไทยครีเอทบริการ จัดทำดูแลแก้ไข Web Application ทุกรูปแบบ (PHP, .Net Application, VB.Net, C#)
[Conditions Privacy Statement] ติดต่อโฆษณา 081-987-6107 อัตราราคา คลิกที่นี่
