C# WinApp Class DataGridViewTextBoxCell ติดปัญหาว่า ปุ่มใน DataGridViewTextBoxCell ไม่หายไปครับ





Topic : 130862



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook



ปัญหาคือ

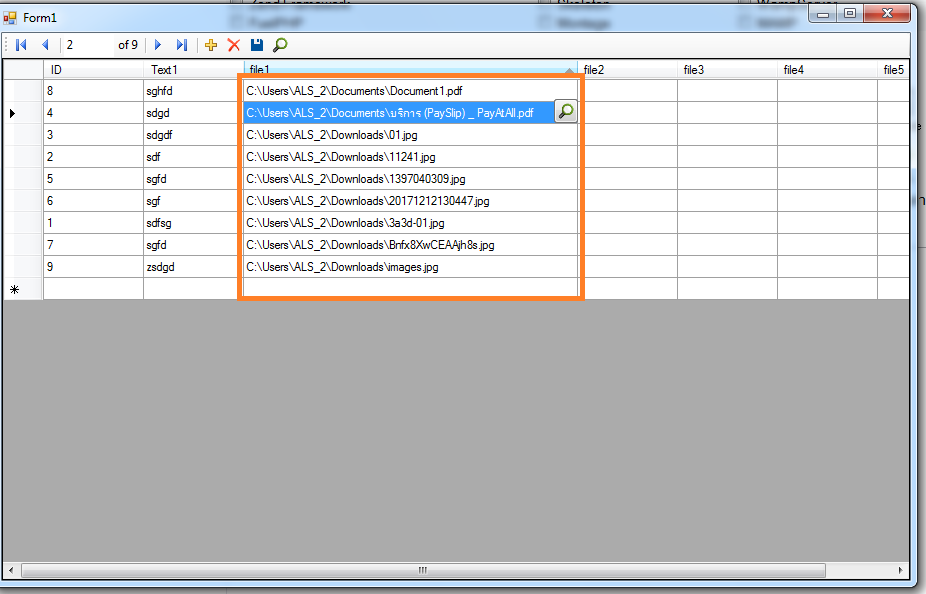

ถ้าเราคลิก แถวอื่นใน คอลัมน์ ปุ่มจะหายครับ
แต่ถ้าเราคลิกที่ columnheader หรือ คอลัมน์อื่นจะไม่หาย
อย่างในรูป

ปกเ

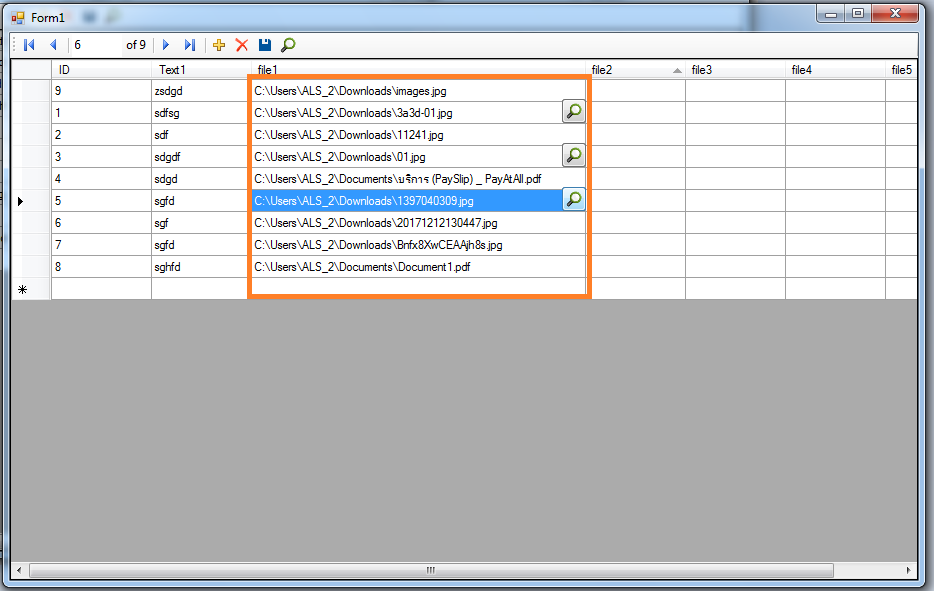

ถ้าเราคลิก แถวอื่นใน คอลัมน์ หรือในกรอบสี่เหลี่ยม ปุ่มจะหายครับ
แต่ถ้าเราคลิกที่ columnheader หรือ คอลัมน์อื่น หรือนอกกรอบสี่เหลี่ยม จะไม่หาย
ตามในรูปนี้ครับ

22

Code (C#)
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace WindowsFormsApplication1
{
    #region _DataGridViewFilePathColumn1 1




    /// <summary>
    /// Hosts a collection of DataGridViewTextBoxCell cells.
    /// </summary>
    public class DataGridViewFilePathColumn1 : DataGridViewColumn
    {

        // public enum PathType { directory, file };
        //public PathType pathtype = PathType.file;

        public DataGridViewFilePathColumn1()
            : base(new DataGridViewFilePathCell1())
        {

        }
        private string _Path;
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.EditorBrowsable(System.ComponentModel.EditorBrowsableState.Always)]
        [System.ComponentModel.DefaultValue(@"C:")]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Open Dialog is dispalyed and on success the contents of the Cell is replaced with the new  path.")]
        public string Directory
        {
            get
            {
                return (System.IO.Directory.Exists(_Path) || !string.IsNullOrEmpty(_Path)) ? _Path : Application.StartupPath;
            }
            set
            {
                _Path = value;
            }
        }

        public override object Clone()
        {
            var clm = base.Clone() as DataGridViewFilePathColumn1;
            DataGridViewFilePathColumn1 xxx = base.Clone() as DataGridViewFilePathColumn1;
            if (clm != null)
            {
                clm.Directory = _Path;
            }
            return clm;

        }


        public override DataGridViewCell CellTemplate
        {
            get
            {
                return base.CellTemplate;
            }
            set
            {
                if (null != value &&
                    !value.GetType().IsAssignableFrom(typeof(DataGridViewFilePathCell1)))
                {
                    throw new InvalidCastException("must be a DataGridViewFilePathCell1");
                }
                base.CellTemplate = value;
            }
        }
    }

    /// <summary>
    /// Displays editable text information in a DataGridView control. Uses
    /// PathEllipsis formatting if the column is smaller than the width of a
    /// displayed filesystem path.
    /// </summary>
    public class DataGridViewFilePathCell1 : DataGridViewTextBoxCell
    {
        Button browseButton;

        Dictionary<Color, SolidBrush> brushes = new Dictionary<Color, SolidBrush>();
        protected virtual SolidBrush GetCachedBrush(Color color)
        {
            if (this.brushes.ContainsKey(color))
                return this.brushes[color];
            SolidBrush brush = new SolidBrush(color);
            this.brushes.Add(color, brush);
            return brush;
        }


        protected virtual bool RightToLeftInternal
        {
            get
            {
                return this.DataGridView.RightToLeft == RightToLeft.Yes;
            }
        }

        protected override void OnContentClick(DataGridViewCellEventArgs e)
        {
            base.OnContentClick(e);
            if (this.RowIndex < 0) return;
            if (this.DataGridView.CurrentCell == this)
            {
                DataGridViewFilePathColumn1 filePathColumn = (DataGridViewFilePathColumn1)this.DataGridView.Columns[ColumnIndex];
                string file = Convert.ToString(filePathColumn.Directory + "\\" + base.Value);
                if (!System.IO.File.Exists(file))
                {
                    MessageBox.Show("ไม่พบไฟล์ " + file);
                }
                else
                {
                    System.Diagnostics.Process.Start(file);
                }
            }
        }

        protected override void OnLeave(int rowIndex, bool throughMouseClick)
        {
            base.OnLeave(rowIndex, throughMouseClick);
            browseButton.Hide();
        }
        protected override void OnEnter(int rowIndex, bool throughMouseClick)
        {
            browseButton.Hide();
            base.OnEnter(rowIndex, throughMouseClick);
            if (rowIndex < 0) return;

            Rectangle Loc;
            int Wid;
            Loc = this.DataGridView.GetCellDisplayRectangle(ColumnIndex, rowIndex, false);
            Wid = this.DataGridView.CurrentCell.Size.Width;
            browseButton.Location = new Point(Loc.X - 25 + Wid, Loc.Y - 4);
            browseButton.Height = this.DataGridView.CurrentCell.Size.Height + 4;
            browseButton.Width = browseButton.Height;

            if (!this.DataGridView.Controls.Contains(browseButton))
                this.DataGridView.Controls.Add(browseButton);
            browseButton.Show();
        }

        public bool ShowFocusCues
        {
            get { return true; }
        }

        protected bool ApplyVisualStylesToHeaders
        {
            get
            {
                if (Application.RenderWithVisualStyles)
                {
                    return this.DataGridView.EnableHeadersVisualStyles;
                }
                return false;
            }
        }

        void browseButton_Click(object sender, EventArgs e)
        {

            DataGridViewFilePathColumn1 filePathColumn = (DataGridViewFilePathColumn1)this.DataGridView.Columns[ColumnIndex];
            OpenFileDialog dialog = new OpenFileDialog();
            if (dialog.ShowDialog() == DialogResult.OK)
            {

                SaveFileDialog dialog1 = new SaveFileDialog();
                dialog1.InitialDirectory = (!string.IsNullOrEmpty(filePathColumn.Directory)) ? filePathColumn.Directory : "C:\\";
                dialog1.FileName = System.IO.Path.GetFileName(dialog.FileName);
                DialogResult dl = dialog1.ShowDialog();
                if (dl == DialogResult.OK)
                {
                    string f = (string.IsNullOrEmpty(System.IO.Path.GetExtension(dialog1.FileName))) ? dialog1.FileName + System.IO.Path.GetExtension(dialog.FileName) : dialog1.FileName;
                    base.Value = f;
                    if (dialog.FileName != dialog1.FileName)
                        System.IO.File.Copy(dialog.FileName, f, true);
                }

            }


        }
        public DataGridViewFilePathCell1()
            : base()
        {

            browseButton = new Button();
            // browseButton.FlatStyle = FlatStyle.Flat;
            browseButton.FlatAppearance.BorderSize = 0;
            browseButton.Size = new Size(30, 25);
            browseButton.ImageAlign = ContentAlignment.MiddleCenter;
            browseButton.FlatAppearance.MouseDownBackColor = Color.Transparent;
            browseButton.FlatAppearance.MouseOverBackColor = Color.Transparent;
            browseButton.BackColor = Color.Transparent;
            browseButton.Image = Properties.Resources.finds;

            browseButton.Hide();

            browseButton.Click += new EventHandler(browseButton_Click);

        }

    }

    #endregion
}





Tag : .NET, Win (Windows App), C#







Move To Hilight (Stock)
Send To Friend.Bookmark.
Date : 2018-04-18 16:30:26 By : lamaka.tor View : 1261 Reply : 11




No. 1



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

โค้ดมีรันตรง

Code (C#)
protected override void OnLeave(int rowIndex, bool throughMouseClick)
        {
            base.OnLeave(rowIndex, throughMouseClick);
            browseButton.Hide();
        }


แต่ปุ่มก็ยังไม่หาย ครับ






แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-18 16:33:09 By : lamaka.tor





No. 2



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

แก้ได้แล้วครับ

เปลี่ยนจาก

Code (C#)
 if (rowIndex < 0) return;


ใน

Code (C#)
protected override void OnEnter


เป็น

Code (C#)
 if (RowIndex < 0) return;


จากที่ดู เหมือนว่า ถ้าเราคลิก columnheader ตัว rowIndex จะยังจำค่าเดิมก่อนหน้านั้นไว้อยู่ เช่น แถวที่ 2 แถวที่ 3
แต่ RowIndex จะใช้ค่าจริงคือ -1 นั่นเอง

เป็นความรู้ใหม่เลยครับ
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 09:20:58 By : lamaka.tor




No. 3



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

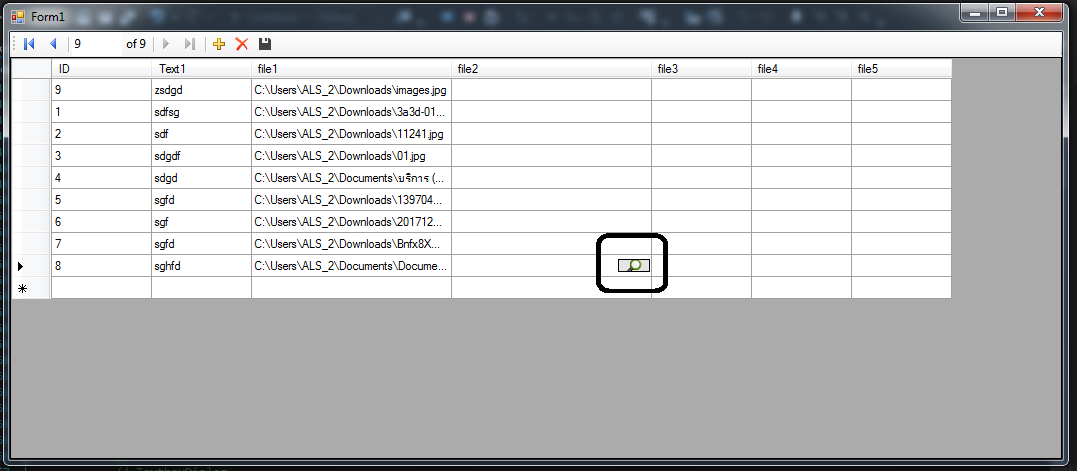

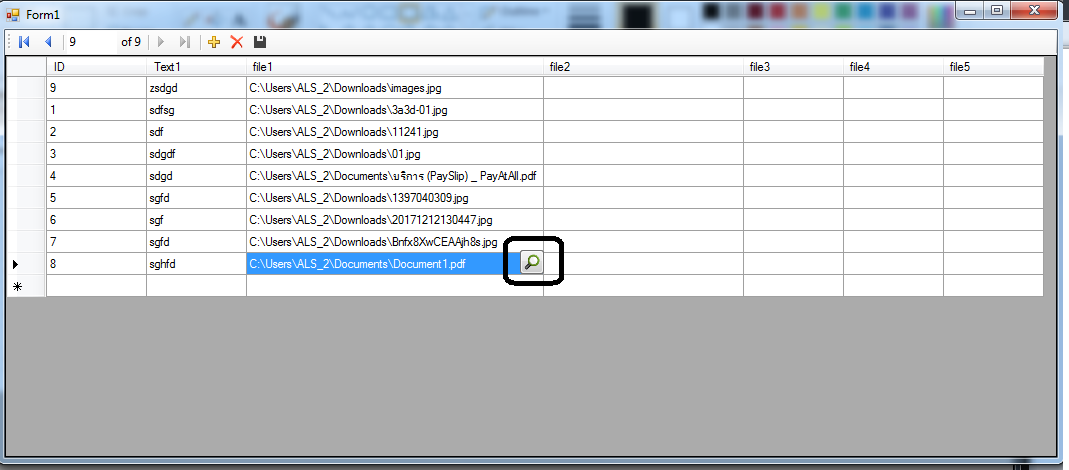

ปัญหาที่ว่า เวลาเรา ลากเมาเพื่อขยายขนาดของ คอลัมน์ แล้ว ปุ่มไม่ย้ายตามไปด้วย(มันยังอยู่ตำแน่งเดิม) ก็ยังคงอยู่
ไม่ทราบว่ามีวิธีแก้ไม๊ครับ
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 11:13:06 By : lamaka.tor





No. 4



โพสกระทู้ ( 13 )
บทความ ( 0 )



สถานะออฟไลน์
Facebook

บ่แน่ใจว่า ถ้าดักตอนนี้เพิ่มแล้วสิหายบ่เด้อครับผม
AllowUserToResizeColumnsChanged
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 13:33:31 By : บัญดิษฐ





No. 5



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

ตอบความคิดเห็นที่ : 4 เขียนโดย : บัญดิษฐ เมื่อวันที่ 2018-04-19 13:33:31
รายละเอียดของการตอบ ::
ถ้าเราจะเขียนใน คลาส ของ DataGridViewFilePathCell ต้องเขียนยังไงรึครับท่าน

แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 13:55:06 By : lamaka.tor





No. 6



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

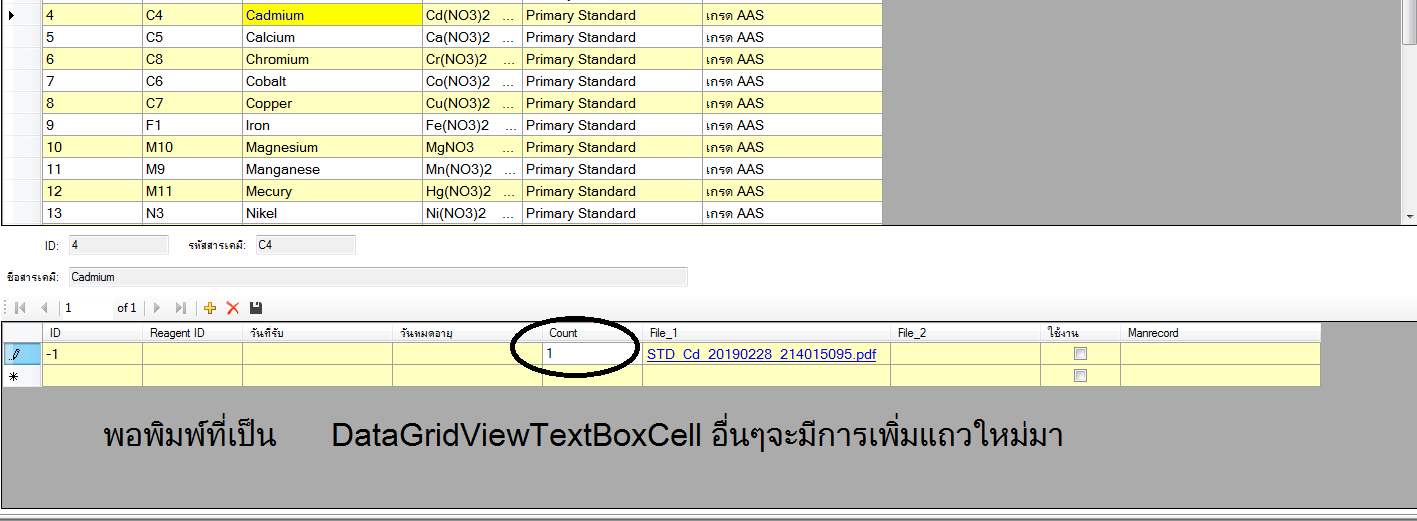

ยังมีอีกจุดที่มีปัญหาคือ เวลาเราคลิกที่ปุ่ม
จะไม่เป็นการ Edit เหมือนที่เราพิมพ์ที่ cell ทำให้ไม่มีการเพิ่มแถว

55

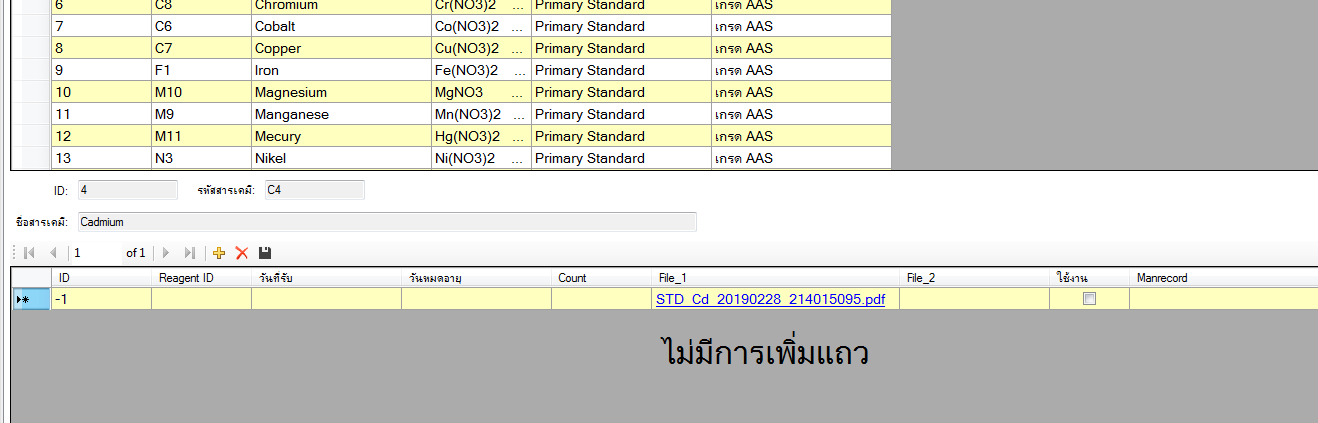

อยากให้หลังจากที่เรากดปุ่มเพื่อเลือกไฟล์เสร็จแล้วให้เป็นเหมือนการ Edit อ่าครับ

556
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 14:30:21 By : lamaka.tor





No. 7



โพสกระทู้ ( 13 )
บทความ ( 0 )



สถานะออฟไลน์
Facebook

ตามนี้เด้อ
https://stackoverflow.com/questions/1814423/datagridview-how-to-set-a-cell-in-editing-mode
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 15:17:15 By : บัญดิษฐ





No. 8



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

ตอบความคิดเห็นที่ : 7 เขียนโดย : บัญดิษฐ เมื่อวันที่ 2018-04-19 15:17:15
รายละเอียดของการตอบ ::
บ่ได้เลยครับ
โค้ดฝั่ง คลาส DataGridViewFilePathCell
33
ผลที่ได้ ครับ

31

หลังจากนั้นผมก็ลองมาเขียนที่ฝั่ง หน้าฟอร์ม
Code (C#)
 private void table1DataGridView_KeyDown(object sender, KeyEventArgs e)
        {
            if (e.KeyCode == Keys.Tab && table1DataGridView.CurrentCell.ColumnIndex == 2)
            {
                e.Handled = true;
                DataGridViewCell cell = table1DataGridView.Rows[0].Cells[0];
                table1DataGridView.CurrentCell = cell;
                table1DataGridView.BeginEdit(true);
            }
        }
//ลองเขียนในปุ่มดู
        private void toolStripButton1_Click(object sender, EventArgs e)
        {
            DataGridViewCell cell = table1DataGridView[0,1];
            table1DataGridView.CurrentCell = cell;
            table1DataGridView.BeginEdit(true);
        }


44

กะยังบ่ได้คือเก่าครับ

ปล. Event ที่ใช้เป็นการกดปุ่ม เพื่อเรียกชื่อไฟล์มา ครับ บ่แมนการ Edit ใน DataGridViewTextBoxCell โดยตรง แบบการพิมพ์ทั่วไป
บ่ฮู้ว่าสิเกี่ยวรึปล่าวนะครับ


แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 16:27:15 By : lamaka.tor





No. 9



โพสกระทู้ ( 821 )
บทความ ( 0 )



สถานะออฟไลน์


ลองดูอันนี้ไหมครับ
มี source code ให้ด้วย

https://stackoverflow.com/questions/22045297/how-to-add-ellipse-button-and-textbox-in-current-cell-of-datagridview-in-winform
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-19 17:35:02 By : fonfire





No. 10



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

Edit เหมือนที่เราพิมพ์ที่ cell ทำให้มีการเพิ่มแถวนั้นทำได้โดยการเพิ่ม คลาส IDataGridViewEditingControl ขึ้นมาครับ
และจะต้องเพิ่ม คลาส TextButton เพื่อมารองรับ IDataGridViewEditingControl ตามที่ท่าน fonfire ให้มาใน No. 9

Code (C#)
 #region _DataGridViewFilePathColumn
    public class DataGridViewFilePathColumn : System.Windows.Forms.DataGridViewColumn
    {

        public DataGridViewFilePathColumn()
            : base(new DataGridViewFilePathCell())
        {
        }

        public override object Clone()
        {
            var clm = base.Clone() as DataGridViewFilePathColumn;
            DataGridViewFilePathColumn xxx = base.Clone() as DataGridViewFilePathColumn;
            if (clm != null)
            {

            }
            return clm;

        }
        public override System.Windows.Forms.DataGridViewCell CellTemplate
        {
            get { return base.CellTemplate; }

            set
            {
                if ((value != null) && !value.GetType().IsAssignableFrom(typeof(DataGridViewFilePathCell)))
                {
                    throw new InvalidCastException("Must be a DataGridViewFilePathCell");
                }
                base.CellTemplate = value;
            }
        }

    }

    public class DataGridViewFilePathCell : System.Windows.Forms.DataGridViewTextBoxCell
    {

        public DataGridViewFilePathCell()
        {

        }

        public override void InitializeEditingControl(int rowIndex, object initialFormattedValue, System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle)
        {
            // Set the value of the editing control to the current cell value.
            base.InitializeEditingControl(rowIndex, initialFormattedValue, dataGridViewCellStyle);

            DataGridViewFilePathEdit ctl = (DataGridViewFilePathEdit)DataGridView.EditingControl;

            if ((!object.ReferenceEquals(this.Value, DBNull.Value)))
            {
                if ((this.Value != null))
                {
                    ctl.Text = Convert.ToString(this.Value);
                }
            }
           /* DataGridViewFilePathColumn fileColumn = (DataGridViewFilePathColumn)this.DataGridView.Columns[ColumnIndex];
            ctl.Format = fileColumn.PickerFormat;*/
        }

        public override Type EditType
        {
            // Return the type of the editing contol that DataGridViewFilePathCell uses.
            get { return typeof(DataGridViewFilePathEdit); }
        }

        public override Type ValueType
        {
            // Return the type of the value that DataGridViewFilePathCell contains.
            get { return typeof(string); }
        }
    }

    class DataGridViewFilePathEdit : WindowsFormsApplication2.TextboxDialog, System.Windows.Forms.IDataGridViewEditingControl
    {

        private System.Windows.Forms.DataGridView dataGridViewControl;
        private bool valueIsChanged = false;
        private int rowIndexNum;
        public DataGridViewFilePathEdit()
        {
          //  this.Format = System.Windows.Forms.DateTimePickerFormat.Short;
        }

        public object EditingControlFormattedValue
        {
            get { return this.Text; }
            set
            {
                if (value is String)
                {
                    this.Text = Convert.ToString(value);
                }
            }
        }


        public object GetEditingControlFormattedValue(System.Windows.Forms.DataGridViewDataErrorContexts context)
        {

            return this.Text;

        }


        public void ApplyCellStyleToEditingControl(System.Windows.Forms.DataGridViewCellStyle dataGridViewCellStyle)
        {
            this.Font = dataGridViewCellStyle.Font;
            this.ForeColor = dataGridViewCellStyle.ForeColor;
            this.BackColor = dataGridViewCellStyle.BackColor;

        }

        public int EditingControlRowIndex
        {

            get { return rowIndexNum; }
            set { rowIndexNum = value; }
        }


        public bool EditingControlWantsInputKey(System.Windows.Forms.Keys key, bool dataGridViewWantsInputKey)
        {

            // Let the DateTimePicker handle the keys listed.
            switch (key & System.Windows.Forms.Keys.KeyCode)
            {
                case System.Windows.Forms.Keys.Left:
                case System.Windows.Forms.Keys.Up:
                case System.Windows.Forms.Keys.Down:
                case System.Windows.Forms.Keys.Right:
                case System.Windows.Forms.Keys.Home:
                case System.Windows.Forms.Keys.End:
                case System.Windows.Forms.Keys.PageDown:
                case System.Windows.Forms.Keys.PageUp:


                    return true;
                default:
                    return false;
            }

        }


        public void PrepareEditingControlForEdit(bool selectAll)
        {
            // No preparation needs to be done.

        }

        public bool RepositionEditingControlOnValueChange
        {

            get { return false; }
        }


        public System.Windows.Forms.DataGridView EditingControlDataGridView
        {

            get { return dataGridViewControl; }
            set { dataGridViewControl = value; }
        }


        public bool EditingControlValueChanged
        {

            get { return valueIsChanged; }
            set { valueIsChanged = value; }
        }
        public System.Windows.Forms.Cursor EditingControlCursor
        {

            get { return base.Cursor; }
        }
        System.Windows.Forms.Cursor System.Windows.Forms.IDataGridViewEditingControl.EditingPanelCursor
        {
            get { return EditingControlCursor; }
        }

        protected override void OnTextChanged(EventArgs e)
        {
 	             base.OnTextChanged(e);
                this.EditingControlDataGridView.NotifyCurrentCellDirty(true);
         }


    }
    #endregion


Code (C#)
    [ToolboxBitmap(typeof(TextBox))]
    public partial class TextboxDialog : TextBox
    {

        private bool bLinkClicked;
        public TextboxDialog()
        {
            InitializeComponent();
            _lnk.Text = this.Text;

        }
        private System.Windows.Forms.LinkLabel _lnk;
        private System.Windows.Forms.Button _btn;
        // private System.Windows.Forms.TextBox _txt;

        #region Component Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this._lnk = new System.Windows.Forms.LinkLabel();
            this._btn = new System.Windows.Forms.Button();
            Font fnt = new System.Drawing.Font("Microsoft Sans Serif", 10.75F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((byte)(222)));
            //
            // _lnk
            //
            this._lnk.AutoSize = true;
            this._lnk.BackColor = System.Drawing.SystemColors.ControlLight;
            this._lnk.Font = fnt;
            this._lnk.Location = new System.Drawing.Point(-1, 1);
            this._lnk.Name = "_lnk";
            this._lnk.Size = new System.Drawing.Size(79, 16);
            this._lnk.TabIndex = 1;
            this._lnk.TabStop = true;
            this._lnk.Text = "linkLabel1";
            this._lnk.LinkClicked += new System.Windows.Forms.LinkLabelLinkClickedEventHandler(this._lnk_LinkClicked);
            //
            // _btn
            //
            this._btn.Dock = System.Windows.Forms.DockStyle.Right;
            this._btn.Image = Properties.Resources.finds;// global::TORServices.FormsTor.Properties.Resources.search32x32;
            this._btn.Font = fnt;
            this._btn.FlatStyle = FlatStyle.Flat;
            this._btn.Location = new System.Drawing.Point(478, 0);
            this._btn.Margin = new System.Windows.Forms.Padding(4);
            this._btn.Cursor = Cursors.Hand;
            this._btn.Name = "_btn";
            // this._btn.Text = "...";
            this._btn.Size = new System.Drawing.Size(32, 24);
            this._btn.TabIndex = 2;
            this._btn.UseVisualStyleBackColor = true;
            this._btn.Click += new System.EventHandler(this._btn_Click);
            //
            // TextboxDialog
            //

            this.Controls.Add(this._lnk);
            this.Controls.Add(this._btn);
            this.Font = fnt;
            this.Margin = new System.Windows.Forms.Padding(4);
            this.Name = "TextboxDialog";
            this.Size = new System.Drawing.Size(300, 24);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        #region _Property

        private bool oponly = true;
        [System.ComponentModel.Description("Set OpenOnly on Text"),
         System.ComponentModel.Browsable(true),
         System.ComponentModel.EditorBrowsable(System.ComponentModel.EditorBrowsableState.Always),
         System.ComponentModel.Category("TOR Setting")]
        public bool OpenOnly
        {
            get { return oponly; }
            set { oponly = value; }
        }
        // public string FullPath { get { return _Path + "\\" + this.Text; } }
        private string _Path;
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.EditorBrowsable(System.ComponentModel.EditorBrowsableState.Always)]
        [System.ComponentModel.DefaultValue(@"C:")]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Open Dialog is dispalyed and on success the contents of the Cell is replaced with the new  path.")]
        public string Directory
        {
            get
            {
                /* string p = (string.IsNullOrEmpty(_Path)) ? Application.StartupPath : _Path.Replace("AppPath", Application.StartupPath);
                 p = (!string.IsNullOrEmpty(System.IO.Path.GetPathRoot(p))) ? p : Application.StartupPath + "\\" + p;
                 p = (p.EndsWith("\\")) ? p : p + "\\";
                 return p;*/
                return _Path;
            }
            set
            {
                _Path = value;
            }
        }

        private bool _showfullpath;
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Open Full path directory")]
        public bool Showfullpath
        {
            get { return _showfullpath; }
            set
            {
                _showfullpath = value;
                if (_showfullpath == true)
                    Text = FullPath;
            }
        }

        [Localizable(true)]
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Set SizeButton")]
        public Size SizeButton
        {
            get
            {
                return _btn.Size;
            }
            set
            {
                _btn.Size = value; Invalidate();
            }
        }
        [Localizable(true)]
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Set ImageButton")]
        public Image ImageButton
        {
            get
            {
                return _btn.Image;
            }
            set
            {
                _btn.Image = value; Invalidate();
            }
        }
        [Localizable(true)]
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Set FontButton")]
        public Font FontButton
        {
            get
            {
                return _btn.Font;
            }
            set
            {
                _btn.Font = value; Invalidate();
            }
        }

        [Localizable(true)]
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Set TextButton")]
        public string TextButton
        {
            get
            {
                return _btn.Text;
            }
            set
            {
                _btn.Text = value; Invalidate();
            }
        }


        //  private string pathDirectory = "";
        public string FullPath
        {
            get
            {

                string directory = (string.IsNullOrEmpty(Directory)) ? Application.StartupPath : Directory.Replace("AppPath", Application.StartupPath);
                directory = (!string.IsNullOrEmpty(System.IO.Path.GetPathRoot(directory))) ? directory : Application.StartupPath + "\\" + directory;
                directory = (directory.EndsWith("\\")) ? directory : directory + "\\";
                string path = (Showfullpath == true) ? Convert.ToString(this.Text) : directory + Convert.ToString(this.Text);
                return (string.IsNullOrEmpty(path)) ? Application.StartupPath : path;

            }
        }


        #endregion


        private void _btn_Click(object sender, EventArgs e)
        {
            if (!System.IO.Directory.Exists(_Path))
                try
                {
                    System.IO.Directory.CreateDirectory(_Path);
                }
                catch { }
            string fileSave = "";

            using (OpenFileDialog dialog = new OpenFileDialog())
            {
                if (dialog.ShowDialog() == DialogResult.OK)
                {

                    if (!oponly)
                    {
                        using (SaveFileDialog sf = new SaveFileDialog())
                        {
                            if (!string.IsNullOrEmpty(_Path))
                                sf.InitialDirectory = _Path;
                            sf.RestoreDirectory = true;
                            sf.FileName = System.IO.Path.GetFileName(dialog.FileName);
                            if (sf.ShowDialog() == DialogResult.OK)
                            {
                                fileSave = (string.IsNullOrEmpty(System.IO.Path.GetExtension(sf.FileName)) || System.IO.Path.GetExtension(sf.FileName).Length <= 0) ? sf.FileName + System.IO.Path.GetExtension(dialog.FileName) : sf.FileName;
                                if (!System.IO.File.Exists(fileSave))
                                    try
                                    {
                                        System.IO.File.Copy(dialog.FileName, fileSave);
                                    }
                                    catch { }

                            }
                            else
                            {
                                fileSave = dialog.FileName;
                            }
                        }

                        base.Text = (System.IO.Path.GetDirectoryName(fileSave) != _Path) ? fileSave : System.IO.Path.GetFileName(fileSave);
                    }
                    else
                    {
                        base.Text = dialog.FileName;
                    }
                }

            }
        }

        #region Focus overrides
        protected override void OnFontChanged(EventArgs e)
        {
            _btn.Font = Font;
            _lnk.Font = Font;

        }
        protected override void OnLostFocus(EventArgs e)
        {
            base.OnLostFocus(e); this.SwitchToEditMode(false);

        }
        protected override void OnGotFocus(EventArgs e)
        {
            base.OnGotFocus(e); this.SwitchToEditMode(true);
        }
        protected override void OnTextChanged(EventArgs e)
        {
            base.OnTextChanged(e);
            _lnk.Text = this.Text;
            _lnk.Links.Clear();
            _lnk.Links.Add(0, _lnk.Text.Length, FullPath);
        }

        private void _txt_TextChanged(object sender, EventArgs e)
        {

        }

        private void _txt_BackColorChanged(object sender, EventArgs e)
        {
            _lnk.BackColor = this.BackColor;
        }
        public event EventHandler ButtonClick
        {
            add
            {
                _btn.Click += value;
            }
            remove
            {
                _btn.Click -= value;
            }
        }

        public event EventHandler ButtonDoubleClick
        {
            add
            {
                _btn.DoubleClick += value;
            }
            remove
            {
                _btn.DoubleClick -= value;
            }
        }

        protected void SwitchToEditMode(bool _bEditMode)
        {
            _lnk.Visible = !_bEditMode;

        }


        #endregion

        #region Link Activation
        private void _lnk_LinkClicked(object sender, LinkLabelLinkClickedEventArgs e)
        {
            /*  try
              {*/
            if (_lnk.Links.Count > 0)
            {
                if (System.IO.File.Exists(FullPath))
                {
                    System.Diagnostics.Process.Start(FullPath);
                }
                else
                {
                    MessageBox.Show("File Not Found"); return;
                }
            }

            /* }
             catch (Exception ex)
             {
                 throw new ArgumentException("Link error!", ex);
             }*/

        }


        #endregion

        #region Focus Handling

        private void _lnk_GotFocus(object sender, EventArgs e)
        {
            if (!bLinkClicked)
            {
                this.Focus();
                bLinkClicked = false;
            }
        }

        private void _lnk_MouseDown(object sender, MouseEventArgs e)
        {
            bLinkClicked = true;
        }

        #endregion




    }


แต่ ครับแต่
พอผมเอามาทำ ปุ่มเล็กยังกะ....มดเลยครับ

55

จากปกติที่มันจะใหญ่กว่า cell แบบนี้

66


ผมเกรงว่าถ้าเอาเจ้า ... มดไปให้ user ใช้เขาจะด่าเอา
ไม่ทราบว่า พอมีวิธี ทำให้มันใหญ่กว่า cell ได้ไม๊ครับ
แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-20 18:35:34 By : lamaka.tor





No. 11



โพสกระทู้ ( 4,436 )
บทความ ( 23 )



สถานะออฟไลน์
Facebook

โค้ดล่าสุด สำหรับ DataGridViewFilePathColumn ครับ
ยังติดปัญหาอยู่ว่า เวลาเราขยายขนาดคอลัมน์ ปุ่มก็ยังไม่หายซักที(นั่งแก้แล้วแก้อีก 5555)

Code (C#)
    #region _DataGridViewFilePathColumn1 1




    /// <summary>
    /// Hosts a collection of DataGridViewTextBoxCell cells.
    /// </summary>
    public class DataGridViewFilePathColumn1 : DataGridViewColumn
    {

        // public enum PathType { directory, file };
        //public PathType pathtype = PathType.file;

        public DataGridViewFilePathColumn1()
            : base(new DataGridViewFilePathCell1())
        {

        }
        private string _Path;
        [System.ComponentModel.Browsable(true)]
        [System.ComponentModel.EditorBrowsable(System.ComponentModel.EditorBrowsableState.Always)]
        [System.ComponentModel.DefaultValue(@"C:")]
        [System.ComponentModel.Category("TOR Setting")]
        [System.ComponentModel.Description("Open Dialog is dispalyed and on success the contents of the Cell is replaced with the new  path.")]
        public string Directory
        {
            get
            {
                return (System.IO.Directory.Exists(_Path) || !string.IsNullOrEmpty(_Path)) ? _Path : Application.StartupPath;
            }
            set
            {
                _Path = value;
            }
        }

        public override object Clone()
        {
            var clm = base.Clone() as DataGridViewFilePathColumn1;
            DataGridViewFilePathColumn1 xxx = base.Clone() as DataGridViewFilePathColumn1;
            if (clm != null)
            {
                clm.Directory = _Path;
            }
            return clm;

        }


        public override DataGridViewCell CellTemplate
        {
            get
            {
                return base.CellTemplate;
            }
            set
            {
                if (null != value &&
                    !value.GetType().IsAssignableFrom(typeof(DataGridViewFilePathCell1)))
                {
                    throw new InvalidCastException("must be a DataGridViewFilePathCell1");
                }
                base.CellTemplate = value;
            }
        }
    }

    /// <summary>
    /// Displays editable text information in a DataGridView control. Uses
    /// PathEllipsis formatting if the column is smaller than the width of a
    /// displayed filesystem path.
    /// </summary>
    public class DataGridViewFilePathCell1 : DataGridViewLinkCell
    {
        Button browseButton;
        Dictionary<Color, SolidBrush> brushes = new Dictionary<Color, SolidBrush>();
        protected virtual SolidBrush GetCachedBrush(Color color)
        {
            if (this.brushes.ContainsKey(color))
                return this.brushes[color];
            SolidBrush brush = new SolidBrush(color);
            this.brushes.Add(color, brush);
            return brush;
        }


        protected virtual bool RightToLeftInternal
        {
            get
            {
                return this.DataGridView.RightToLeft == RightToLeft.Yes;
            }
        }

        protected override void OnContentClick(DataGridViewCellEventArgs e)
        {
            base.OnContentClick(e);
            browseButton.Hide();
            if (this.RowIndex < 0) return;
            if (this.DataGridView.CurrentCell == this)
            {
                DataGridViewFilePathColumn1 filePathColumn = (DataGridViewFilePathColumn1)this.DataGridView.Columns[ColumnIndex];
                string file = Convert.ToString(filePathColumn.Directory + "\\" + base.Value);
                if (!System.IO.File.Exists(file))
                {
                    MessageBox.Show("ไม่พบไฟล์ " + file);
                }
                else
                {
                    System.Diagnostics.Process.Start(file);
                }
            }
        }

        protected override void OnLeave(int rowIndex, bool throughMouseClick)
        {
            base.OnLeave(rowIndex, throughMouseClick);
            browseButton.Hide();
        }
        protected override void OnEnter(int rowIndex, bool throughMouseClick)
        {
            browseButton.Hide();
            base.OnEnter(rowIndex, throughMouseClick);
            if (RowIndex < 0) return;

            Rectangle Loc;
            int Wid;
            Loc = this.DataGridView.GetCellDisplayRectangle(ColumnIndex, RowIndex, false);
            Wid = this.DataGridView.CurrentCell.Size.Width;
            browseButton.Location = new Point(Loc.X - 25 + Wid, Loc.Y - 4);
            browseButton.Height = this.DataGridView.CurrentCell.Size.Height + 4;
            browseButton.Width = browseButton.Height;

            if (!this.DataGridView.Controls.Contains(browseButton))
                this.DataGridView.Controls.Add(browseButton);
            browseButton.Show();
        }

        public bool ShowFocusCues
        {
            get { return true; }
        }

        protected bool ApplyVisualStylesToHeaders
        {
            get
            {
                if (Application.RenderWithVisualStyles)
                {
                    return this.DataGridView.EnableHeadersVisualStyles;
                }
                return false;
            }
        }

        void browseButton_Click(object sender, EventArgs e)
        {

            DataGridViewFilePathColumn1 filePathColumn = (DataGridViewFilePathColumn1)this.DataGridView.Columns[ColumnIndex];

            OpenFileDialog dialog = new OpenFileDialog();
            dialog.InitialDirectory = (!string.IsNullOrEmpty(filePathColumn.Directory)) ? filePathColumn.Directory : "C:\\";
            if (dialog.ShowDialog() == DialogResult.OK)
            {

                SaveFileDialog dialog1 = new SaveFileDialog();
                dialog1.InitialDirectory = (!string.IsNullOrEmpty(filePathColumn.Directory)) ? filePathColumn.Directory : "C:\\";
                dialog1.FileName = System.IO.Path.GetFileName(dialog.FileName);
                DialogResult dl = dialog1.ShowDialog();
                if (dl == DialogResult.OK)
                {
                  //  string f = (string.IsNullOrEmpty(System.IO.Path.GetExtension(dialog1.FileName))) ? dialog1.FileName + System.IO.Path.GetExtension(dialog.FileName) : dialog1.FileName;
                    string f = System.IO.Path.GetFileName(dialog1.FileName);
                    base.Value = f;
                    this.DataGridView.NotifyCurrentCellDirty(true);
                    if (dialog.FileName != dialog1.FileName)
                        System.IO.File.Copy(dialog.FileName, f, true);
                }

            }


        }
        public DataGridViewFilePathCell1()
            : base()
        {

            browseButton = new Button();
            // browseButton.FlatStyle = FlatStyle.Flat;
            browseButton.FlatAppearance.BorderSize = 0;
            browseButton.Size = new Size(30, 25);
            browseButton.ImageAlign = ContentAlignment.MiddleCenter;
            browseButton.FlatAppearance.MouseDownBackColor = Color.Transparent;
            browseButton.FlatAppearance.MouseOverBackColor = Color.Transparent;
            browseButton.BackColor = Color.Transparent;
            browseButton.Image = Properties.Resources.finds;

            browseButton.Hide();

            browseButton.Click += new EventHandler(browseButton_Click);

        }

    }

    #endregion

แสดงความคิดเห็นโดยอ้างถึง ความคิดเห็นนี้
Date : 2018-04-27 20:48:49 By : lamaka.tor




ค้นหาข้อมูล





แสดงความคิดเห็น
Re : C# WinApp Class DataGridViewTextBoxCell ติดปัญหาว่า ปุ่มใน DataGridViewTextBoxCell ไม่หายไปครับ


รายละเอียด

ตัวหนา ตัวเอียง ตัวขีดเส้นใต้ ตัวมีขีดกลาง| ตัวเรืองแสง ตัวมีเงา ตัวอักษรวิ่ง| จัดย่อหน้าอิสระ จัดย่อหน้าชิดซ้าย จัดย่อหน้ากึ่งกลาง จัดย่อหน้าชิดขวา| เส้นขวาง| ขนาดตัวอักษร แบบตัวอักษร
ใส่แฟลช ใส่รูป ใส่ไฮเปอร์ลิ้งค์ ใส่อีเมล์ ใส่ลิ้งค์ FTP| ใส่แถวของตาราง ใส่คอลัมน์ตาราง| ตัวยก ตัวห้อย ตัวพิมพ์ดีด| ใส่โค้ด ใส่การอ้างถึงคำพูด| ใส่ลีสต์
smiley for :lol: smiley for :ken: smiley for :D smiley for :) smiley for ;) smiley for :eek: smiley for :geek: smiley for :roll: smiley for :erm: smiley for :cool: smiley for :blank: smiley for :idea: smiley for :ehh: smiley for :aargh: smiley for :evil:
Insert PHP Code
Insert ASP Code
Insert VB.NET Code Insert C#.NET Code Insert JavaScript Code Insert C#.NET Code
Insert Java Code
Insert Android Code
Insert Objective-C Code
Insert XML Code
Insert SQL Code
Insert Code
เพื่อความเรียบร้อยของข้อความ ควรจัดรูปแบบให้พอดีกับขนาดของหน้าจอ เพื่อง่ายต่อการอ่านและสบายตา และตรวจสอบภาษาไทยให้ถูกต้อง

อัพโหลดแทรกรูปภาพ

Notice

เพื่อความปลอดภัยของเว็บบอร์ด ไม่อนุญาติให้แทรก แท็ก [img]....[/img] โดยการอัพโหลดไฟล์รูปจากที่อื่น เช่นเว็บไซต์ ฟรีอัพโหลดต่าง ๆ
อัพโหลดแทรกรูปภาพ ให้ใช้บริการอัพโหลดไฟล์ของไทยครีเอท และตัดรูปภาพให้พอดีกับสกรีน เพื่อความโหลดเร็วและไฟล์ไม่ถูกลบทิ้ง


  เพื่อความปลอดภัยและการตรวจสอบ กระทู้ที่แทรกไฟล์อัพโหลดไฟล์จากที่อื่น อาจจะถูกลบทิ้ง

โดย
อีเมล์
บวกค่าให้ถูก
<= ตัวเลขฮินดูอารบิก เช่น 123 (หรือล็อกอินเข้าระบบสมาชิกเพื่อไม่ต้องกรอก)







Exchange: นำเข้าสินค้าจากจีน, Taobao, เฟอร์นิเจอร์, ของพรีเมี่ยม, ร่ม, ปากกา, power bank, แฟลชไดร์ฟ, กระบอกน้ำ

Load balance : Server 00
ThaiCreate.Com Logo
© www.ThaiCreate.Com. 2003-2024 All Rights Reserved.
ไทยครีเอทบริการ จัดทำดูแลแก้ไข Web Application ทุกรูปแบบ (PHP, .Net Application, VB.Net, C#)
[Conditions Privacy Statement] ติดต่อโฆษณา 081-987-6107 อัตราราคา คลิกที่นี่
