ช่วยด้วยๆๆๆ วิธี select ข้อมูลเพื่อแสดงผล ======*********** |
| |
 |
|
|
 |
 |
|
the shortest route from class 2 to 20 is :
ต้นทาง 2 => ปลายทาง 20 = 44 (กิโลเมตร) destinations [4]: Follow the route to the classes (2-16-21-20).
อยากให้แสดงแบบนี้อะครับ ต้องทำอย่างไร
the shortest route from class 2 to 20 is :
ต้นทาง 2 => ปลายทาง 20 = 44 (กิโลเมตร)
destinations [4]: Follow the route to the classes (สารคาม - กันทร - ยางตลาด - กาฬสิน ).

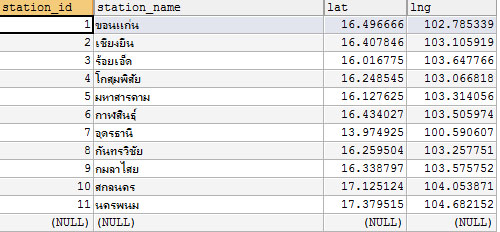

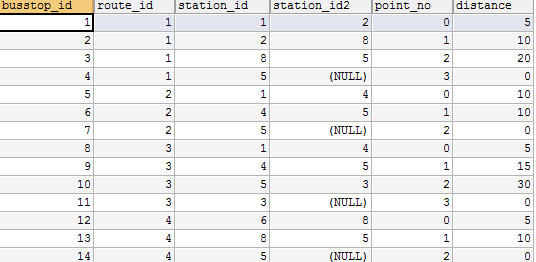

ตารางฐานข้อมูล
Code (PHP)
Dijkstra.php
<?php
class Dijkstra {
var $visited = array();
var $distance = array();
var $previousNode = array();
var $startnode =null;
var $map = array();
var $infiniteDistance = 0;
var $numberOfNodes = 0;
var $bestPath = 0;
var $matrixWidth = 0;
function Dijkstra(&$ourMap, $infiniteDistance) {
$this -> infiniteDistance = $infiniteDistance;
$this -> map = &$ourMap;
$this -> numberOfNodes = count($ourMap);
$this -> bestPath = 0;
}
function findShortestPath($start,$to) {
$this -> startnode = $start;
for ($i=0;$i<$this -> numberOfNodes;$i++) {
if ($i == $this -> startnode) {
$this -> visited[$i] = true;
$this -> distance[$i] = 0;
} else {
$this -> visited[$i] = false;
$this -> distance[$i] = isset($this -> map[$this -> startnode][$i])
? $this -> map[$this -> startnode][$i]
: $this -> infiniteDistance;
}
$this -> previousNode[$i] = $this -> startnode;
}
$maxTries = $this -> numberOfNodes;
$tries = 0;
while (in_array(false,$this -> visited,true) && $tries <= $maxTries) {
$this -> bestPath = $this->findBestPath($this->distance,array_keys($this -> visited,false,true));
if($to !== null && $this -> bestPath === $to) {
break;
}
$this -> updateDistanceAndPrevious($this -> bestPath);
$this -> visited[$this -> bestPath] = true;
$tries++;
}
}
function findBestPath($ourDistance, $ourNodesLeft) {
$bestPath = $this -> infiniteDistance;
$bestNode = 0;
for ($i = 0,$m=count($ourNodesLeft); $i < $m; $i++) {
if($ourDistance[$ourNodesLeft[$i]] < $bestPath) {
$bestPath = $ourDistance[$ourNodesLeft[$i]];
$bestNode = $ourNodesLeft[$i];
}
}
return $bestNode;
}
function updateDistanceAndPrevious($obp) {
for ($i=0;$i<$this -> numberOfNodes;$i++) {
if( (isset($this->map[$obp][$i]))
&& (!($this->map[$obp][$i] == $this->infiniteDistance) || ($this->map[$obp][$i] == 0 ))
&& (($this->distance[$obp] + $this->map[$obp][$i]) < $this -> distance[$i])
)
{
$this -> distance[$i] = $this -> distance[$obp] + $this -> map[$obp][$i];
$this -> previousNode[$i] = $obp;
}
}
}
function printMap(&$map) {
$placeholder = ' %' . strlen($this -> infiniteDistance) .'d';
$foo = '';
for($i=0,$im=count($map);$i<$im;$i++) {
for ($k=0,$m=$im;$k<$m;$k++) {
$foo.= sprintf($placeholder, isset($map[$i][$k]) ? $map[$i][$k] : $this -> infiniteDistance);
}
$foo.= "\n";
}
return $foo;
}
function getResults($to) {
$ourShortestPath = array();
$foo = '';
for ($i = 0; $i < $this -> numberOfNodes; $i++) {
if($to !== null && $to !== $i) {
continue;
}
$ourShortestPath[$i] = array();
$endNode = null;
$currNode = $i;
$ourShortestPath[$i][] = $i;
while ($endNode === null || $endNode != $this -> startnode) {
$ourShortestPath[$i][] = $this -> previousNode[$currNode];
$endNode = $this -> previousNode[$currNode];
$currNode = $this -> previousNode[$currNode];
}
$ourShortestPath[$i] = array_reverse($ourShortestPath[$i]);
if ($to === null || $to === $i) {
if($this -> distance[$i] >= $this -> infiniteDistance) {
$foo .= sprintf("no route from %d to %d. \n",$this -> startnode,$i);
} else {
$foo .= sprintf(' ต้นทาง %d => ปลายทาง %d = %d (กิโลเมตร) <br> destinations [%d]: Follow the route to the classes (%s).'."\n" ,
$this -> startnode,$i,$this -> distance[$i],
count($ourShortestPath[$i]),
implode('-',$ourShortestPath[$i]));
}
$foo .= str_repeat('-',20) . "\n";
if ($to === $i) {
break;
}
}
}
return $foo;
}
} // end class
?>
ไฟล์ ทั้งหมด
http://www.upload-thai.com/download.php?id=b82e24e941ddc74fa2714f2c40c298e8
Tag : PHP, MySQL, JavaScript, Ajax, jQuery
|
ประวัติการแก้ไข
2010-08-09 20:43:44
|
 |
 |
 |
 |
| Date :
2010-08-09 20:26:08 |
By :
wisan191 |
View :
1451 |
Reply :
4 |
|
 |
 |
 |
 |
|
|
|
|
 |
 |
|
 |
 |
| |
|
|
|
| |
|
map.php
Code (PHP)
<html>
<head>
<title>Find shortest route!</title>
<script>
function clickMap(classID)
{
if (document.form1.fromClass.value.length == 0)
{
document.form1.fromClass.value = classID;
}
else
{
document.form1.toClass.value = classID;
}
}
</script>
</head>
<body>
<img src="teiMap.jpg" usemap="#routes" border="0">
<MAP name="routes" >
<AREA SHAPE="rect" COORDS="225,50, 300, 100" href="java script:clickMap('1');" class="mymap" >
<AREA SHAPE="rect" COORDS="400,400,500,500" href="java script:clickMap('3');" class="mymap" >
</MAP>
<br><br>
<form name="form1" action="calPath.php" method="post">
From :
<input type="text" name="fromClass"/>
<br>
To :
<input type="text" name="toClass"/>
<br>
<input name=b1 type=submit value="Enter!">
</form>
<br></body></html>
|
| |
|
|
| |
| Date :
2010-08-09 20:28:38 |
By :
wisan191 |
|
|
| |
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
calPath.php
Code (PHP)
<?php
include("dijkstra.php");
include("connect.php");
// I is the infinite distance.
define('I',1000);
// Size of the matrix
$sql="SELECT * FROM tb_busstop";
$query=mysql_query($sql);
$num_row=mysql_num_rows($query);//?????????????
$matrixWidth = $num_row; //????????????????????????????
$i=0;
// $points is an array in the following format: (router1,router2,distance-between-them)
$points[] = array();
while ($row = mysql_fetch_assoc($query)) {
$points[] = array(
$row['station_id'],
$row['station_id2'],
$row['distance'],
$row['route_id']
);
$i++;
}
$ourMap = array();
// Read in the points and push them into the map
for ($i=0,$m=count($points); $i<$m; $i++) {
$x = $points[$i][0];
$y = $points[$i][1];
$c = $points[$i][2];
$r = $points[$i][3];
$ourMap[$x][$y] = $c;
$ourMap[$y][$x] = $c;
}
// ensure that the distance from a node to itself is always zero
// Purists may want to edit this bit out.
for ($i=0; $i < $matrixWidth; $i++) {
for ($k=0; $k < $matrixWidth; $k++) {
if ($i == $k) $ourMap[$i][$k] = 0;
}
}
// initialize the algorithm class
$dijkstra = new Dijkstra($ourMap, I,$matrixWidth);
// $dijkstra->findShortestPath(0,13); to find only path from field 0 to field 13...
$fromClass = $_POST['fromClass'];
$toClass = $_POST['toClass'];
$dijkstra->findShortestPath($fromClass, $toClass);
// Display the results
echo '<pre>';
//echo "the map looks like:\n\n";
//echo $dijkstra -> printMap($ourMap);
echo "\n\n the shortest route from class ".$fromClass." to ".$toClass." is :\n";
echo $dijkstra -> getResults((int)$toClass);
echo '</pre>';
?>
|
| |
|
|
| |
| Date :
2010-08-09 20:31:34 |
By :
wisan191 |
|
|
| |
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
ช่วยด้วยนะคราบ
|
ประวัติการแก้ไข
2010-08-09 20:44:36
| |
|
|
| |
| Date :
2010-08-09 20:34:08 |
By :
wisan191 |
|
|
| |
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
can u upload database file again
|
| |
|
|
| |
| Date :
2012-01-23 02:07:42 |
By :
H |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
