/*Now the CSS*/ * {margin: 0; padding: 0;} id {height: 250px; width: 500px} .tree ul { padding-top: 20px; position: relative; transition: all 0.5s; -webkit-transition: all 0.5s; -moz-transition: all 0.5s; } .tree li { float: left; text-align: center; list-style-type: none; position: relative; padding: 20px 5px 0 5px; transition: all 0.5s; -webkit-transition: all 0.5s; -moz-transition: all 0.5s; } /*We will use ::before and ::after to draw the connectors*/ .tree li::before, .tree li::after{ content: ''; position: absolute; top: 0; right: 50%; border-top: 1px solid #ccc; width: 50%; height: 20px; } .tree li::after{ right: auto; left: 50%; border-left: 1px solid #ccc; } /*We need to remove left-right connectors from elements without any siblings*/ .tree li:only-child::after, .tree li:only-child::before { display: none; } /*Remove space from the top of single children*/ .tree li:only-child{ padding-top: 0;} /*Remove left connector from first child and right connector from last child*/ .tree li:first-child::before, .tree li:last-child::after{ border: 0 none; } /*Adding back the vertical connector to the last nodes*/ .tree li:last-child::before{ border-right: 1px solid #ccc; border-radius: 0 5px 0 0; -webkit-border-radius: 0 5px 0 0; -moz-border-radius: 0 5px 0 0; } .tree li:first-child::after{ border-radius: 5px 0 0 0; -webkit-border-radius: 5px 0 0 0; -moz-border-radius: 5px 0 0 0; } /*Time to add downward connectors from parents*/ .tree ul ul::before{ content: ''; position: absolute; top: 0; left: 50%; border-left: 1px solid #ccc; width: 0; height: 20px; } .tree li a{ border: 1px solid #ccc; padding: 5px 10px; text-decoration: none; color: #666; font-family: arial, verdana, tahoma; font-size: 11px; display: inline-block; border-radius: 5px; -webkit-border-radius: 5px; -moz-border-radius: 5px; transition: all 0.5s; -webkit-transition: all 0.5s; -moz-transition: all 0.5s; } /*Time for some hover effects*/ /*We will apply the hover effect the the lineage of the element also*/ .tree li a:hover, .tree li a:hover+ul li a { background: #c8e4f8; color: #000; border: 1px solid #94a0b4; } /*Connector styles on hover*/ .tree li a:hover+ul li::after, .tree li a:hover+ul li::before, .tree li a:hover+ul::before, .tree li a:hover+ul ul::before{ border-color: #94a0b4; } .span { width: 100%; white-space: nowrap; }

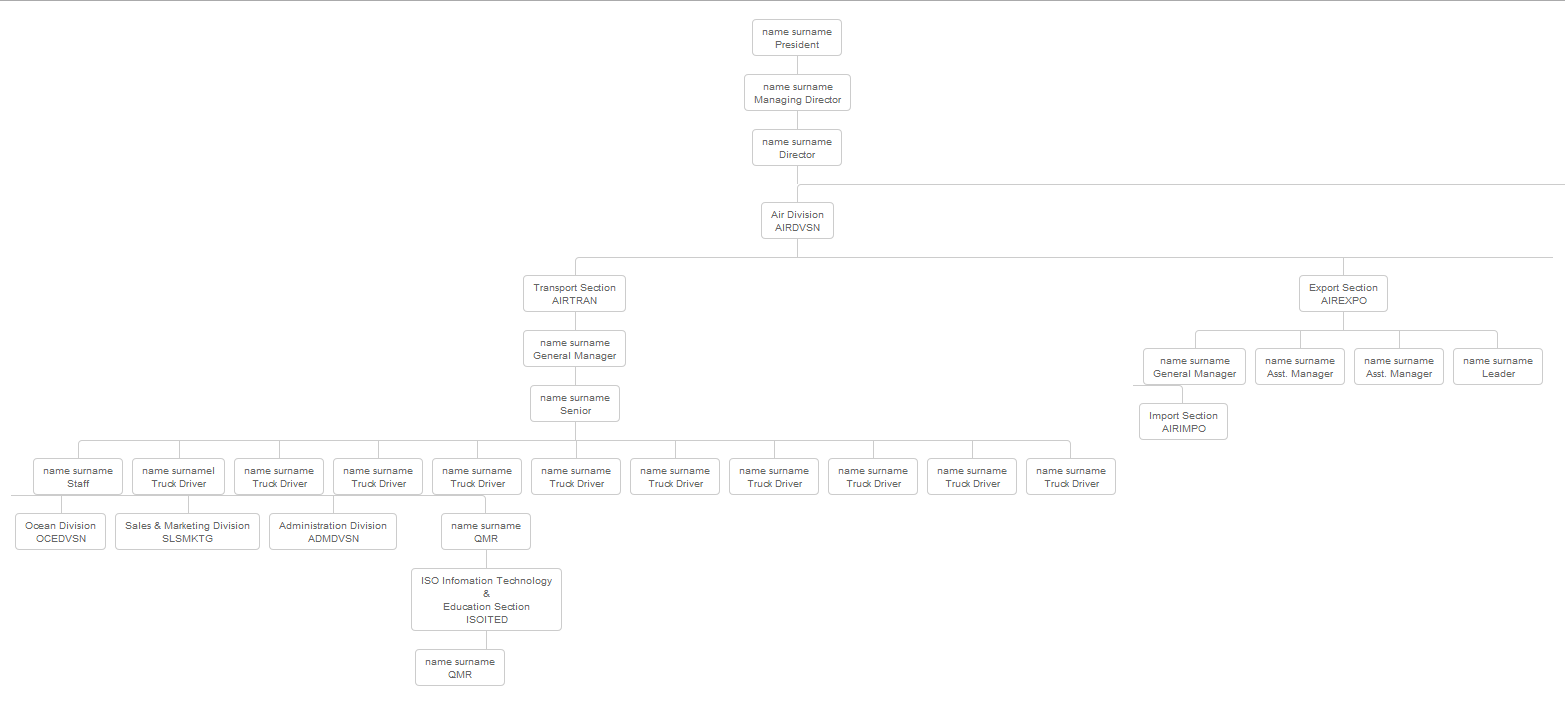

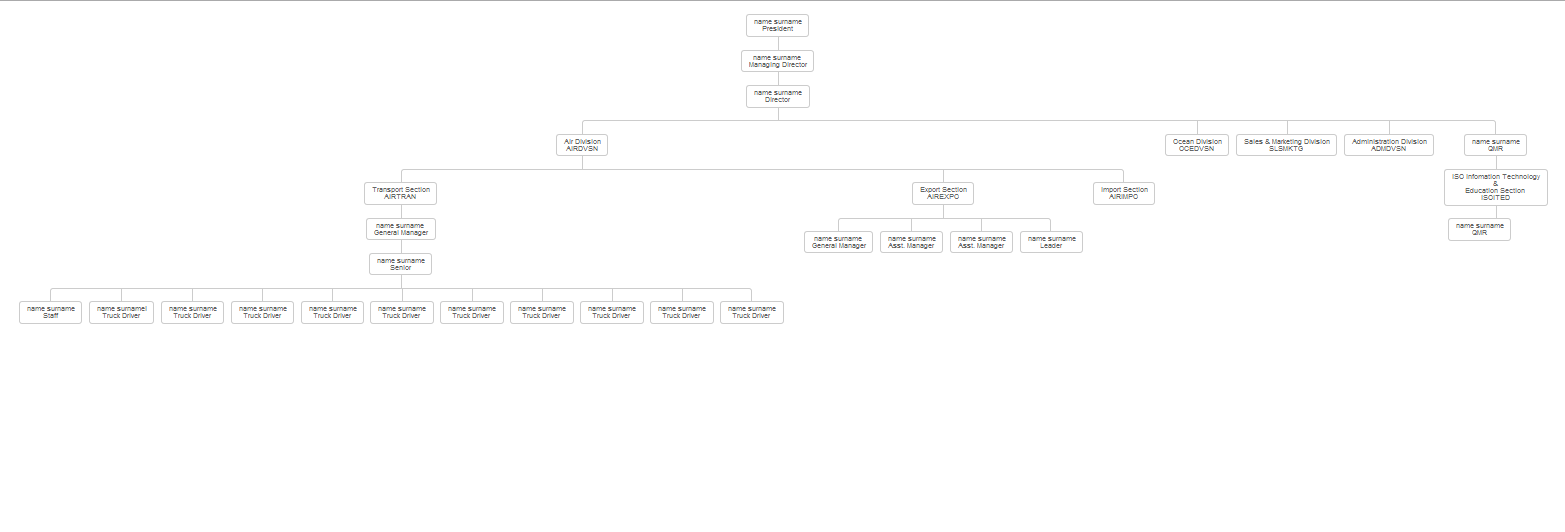

<html> <head> <link rel="stylesheet" type="text/css" href="style.css"> <script src="scripts.js"></script> <script src="http://code.jquery.com/jquery-1.10.1.min.js"></script> <script type="text/javascript"> $(function(){ $('#tree').find('Span').click(function(e){ $(this).parent().find('UL').toggle("slow"); }); }); </script> </head> <body> <!-- We will create a family tree using just CSS(3) The markup will be simple nested lists --> <div class="span"> <div class="tree" id="tree"> <ul> <li> <span><a href="#;">name surname</br>President</a></span> <ul> <li> <span><a href="#">name surname</br>Managing Director</a></span> <ul> <li> <span><a href="#">name surname</br>Director</a></span> <ul> <li> <span><a href="#">Air Division</br>AIRDVSN</a></span> <ul> <li> <span><a href="#">Transport Section</br>AIRTRAN</a></span> <ul> <li> <span><a href="#">name surname</br>General Manager</a></span> <ul> <li> <span><a href="#">name surname</br>Senior</a></span> <ul> <li><span><a href="#">name surname</br>Staff</a></span></li> <li><span><a href="#">name surnamel</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> <li><span><a href="#">name surname</br>Truck Driver</a></span></li> </ul> </li> </ul> </li> </ul> </li> <li> <span><a href="#">Export Section</br>AIREXPO</a></span> <ul> <li><span><a href="#">name surname</br>General Manager</a></span></li> <li><span><a href="#">name surname</br>Asst. Manager</a></span></li> <li><span><a href="#">name surname</br>Asst. Manager</a></span></li> <li><span><a href="#">name surname</br>Leader</a></span></li> </ul> </li> <li> <span><a href="#">Import Section</br>AIRIMPO</a></span> </li> </ul> </li> <li> <span><a href="#">Ocean Division</br>OCEDVSN</a></span> </li> <li> <span><a href="#">Sales & Marketing Division</br>SLSMKTG</a></span> </li> <li> <span><a href="#">Administration Division</br>ADMDVSN</a></span> </li> <li> <span><a href="#">name surname</br>QMR</a></span> <ul> <li> <span><a href="#">ISO Infomation Technology</br>&</br>Education Section</br>ISOITED</a></span> <ul> <li> <span><a href="#">name surname</br>QMR</a></span> </li> </ul> </li> </ul> </ul> </li> </ul> </li> </ul> </div> </div> </body> </html>
