StackView - Android Widgets Example

StackView - Android Widgets สำหรับ StackView เป็น Widget ใช้สำหรับ แสดง Widgets แบบรูปแบบของ Stack เช่น การแสดงรูปภาพแบบ Stack หรือรูปภาพซ้อนเรียงกันแบบมุมเฉียง

StackView - Android Widgets

XML Syntax
    <StackView
        android:id="@+id/stackView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

Example

StackView - Android Widgets

โครงสร้างของไฟล์รูปภาพถูกจัดเก็บไว้ที่ drawable-ldpi เพื่อความเข้าใจอ่านได้ที่ Widgets ของ Gallery

Gallery - Android Widgets Example


ในตัวอย่างนี้จะใช้ไฟล์ XML ทั้งหมด 2 ตัว activity_main.xml (Activity หลัก) , item.xml (XML สำหรับ Items)

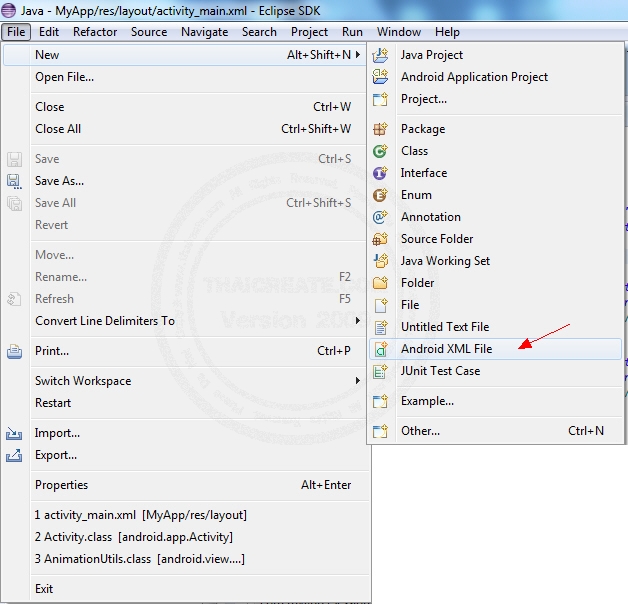

หน้าจอสำหรับการเพิ่ม XML ไฟล์

StackView - Android Widgets

File -> New-> Android XML File


activity_main.xml (XML Layout)
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent" >

    <StackView
        android:id="@+id/stackView1"
        android:layout_width="match_parent"
        android:layout_height="match_parent" android:animateLayoutChanges="true">
    </StackView>

</FrameLayout>


item.xml (XML Layout)
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent" >

    <StackView
        android:id="@+id/stackView1"
        android:layout_width="match_parent"
        android:layout_height="match_parent" android:animateLayoutChanges="true">
    </StackView>

</FrameLayout>


MainActivity.java (Java Code)
package com.myapp;

import java.util.ArrayList;

import android.os.Bundle;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.content.Context;
import android.graphics.drawable.Drawable;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.StackView;
import android.widget.TextView;

public class MainActivity extends Activity {

	Button next;
    Button previous;
    StackView sv;

    @SuppressLint("NewApi")
	@Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        StackView stk = (StackView)this.findViewById(R.id.stackView1);

        ArrayList<StackItem> items = new ArrayList<StackItem>();
        items.add(new StackItem("text1", this.getResources().getDrawable(R.drawable.pic_a)));
        items.add(new StackItem("text2", this.getResources().getDrawable(R.drawable.pic_b)));
        items.add(new StackItem("text3", this.getResources().getDrawable(R.drawable.pic_c)));
        items.add(new StackItem("text4", this.getResources().getDrawable(R.drawable.pic_d)));
        items.add(new StackItem("text5", this.getResources().getDrawable(R.drawable.pic_e)));
        items.add(new StackItem("text6", this.getResources().getDrawable(R.drawable.pic_f)));
        items.add(new StackItem("text7", this.getResources().getDrawable(R.drawable.pic_g)));
        items.add(new StackItem("text8", this.getResources().getDrawable(R.drawable.pic_h)));
        items.add(new StackItem("text9", this.getResources().getDrawable(R.drawable.pic_i)));

        StackAdapter adapt = new StackAdapter(this, R.layout.item, items);

        stk.setAdapter(adapt);

    }

	@Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

	public class StackItem {

	    public String itemText;
	    public Drawable itemPhoto;

	    public StackItem(String text,Drawable photo)
	    {
	        this.itemPhoto = photo;
	        this.itemText = text;
	    }
	}

	public class StackAdapter extends ArrayAdapter<StackItem> {

	    private ArrayList<StackItem> items;
	    private Context ctx;

	    public StackAdapter(Context context, int textViewResourceId,
	            ArrayList<StackItem> objects) {
	        super(context, textViewResourceId, objects);

	        this.items = objects;
	        this.ctx = context;
	    }

	    @Override
	    public View getView(int position, View convertView, ViewGroup parent) {
	        View v = convertView;
	        if (v == null) {
	            LayoutInflater vi = (LayoutInflater)ctx.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
	            v = vi.inflate(R.layout.item, null);
	        }

	        StackItem m = items.get(position);

	        if (m != null) {
	                TextView text = (TextView) v.findViewById(R.id.textView1);
	                ImageView img = (ImageView)v.findViewById(R.id.imageView1);

	                if (text != null) {
	                    text.setText(m.itemText);
	                    img.setImageDrawable(m.itemPhoto);
	                    }
	        }
	        return v;
	    }
	}

}


Code ที่เป็น Java


StackView - Android Widgets

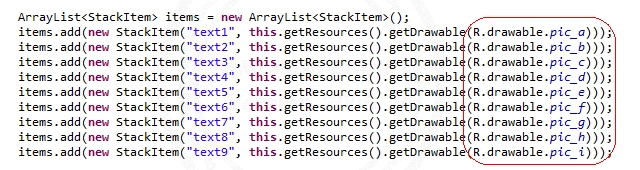

จะเห็นมีการอ้างถึง Image จากโฟเดอร์ drawable-ldpi ดังรูป

Screenshot

StackView - Android Widgets

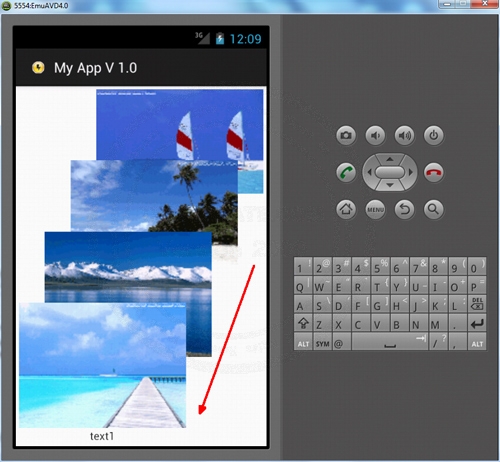

ผลลัพธ์ที่ได้ในรูปแบบของ Stack สามรถเลื่อนขึ้น

StackView - Android Widgets

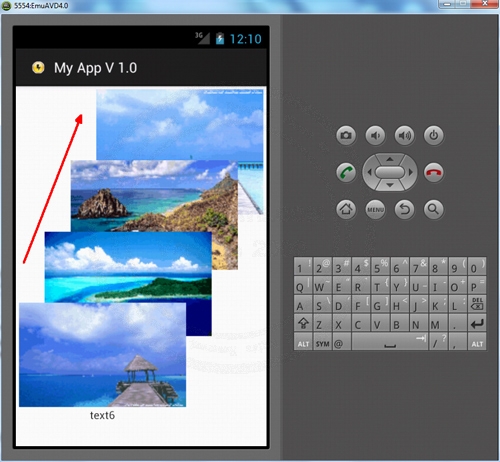

หรือ เลื่อนลงได้
