Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating) บทความนี้เกี่ยวกับระบบ Vote และ Rating และเป็นภาพต่อของ บทความที่ 1 และ บทความที่ 2 แต่จะเพิ่มความสามารถที่จะป้องกันการ Vote ซ้ำ โดยจะใช้ระบบสมาชิกจะต้อง Login ก่อนที่จะเข้าไป Vote และสมาชิกสามารถ Vote ได้คนล่ะ 1 Item ต่อ 1 ครั้ง และเมื่อแต่ล่ะสมาชิกได้โหวตเรียบร้อยแล้ว จะมีการแสดง Rating Point ซึ่งจะเป็นค่าเฉลี่ย (Average) คะแนนที่ได้จริง ๆ โดยสูตรการหาค่าเฉลี่ยของคะแนน Raing คือ

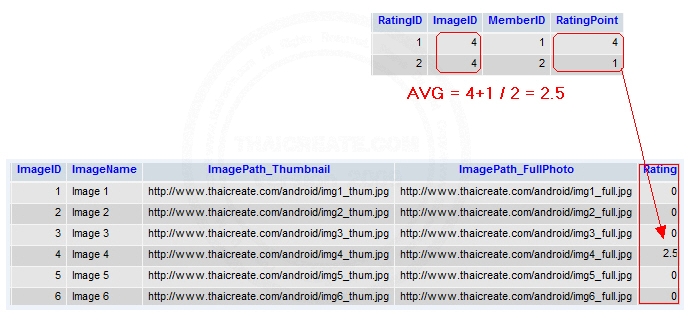

ค่าเฉลี่ย (Average) = [ผลรวมจำนวนคะแนนทั้งหมดของแต่ล่ะรายการ] / [จำนวนผู้โหวดของรายการนั้นๆ]


เช่น
นาย A โหวต = 4
นาย B โหวด = 3
นาย C โหวด = 2

ค่าเฉลี่ยจะเท่ากับ = (4+3+2) / 3 = 3


เมื่อได้ค่าเฉลี่ย(Average) นี้แล้วก็จะนำไปแสดงผลบน RatingBar ของ ListView

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)


ขั้นตอนก็คือ จะสร้างตารางทั้งหมดขึ้นมา 3 table คือ
- images (เก็ยรายชื่อรูปภาพที่จะแสดงผลบน ListView)
- member (เก็บรายชื่อสมาชิก ซึ่งประกอบด้วย Username และ Password ในการ Login และข้อมูลอื่น ๆ)
- rating (เก็บรายการ Rating ของแต่ล่ะ Item ที่สมาชิกโหวตเข้ามา โดยจัดเก็บ 1 คนต่อ 1 item)

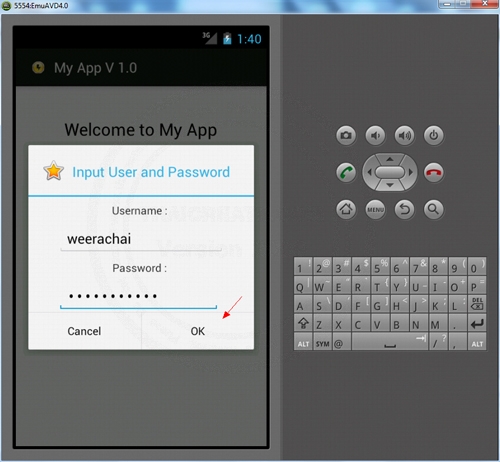

กระบวนการทำงานก็คือ สมาชิกจะ Login เข้าสู่ Application โดยตรวจสอบจากตาราง member และหลังจาก Login ผ่านเรียบร้อยแล้ว จะแสดงข้อมูลรายการรูปภาพบน ListView และสมาชิกสามารถเลือกแต่ล่ะรายการเพื่อโหวตให้คะแนน และหลังจากที่โหวตให้คะแนนเรียบร้อยแล้ว ตะแนนจะถูกส่งไป Insert ที่ตาราง rating บน Web Server โดยจัดเก็บข้อมูลทุก ๆ รายการที่โหวต และสมาชิกจะสามารถโหวด 1 รายการต่อ 1 ครั้งเท่านั้น และทุก ๆ ครั้งที่มีการโหวต ในฝั่งของ Web Server จะมีการ Update คะแนนค่าเฉลี่ยนไปยังตาราง images ด้วยทุกครั้ง เพื่อจะได้นำมาข้อมูลเหล่านี้มาแสดงผลบน ListView

บทความที่เกี่ยวข้องกับการ Vote และ RatingBar ตัวอย่างที่ 1 และที่ 2

เพื่อความเข้าใจควรอ่าน 2 บทความนี้ก่อน

AndroidManifest.xml
<uses-permission android:name="android.permission.INTERNET" />

ในการเขียน Android เพื่อติดต่อกับ Internet จะต้องกำหนด Permission ในส่วนนี้ด้วยทุกครั้ง

Web Server (PHP and MySQL)

MySQL Database

member
CREATE TABLE `member` (
  `MemberID` int(2) NOT NULL auto_increment,
  `Username` varchar(50) NOT NULL,
  `Password` varchar(50) NOT NULL,
  `Name` varchar(50) NOT NULL,
  `Tel` varchar(50) NOT NULL,
  `Email` varchar(150) NOT NULL,
  PRIMARY KEY  (`MemberID`),
  UNIQUE KEY `Username` (`Username`),
  UNIQUE KEY `Email` (`Email`)
) ENGINE=MyISAM  DEFAULT CHARSET=utf8 AUTO_INCREMENT=4 ;

--
-- Dumping data for table `member`
--

INSERT INTO `member` VALUES (1, 'weerachai', 'weerachai@1', 'Weerachai Nukitram', '0819876107', '[email protected]');
INSERT INTO `member` VALUES (2, 'adisorn', 'adisorn@2', 'Adisorn Bunsong', '021978032', '[email protected]');
INSERT INTO `member` VALUES (3, 'surachai', 'surachai@3', 'Surachai Sirisart', '0876543210', '[email protected]');


ตารางสำหรับเก็บ User และ Password ในการ Login ของ Member

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)


images
CREATE TABLE `images` (
  `ImageID` int(11) NOT NULL auto_increment,
  `ImageName` varchar(50) NOT NULL,
  `ImagePath_Thumbnail` varchar(150) NOT NULL,
  `ImagePath_FullPhoto` varchar(150) NOT NULL,
  `Rating` float NOT NULL,
  PRIMARY KEY  (`ImageID`)
) ENGINE=MyISAM  DEFAULT CHARSET=utf8 AUTO_INCREMENT=7 ;

--
-- Dumping data for table `images`
--

INSERT INTO `images` VALUES (1, 'Image 1', 'https://www.thaicreate.com/android/img1_thum.jpg', 'https://www.thaicreate.com/android/img1_full.jpg', 0);
INSERT INTO `images` VALUES (2, 'Image 2', 'https://www.thaicreate.com/android/img2_thum.jpg', 'https://www.thaicreate.com/android/img2_full.jpg', 0);
INSERT INTO `images` VALUES (3, 'Image 3', 'https://www.thaicreate.com/android/img3_thum.jpg', 'https://www.thaicreate.com/android/img3_full.jpg', 0);
INSERT INTO `images` VALUES (4, 'Image 4', 'https://www.thaicreate.com/android/img4_thum.jpg', 'https://www.thaicreate.com/android/img4_full.jpg', 0);
INSERT INTO `images` VALUES (5, 'Image 5', 'https://www.thaicreate.com/android/img5_thum.jpg', 'https://www.thaicreate.com/android/img5_full.jpg', 0);
INSERT INTO `images` VALUES (6, 'Image 6', 'https://www.thaicreate.com/android/img6_thum.jpg', 'https://www.thaicreate.com/android/img6_full.jpg', 0);

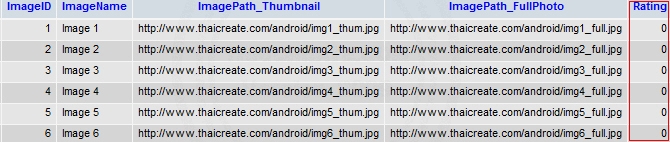

ตารางสำหรับเก็บ Gallery Images ที่จะแสดงผลบน ListView และใน ฟิวด์สุดท้ายจะเห็นว่าจะมีฟิวด์ชื่อว่า Rating ฟิวด์นี้มีไว้สำหรับเก็บค่าเฉลี่ยของการโหวตดทั้งหมด ของรายการนั้น ๆ

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

rating
CREATE TABLE `rating` (
  `RatingID` int(11) NOT NULL auto_increment,
  `ImageID` int(11) NOT NULL,
  `MemberID` int(2) NOT NULL,
  `RatingPoint` float NOT NULL,
  PRIMARY KEY  (`RatingID`)
) ENGINE=MyISAM  DEFAULT CHARSET=utf8;


เก็บรายละเอียดการ Vote ของสมาชิกแต่ล่ะคน

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

checkLogin.php (ไฟล์สำหรับตรวจสอบการ Login)
<?php
	$objConnect = mysql_connect("localhost","root","root");
	$objDB = mysql_select_db("mydatabase");

	//$_POST["strUser"] = "weerachai"; // for Sample
	//$_POST["strUser"] = "weerachai@1";  // for Sample

	$strUsername = $_POST["strUser"];
	$strPassword = $_POST["strPass"];
	$strSQL = "SELECT * FROM member WHERE 1
		AND Username = '".$strUsername."'
		AND Password = '".$strPassword."'
		";

	$objQuery = mysql_query($strSQL);
	$objResult = mysql_fetch_array($objQuery);
	$intNumRows = mysql_num_rows($objQuery);
	if($intNumRows==0)
	{
		$arr['StatusID'] = "0";
		$arr['MemberID'] = "0";
		$arr['Name'] = "";
		$arr['Error'] = "Incorrect Username and Password";
	}
	else
	{
		$arr['StatusID'] = "1";
		$arr['MemberID'] = $objResult["MemberID"];
		$arr['Name'] = $objResult["Name"];
		$arr['Error'] = "";
	}

	/**
		$arr['StatusID'] // (0=Failed , 1=Complete)
		$arr['MemberID'] // MemberID
		$arr['Name'] // Member Name
		$arr['Error'] // Error Message
	*/

	mysql_close($objConnect);

	echo json_encode($arr);
?>


getGallery.php (ไฟล์สำหรับแสดง Gallery image บน ListView)
<?php
	$objConnect = mysql_connect("localhost","root","root");
	$objDB = mysql_select_db("mydatabase");

	$strSQL = "SELECT * FROM images WHERE 1  ";
	$objQuery = mysql_query($strSQL);
	$intNumField = mysql_num_fields($objQuery);
	$resultArray = array();
	while($obResult = mysql_fetch_array($objQuery))
	{
		$arrCol = array();
		for($i=0;$i<$intNumField;$i++)
		{
			$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
		}
		array_push($resultArray,$arrCol);
	}

	mysql_close($objConnect);

	echo json_encode($resultArray);
?>


updateRating.php (ไฟล์สำหรับ Update Rating ที่ถูกส่งมาจาก Android Client)
<?php

	//$_POST["ImageID"] = "1"; // ImageID
	//$_POST["MemberID"] = "1"; // MemberID
	//$_POST["ratingPoint"] = "3.5"; // ratingPoint

	$objConnect = mysql_connect("localhost","root","root");
	$objDB = mysql_select_db("mydatabase");

	// Check Duplicate
	$strSQL = "SELECT * FROM rating WHERE 1 AND ImageID = '".$_POST["ImageID"]."'
	AND MemberID = '".$_POST["MemberID"]."'  ";
	$objQuery = mysql_query($strSQL);
	$obResult = mysql_fetch_array($objQuery);
	if($obResult)
	{
		$arr['StatusID'] = "0";
		$arr['Error'] = "Duplicate Vote!";
		$arr['Rating'] = "0";
		mysql_close($objConnect);

		echo json_encode($arr);
		exit();
	}

	/*** Insert rating ***/
	$strSQL = "INSERT INTO rating (ImageID,MemberID,RatingPoint)
		VALUES (
			'".$_POST["ImageID"]."',
			'".$_POST["MemberID"]."',
			'".$_POST["ratingPoint"]."'
			) ";
	$objQuery = mysql_query($strSQL);

	/*** Update Rating Average ***/
	$strSQL = " UPDATE images SET
		Rating = (SELECT AVG(RatingPoint) FROM rating WHERE ImageID = '".$_POST["ImageID"]."')
		WHERE ImageID = '".$_POST["ImageID"]."' ";
	$objQuery = mysql_query($strSQL);

	// Return New Rating Point
	$strSQL = "SELECT * FROM images WHERE 1 AND ImageID = '".$_POST["ImageID"]."'  ";
	$objQuery = mysql_query($strSQL);
	$obResult = mysql_fetch_array($objQuery);
	if($obResult)
	{
		$arr['StatusID'] = "1";
		$arr['Error'] = "";
		$arr['Rating'] = $obResult["Rating"];
	}

	/**
		$arr['StatusID'] // (0=Failed , 1=Complete)
		$arr['Error'] // Error Message
		$arr['Rating'] // New Rating Point
	*/

	mysql_close($objConnect);

	echo json_encode($arr);
?>

ในไฟล์นี้หน้าที่สำคัญก็คือ รับค่าจากการ Vote ของสมาชิกแต่ล่ะคน และบันทึกรายการลงในตารางของ rating และ อัพเดดค่าเฉลี่ยของการโหวตไปยังตาราง images


Android Project

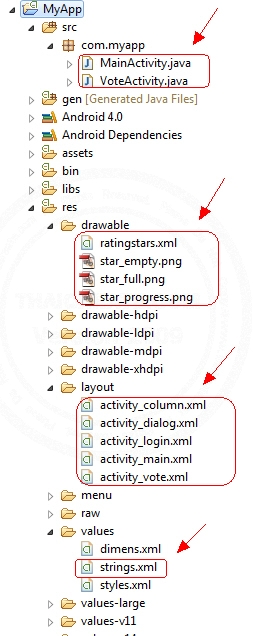

โครงสร้างของไฟล์ทั้งหมด

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

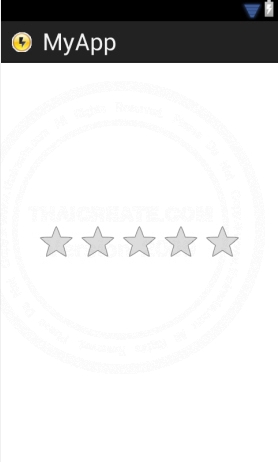

ในตัวอย่างนี้มีการใช้ Custom RatingBar ซึ่งจะสร้าง Style ขึ้นมามีรายละเอียดดังนี้

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

Icons รูปภาพ ที่จะใช้แสดงบน Custom RatingBar

/res/drawable/ratingstars.xml
<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:id="@+android:id/background"
          android:drawable="@drawable/star_empty" />
    <item android:id="@+android:id/secondaryProgress"
          android:drawable="@drawable/star_empty" />
    <item android:id="@+android:id/progress"
          android:drawable="@drawable/star_full" />
</layer-list>

สร้าง Style อยู่บนไฟล์ ratingstars.xml

/values/string.xml
<style name="styleRatingBar" parent="@android:style/Widget.RatingBar">
    <item name="android:progressDrawable">@drawable/ratingstars</item>
    <item name="android:minHeight">22dip</item>
    <item name="android:maxHeight">22dip</item>
</style>

เพิ่มคำสั่งชุดนี้ลงใน string.xml

รายละเอียดเพิ่มเติมของ Custom RatingBar สามารถอ่านได้ที่นี่


ออกแบบ XML Layout และ Java ดังนี้

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

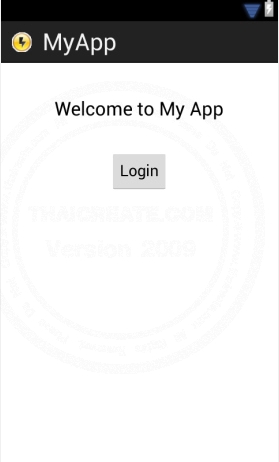

activity_main.xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <Button
        android:id="@+id/btnlogin"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="101dp"
        android:text="Login" />

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="40dp"
        android:text="Welcome to My App"
        android:textAppearance="?android:attr/textAppearanceLarge" />

</RelativeLayout>


Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

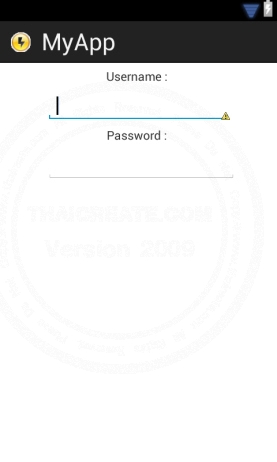

activity_login.xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/layout_login"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <TextView
        android:id="@+id/txtTitleUsername"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="7dp"
        android:text="Username : " />

    <EditText
        android:id="@+id/txtUsername"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txtTitleUsername"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="7dp"
        android:ems="10" >

        <requestFocus />
    </EditText>

    <TextView
        android:id="@+id/txtTitlePassword"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txtUsername"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="7dp"
        android:text="Password : " />

    <EditText
        android:id="@+id/txtPassword"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/txtUsername"
        android:layout_below="@+id/txtTitlePassword"
        android:layout_marginTop="7dp"
        android:ems="10"
        android:inputType="textPassword" />

</RelativeLayout>


Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

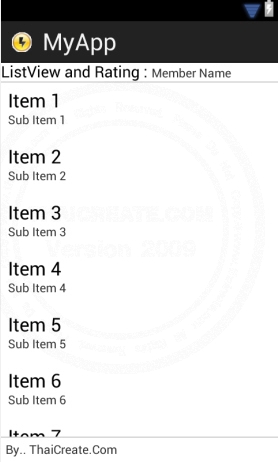

activity_vote.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/tableLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent">

   	<TableRow
      android:id="@+id/tableRow1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content" >

     <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="ListView and Rating : "
        android:layout_span="1"
        android:textAppearance="?android:attr/textAppearanceMedium" />

     <TextView
         android:id="@+id/txtName"
         android:layout_width="wrap_content"
         android:layout_height="wrap_content"
         android:text="Member Name" />

 	</TableRow>

	<View
		android:layout_height="1dip"
		android:background="#CCCCCC" />

  <LinearLayout
        android:orientation="horizontal"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_weight="0.1">

     <ListView
         android:id="@+id/listView1"
         android:layout_width="match_parent"
         android:layout_height="wrap_content">
     </ListView>

 	</LinearLayout>

	<View
		android:layout_height="1dip"
		android:background="#CCCCCC" />

   	<LinearLayout
      android:id="@+id/LinearLayout1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:padding="5dip" >

   		<TextView
   		    android:id="@+id/textView2"
   		    android:layout_width="wrap_content"
   		    android:layout_height="wrap_content"
   		    android:text="By.. ThaiCreate.Com" />

	</LinearLayout>

</TableLayout>


Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

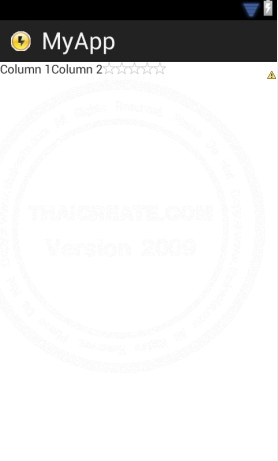

activity_column.xml
<TableLayout android:id="@+id/tableLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent" xmlns:android="http://schemas.android.com/apk/res/android">

    <TableRow
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" >

        <ImageView
            android:id="@+id/ColImgPath"
	        android:layout_width="wrap_content"
	        android:layout_height="wrap_content"
            />

        <TextView
            android:id="@+id/ColImgID"
            android:text="Column 1" />

        <TextView
            android:id="@+id/ColImgName"
            android:text="Column 2" />

        <RatingBar
            android:id="@+id/ColratingBar"
            style="@style/styleRatingBar"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

    </TableRow>


</TableLayout>


Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

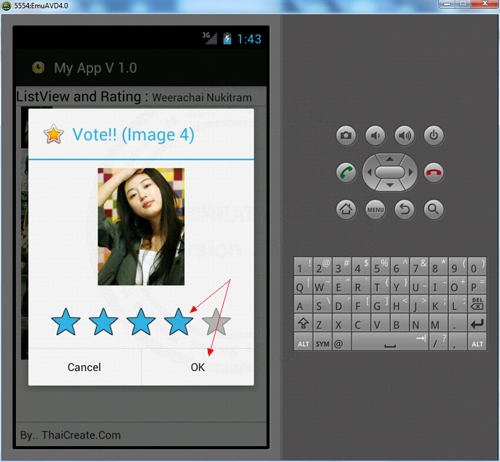

activity_dialog.xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/layout_dialog"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="150dp"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="10dp" />

    <RatingBar
        android:id="@+id/ratingBar"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/imageView"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="22dp" />

</RelativeLayout>


MainActivity.java
package com.myapp;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.util.ArrayList;
import java.util.List;

import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.DefaultHttpClient;
import org.apache.http.message.BasicNameValuePair;
import org.json.JSONException;
import org.json.JSONObject;

import android.os.Bundle;
import android.os.StrictMode;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.DialogInterface;
import android.content.Intent;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;

public class MainActivity extends Activity {

	@SuppressLint("NewApi")
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Permission StrictMode
        if (android.os.Build.VERSION.SDK_INT > 9) {
            StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
            StrictMode.setThreadPolicy(policy);
        }

        final AlertDialog.Builder popDialog = new AlertDialog.Builder(this);
        final AlertDialog.Builder ad = new AlertDialog.Builder(this);
        final LayoutInflater inflater = (LayoutInflater) this.getSystemService(LAYOUT_INFLATER_SERVICE);

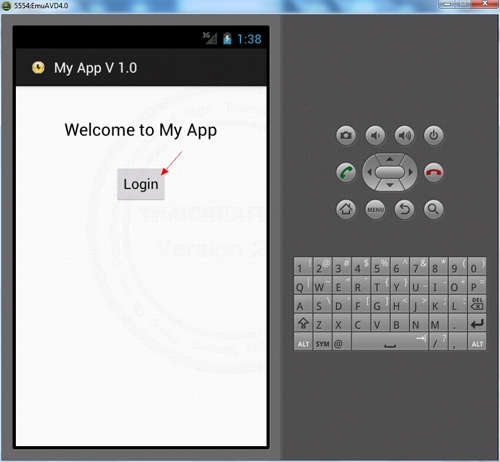

        // btnlogin
        Button btnLogin = (Button) findViewById(R.id.btnlogin);
        btnLogin.setOnClickListener(new View.OnClickListener() {
            public void onClick(View v) {

                final View Viewlayout = inflater.inflate(R.layout.activity_login,
                        (ViewGroup) findViewById(R.id.layout_login));

                popDialog.setIcon(android.R.drawable.btn_star_big_on);
        		popDialog.setTitle("Input User and Password ");
                popDialog.setView(Viewlayout);

                // Button OK
                popDialog.setPositiveButton(android.R.string.ok, new DialogInterface.OnClickListener(){

                    public void onClick(DialogInterface dialog, int which) {
                        dialog.dismiss();

                        // txtUsername and Password (Dialog)
                        EditText user = (EditText) Viewlayout.findViewById(R.id.txtUsername);
                        EditText pass = (EditText) Viewlayout.findViewById(R.id.txtPassword);

                    	String url = "https://www.thaicreate.com/android/myphp/checkLogin.php";
                		List<NameValuePair> params = new ArrayList<NameValuePair>();
                        params.add(new BasicNameValuePair("strUser", user.getText().toString()));
                        params.add(new BasicNameValuePair("strPass", pass.getText().toString()));

                        /** Get result from Server (Return the JSON Code)
                         * StatusID = ? [0=Failed,1=Complete]
                         * MemberID = ? [Eg : 1]
                         * Name 	= ? [Eg : Weerachai Nukitram]
                         * Error	= ?	[On case error return custom error message]
                         *
                         * Eg Login Failed = {"StatusID":"0","MemberID":"0","Name":"","Error":"Incorrect Username and Password"}
                         * Eg Login Complete = {"StatusID":"1","MemberID":"2","Name":"Weerachai Nukitram","Error":""}
                         */

                    	String resultServer  = getHttpPost(url,params);

                        /*** Default Value ***/
                    	String strStatusID = "0";
                    	String strMemberID = "0";
                    	String strName = "0";
                    	String strError = "Unknow Status!";

                    	JSONObject c;
        				try {
        					c = new JSONObject(resultServer);
        	            	strStatusID = c.getString("StatusID");
        	            	strMemberID = c.getString("MemberID");
        	            	strName = c.getString("Name");
        	            	strError = c.getString("Error");

        				} catch (JSONException e) {
        					// TODO Auto-generated catch block
        					e.printStackTrace();
        				}

        				// Prepare Login
        				if(strStatusID.equals("0"))
        				{
        					// Dialog
        					ad.setTitle("Error! ");
        					ad.setIcon(android.R.drawable.btn_star_big_on);
        					ad.setPositiveButton("Close", null);
        					ad.setMessage(strError);
        					ad.show();
        				}
        				else
        				{
        					Toast.makeText(MainActivity.this, "Login OK", Toast.LENGTH_SHORT).show();
        					Intent newActivity = new Intent(MainActivity.this,VoteActivity.class);
        					newActivity.putExtra("sMemberID", strMemberID);
        					newActivity.putExtra("sName", strName);
        					startActivity(newActivity);
        				}

                    }
                })

                // Button Cancel
                .setNegativeButton("Cancel",
  					  new DialogInterface.OnClickListener() {
  					    public void onClick(DialogInterface dialog,int id) {
  						dialog.cancel();
  					    }
  					  });

                popDialog.create();
                popDialog.show();

            }
        });
    }


	public String getHttpPost(String url,List<NameValuePair> params) {
		StringBuilder str = new StringBuilder();
		HttpClient client = new DefaultHttpClient();
		HttpPost httpPost = new HttpPost(url);

		try {
			httpPost.setEntity(new UrlEncodedFormEntity(params));
			HttpResponse response = client.execute(httpPost);
			StatusLine statusLine = response.getStatusLine();
			int statusCode = statusLine.getStatusCode();
			if (statusCode == 200) { // Status OK
				HttpEntity entity = response.getEntity();
				InputStream content = entity.getContent();
				BufferedReader reader = new BufferedReader(new InputStreamReader(content));
				String line;
				while ((line = reader.readLine()) != null) {
					str.append(line);
				}
			} else {
				Log.e("Log", "Failed to download result..");
			}
		} catch (ClientProtocolException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
		return str.toString();
	}


    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}


VoteActivity.java
package com.myapp;

import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.Closeable;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.URL;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;

import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.DefaultHttpClient;
import org.apache.http.message.BasicNameValuePair;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;

import android.os.AsyncTask;
import android.os.Bundle;
import android.os.StrictMode;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.AlertDialog;
import android.app.Dialog;
import android.app.ProgressDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.content.Intent;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Menu;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.RatingBar;
import android.widget.TextView;
import android.widget.Toast;

public class VoteActivity extends Activity {

	public static final int DIALOG_DOWNLOAD_JSON_PROGRESS = 0;
    private ProgressDialog mProgressDialog;

    ArrayList<HashMap<String, Object>> MyArrList;

    ListView lstView1;

    public String sMemberID;
    public String sMemberName;

    @SuppressLint("NewApi")
	@Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_vote);

        // Permission StrictMode
        if (android.os.Build.VERSION.SDK_INT > 9) {
            StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
            StrictMode.setThreadPolicy(policy);
        }

    	Intent intent= getIntent();
    	sMemberID = intent.getStringExtra("sMemberID");
    	sMemberName = intent.getStringExtra("sName");

    	// Display Member Name
    	TextView txtName = (TextView)findViewById(R.id.txtName);
    	txtName.setText(sMemberName);


	    // Download JSON File
		new DownloadJSONFileAsync().execute();

    }


    @Override
    protected Dialog onCreateDialog(int id) {
        switch (id) {
        case DIALOG_DOWNLOAD_JSON_PROGRESS:
            mProgressDialog = new ProgressDialog(this);

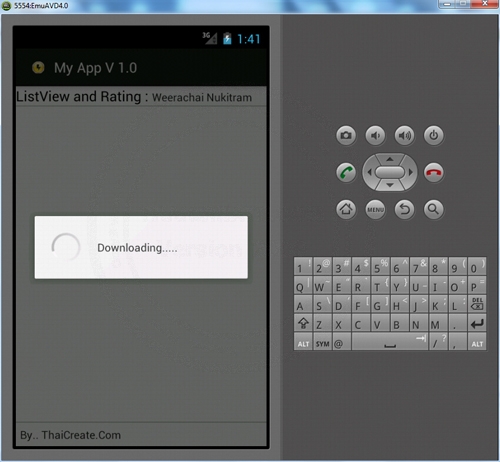

            mProgressDialog.setMessage("Downloading.....");
            mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
            mProgressDialog.setCancelable(true);
            mProgressDialog.show();
            return mProgressDialog;
        default:
            return null;
        }
    }

    // Show All Content
    public void ShowAllContent()
    {
        // listView1
        lstView1 = (ListView)findViewById(R.id.listView1);
        lstView1.setAdapter(new ImageAdapter(VoteActivity.this,MyArrList));
    }


    public class ImageAdapter extends BaseAdapter
    {
        private Context context;
        private ArrayList<HashMap<String, Object>> MyArr = new ArrayList<HashMap<String, Object>>();

        public ImageAdapter(Context c, ArrayList<HashMap<String, Object>> myArrList)
        {
        	// TODO Auto-generated method stub
            context = c;
            MyArr = myArrList;
        }

        public int getCount() {
        	// TODO Auto-generated method stub
            return MyArr.size();
        }

        public Object getItem(int position) {
        	// TODO Auto-generated method stub
            return position;
        }

        public long getItemId(int position) {
        	// TODO Auto-generated method stub
            return position;
        }
		public View getView(final int position, View convertView, ViewGroup parent) {
			// TODO Auto-generated method stub

			LayoutInflater inflater = (LayoutInflater) context
					.getSystemService(Context.LAYOUT_INFLATER_SERVICE);


			if (convertView == null) {
				convertView = inflater.inflate(R.layout.activity_column, null);
			}

			// ColImage
			ImageView imageView = (ImageView) convertView.findViewById(R.id.ColImgPath);
			imageView.getLayoutParams().height = 80;
			imageView.getLayoutParams().width = 80;
			imageView.setPadding(10, 10, 10, 10);
			imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
        	 try
        	 {
        		 imageView.setImageBitmap((Bitmap)MyArr.get(position).get("ImageThumBitmap"));
        	 } catch (Exception e) {
        		 // When Error
        		 imageView.setImageResource(android.R.drawable.ic_menu_report_image);
        	 }

        	 // Click on Image
        	 imageView.setOnClickListener(new View.OnClickListener() {
                 public void onClick(View v) {
     				String strImageID = MyArr.get(position).get("ImageID").toString();
    				String strImageName = MyArr.get(position).get("ImageName").toString();
    				String strCurrentRating = MyArr.get(position).get("Rating").toString();

    				ShowDialogVote(position, strImageID,
    						strImageName, strCurrentRating,
    						MyArr.get(position).get("ImagePathFull").toString()); // Click Show Dialog Vote

                 }
             });


			// ColImgID
			TextView txtImgID = (TextView) convertView.findViewById(R.id.ColImgID);
			txtImgID.setPadding(5, 0, 0, 0);
			txtImgID.setText("ID : " + MyArr.get(position).get("ImageID").toString());

			// ColImgName
			TextView txtPicName = (TextView) convertView.findViewById(R.id.ColImgName);
			txtPicName.setPadding(5, 0, 0, 0);
			txtPicName.setText("Name : " + MyArr.get(position).get("ImageName").toString());

			// ColratingBar
			RatingBar Rating = (RatingBar) convertView.findViewById(R.id.ColratingBar);
			Rating.setPadding(10, 0, 0, 0);
			Rating.setEnabled(false);
			Rating.setRating(Float.valueOf(MyArr.get(position).get("Rating").toString()));

			return convertView;

		}

    }

    // Show Dialog Vote
    public void ShowDialogVote(final int position, final String strImageID,
    		String strImageName,final String strCurrentRating,String FullImagePath)
    {

        final AlertDialog.Builder popDialog = new AlertDialog.Builder(this);
        final AlertDialog.Builder adb = new AlertDialog.Builder(this);
        final LayoutInflater inflater = (LayoutInflater) this.getSystemService(LAYOUT_INFLATER_SERVICE);

        final View Viewlayout = inflater.inflate(R.layout.activity_dialog,
                (ViewGroup) findViewById(R.id.layout_dialog));

        final ImageView image = (ImageView)Viewlayout.findViewById(R.id.imageView); // imageView
        image.setImageBitmap((Bitmap)loadBitmap(FullImagePath));

        final RatingBar rating = (RatingBar)Viewlayout.findViewById(R.id.ratingBar); // ratingBar
        rating.setMax(5);
        rating.setNumStars(5);

		popDialog.setIcon(android.R.drawable.btn_star_big_on);
		popDialog.setTitle("Vote!! (" + strImageName + ") ");
		popDialog.setView(Viewlayout);

		// Button OK
		popDialog.setPositiveButton("OK",
				new DialogInterface.OnClickListener() {
					public void onClick(DialogInterface dialog, int which) {

						// Save Vote
		         		String url = "https://www.thaicreate.com/android/updateRating.php";

		        		List<NameValuePair> params = new ArrayList<NameValuePair>();
		                params.add(new BasicNameValuePair("ImageID", strImageID));
		                params.add(new BasicNameValuePair("MemberID", sMemberID));
		                params.add(new BasicNameValuePair("ratingPoint", String.valueOf(rating.getRating())));

		                String resultServer  = getHttpPost(url,params);

		                /** Get result from Server (Return the JSON Code)
		                 * StatusID = ? [0=Failed,1=Complete]
		                 * Error	= ?	[On case error return custom error message]
		                 * Rating	= ?	[New Reting Point from Server]
		                 *
		                 * Eg Save Failed = {"StatusID":"0","Error":"Not Update Data!","Rating":"0"}
		                 * Eg Save Complete = {"StatusID":"1","Error":"","Rating":"3.5"}
		                 */

		                /*** Default Value ***/
		            	String strStatusID = "0";
		            	String strError = "Unknow Status!";
		            	String strRatingPoint = strCurrentRating;

		            	JSONObject c;
		    			try {
		    				c = new JSONObject(resultServer);
		                	strStatusID = c.getString("StatusID");
		                	strError = c.getString("Error");
		                	strRatingPoint = c.getString("Rating"); // New Rating from Server
		    			} catch (JSONException e) {
		    				// TODO Auto-generated catch block
		    				e.printStackTrace();
		    			}

		    			// Prepare Save Data
		    			if(strStatusID.equals("0"))
		    			{
		    				adb.setMessage(strError);
		    				adb.show();
		    			}
		    			else
		    			{
		    				Log.d("strRatingPoint",strRatingPoint);
		    				UpdateNewRatingPoint(position,strRatingPoint); // Update New Rating Point to ListView (By Row Item)
			        		// Show Toast
			        		Toast.makeText(VoteActivity.this, "Vote Finished (Point : " + rating.getRating() + ")", Toast.LENGTH_LONG).show();
		    			}

						dialog.dismiss();


					}

				})

						// Button Cancel
				.setNegativeButton("Cancel",
						new DialogInterface.OnClickListener() {
							public void onClick(DialogInterface dialog, int id) {
								dialog.cancel();
							}
				});

		popDialog.create();
		popDialog.show();

    }


    // Update New Rating to ListView
	private void UpdateNewRatingPoint(int position,String newRatingPoint){

	    View v = lstView1.getChildAt(position - lstView1.getFirstVisiblePosition());

	    // Update RatingBar
	    RatingBar rating = (RatingBar)v.findViewById(R.id.ColratingBar);
	    rating.setEnabled(true); // Enabled
	    rating.setRating(Float.valueOf(newRatingPoint));
	    rating.setEnabled(false); // False
	}


    // Download JSON in Background
    public class DownloadJSONFileAsync extends AsyncTask<String, Void, Void> {

        protected void onPreExecute() {
        	super.onPreExecute();
        	showDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
        }

        @Override
        protected Void doInBackground(String... params) {
            // TODO Auto-generated method stub

        	String url = "https://www.thaicreate.com/android/getGallery.php";

        	JSONArray data;
			try {
				data = new JSONArray(getJSONUrl(url));

		    	MyArrList = new ArrayList<HashMap<String, Object>>();
				HashMap<String, Object> map;

				for(int i = 0; i < data.length(); i++){
	                JSONObject c = data.getJSONObject(i);
	    			map = new HashMap<String, Object>();
	    			map.put("ImageID", (String)c.getString("ImageID"));
	    			map.put("ImageName", (String)c.getString("ImageName"));

	    			// Thumbnail Get ImageBitmap To Object
	    			map.put("ImagePathThum", (String)c.getString("ImagePath_Thumbnail"));
	    			map.put("ImageThumBitmap", (Bitmap)loadBitmap(c.getString("ImagePath_Thumbnail")));

	    			// Full (for View Popup)
	    			map.put("ImagePathFull", (String)c.getString("ImagePath_FullPhoto"));

	    			map.put("Rating", (String)c.getString("Rating"));

	    			MyArrList.add(map);
				}


			} catch (JSONException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}

    		return null;
        }

        protected void onPostExecute(Void unused) {
        	ShowAllContent(); // When Finish Show Content
            dismissDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
            removeDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
        }

    }

    // get Http Post
	public String getHttpPost(String url,List<NameValuePair> params) {
		StringBuilder str = new StringBuilder();
		HttpClient client = new DefaultHttpClient();
		HttpPost httpPost = new HttpPost(url);

		try {
			httpPost.setEntity(new UrlEncodedFormEntity(params));
			HttpResponse response = client.execute(httpPost);
			StatusLine statusLine = response.getStatusLine();
			int statusCode = statusLine.getStatusCode();
			if (statusCode == 200) { // Status OK
				HttpEntity entity = response.getEntity();
				InputStream content = entity.getContent();
				BufferedReader reader = new BufferedReader(new InputStreamReader(content));
				String line;
				while ((line = reader.readLine()) != null) {
					str.append(line);
				}
			} else {
				Log.e("Log", "Failed to download result..");
			}
		} catch (ClientProtocolException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
		return str.toString();
	}


    /*** Get JSON Code from URL ***/
  	public String getJSONUrl(String url) {
  		StringBuilder str = new StringBuilder();
  		HttpClient client = new DefaultHttpClient();
  		HttpGet httpGet = new HttpGet(url);
  		try {
  			HttpResponse response = client.execute(httpGet);
  			StatusLine statusLine = response.getStatusLine();
  			int statusCode = statusLine.getStatusCode();
  			if (statusCode == 200) { // Download OK
  				HttpEntity entity = response.getEntity();
  				InputStream content = entity.getContent();
  				BufferedReader reader = new BufferedReader(new InputStreamReader(content));
  				String line;
  				while ((line = reader.readLine()) != null) {
  					str.append(line);
  				}
  			} else {
  				Log.e("Log", "Failed to download file..");
  			}
  		} catch (ClientProtocolException e) {
  			e.printStackTrace();
  		} catch (IOException e) {
  			e.printStackTrace();
  		}
  		return str.toString();
  	}

  	/***** Get Image Resource from URL (Start) *****/
	private static final String TAG = "Image";
	private static final int IO_BUFFER_SIZE = 4 * 1024;
	public static Bitmap loadBitmap(String url) {
	    Bitmap bitmap = null;
	    InputStream in = null;
	    BufferedOutputStream out = null;

	    try {
	        in = new BufferedInputStream(new URL(url).openStream(), IO_BUFFER_SIZE);

	        final ByteArrayOutputStream dataStream = new ByteArrayOutputStream();
	        out = new BufferedOutputStream(dataStream, IO_BUFFER_SIZE);
	        copy(in, out);
	        out.flush();

	        final byte[] data = dataStream.toByteArray();
	        BitmapFactory.Options options = new BitmapFactory.Options();
	        //options.inSampleSize = 1;

	        bitmap = BitmapFactory.decodeByteArray(data, 0, data.length,options);
	    } catch (IOException e) {
	        Log.e(TAG, "Could not load Bitmap from: " + url);
	    } finally {
	        closeStream(in);
	        closeStream(out);
	    }

	    return bitmap;
	}

	 private static void closeStream(Closeable stream) {
	        if (stream != null) {
	            try {
	                stream.close();
	            } catch (IOException e) {
	                android.util.Log.e(TAG, "Could not close stream", e);
	            }
	        }
	    }

	 private static void copy(InputStream in, OutputStream out) throws IOException {
        byte[] b = new byte[IO_BUFFER_SIZE];
        int read;
        while ((read = in.read(b)) != -1) {
            out.write(b, 0, read);
        }
    }
	 /***** Get Image Resource from URL (End) *****/

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}




เพิ่ม VoteActivity ลงในไฟล์ AndroidManifest.xml

AndroidManifest.xml
		<activity
		    android:name=".VoteActivity"
		    android:theme="@style/AppTheme"
		    android:screenOrientation="portrait"
		    android:label="@string/title_activity_main" />


Screenshot

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

แสดงหน้าแรกของ Application ของ Android ที่ทำงานผ่าน Emulator ให้คลิกที่ Login

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

แสดง Popup Dialog สำหรับการ Login ด้วย Username และ Password เข้าสู่หน้าจอการโหวต

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

หลังจาก Member Login ผ่านเรียบร้อยแล้ว ก็จะเข้าสู่หน้าจอรายการ Image Gallery โดยรอซะครู่ โปรแกรมกำลังโหลดจ้อมูลจาก Server

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

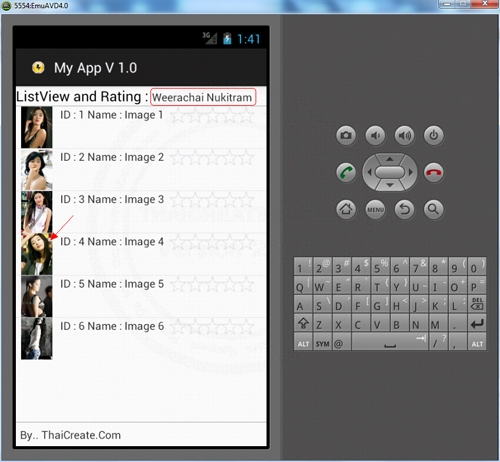

แสดงรายการข้อมูล สังเกตุว่าบน Header จะแสดงชื่อสมาชิกที่กำลัง Login อยู่ในขณะนั้น ให้คลิกรายการเพื่อโหวตข้อมูล

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

โดยเลือกที่ 4 ดาว จากนั้นเลือก OK (สมาชิกจะไม่สามารถโหวดซ้ำได้ ถ้าโหวดซ้ำโปรแกรมจะแสดงข้อความเตือนว่า Duplicate Vote!)

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

เมื่อกลับมาที่ ListView จะเห็นว่าได้คะแนน 4 ดาว

ทดสอบการ Login ด้วยสมาชิกคนอื่น

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

หลังจากที่ Login ด้วยสมาชิกอื่น ทดสอบการโหวดให้คลิกที่ Item เดิมที่มี Point อยู่แล้ว ตอนนี้จะเท่ากับ 4 ดาว

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

ให้คะแนน 1 ดาว แล้วเลือก OK

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

เมื่อกลับมาที่ ListView จะเห็นว่าได้คะแนนแค่ 2.5 ดาว (เพราะคนแรกให้ 4 คนที่สองให้ 1 ค่าเฉลี่ยจะเท่ากับ (4+1)/2 = 2.5)

Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)

ตารางจัดเก็บและการคิดค่าเฉลี่ยนของ Rating

Download Code ได้จากส่วนล่างของบทความ


.


Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-08-26 12:22:01 / 2017-03-26 22:36:50
  Download : Download  Android Rating (Vote) and ListView Part 2 (Member Login and Average Rating)
 Sponsored Links / Related


Android Custom Adapter
Rating :


Android People Contact List, Name, Phone No, Photo Picture, Email and Address
Rating :


Android Rating (Vote) and ListView Part 1
Rating :


Android PhoneGap (jQuery Mobile) Create Convert App from Website(URL)
Rating :


Android Capture Image and Camera Capture Screenshot (android.view.SurfaceView)
Rating :


Android Pull Down to Refresh And Release to Refresh or Update (Part 1)
Rating :


Android Pull Down to Refresh And Release to Update (Part 2 , PHP & MySQL)
Rating :


ThaiCreate.Com Forum


Comunity Forum Free Web Script
Jobs Freelance Free Uploads
Free Web Hosting Free Tools

สอน PHP ผ่าน Youtube ฟรี
สอน Android การเขียนโปรแกรม Android
สอน Windows Phone การเขียนโปรแกรม Windows Phone 7 และ 8
สอน iOS การเขียนโปรแกรม iPhone, iPad
สอน Java การเขียนโปรแกรม ภาษา Java
สอน Java GUI การเขียนโปรแกรม ภาษา Java GUI
สอน JSP การเขียนโปรแกรม ภาษา Java
สอน jQuery การเขียนโปรแกรม ภาษา jQuery
สอน .Net การเขียนโปรแกรม ภาษา .Net
Free Tutorial
สอน Google Maps Api
สอน Windows Service
สอน Entity Framework
สอน Android
สอน Java เขียน Java
Java GUI Swing
สอน JSP (Web App)
iOS (iPhone,iPad)
Windows Phone
Windows Azure
Windows Store
Laravel Framework
Yii PHP Framework
สอน jQuery
สอน jQuery กับ Ajax
สอน PHP OOP (Vdo)
Ajax Tutorials
SQL Tutorials
สอน SQL (Part 2)
JavaScript Tutorial
Javascript Tips
VBScript Tutorial
VBScript Validation
Microsoft Access
MySQL Tutorials
-- Stored Procedure
MariaDB Database
SQL Server Tutorial
SQL Server 2005
SQL Server 2008
SQL Server 2012
-- Stored Procedure
Oracle Database
-- Stored Procedure
SVN (Subversion)
แนวทางการทำ SEO
ปรับแต่งเว็บให้โหลดเร็ว


Hit Link








Load balance : Server 05
ThaiCreate.Com Logo
© www.ThaiCreate.Com. 2003-2024 All Rights Reserved.
ไทยครีเอทบริการ จัดทำดูแลแก้ไข Web Application ทุกรูปแบบ (PHP, .Net Application, VB.Net, C#)
[Conditions Privacy Statement] ติดต่อโฆษณา 081-987-6107 อัตราราคา คลิกที่นี่
