สร้าง Crystal Report บน Visual Studio (VB.NET , C#) Step by Step


  พื้นฐานการสร้างรายงานด้วย Crystal Report บน Visual Studio (VB.NET , C#) เห็นถามกันมาบ่อย ๆ วันนี้มีโอกาสเลยจัดทำเป็นบทความ บทความนี้เป็นพื้นฐานของ Crystal Report ทำงานร่วมกับ .NET Framework ในรูปแบบของ Windows Form Application และฐานข้อมูล SQL Server หรือจะใช้กับ Database อื่น ๆ ก็สามารถใช้ได้เช่นเดียวกัน สามารถสร้างผ่าน Wizard ของ Crystal Report ส่วน Windows Form มีหน้าที่เพียงโหลด Report มาแสดงเท่านั้น

Crystal Report and Visual Studio (VB.NET , C#)


โครงสร้าง ตาราง และข้อมูล ของ SQL Server สำหรับทดสอบ
USE [mydatabase]
GO
/****** Object:  Table [dbo].[customer]    Script Date: 03/13/2012 13:42:18 ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
SET ANSI_PADDING ON
GO
CREATE TABLE [dbo].[customer](
	[CustomerID] [varchar](4) NOT NULL,
	[Name] [varchar](50) NULL,
	[Email] [varchar](50) NULL,
	[CountryCode] [varchar](2) NULL,
	[Budget] [float] NULL,
	[Used] [float] NULL,
 CONSTRAINT [PK_customer] PRIMARY KEY CLUSTERED
(
	[CustomerID] ASC
)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
) ON [PRIMARY]

INSERT INTO customer VALUES ('C001', 'Win Weerachai', '[email protected]', 'TH', 1000000, 600000);
INSERT INTO customer VALUES ('C002', 'John  Smith', '[email protected]', 'EN', 2000000, 800000);
INSERT INTO customer VALUES ('C003', 'Jame Born', '[email protected]', 'US', 3000000, 600000);
INSERT INTO customer VALUES ('C004', 'Chalee Angel', '[email protected]', 'US', 4000000, 100000);

GO
SET ANSI_PADDING OFF


นำ Query ไปรันหรือสร้าง Database ตามโครงสร้าง

Crystal Report and Visual Studio (VB.NET , C#)

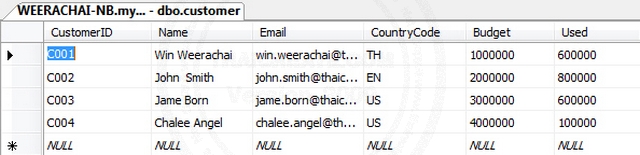

ตัวอย่างตารางและข้อมูล


มาเริ่มกันเลย

Crystal Report and Visual Studio (VB.NET , C#)

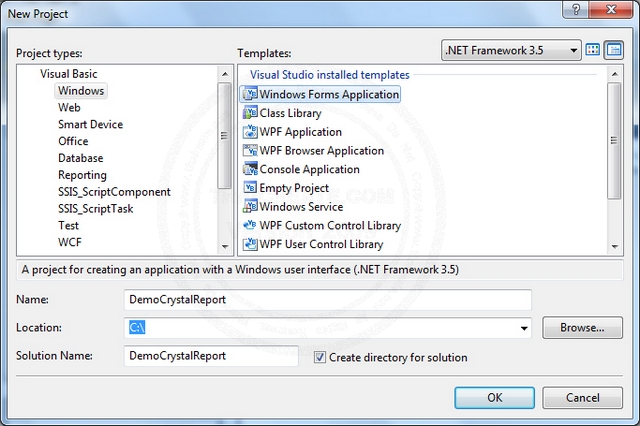

เริ่มต้นด้วยการสร้าง Project ขึ้นมาใหม่ เลือกเป็น Visual Basic (VB.NET) หรือ Visual C# ก็แล้วแต่ถนัด แต่ในส่วนของ Templates ให้เลือกเป็น Windows Form Application


Crystal Report and Visual Studio (VB.NET , C#)

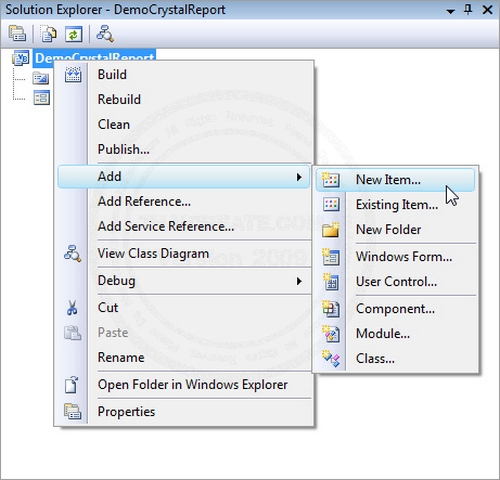

กลับมาที่หน้า Project ให้คลิกขวาที่ Project -> Add -> New Item


Crystal Report and Visual Studio (VB.NET , C#)

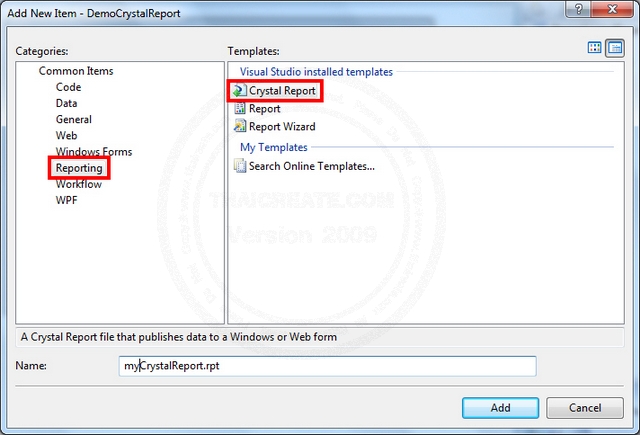

เลือก Crystal Report ให้กำหนดชื่อให้เรียบร้อย








Crystal Report and Visual Studio (VB.NET , C#)

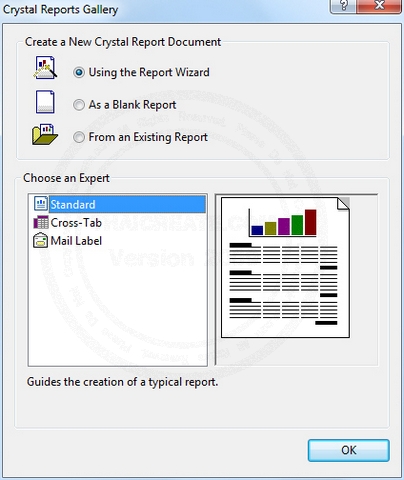

จะมีหน้าต่าง Pop ขึ้นให้เลือก Using the Report Wizard และ OK


Crystal Report and Visual Studio (VB.NET , C#)

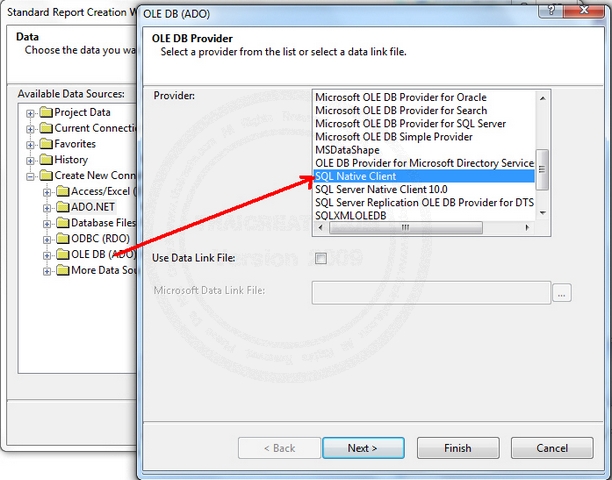

อันนี้เลือก Create New Connection ส่วน Database ไหนก็ขึ้นอยู่ว่าจะเรียก Report จาก Database อะไร ในที่นี้จะใช้ SQL Server ให้เลือก SQL Native Client


Crystal Report and Visual Studio (VB.NET , C#)

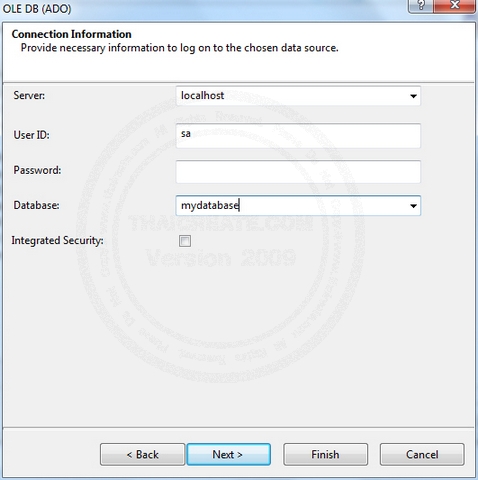

กำหนด Connection เช่น Server, User ID: , Password: , และ Database


Crystal Report and Visual Studio (VB.NET , C#)

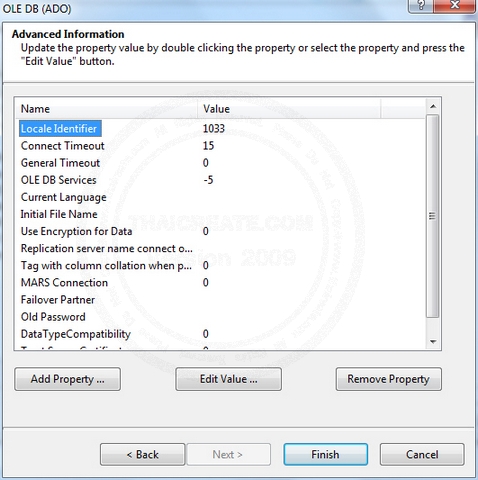

เลือก Finish เพื่อข้ามไปขั้นตอนถัดไป


Crystal Report and Visual Studio (VB.NET , C#)

คลิกที่ Connection ที่ได้สร้างไปเมื่อกี่ และคลิกเพื่อเลือกชื่อตารางข้อมูล ซึ่งใน SQL Server จะอยู่ใน Sub ชื่อฐานข้อมูล -> dbo -> Tables -> ชื่อตาราง ส่วนถ้าเป็น Database อื่น ๆ ก็อาจจะแสดงชื่อตารางออกมาเลย


Crystal Report and Visual Studio (VB.NET , C#)

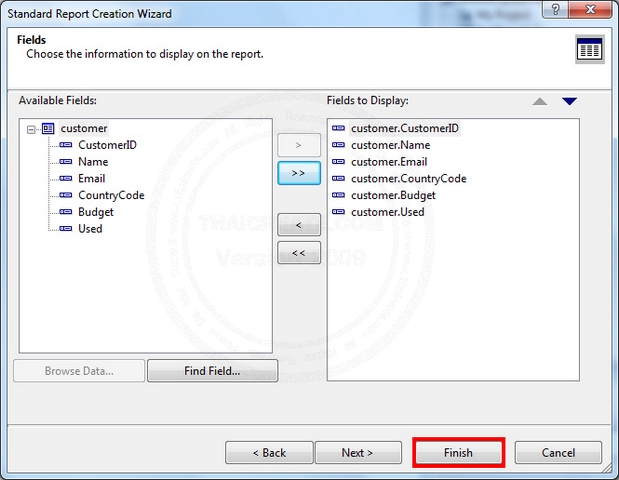

เลือกฟิวด์ Fields ข้อมูลทีต้องการแสดงใน Report และคลิกที่ Finish เพื่อเสร็จสิ้นการออกแบบ แต่ถ้าหากต้องการกำหนดค่าอื่น ๆ ของ Report ลองคลิกที่ Next เพื่อปรับแต่ง Report


Crystal Report and Visual Studio (VB.NET , C#)

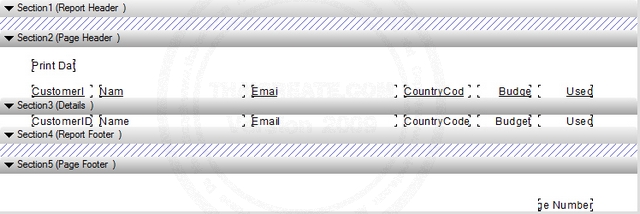

หน้าตา Design Report ที่สามารถปรับแต่งรายละเอียดอื่น ๆ ได้ตามความต้องการ


Crystal Report and Visual Studio (VB.NET , C#)

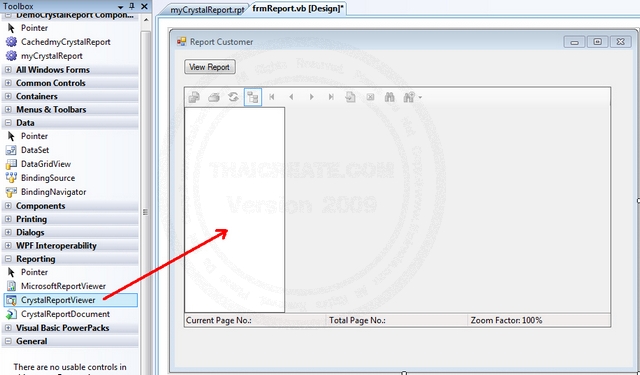

กลับมาที่หน้า Windows Form ให้สร้างปุ่มสำหรับโหลด Report และลาก Control ชื่อ CrystalReportViewer เพื่อใช้สำหรับรองรับการแสดงผลของ Report

จากนั้นให้ Click ที่ Button เพื่อสร้าง Event ในการโหลด Report โดยใส่คำสั่งดังนี้

Code VB.NET
Imports CrystalDecisions.CrystalReports.Engine

Public Class frmReport

    Private Sub btnViewReport_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnViewReport.Click
        Dim rpt As New ReportDocument()
        Dim directory As String = My.Application.Info.DirectoryPath
        'rpt.Load(directory & "\\myCrystalReport.rpt")
        rpt.Load("C:\DemoCrystalReport\DemoCrystalReport\myCrystalReport.rpt")
        Me.CrystalReportViewer1.ReportSource = rpt
        Me.CrystalReportViewer1.Refresh()
    End Sub

End Class


Code C#
using Microsoft.VisualBasic;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Data;
using System.Diagnostics;
using CrystalDecisions.CrystalReports.Engine;

public class frmReport
{

	private void btnViewReport_Click(System.Object sender, System.EventArgs e)
	{
		ReportDocument rpt = new ReportDocument();
		string directory = My.Application.Info.DirectoryPath;
		//rpt.Load(directory & "\myCrystalReport.rpt")
		rpt.Load("C:\\DemoCrystalReport\\DemoCrystalReport\\myCrystalReport.rpt");
		this.CrystalReportViewer1.ReportSource = rpt;
		this.CrystalReportViewer1.Refresh();
	}

}


หลังจากวาง Code เรียบร้อยแล้ว ลองกดที่ Run เพื่อดูผลลัพธ์ของ Report

Crystal Report and Visual Studio (VB.NET , C#)

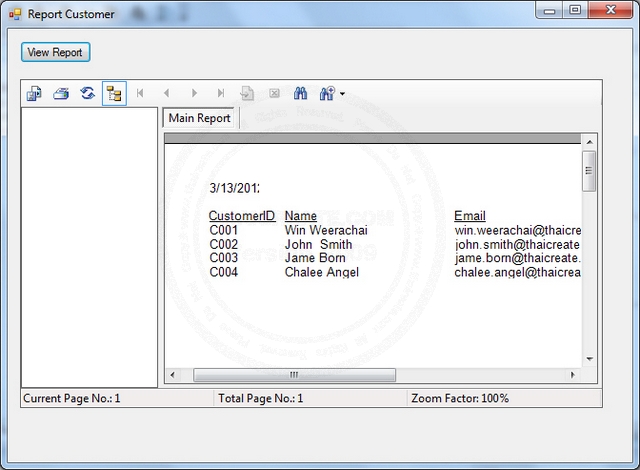

ทดสอบการรัน Report จะได้ผลเหมือนในรูป

บทความนี้เป็นพื้นฐานการใช้ Crystal Report กับ Visual Studio แบบง่าย ๆ สำหรับวิธีการใช้งานในรูปแบบอื่น ๆ เช่น การสร้าง DataSource ด้วย DataSet หรือ DataTable หรือการส่งค่า Parameters ต่าง ๆ จะมีตัวอย่างให้ศึกษาในบทความถัดไป

Download Code!!








บทความอื่น ๆ ที่เกี่ยวข้อง
Go to : สร้าง Parameter และ Formula Fields บน Crystal Reports (VB.NET,C#)
Go to : การสร้าง Crystal Report กับ DataSet หรือ DataTable (VB.NET,C#)
Go to : ASP.NET ReportViewer - rsweb:ReportViewer
Go to : ASP.NET and CrystalReportViewer
Go to : ASP.NET แสดงรูปภาพ Image บน Crystal Report แบบ Step by Step (VB.NET / C#)
Go to : การสร้าง Sub Report (Subreport) บน Crystal Report แบบ Step by Step (VB.NET /C#)
