iOS/iPhone Progress View (UIProgressView) Example (iPhone,iPad)

iOS/iPhone Progress View (UIProgressView) Example (iPhone,iPad) ในการเขียน iOS App เพื่อทำงานบน iPhone และ iPad สิ่งที่เราจะลืมไม่ได้เลยอย่างยิ่งก็คือ Progress View โดย Progress View จะนิยมใช้ในการแสดงสถานะการทำงาน เช่น การดาวน์โหลด (Download) ไฟล์ , การอัพโหลดไฟล์ (Upload) หรือการทำงานต่าง ๆ ที่สามารถแจ้งสถานะให้ผู้ใช้ทราบว่าตอนนี้ ทำถึงขั้นตอนไหนแล้ว โดยจะใช้แถบสีเป็นตัวแจ้งสถานะให้ทราบในแต่ระยะ สำหรับ Progress View จะใช้ร่วมกับ Class ของ UIProgressView ในภาษา Objective-C ในการเขียนเงื่อนไขการทำงานต่าง ๆ

iOS/iPhone Progress View (UIProgressView) Example

iOS/iPhone Progress View (UIProgressView) Example


Progress View (UIProgressView) เป็น Progress Bar ที่สามารถแจ้งสถานะการทำงานได้ตามสถานะการทำงานจริง เพราะฉะนั้นในการใช้งานจริงแล้ว Progress View จะต้องทำการทำงานสัมพันธ์กับสิ่งที่เกิดขึ้นจริง ซึ่งปกติแล้วการทำงานแบบ Progress View แสดงว่า Process นั้นทำงานนานซะพักหนึ่ง เพาะฉะนั้นจะต้องใช้ Thread ทำงานในรูปแบบของ Background Process มาเกี่ยวข้อง โดยขั้น Concept การทำงานนั้น เช่น เรามี ข้อมูลใน Loop ประมาณ 100 รายการที่จะต้องทำงาน เราอาจจะใช้ Thread มาครอบ Loop นั้น ๆ และเมื่อ Loop ทำงานแต่ล่ะครั้ง เราก็จะทำการแจ้งสถานะมายัง Progress View เพื่อให้ทำการ Update สถานะแจ้งให้ผู้ใช้ได้ทราบ สำหรับบทความนี้จะยังไม่ได้ไปถึงขั้นการใช้ Progress View กับ Thread ที่จะให้เห็นภาพและสถานะการทำงานจริง ๆ (สามารถอ่านได้จากหัวข้อ Thread และ Progress View) แต่จะเป็นพื้นฐานการรู้จักและการใช้งาน Progress View กับ UIProgressView แบบง่าย ๆ โดยใช้ Timer มาหน่วงเวลา และแจ้ง Update ตัว Status ไปยัง Progress View

การ Get ค่าของ Progress View (UIProgressView)
IBOutlet UIProgressView *progressview;

int float  = progressview.progress;


การ Set ค่าของ Progress View (UIProgressView)
IBOutlet UIProgressView *progressview;

[progressview setProgress:0.0];

โดย Value ของ Progress View จะเริ่มจาก 0.00 ถึง 1.00

ก่อนที่เราจะเขียน Progress View บน Xcode จะขออธิบายเกี่ยวกับ Progress View ว่าจะมีค่า Min อยู่ที่ 0.00 และ ค่า Max อยู่ที่ 1.00 เฉพาะฉะนั้นการ Update สถานะ จะใช้หน่วยตั้งแต่ 0.00 ถึง 1.00 (ถึงจะแสดงแถบสถานะเต็ม) เช่นเรา Loop ข้อมูล 1-100 เราสามารถใช้สูตร 1/100...2/100...100/100 เช่น

1/100 = 0.01
2/100 = 0.02
.
.
.
100/100 = 1.00


จะเห็นว่าเราสามารถแสดงสถานะจาก 0.00 ถึง 1.00 ได้พอดี








Example ตัวอย่างการใช้งาน Progress View (UIProgressView) ร่วมกับ Timer แบบง่าย ๆ

iOS/iPhone Progress View (UIProgressView) Example

เริ่มต้นด้วยการสร้าง Application บน Xcode แบบ Single View Application

iOS/iPhone Progress View (UIProgressView) Example

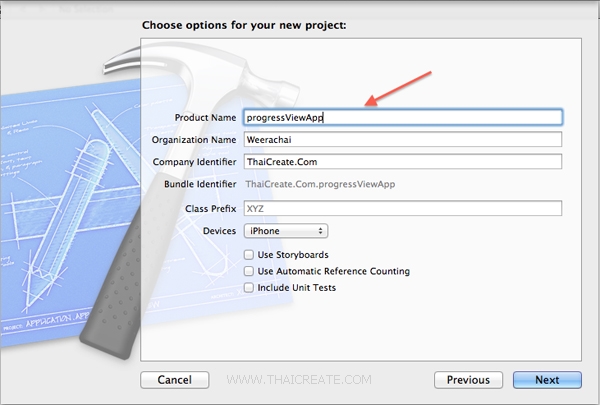

เลือกและไม่เลือกรายการดังรูป

iOS/iPhone Progress View (UIProgressView) Example

ตอนนี้หน้าจอ View ของเราจะยังว่าง ๆ

iOS/iPhone Progress View (UIProgressView) Example

ทำการลาก Object ที่มีชื่อว่า Progress View มาวางไว้ในในหน้าจอ Interface

iOS/iPhone Progress View (UIProgressView) Example

กำหนดค่า Progress ที่เป็น Default ให้เริ่มต้นจาก 0

iOS/iPhone Progress View (UIProgressView) Example

สร้าง Label เพื่อแจ้งสถานะเป็นตัวเลข และ Button สำหรับปุ่ม Start

iOS/iPhone Progress View (UIProgressView) Example

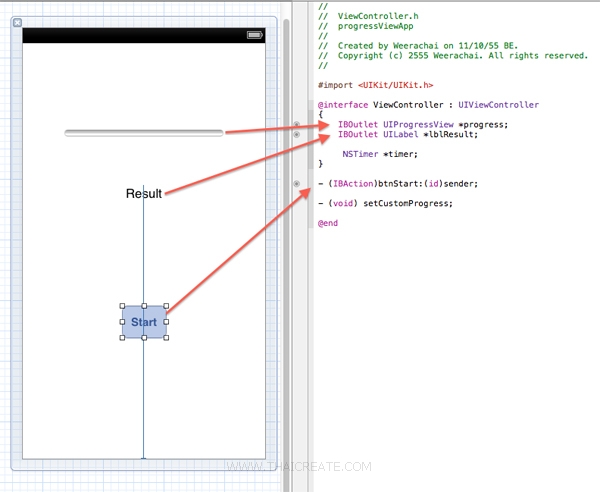

ใน Class ของ .h ทำการเชื่อม IBOutlet และ IBAction ดังรูป

iOS/iPhone Progress View (UIProgressView) Example

ใน Class ของ .m ตอนนี้ Event ของ Button (Start) ยังไม่มีอะไร

iOS/iPhone Progress View (UIProgressView) Example

ใส่คำสั่งดังนี้

- (IBAction)btnStart:(id)sender {
    [progress setProgress:0.0];
    timer = [NSTimer scheduledTimerWithTimeInterval:0.10 target:self selector:@selector(setCustomProgress) userInfo:nil repeats:YES];
}

- (void) setCustomProgress
{
    progress.progress = progress.progress + 0.01;

    NSString *newValue = [[NSString alloc] initWithFormat:@"%.2f", progress.progress];
    lblResult.text = newValue;

    if(progress.progress == 1.0)
    {
        lblResult.text = @"Load Finished!";
        [timer invalidate];
    }
}









คำอธิบาย ในตัวอย่างจะใช้ Timer ในการหน่วงเวลา โดยใช้หน่วง 0.10 วินาที หลังจากนั้นจะ Update สถานะใน Method ของ setCustomProgress และใน Method ของ setCustomProgress จะทำการ Update สถานะของ Progress View โดยให้เพิ่มสถานะครั้งล่ะ 0.01 จนถึง 1.00 และเมื่อสถานะ ถึง 1.00 ก็จะหยุดการทำงาน

Screenshot

iOS/iPhone Progress View (UIProgressView) Example

กดปุ่ม Start เพื่อเริ่มการทำงาน โดยจะแสดงสถานะทั้ง Progress View และบน Label

iOS/iPhone Progress View (UIProgressView) Example

ถึง 1.00 ก็จะหยุดการทำงาน

เพิ่มเติม จากตัวอย่างจะเห็นว่าใน Label จะมีค่าเป็น 0.00 ถึง 1.00 แต่ถ้าเราต้องการเปลี่ยนเป็นตัวเลข 1 ถึง 100 เราสามารถเอา 100 ไปหารค่าเหล่านั้น ก็จะได้เป็นตัวเลข 1-100 ตามต้องการ

Code ทั้งหมดของ .h และ .m ในภาษา Objective-C

ViewController.h
//
//  ViewController.h
//  progressViewApp
//
//  Created by Weerachai on 11/10/55 BE.
//  Copyright (c) 2555 Weerachai. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface ViewController : UIViewController
{
    IBOutlet UIProgressView *progress;
    IBOutlet UILabel *lblResult;

     NSTimer *timer;
}

- (IBAction)btnStart:(id)sender;

- (void) setCustomProgress;

@end


ViewController.m
//
//  ViewController.m
//  progressViewApp
//
//  Created by Weerachai on 11/10/55 BE.
//  Copyright (c) 2555 Weerachai. All rights reserved.
//

#import "ViewController.h"

@interface ViewController ()

@end

@implementation ViewController

- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view, typically from a nib.
}

- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

- (IBAction)btnStart:(id)sender {
    [progress setProgress:0.0];
    timer = [NSTimer scheduledTimerWithTimeInterval:0.10 target:self selector:@selector(setCustomProgress) userInfo:nil repeats:YES];
}

- (void) setCustomProgress
{
    progress.progress = progress.progress + 0.01;

    NSString *newValue = [[NSString alloc] initWithFormat:@"%.2f", progress.progress];
    lblResult.text = newValue;

    if(progress.progress == 1.0)
    {
        lblResult.text = @"Load Finished!";
        [timer invalidate];
    }
}

- (void)dealloc {
    [progress release];
    [lblResult release];
    [super dealloc];
}

@end



.
