Android Google Map : Search and Find Location

Android Google Map : Search and Find Location ในหัวข้อนี้จะเป็นการเขียน Android App กับ Google Map API เพื่อ Search หรือค้นหาตำแหน่งต่าง ๆ ที่อยู่บน Google Map โดยใช้ชุดคำสั่งคลาสของ Geocoder โดยจะออกแบบหน้าจอให้รับ Input จากผู้ใช้ เมื่อผู้ใช้ทำการค้นหาสถานที่ (Location) จาก Keyword โปรแกรมจะทำการไปค้นหาสถานที่ต่าง ๆ ที่อยู่บน Google Map พร้อมกับปักหมุดและแสดง Tooltip ของ Location นั้น ๆ



Android Google Map : Search and Find Location


สำหรับตัวอย่างและ Code นี้รองรับการเขียนทั้งบนโปรแกรม Eclipse และ Android Studio

ใน AndroidManifest.xml เพิ่ม Permission ดังนี้
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="com.google.android.providers.gsf.permission.READ_GSERVICES" />
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />


รูปแบบการ Search and Find Location บน Google Map

Marker Syntax (Multiple)
Geocoder geocoder = new Geocoder(getBaseContext());
addresses = geocoder.getFromLocationName("Search Location", 3);

for(int i=0;i<addresses.size();i++){
	Address address = (Address) addresses.get(i);
	latLng = new LatLng(address.getLatitude(), address.getLongitude());

	//String addressText = String.format("%s, %s",
	//address.getMaxAddressLineIndex() > 0 ? address.getAddressLine(0) : "",
	//address.getCountryName());
}


Example 1 : ตัวอย่างการเขียน Android App เพื่อ Find/Search ค้นหา Location บน Google Map

Android Google Map : Search and Find Location

activity_main.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity" >

    <RelativeLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <Button
            android:id="@+id/btnSearch"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Search"
            android:layout_alignParentRight="true" />

        <EditText
            android:id="@+id/txtKeyword"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:inputType="text"
            android:hint="Input Location"
            android:layout_toLeftOf="@id/btnSearch" />

    </RelativeLayout>

    <fragment
        android:id="@+id/googleMap"
        android:name="com.google.android.gms.maps.SupportMapFragment"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent" />

</LinearLayout>









MainActivity.java
package com.myapp;

import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;

import android.location.Address;
import android.location.Geocoder;
import android.os.AsyncTask;
import android.os.Bundle;
import android.support.v4.app.FragmentActivity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.RadioButton;
import android.widget.Toast;

import java.io.IOException;
import java.util.List;

import com.google.android.gms.maps.CameraUpdateFactory;

public class MainActivity extends FragmentActivity {

	// Google Map
	private GoogleMap googleMap;

	// Latitude & Longitude
	private Double Latitude  = 13.844205;
	private Double Longitude  = 100.598856;

	// RadioButton
	RadioButton rdoNormal, rdoHybrid, rdoSatellite, rdoTerrain;

	LatLng latLng;
	MarkerOptions markerOptions;

	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

            //*** Display Google Map
            googleMap = ((SupportMapFragment)getSupportFragmentManager()
                    .findFragmentById(R.id.googleMap)).getMap();

            LatLng coordinate = new LatLng(Latitude, Longitude);

            //*** Focus & Zoom
            googleMap.setMapType(com.google.android.gms.maps.GoogleMap.MAP_TYPE_HYBRID);
            googleMap.animateCamera(CameraUpdateFactory.newLatLngZoom(coordinate, 17));

            //*** Zoom Control
            googleMap.getUiSettings().setRotateGesturesEnabled(true);

            //*** Keyword
            final EditText txtKeyword = (EditText) findViewById(R.id.txtKeyword);

            //*** Button Search
            Button btnSearch = (Button) findViewById(R.id.btnSearch);
            btnSearch.setOnClickListener(new View.OnClickListener() {
                public void onClick(View v) {
                	new GeocoderTask().execute(txtKeyword.getText().toString());
                }
            });

	}

    //*** An AsyncTask Background Process
    private class GeocoderTask extends AsyncTask<String, Void, List<Address>>{

        @Override
        protected List<Address> doInBackground(String... locationName) {
            Geocoder geocoder = new Geocoder(getBaseContext());
            List<Address> addresses = null;

            try {
                // Getting a maximum of 3 Address that matches the input text
                addresses = geocoder.getFromLocationName(locationName[0], 3);
            } catch (IOException e) {
                e.printStackTrace();
            }
            return addresses;
        }

        @Override
        protected void onPostExecute(List<Address> addresses) {

            if(addresses==null || addresses.size()==0){
                Toast.makeText(getBaseContext(), "No Location found", Toast.LENGTH_SHORT).show();
            }

            // Clears all the existing markers on the map
            googleMap.clear();

            // Adding Markers on Google Map for each matching address
            for(int i=0;i<addresses.size();i++){

                Address address = (Address) addresses.get(i);

                // Creating an instance of GeoPoint, to display in Google Map
                latLng = new LatLng(address.getLatitude(), address.getLongitude());

                String addressText = String.format("%s, %s",
                address.getMaxAddressLineIndex() > 0 ? address.getAddressLine(0) : "",
                address.getCountryName());

                markerOptions = new MarkerOptions();
                markerOptions.position(latLng);
                markerOptions.title(addressText);

                googleMap.addMarker(markerOptions);

                // Locate the first location
                if(i==0)
                {
                    googleMap.animateCamera(CameraUpdateFactory.newLatLng(latLng));
                }
            }
        }
    }

}

จาก Code นี้จะทำการค้นหา Location และปักหมุดลงบน Google Map








Screenshot

Android Google Map : Search and Find Location

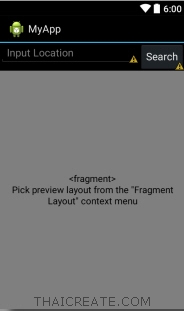

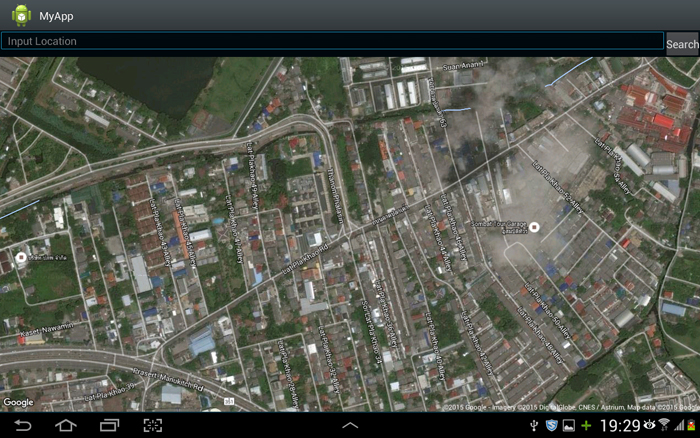

หน้าจอของ App จะมีช่อง Input สำหรับกรอก Keyword ที่ต้องการ

Android Google Map : Search and Find Location

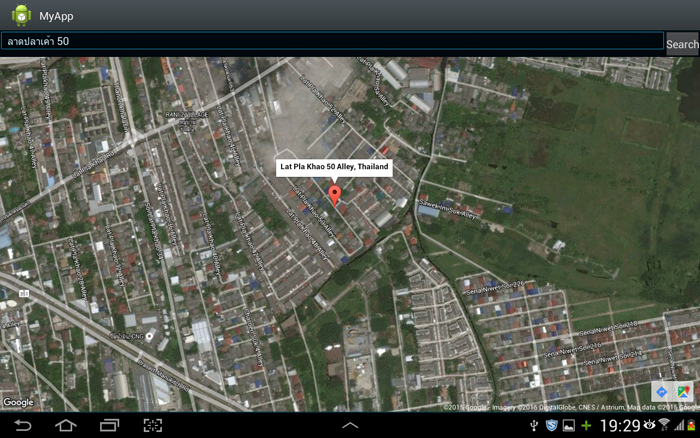

ค้นหา Location และปักหมุดลงบน Location
