Android Loading JSON and ProgressBar/ProgressDialog

Android Loading JSON and ProgressBar/ProgressDialog บทความนี้ค่อนข้างจะ Advanced จะเป็นการเขียน Android เพื่อดึงข้อมูลจาก Server ในรูปแบบของ JSON และการแสดงข้อมูลอื่น ๆ จาก Server เช่นรูปภาพ แสดงผลใน ImageView ของ Column โดยในขณะที่กำลังโหลดข้อมูลจาก Server จะใช้ ProgressBar และ ProgressDialog ควบคุมการแสดงสถานะการทำงานในแต่ล่ะขั้นตอน

ในตัวอย่างนี้จะแบ่งการทำงานเป็น 2 ขั้นตอนคือ

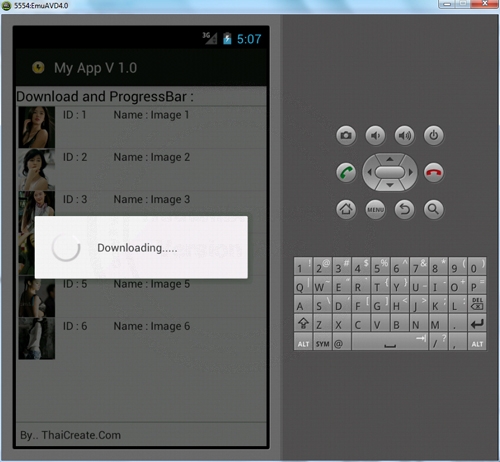

- โหลดข้อมูลแต่ล่ะรายการมาแสดงใน ListView (ในขณะที่โหลดข้อมูลจะแสดง ProgressBar)

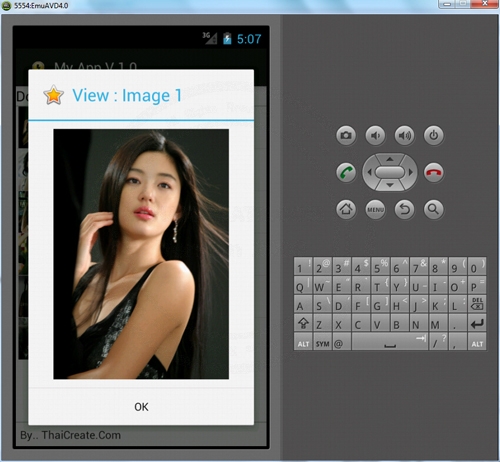

- เมื่อคลิกแต่ล่ะ Item ของ ListView แสดง Full Image (ในขณะที่โหลดข้อมูลจะแสดง ProgressBar)

โดยใน Column ของ ListView ที่เป็น ImageView จะแสดงภาพที่เป็น Thumbnail และเมื่อคลิกแต่ล่ะ Items จะแสดงภาพจาก Full Photo

Android Loading JSON and ProgressBar/ProgressDialog

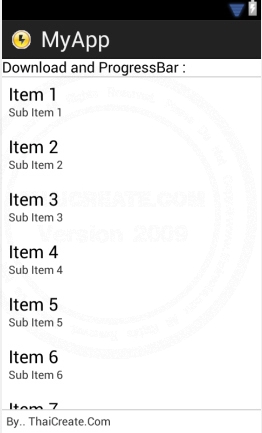

รูปภาพประกอบแสดงตัวอย่างการทำงาน และการแสดง ProgressBar ในขณะที่กำลังโหลดข้อมูลจาก Server


AndroidManifest.xml
<uses-permission android:name="android.permission.INTERNET" />

ในการเขียน Android เพื่อติดต่อกับ Internet จะต้องกำหนด Permission ในส่วนนี้ด้วยทุกครั้ง

Web Server

ชื่อตางราง MySQL ว่า images โดยจัดเก็บชื่อรุปภาพ และ Path ของ Thumbnail , FullPhoto

images
CREATE TABLE IF NOT EXISTS `images` (
  `ImageID` int(11) NOT NULL auto_increment,
  `ImageName` varchar(50) NOT NULL,
  `ImagePath_Thumbnail` varchar(150) NOT NULL,
  `ImagePath_FullPhoto` varchar(150) NOT NULL,
  PRIMARY KEY  (`ImageID`)
) ENGINE=MyISAM  AUTO_INCREMENT=7 ;

--
-- Dumping data for table `images`
--

INSERT INTO `images` (`ImageID`, `ImageName`, `ImagePath_Thumbnail`, `ImagePath_FullPhoto`) VALUES
(1, 'Image 1', 'https://www.thaicreate.com/android/img1_thum.jpg', 'https://www.thaicreate.com/android/img1_full.jpg'),
(2, 'Image 2', 'https://www.thaicreate.com/android/img2_thum.jpg', 'https://www.thaicreate.com/android/img2_full.jpg'),
(3, 'Image 3', 'https://www.thaicreate.com/android/img3_thum.jpg', 'https://www.thaicreate.com/android/img3_full.jpg'),
(4, 'Image 4', 'https://www.thaicreate.com/android/img4_thum.jpg', 'https://www.thaicreate.com/android/img4_full.jpg'),
(5, 'Image 5', 'https://www.thaicreate.com/android/img5_thum.jpg', 'https://www.thaicreate.com/android/img5_full.jpg'),
(6, 'Image 6', 'https://www.thaicreate.com/android/img6_thum.jpg', 'https://www.thaicreate.com/android/img6_full.jpg');

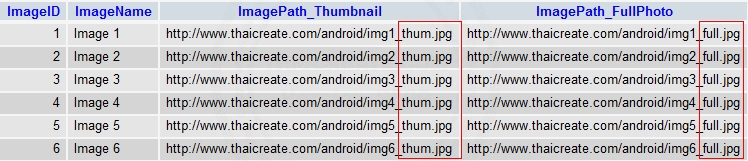

โครงสร้างของ MySQL Database

Android Loading JSON and ProgressBar/ProgressDialog

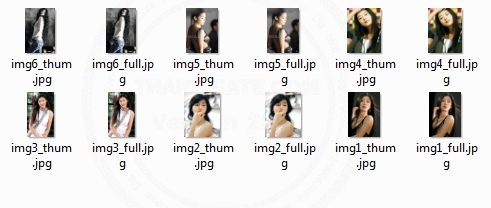

ไฟล์รุปภาพที่ถูกจัดเก็บไว้ใน Web Server

Android Loading JSON and ProgressBar/ProgressDialog

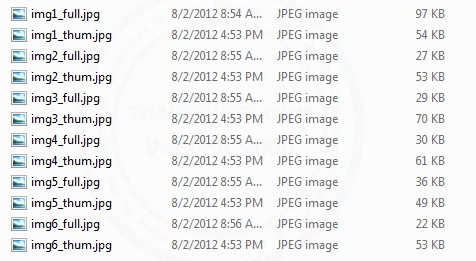

จะเห็นว่าไฟล์ Thumbnail และ Full จะมีขนาดและ Size ที่ต่างกัน

Android Loading JSON and ProgressBar/ProgressDialog

getJSON.php
<?php
	$objConnect = mysql_connect("localhost","root","root");
	$objDB = mysql_select_db("mydatabase");

	$strSQL = "SELECT * FROM images WHERE 1  ";
	$objQuery = mysql_query($strSQL);
	$intNumField = mysql_num_fields($objQuery);
	$resultArray = array();
	while($obResult = mysql_fetch_array($objQuery))
	{
		$arrCol = array();
		for($i=0;$i<$intNumField;$i++)
		{
			$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
		}
		array_push($resultArray,$arrCol);
	}

	mysql_close($objConnect);

	echo json_encode($resultArray);
?>

ไฟล์ php ในฝั่ง Server ที่จะส่งข้อมูลให้กับ Android

Android HttpGet and HttpPost

พื้นฐานให้อ่านบทความ HttpGet กับ HttpPost จะได้เข้าใจง่ายขึ้








Android Project

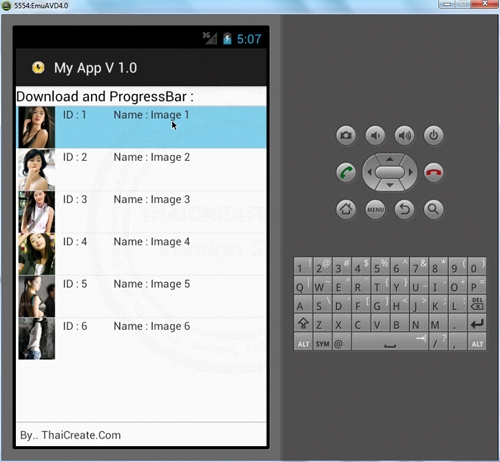

Example 1 แสดงข้อมูลจาก Web Server ทั้งข้อความและรูปภาพลงในรายการของ ListView

โครงสร้างของไฟล์ประกอบด้วย 3 ไฟล์คือ MainActivity.java, activity_main.xml และ activity_column.xml

Android Loading JSON and ProgressBar/ProgressDialog

activity_main.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/tableLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent">

   	<TableRow
      android:id="@+id/tableRow1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content" >

     <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="Download and ProgressBar : "
        android:layout_span="1"
        android:textAppearance="?android:attr/textAppearanceMedium" />

 	</TableRow>

	<View
		android:layout_height="1dip"
		android:background="#CCCCCC" />

  <LinearLayout
        android:orientation="horizontal"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_weight="0.1">

     <ListView
         android:id="@+id/listView1"
         android:layout_width="match_parent"
         android:layout_height="wrap_content">
     </ListView>

 	</LinearLayout>

	<View
		android:layout_height="1dip"
		android:background="#CCCCCC" />

   	<LinearLayout
      android:id="@+id/LinearLayout1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:padding="5dip" >

   		<TextView
   		    android:id="@+id/textView2"
   		    android:layout_width="wrap_content"
   		    android:layout_height="wrap_content"
   		    android:text="By.. ThaiCreate.Com" />

	</LinearLayout>

</TableLayout>


activity_column.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/tableLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent" >

    <TableRow
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" >

        <ImageView
            android:id="@+id/ColImgPath"
	        android:layout_width="wrap_content"
	        android:layout_height="wrap_content"
            />

        <TextView
            android:id="@+id/ColImgID"
            android:text="Column 1" />

        <TextView
            android:id="@+id/ColImgName"
            android:text="Column 2" />

    </TableRow>


</TableLayout>


MainActivity.java
package com.myapp;

import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.Closeable;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.URL;
import java.util.ArrayList;
import java.util.HashMap;

import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;

import android.os.AsyncTask;
import android.os.Bundle;
import android.os.StrictMode;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.Dialog;
import android.app.ProgressDialog;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Menu;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends Activity {

	public static final int DIALOG_DOWNLOAD_JSON_PROGRESS = 0;
    private ProgressDialog mProgressDialog;

    ArrayList<HashMap<String, Object>> MyArrList;


    @SuppressLint("NewApi")
	@Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Permission StrictMode
        if (android.os.Build.VERSION.SDK_INT > 9) {
            StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
            StrictMode.setThreadPolicy(policy);
        }

	    // Download JSON File
		new DownloadJSONFileAsync().execute();

    }


    @Override
    protected Dialog onCreateDialog(int id) {
        switch (id) {
        case DIALOG_DOWNLOAD_JSON_PROGRESS:
            mProgressDialog = new ProgressDialog(this);
            mProgressDialog.setMessage("Downloading.....");
            mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
            mProgressDialog.setCancelable(true);
            mProgressDialog.show();
            return mProgressDialog;
        default:
            return null;
        }
    }

    // Show All Content
    public void ShowAllContent()
    {
        // listView1
        final ListView lstView1 = (ListView)findViewById(R.id.listView1);
        lstView1.setAdapter(new ImageAdapter(MainActivity.this,MyArrList));

    }



    public class ImageAdapter extends BaseAdapter
    {
        private Context context;
        private ArrayList<HashMap<String, Object>> MyArr = new ArrayList<HashMap<String, Object>>();

        public ImageAdapter(Context c, ArrayList<HashMap<String, Object>> myArrList)
        {
        	// TODO Auto-generated method stub
            context = c;
            MyArr = myArrList;
        }

        public int getCount() {
        	// TODO Auto-generated method stub
            return MyArr.size();
        }

        public Object getItem(int position) {
        	// TODO Auto-generated method stub
            return position;
        }

        public long getItemId(int position) {
        	// TODO Auto-generated method stub
            return position;
        }
		public View getView(int position, View convertView, ViewGroup parent) {
			// TODO Auto-generated method stub

			LayoutInflater inflater = (LayoutInflater) context
					.getSystemService(Context.LAYOUT_INFLATER_SERVICE);


			if (convertView == null) {
				convertView = inflater.inflate(R.layout.activity_column, null);
			}

			// ColImage
			ImageView imageView = (ImageView) convertView.findViewById(R.id.ColImgPath);
			imageView.getLayoutParams().height = 80;
			imageView.getLayoutParams().width = 80;
			imageView.setPadding(5, 5, 5, 5);
			imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
        	 try
        	 {
        		 imageView.setImageBitmap((Bitmap)MyArr.get(position).get("ImageThumBitmap"));
        	 } catch (Exception e) {
        		 // When Error
        		 imageView.setImageResource(android.R.drawable.ic_menu_report_image);
        	 }

			// ColImgID
			TextView txtImgID = (TextView) convertView.findViewById(R.id.ColImgID);
			txtImgID.setPadding(10, 0, 0, 0);
			txtImgID.setText("ID : " + MyArr.get(position).get("ImageID").toString());

			// ColImgName
			TextView txtPicName = (TextView) convertView.findViewById(R.id.ColImgName);
			txtPicName.setPadding(50, 0, 0, 0);
			txtPicName.setText("Name : " + MyArr.get(position).get("ImageName").toString());

			return convertView;

		}

    }



    // Download JSON in Background
    public class DownloadJSONFileAsync extends AsyncTask<String, Void, Void> {

        protected void onPreExecute() {
        	super.onPreExecute();
        	showDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
        }

        @Override
        protected Void doInBackground(String... params) {
            // TODO Auto-generated method stub

            /** JSON from URL
             * [
             * {"ImageID":"1","ImageName":"Image 1","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img1_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img1_full.jpg"},
             * {"ImageID":"2","ImageName":"Image 2","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img2_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img2_full.jpg"},
             * {"ImageID":"3","ImageName":"Image 3","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img3_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img3_full.jpg"},
             * {"ImageID":"4","ImageName":"Image 4","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img4_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img4_full.jpg"},
             * {"ImageID":"5","ImageName":"Image 5","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img5_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img5_full.jpg"},
             * {"ImageID":"6","ImageName":"Image 6","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img6_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img6_full.jpg"}
             * ]
             */

        	String url = "https://www.thaicreate.com/android/getJSON.php";

        	JSONArray data;
			try {
				data = new JSONArray(getJSONUrl(url));

		    	MyArrList = new ArrayList<HashMap<String, Object>>();
				HashMap<String, Object> map;

				for(int i = 0; i < data.length(); i++){
	                JSONObject c = data.getJSONObject(i);
	    			map = new HashMap<String, Object>();
	    			map.put("ImageID", (String)c.getString("ImageID"));
	    			map.put("ImageName", (String)c.getString("ImageName"));

	    			// Thumbnail Get ImageBitmap To Object
	    			map.put("ImagePathThum", (String)c.getString("ImagePath_Thumbnail"));
	    			map.put("ImageThumBitmap", (Bitmap)loadBitmap(c.getString("ImagePath_Thumbnail")));

	    			// Full (for View Popup)
	    			map.put("ImagePathFull", (String)c.getString("ImagePath_FullPhoto"));

	    			MyArrList.add(map);
				}


			} catch (JSONException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}

    		return null;
        }

        protected void onPostExecute(Void unused) {
        	ShowAllContent(); // When Finish Show Content
            dismissDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
            removeDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
        }


    }


    /*** Get JSON Code from URL ***/
  	public String getJSONUrl(String url) {
  		StringBuilder str = new StringBuilder();
  		HttpClient client = new DefaultHttpClient();
  		HttpGet httpGet = new HttpGet(url);
  		try {
  			HttpResponse response = client.execute(httpGet);
  			StatusLine statusLine = response.getStatusLine();
  			int statusCode = statusLine.getStatusCode();
  			if (statusCode == 200) { // Download OK
  				HttpEntity entity = response.getEntity();
  				InputStream content = entity.getContent();
  				BufferedReader reader = new BufferedReader(new InputStreamReader(content));
  				String line;
  				while ((line = reader.readLine()) != null) {
  					str.append(line);
  				}
  			} else {
  				Log.e("Log", "Failed to download file..");
  			}
  		} catch (ClientProtocolException e) {
  			e.printStackTrace();
  		} catch (IOException e) {
  			e.printStackTrace();
  		}
  		return str.toString();
  	}


  	/***** Get Image Resource from URL (Start) *****/
	private static final String TAG = "Image";
	private static final int IO_BUFFER_SIZE = 4 * 1024;
	public static Bitmap loadBitmap(String url) {
	    Bitmap bitmap = null;
	    InputStream in = null;
	    BufferedOutputStream out = null;

	    try {
	        in = new BufferedInputStream(new URL(url).openStream(), IO_BUFFER_SIZE);

	        final ByteArrayOutputStream dataStream = new ByteArrayOutputStream();
	        out = new BufferedOutputStream(dataStream, IO_BUFFER_SIZE);
	        copy(in, out);
	        out.flush();

	        final byte[] data = dataStream.toByteArray();
	        BitmapFactory.Options options = new BitmapFactory.Options();
	        //options.inSampleSize = 1;

	        bitmap = BitmapFactory.decodeByteArray(data, 0, data.length,options);
	    } catch (IOException e) {
	        Log.e(TAG, "Could not load Bitmap from: " + url);
	    } finally {
	        closeStream(in);
	        closeStream(out);
	    }

	    return bitmap;
	}

	 private static void closeStream(Closeable stream) {
	        if (stream != null) {
	            try {
	                stream.close();
	            } catch (IOException e) {
	                android.util.Log.e(TAG, "Could not close stream", e);
	            }
	        }
	    }

	 private static void copy(InputStream in, OutputStream out) throws IOException {
        byte[] b = new byte[IO_BUFFER_SIZE];
        int read;
        while ((read = in.read(b)) != -1) {
            out.write(b, 0, read);
        }
    }
	 /***** Get Image Resource from URL (End) *****/

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}


Screenshot

Android Loading JSON and ProgressBar/ProgressDialog

กำลังโหลดข้อมูล และแสดงผล Progress Dialog

Android Loading JSON and ProgressBar/ProgressDialog

หลังจากโหลดเรียบร้อยแล้วจะแสดงข้อมูลทาง ListView และ Progress Dialog ก็จะหายไป








Example 1.1 เมื่อคลิกที่รูปภาพจะแสดง ProgressBar เพื่อโหลดข้อมูลและแสดงรูปภาพหลังจากที่โหลดเรียบร้อยแล้ว

เพ่มไฟล์ custom_fullimage_dialog.xml และแก้ไข MainActivity.java

custom_fullimage_dialog.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/layout_root"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="horizontal"
    android:padding="10dp" >


    <ImageView
        android:id="@+id/fullimage"
        android:layout_width="match_parent"
        android:layout_height="320dp" />

    <TextView android:id="@+id/custom_fullimage_placename"
        android:layout_width="wrap_content" android:layout_height="fill_parent"
        android:textColor="#FFF">
    </TextView>
</LinearLayout>


MainActivity.java
package com.myapp;

import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.Closeable;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.URL;
import java.util.ArrayList;
import java.util.HashMap;

import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;

import android.os.AsyncTask;
import android.os.Bundle;
import android.os.StrictMode;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.AlertDialog;
import android.app.Dialog;
import android.app.ProgressDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Menu;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends Activity {

	public static final int DIALOG_DOWNLOAD_JSON_PROGRESS = 0;
	public static final int DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS = 1;
    private ProgressDialog mProgressDialog;

    ArrayList<HashMap<String, Object>> MyArrList;


    @SuppressLint("NewApi")
	@Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Permission StrictMode
        if (android.os.Build.VERSION.SDK_INT > 9) {
            StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
            StrictMode.setThreadPolicy(policy);
        }

	    // Download JSON File
		new DownloadJSONFileAsync().execute();

    }


    @Override
    protected Dialog onCreateDialog(int id) {
        switch (id) {
        case DIALOG_DOWNLOAD_JSON_PROGRESS:
            mProgressDialog = new ProgressDialog(this);
            mProgressDialog.setMessage("Downloading.....");
            mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
            mProgressDialog.setCancelable(true);
            mProgressDialog.show();
            return mProgressDialog;
        case DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS:
            mProgressDialog = new ProgressDialog(this);
            mProgressDialog.setMessage("Downloading.....");
            mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
            mProgressDialog.setCancelable(true);
            mProgressDialog.show();
            return mProgressDialog;
        default:
            return null;
        }
    }

    // Show All Content
    public void ShowAllContent()
    {
        // listView1
        final ListView lstView1 = (ListView)findViewById(R.id.listView1);
        lstView1.setAdapter(new ImageAdapter(MainActivity.this,MyArrList));

        // OnClick
        lstView1.setOnItemClickListener(new OnItemClickListener() {
			public void onItemClick(AdapterView<?> parent, View v,
				int position, long id) {
				String strImageName = MyArrList.get(position).get("ImageName").toString();
				String strImagePathFull = MyArrList.get(position).get("ImagePathFull").toString();

				new DownloadFullPhotoFileAsync().execute(strImageName,strImagePathFull); // Download file Full Photo
			}
		});
    }

    // Show Dialog Popup
    public void showDialogPopup(String strImageName,Bitmap ImageFullPhoto)
    {

        final AlertDialog.Builder imageDialog = new AlertDialog.Builder(this);
        final LayoutInflater inflater = (LayoutInflater) this.getSystemService(LAYOUT_INFLATER_SERVICE);


    	  View layout = inflater.inflate(R.layout.custom_fullimage_dialog,
                  (ViewGroup) findViewById(R.id.layout_root));
          ImageView image = (ImageView) layout.findViewById(R.id.fullimage);

         	 try
         	 {
         		image.setImageBitmap(ImageFullPhoto);
         	 } catch (Exception e) {
         		 // When Error
         		image.setImageResource(android.R.drawable.ic_menu_report_image);
         	 }

          imageDialog.setIcon(android.R.drawable.btn_star_big_on);
  		  imageDialog.setTitle("View : " + strImageName);
          imageDialog.setView(layout);
          imageDialog.setPositiveButton(android.R.string.ok, new DialogInterface.OnClickListener(){

              public void onClick(DialogInterface dialog, int which) {
                  dialog.dismiss();
              }

          });

          imageDialog.create();
          imageDialog.show();

    }


    public class ImageAdapter extends BaseAdapter
    {
        private Context context;
        private ArrayList<HashMap<String, Object>> MyArr = new ArrayList<HashMap<String, Object>>();

        public ImageAdapter(Context c, ArrayList<HashMap<String, Object>> myArrList)
        {
        	// TODO Auto-generated method stub
            context = c;
            MyArr = myArrList;
        }

        public int getCount() {
        	// TODO Auto-generated method stub
            return MyArr.size();
        }

        public Object getItem(int position) {
        	// TODO Auto-generated method stub
            return position;
        }

        public long getItemId(int position) {
        	// TODO Auto-generated method stub
            return position;
        }
		public View getView(int position, View convertView, ViewGroup parent) {
			// TODO Auto-generated method stub

			LayoutInflater inflater = (LayoutInflater) context
					.getSystemService(Context.LAYOUT_INFLATER_SERVICE);


			if (convertView == null) {
				convertView = inflater.inflate(R.layout.activity_column, null);
			}

			// ColImage
			ImageView imageView = (ImageView) convertView.findViewById(R.id.ColImgPath);
			imageView.getLayoutParams().height = 80;
			imageView.getLayoutParams().width = 80;
			imageView.setPadding(5, 5, 5, 5);
			imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
        	 try
        	 {
        		 imageView.setImageBitmap((Bitmap)MyArr.get(position).get("ImageThumBitmap"));
        	 } catch (Exception e) {
        		 // When Error
        		 imageView.setImageResource(android.R.drawable.ic_menu_report_image);
        	 }

			// ColImgID
			TextView txtImgID = (TextView) convertView.findViewById(R.id.ColImgID);
			txtImgID.setPadding(10, 0, 0, 0);
			txtImgID.setText("ID : " + MyArr.get(position).get("ImageID").toString());

			// ColImgName
			TextView txtPicName = (TextView) convertView.findViewById(R.id.ColImgName);
			txtPicName.setPadding(50, 0, 0, 0);
			txtPicName.setText("Name : " + MyArr.get(position).get("ImageName").toString());

			return convertView;

		}

    }



    // Download JSON in Background
    public class DownloadJSONFileAsync extends AsyncTask<String, Void, Void> {

        protected void onPreExecute() {
        	super.onPreExecute();
        	showDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
        }

        @Override
        protected Void doInBackground(String... params) {
            // TODO Auto-generated method stub

            /** JSON from URL
             * [
             * {"ImageID":"1","ImageName":"Image 1","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img1_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img1_full.jpg"},
             * {"ImageID":"2","ImageName":"Image 2","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img2_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img2_full.jpg"},
             * {"ImageID":"3","ImageName":"Image 3","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img3_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img3_full.jpg"},
             * {"ImageID":"4","ImageName":"Image 4","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img4_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img4_full.jpg"},
             * {"ImageID":"5","ImageName":"Image 5","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img5_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img5_full.jpg"},
             * {"ImageID":"6","ImageName":"Image 6","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img6_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img6_full.jpg"}
             * ]
             */

        	String url = "https://www.thaicreate.com/android/getJSON.php";

        	JSONArray data;
			try {
				data = new JSONArray(getJSONUrl(url));

		    	MyArrList = new ArrayList<HashMap<String, Object>>();
				HashMap<String, Object> map;

				for(int i = 0; i < data.length(); i++){
	                JSONObject c = data.getJSONObject(i);
	    			map = new HashMap<String, Object>();
	    			map.put("ImageID", (String)c.getString("ImageID"));
	    			map.put("ImageName", (String)c.getString("ImageName"));

	    			// Thumbnail Get ImageBitmap To Object
	    			map.put("ImagePathThum", (String)c.getString("ImagePath_Thumbnail"));
	    			map.put("ImageThumBitmap", (Bitmap)loadBitmap(c.getString("ImagePath_Thumbnail")));

	    			// Full (for View Popup)
	    			map.put("ImagePathFull", (String)c.getString("ImagePath_FullPhoto"));

	    			MyArrList.add(map);
				}


			} catch (JSONException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			}

    		return null;
        }

        protected void onPostExecute(Void unused) {
        	ShowAllContent(); // When Finish Show Content
            dismissDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
            removeDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
        }


    }

    // Download Full Photo in Background
    public class DownloadFullPhotoFileAsync extends AsyncTask<String, Void, Void> {

    	String strImageName = "";
    	String ImageFullPhoto = "";

    	Bitmap ImageFullBitmap = null;

        protected void onPreExecute() {
        	super.onPreExecute();
        	showDialog(DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS);
        }

        @Override
        protected Void doInBackground(String... params) {
        	strImageName = params[0];
            ImageFullPhoto = params[1];

            ImageFullBitmap = (Bitmap)loadBitmap(ImageFullPhoto);
    		return null;
        }

        protected void onPostExecute(Void unused) {
        	showDialogPopup(strImageName,ImageFullBitmap); // When Finish Show Popup
            dismissDialog(DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS);
            removeDialog(DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS);
        }


    }


    /*** Get JSON Code from URL ***/
  	public String getJSONUrl(String url) {
  		StringBuilder str = new StringBuilder();
  		HttpClient client = new DefaultHttpClient();
  		HttpGet httpGet = new HttpGet(url);
  		try {
  			HttpResponse response = client.execute(httpGet);
  			StatusLine statusLine = response.getStatusLine();
  			int statusCode = statusLine.getStatusCode();
  			if (statusCode == 200) { // Download OK
  				HttpEntity entity = response.getEntity();
  				InputStream content = entity.getContent();
  				BufferedReader reader = new BufferedReader(new InputStreamReader(content));
  				String line;
  				while ((line = reader.readLine()) != null) {
  					str.append(line);
  				}
  			} else {
  				Log.e("Log", "Failed to download file..");
  			}
  		} catch (ClientProtocolException e) {
  			e.printStackTrace();
  		} catch (IOException e) {
  			e.printStackTrace();
  		}
  		return str.toString();
  	}


  	/***** Get Image Resource from URL (Start) *****/
	private static final String TAG = "Image";
	private static final int IO_BUFFER_SIZE = 4 * 1024;
	public static Bitmap loadBitmap(String url) {
	    Bitmap bitmap = null;
	    InputStream in = null;
	    BufferedOutputStream out = null;

	    try {
	        in = new BufferedInputStream(new URL(url).openStream(), IO_BUFFER_SIZE);

	        final ByteArrayOutputStream dataStream = new ByteArrayOutputStream();
	        out = new BufferedOutputStream(dataStream, IO_BUFFER_SIZE);
	        copy(in, out);
	        out.flush();

	        final byte[] data = dataStream.toByteArray();
	        BitmapFactory.Options options = new BitmapFactory.Options();
	        //options.inSampleSize = 1;

	        bitmap = BitmapFactory.decodeByteArray(data, 0, data.length,options);
	    } catch (IOException e) {
	        Log.e(TAG, "Could not load Bitmap from: " + url);
	    } finally {
	        closeStream(in);
	        closeStream(out);
	    }

	    return bitmap;
	}

	 private static void closeStream(Closeable stream) {
	        if (stream != null) {
	            try {
	                stream.close();
	            } catch (IOException e) {
	                android.util.Log.e(TAG, "Could not close stream", e);
	            }
	        }
	    }

	 private static void copy(InputStream in, OutputStream out) throws IOException {
        byte[] b = new byte[IO_BUFFER_SIZE];
        int read;
        while ((read = in.read(b)) != -1) {
            out.write(b, 0, read);
        }
    }
	 /***** Get Image Resource from URL (End) *****/

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}




Screenshot

Android Loading JSON and ProgressBar/ProgressDialog

คลิกแต่ล่ะรายการ

Android Loading JSON and ProgressBar/ProgressDialog

กำลังโหลดภาที่เป็น Full Images

Android Loading JSON and ProgressBar/ProgressDialog

แสดงภาพ Full Image จากเว็บไซต์



AsyncTask and ProgressDialog (showDialog, dismissDialog, removeDialog : Deprecated)



Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-08-11 13:08:18 / 2017-03-26 22:56:27
  Download : No files
 Sponsored Links / Related


Android and Custom ProgressBar
Rating :


Android and JSON
Rating :


Android and JSON (GSON)
Rating :


Android and Web Server ของ PHP กับ MySQL แสดงบน ListView ในรูปแบบของ JSON
Rating :


Android JSON Retrieving Data from URL Web Server (PHP MySQL and JSON)
Rating :


Android Indeterminate Progress Bar (FEATURE_INDETERMINATE_PROGRESS)
Rating :


Android Web Service and JSON Parser
Rating :


Android ProgressDialog When Click Item in ListView for Download file from Server
Rating :


Android AsyncTask and ProgressBar
Rating :


Android Multiple Upload Send file to Server and Show Items ProgressBar in ListView
Rating :


Android ProgressBar/ProgressDialog Search Display result Data from Web Server
Rating :


Android SeekBar Control MediaPlayer Progress
Rating :


Android Multiple Download file in ListView and Show Progress unit percentage
Rating :


Android XML Parsing and XML Rss Feed
Rating :


AsyncTask and ProgressDialog (showDialog, dismissDialog, removeDialog : Deprecated)
Rating :


ThaiCreate.Com Forum


Comunity Forum Free Web Script
Jobs Freelance Free Uploads
Free Web Hosting Free Tools

สอน PHP ผ่าน Youtube ฟรี
สอน Android การเขียนโปรแกรม Android
สอน Windows Phone การเขียนโปรแกรม Windows Phone 7 และ 8
สอน iOS การเขียนโปรแกรม iPhone, iPad
สอน Java การเขียนโปรแกรม ภาษา Java
สอน Java GUI การเขียนโปรแกรม ภาษา Java GUI
สอน JSP การเขียนโปรแกรม ภาษา Java
สอน jQuery การเขียนโปรแกรม ภาษา jQuery
สอน .Net การเขียนโปรแกรม ภาษา .Net
Free Tutorial
สอน Google Maps Api
สอน Windows Service
สอน Entity Framework
สอน Android
สอน Java เขียน Java
Java GUI Swing
สอน JSP (Web App)
iOS (iPhone,iPad)
Windows Phone
Windows Azure
Windows Store
Laravel Framework
Yii PHP Framework
สอน jQuery
สอน jQuery กับ Ajax
สอน PHP OOP (Vdo)
Ajax Tutorials
SQL Tutorials
สอน SQL (Part 2)
JavaScript Tutorial
Javascript Tips
VBScript Tutorial
VBScript Validation
Microsoft Access
MySQL Tutorials
-- Stored Procedure
MariaDB Database
SQL Server Tutorial
SQL Server 2005
SQL Server 2008
SQL Server 2012
-- Stored Procedure
Oracle Database
-- Stored Procedure
SVN (Subversion)
แนวทางการทำ SEO
ปรับแต่งเว็บให้โหลดเร็ว


สุดยอด Source Code V2.0


แจ้งชำระเงิน/โอนเงิน


Hit Link








Load balance : Server 01
ThaiCreate.Com Logo
© www.ThaiCreate.Com. 2003-2019 All Rights Reserved.
ไทยครีเอทบริการ จัดทำดูแลแก้ไข Web Application ทุกรูปแบบ (PHP, .Net Application, VB.Net, C#)
[Conditions Privacy Statement] ติดต่อโฆษณา 081-987-6107 , 08-9968-0655 อัตราราคา คลิกที่นี่
