iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer) สำหรับ Rotation Gesture เป็น Gesture บน iOS ในรูปแบบของการใช้ นิ้วตั้งแต่ 2 นิ้วขึ้นไป ทำการหมุ่ม (Rotate) รายการ View หรือ Object ต่าง ๆ บนหน้าจอ Application โดย Rotation Gesture จะใช้ Class ของ UIRotationGestureRecognizer ในการที่จะ Detect Gesture ที่เกิดขึ้น

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)


Rotation Gesture Recognizer (UIRotationGestureRecognizer) อาจจะไม่ค่อยได้พบเจอได้ง่ายนักใน Application ทั่ว ๆ ไป เพราะส่วนมากอาจจะได้ใช้กับ Application ที่เกี่ยวข้องกับ Graphic ซะมากกว่า แต่การใช้งานก็ไม่ได้ยากอะไรมากมาย

การหมุน Rotation Gesture บน iOS Simulator
สามารถใช้การกดปุ่ม Option บน Keyboard แล้วคลิกแล้วหมุ่นเมาส์บนหน้า Simulator


Rotation Gesture Recognizer (UIRotationGestureRecognizer)
01.- (void)viewDidLoad
02.{
03.    [super viewDidLoad];
04.    // Do any additional setup after loading the view, typically from a nib.
05.
06.    // Rotation Gesture
07.    UIRotationGestureRecognizer *rotationGesture =[[UIRotationGestureRecognizer alloc]
08.                                                   initWithTarget: self
09.                                                   action: @selector(rotationGuestureHandle:)];
10.    [[self view] addGestureRecognizer:rotationGesture];
11.}
12.
13.-(void) rotationGuestureHandle:(UIRotationGestureRecognizer *) sender {
14.
15.    NSLog(@"Rotation Gesture Handling");
16.
17.}


Example การใช้ Rotation Gesture (UIRotationGestureRecognizer) ในการหมุ่นรูปภาพ Image View (UIImageView)

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

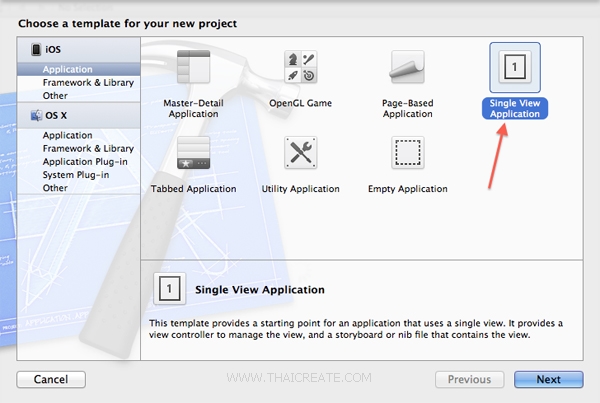

เริ่มต้นด้วยการสร้าง Project บน Xcode แบบง่าย ๆ ด้วย Single View Application



iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

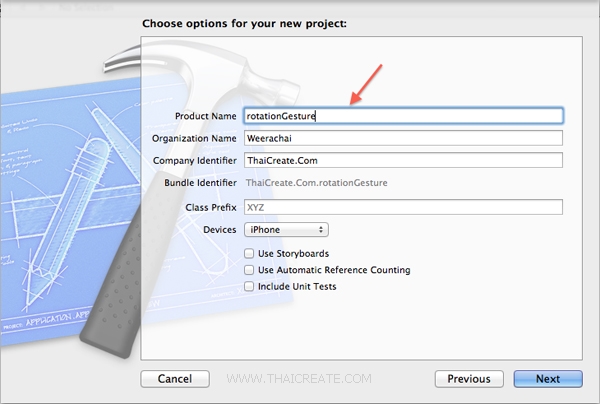

เลือกและไม่เลือกรายการดังรูป

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

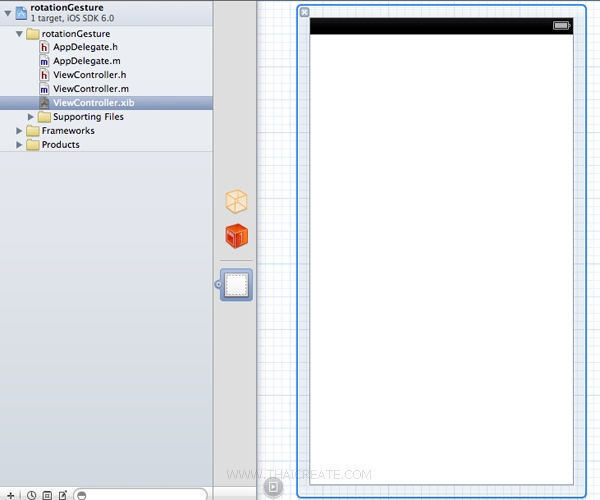

ตอนนี้หน้าจอ View จะยังว่าง ๆ

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

ทำการ Add ไฟล์รูปภาพเข้ามาใน Project

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

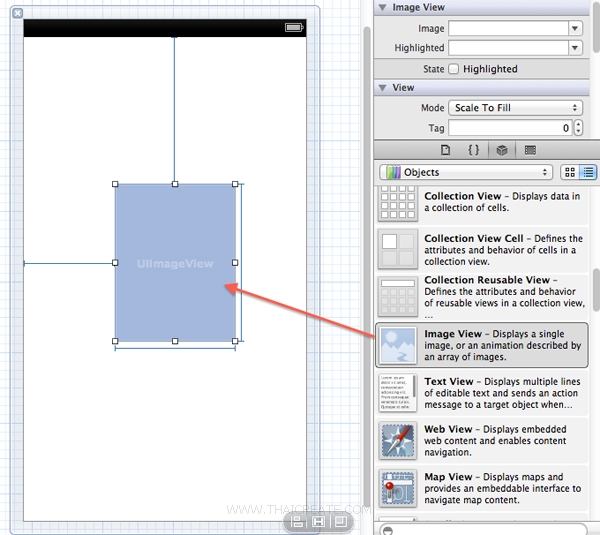

ทำการลาก Object ที่มีชื่อว่า Image View (UIImageView) เข้าในหน้าจอ Design ของ View

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

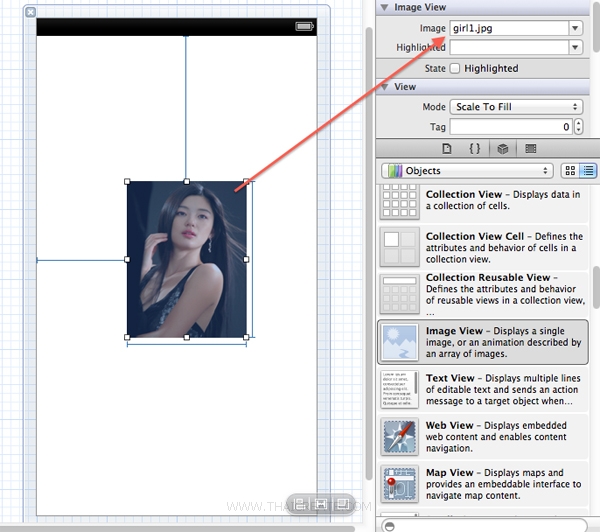

เลือกรูปภาพเพื่อแสดงบน Image View

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

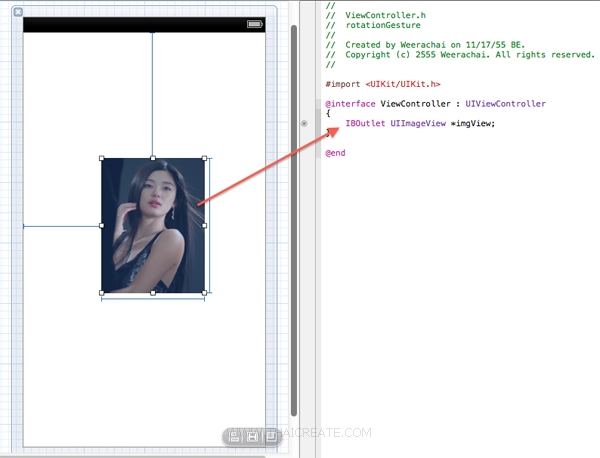

ใน Class ของ .h ให้เชื่อม IBOutlet ให้กับ Image View

Code ทั้งหมดของ .h และ .m ในภาษา Objective-C

ViewController.h
01.//
02.//  ViewController.h
03.//  rotationGesture
04.//
05.//  Created by Weerachai on 11/17/55 BE.
06.//  Copyright (c) 2555 Weerachai. All rights reserved.
07.//
08.
09.#import <UIKit/UIKit.h>
10.
11.@interface ViewController : UIViewController
12.{
13.    IBOutlet UIImageView *imgView;
14.}
15.
16.@end


ViewController.m
01.//
02.//  ViewController.m
03.//  rotationGesture
04.//
05.//  Created by Weerachai on 11/17/55 BE.
06.//  Copyright (c) 2555 Weerachai. All rights reserved.
07.//
08.
09.#import "ViewController.h"
10.
11.@interface ViewController ()
12.
13.@end
14.
15.@implementation ViewController
16.
17.- (void)viewDidLoad
18.{
19.    [super viewDidLoad];
20.    // Do any additional setup after loading the view, typically from a nib.
21.
22.    // Rotation Gesture
23.    UIRotationGestureRecognizer *rotationGesture =[[UIRotationGestureRecognizer alloc]
24.                                                   initWithTarget: self
25.                                                   action: @selector(rotationGuestureHandle:)];
26.    [[self view] addGestureRecognizer:rotationGesture];
27.}
28.
29.-(void) rotationGuestureHandle:(UIRotationGestureRecognizer *) sender {
30.
31.    NSLog(@"Rotation Gesture Handling");
32.
33.    UIRotationGestureRecognizer *rotation = (UIRotationGestureRecognizer *)sender;
34.
35.    CGFloat angle = rotation.rotation;
36.    imgView.transform = CGAffineTransformRotate(imgView.transform, angle);
37.    rotation.rotation=0.0;
38.}
39.
40.- (void)didReceiveMemoryWarning
41.{
42.    [super didReceiveMemoryWarning];
43.    // Dispose of any resources that can be recreated.
44.}
45.
46.- (void)dealloc {
47.    [imgView release];
48.    [super dealloc];
49.}
50.@end

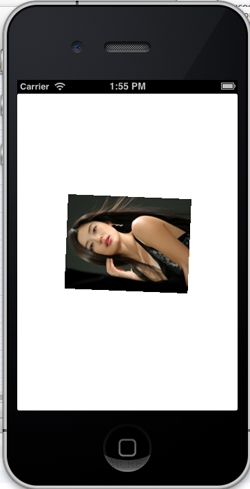

Screenshot

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

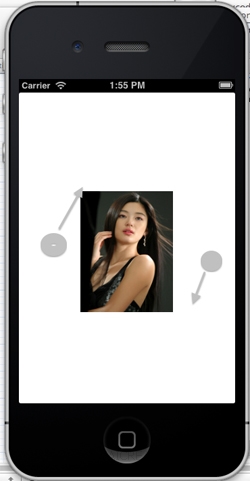

แสดงการปุ่ม Rotation Gesture ของรูปภาพ

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

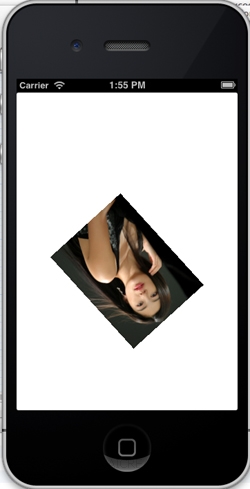

แสดงการปุ่ม Rotation Gesture ของรูปภาพ

iOS/iPhone Rotation Gesture Recognizer (UIRotationGestureRecognizer)

แสดงการปุ่ม Rotation Gesture ของรูปภาพ
