iOS/iPhone Segmented Control (UISegmentedControl) Example (iPhone,iPad)

iOS/iPhone Segmented Control (UISegmentedControl) Example (iPhone,iPad) สำหรับ Segmented Control เป็น Object ที่ใช้สำหรับแบ่ง หรือ แยกย่อยของแต่ล่ะส่วน คล้าย ๆ กับการทำงานของ Tab Bar แต่ Segmented จะทำงานในรูปแบบของ View เดียวกัน คือภายใน Segmented 1 Object จะประกอบด้วยหลาย ๆ Segments Item หรือหลายส่วน เมื่อเราคลิกในแต่ล่ะส่วนเราสามารถที่จะทำการอ่านค่า Index ว่าปัจจุบันนั้น Segmented อยู่ใน Index ที่เท่าไหร่และเขียนเงื่อนไขต่าง ๆ ให้โปรแกรมทำงานตามที่ต้องการ โดย Segmented จะทำงานร่วมกับ Class ของ UISegmentedControl บนภาษา Objective-C และการใช้งานก็ง่าย ๆ ไม่ซับซ้อยมากมาย

iOS/iPhone Segmented (UISegmentedControl)

iOS/iPhone Segmented (UISegmentedControl) Example


การ Get ค่าของ Segmented (UISegmentedControl)
IBOutlet UISegmentedControl *segmentedItem;

int indexSelect = segmentedItem.selectedSegmentIndex;


การ Set ค่าของ Segmented (UISegmentedControl)
IBOutlet UISegmentedControl *segmentedItem;

segmentedItem.selectedSegmentIndex = 2;

โดย Index ของ Segmented Control จะเริ่มจาก 0

Segmented Control เป็น Object ที่ถูกใช้งานกับหลาย ๆ ส่วนของ Application บน iPhone หรือ iPad เช่นใน iPhone ตรง Recents Call จะมี Segmented ทำงานอยู่ โดยมี Item ของ All และ Missed อยู่ในขณะนั้น และ Application อื่น ๆ ที่เคยพบเจอก็เช่นของ Thairath LITE ที่แบ่ง Segmented ออกเป็น หน้าแรก , การเมือง , กีฬา , บันเทิง เป็นต้น

iOS/iPhone Segmented (UISegmentedControl)

Segmented (UISegmentedControl) กับการใช้งานจริงบน App ของ Thairath LITE


ในบทความนี้เราจะมารู้จักกับ Segmented และการใช้งาน Segmented ร่วมกับ Class ของ UISegmentedControl ในการสร้างและการ Get ค่า หรือ Set ค่า รวมทั้งการปรับแต่ง Segmented ร่วมกับการเขียน Code ในภาษา Objective-C แบบง่าย ๆ เพื่อเป็นพื้นฐานในการนำไปประยุกต์ใช้กับส่วนอื่น ๆ ได้

iOS/iPhone Segmented (UISegmentedControl)

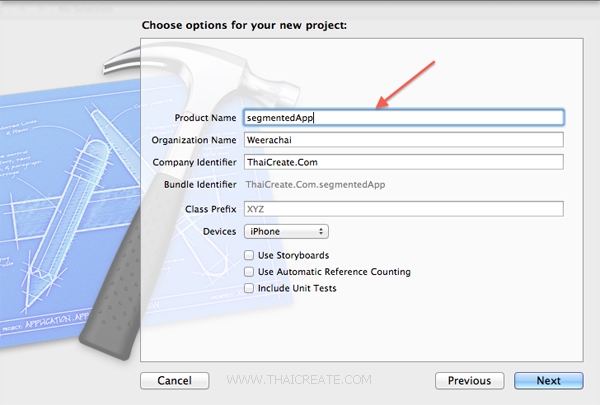

เริ่มต้นด้วกยารสร้าง Project บน Xcode แบบ Single View Application








iOS/iPhone Segmented (UISegmentedControl)

เลือกและไม่เลือกรายการดังรูป

iOS/iPhone Segmented (UISegmentedControl)

ตอนนี้หน้าจอ View ของเราจะยังว่าง ๆ

iOS/iPhone Segmented (UISegmentedControl)

ทำการลาก Segmented Control มาไว้ยังหน้าจอ Interface

iOS/iPhone Segmented (UISegmentedControl)

เราสามารถเพิ่มจำนวนของ Segments ได้จาก Inspector ว่า Segments

iOS/iPhone Segmented (UISegmentedControl)

คลิกเพื่อจะเข้าไปแก้ไขข้อความ String Title ของแต่ล่ะ Segments

iOS/iPhone Segmented (UISegmentedControl)

เลือก Segments Item ที่ต้องการ โดยขึ้นอยู่กับจำนวนที่ได้กำหนดไว้ก่อนหน้านี้

iOS/iPhone Segmented (UISegmentedControl)

ปรับแต่งแก้ไข Title

iOS/iPhone Segmented (UISegmentedControl)

ในตัวอย่างตั้งชื่อ Item 1 ถึง Item 5

iOS/iPhone Segmented (UISegmentedControl)

เราจะเพิ่ม Label ไว้สำหรับแสดงค่าปัจจุบันของตำแหน่งของ Segments ที่ได้คลิกเลือก

iOS/iPhone Segmented (UISegmentedControl)

ใน Class ของ .h ทำการเชื่อม IBOutlet และ IBAction ดังรูป

iOS/iPhone Segmented (UISegmentedControl)

ใน Class ของ .m ได้ Method Event ดังรูป ตอนนี้ยังไม่มีคำสั่งใด ๆ

iOS/iPhone Segmented (UISegmentedControl)

การอ่านตำแหน่ง Index ของ Segmented สามารถใช้คำสั่ง segmented.selectedSegmentIndex โดยอ้างอิงจาก Index ที่เริ่มจาก 0

- (IBAction)segmentedChanged:(id)sender {

    UISegmentedControl *segmented = (UISegmentedControl *)sender;

    switch (segmented.selectedSegmentIndex) {
        case 0:
            selItem.text =@"Segment Item 1 selected.";
            break;
        case 1:
            selItem.text =@"Segment Item 2 selected.";
            break;
        case 2:
            selItem.text =@"Segment Item 3 selected.";
            break;
        case 3:
            selItem.text =@"Segment Item 4 selected.";
            break;
        case 4:
            selItem.text =@"Segment Item 5 selected.";
            break;
        default:
            break;
    }


Screenshot

iOS/iPhone Segmented (UISegmentedControl)

ผลลัพธ์ของ Segmented กับตำแหน่งที่คลิกเลือก

iOS/iPhone Segmented (UISegmentedControl)

ผลลัพธ์ของ Segmented กับตำแหน่งที่คลิกเลือก








การ Set ค่า Index ให้กับ Segmented Control

iOS/iPhone Segmented (UISegmentedControl)

ทำการสร้าง IBOutlet ให้กับ Segmented

iOS/iPhone Segmented (UISegmentedControl)

ใน Method ของ viewDidLoad สามารถกำหนดค่า selectedSegmentIndex ได้ทันที โดย Index จะเริ่มจาก 0

- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view, typically from a nib.

    segmentedItem.selectedSegmentIndex = 2;

    selItem.text =@"Segment Item 3 selected.";

}


Screenshot

iOS/iPhone Segmented (UISegmentedControl)

เพื่อรันโปรแกรมบน Simulator ก็จะทำการ Select ตำแหน่ง Index ที่เรากำหนดขึ้น

เพื่มเติม

iOS/iPhone Segmented (UISegmentedControl)

ลองเปลี่ยน Style ของ Segmented Control เป็นแบบ Bar

iOS/iPhone Segmented (UISegmentedControl)

ได้ผลลัพธ์ดังรูป

ทั้งนี้สามารถประบแต่งสี หรือคุณสมบัติอื่น ๆ ในส่วนของ Inspector ได้ โดยจะมีคุณสมบัติเช่น ใส่รูปภาพ สีพื้นหลัง สีพื้นของ Selected และอื่น ๆ



อันนี้ Code ของภาษา Objective-C ใน .h และ .m

ViewController.h
//
//  ViewController.h
//  segmentedApp
//
//  Created by Weerachai on 11/10/55 BE.
//  Copyright (c) 2555 Weerachai. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface ViewController : UIViewController
{
    IBOutlet UILabel *selItem;

    IBOutlet UISegmentedControl *segmentedItem;
}

- (IBAction)segmentedChanged:(id)sender;

@end


ViewController.m
//
//  ViewController.m
//  segmentedApp
//
//  Created by Weerachai on 11/10/55 BE.
//  Copyright (c) 2555 Weerachai. All rights reserved.
//

#import "ViewController.h"

@interface ViewController ()

@end

@implementation ViewController

- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view, typically from a nib.

    segmentedItem.selectedSegmentIndex = 2;

    selItem.text =@"Segment Item 3 selected.";

}

- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

- (IBAction)segmentedChanged:(id)sender {

    UISegmentedControl *segmented = (UISegmentedControl *)sender;

    switch (segmented.selectedSegmentIndex) {
        case 0:
            selItem.text =@"Segment Item 1 selected.";
            break;
        case 1:
            selItem.text =@"Segment Item 2 selected.";
            break;
        case 2:
            selItem.text =@"Segment Item 3 selected.";
            break;
        case 3:
            selItem.text =@"Segment Item 4 selected.";
            break;
        case 4:
            selItem.text =@"Segment Item 5 selected.";
            break;
        default:
            break;
    }

}

- (void)dealloc {
    [selItem release];
    [segmentedItem release];
    [super dealloc];
}

@end



Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-11-13 16:43:33 / 2017-03-26 00:15:58
  Download : Download  iOS/iPhone Segmented Control (UISegmentedControl) Example (iPhone,iPad)
