Custom Style เรียกใช้งาน Style บน Windows Phone (Style and StaticResource)

Custom Style เรียกใช้งาน Style บน Windows Phone (Style and StaticResource) การสร้าง Style จะเป็นวิธีหนึงที่จะกำหนดคุณสมบัติของ Control ในหน้าจอ Application ของ Windows Phone ให้เป็นไปในรูปแบบที่ต้องการ เช่น ตัวอักษร ขนาด สี และคุณสมบัติอื่น ๆ ที่อยู่ใน Attribute ของ Property เหตุผลที่นำ Style เข้ามาใช้ก็เพื่อให้ Control ต่าง ๆ นั้นอยู่ในรูปแบบเดียวกัน โดยเราสามารถสร้าง Style ไว้แค่ครั้งเดียว แต่สามารถเรียกใช้ได้ทั้ง Page นั้น ๆ ซึ่งหลักการจะเหมือนกับ CSS บน HTML

รูปแบบที่ 1. สร้่าง Style ให้กับ Control ชนิดเดียวกันทั้งหมดด้วย TargetType="TextBox"
        <Style TargetType="TextBox">
            <Setter Property="Foreground" Value="RED" />
            <Setter Property="FontSize" Value="36" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Margin" Value="12" />
            <Setter Property="TextAlignment" Value="Center" />
        </Style>

	<TextBox Name="TextBox1" Text="TextBox 1" VerticalAlignment="Top"  />
	<TextBox Name="TextBox2" Text="TextBox 2" VerticalAlignment="Top"  />
จากแบบที่ 1 จะมีผลกับ TextBox ทั้งหมด

รูปแบบที่ 2. สร้่าง Style เพื่ออ้างถึงและเรียกชื่อ Style นั้น ๆ
        <Style x:Key="textbox_style1" TargetType="TextBox">
            <Setter Property="Foreground" Value="RED" />
            <Setter Property="FontSize" Value="36" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Margin" Value="12" />
            <Setter Property="TextAlignment" Value="Center" />
        </Style>
        <Style x:Key="textbox_style2" TargetType="TextBox">
            <Setter Property="Foreground" Value="GREEN" />
            <Setter Property="FontSize" Value="50" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Margin" Value="10" />
            <Setter Property="TextAlignment" Value="Center" />
        </Style>

	<TextBox Name="TextBox1" Text="TextBox 1"  Style="{StaticResource textbox_style1}" VerticalAlignment="Top"  />
	<TextBox Name="TextBox2" Text="TextBox 2"  Style="{StaticResource textbox_style2}" VerticalAlignment="Top"  />
จากตัวอย่างจะเห็นว่า TextBox1 และ TextBox2 จะเรียกใช้ Style คนล่ะตัว

Example 1. การสร้างและเรียกใช้งาน Style แบบง่าย ๆ

    <phone:PhoneApplicationPage.Resources>
        <Style x:Key="btnStyle" TargetType="Button">
            <Setter Property="Foreground" Value="{StaticResource PhoneAccentBrush}" />
            <Setter Property="FontSize" Value="36" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Margin" Value="12" />
        </Style>

        <Style x:Key="txtBlockStyle" TargetType="TextBlock">
            <Setter Property="Foreground" Value="RED" />
            <Setter Property="FontSize" Value="36" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Margin" Value="12" />
            <Setter Property="TextAlignment" Value="Center" />
        </Style>

        <Style x:Key="txtBoxStyle" TargetType="TextBox">
            <Setter Property="Foreground" Value="Yellow" />
            <Setter Property="FontSize" Value="36" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Margin" Value="12" />
            <Setter Property="Width" Value="460" />
            <Setter Property="Height" Value="90" />
            <Setter Property="TextAlignment" Value="Center" />
        </Style>
    </phone:PhoneApplicationPage.Resources>

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0" ShowGridLines="True">
            <Button Content="Button" Style="{StaticResource btnStyle}" Height="94" HorizontalAlignment="Left" Margin="147,37,0,0" Name="Button1" VerticalAlignment="Top" Width="160" />
            <TextBlock Height="72" Style="{StaticResource txtBlockStyle}" HorizontalAlignment="Left" Margin="59,157,0,0" Name="TextBlock1" Text="TextBlock" VerticalAlignment="Top" Width="328" />
            <TextBox Style="{StaticResource txtBoxStyle}" HorizontalAlignment="Left" Margin="-4,271,0,0" Name="TextBox1" Text="TextBox" VerticalAlignment="Top"  />
        </Grid>

    </Grid>


Windows Phone Custom Style

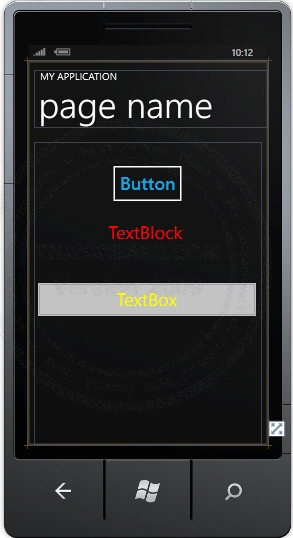

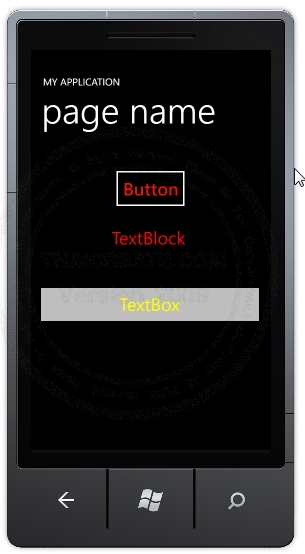

หน้าจอผลลัพธ์ที่ได้

Screenshot

Windows Phone Custom Style









Example 2 เรียกใช้ Style ที่อยู่ใน Library ของ Windows Phone

    <!--LayoutRoot contains the root grid where all other page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Send Message" Style="{StaticResource PhoneTextNormalStyle}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Grid Margin="24">
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <TextBlock Grid.Row="0"
                           Text="phone number"
                           Style="{StaticResource PhoneTextSmallStyle}" />

                <TextBox Name="toTextBox"
                         Grid.Row="1"
                         InputScope="TelephoneNumber" />

                <TextBlock Grid.Row="2"
                           Text="text message"
                           HorizontalAlignment="Left"
                           Style="{StaticResource PhoneTextSmallStyle}" />

                <TextBlock Name="charCountText"
                           Grid.Row="2"
                           HorizontalAlignment="Right"
                           Style="{StaticResource PhoneTextSmallStyle}" />

                <TextBox Name="bodyTextBox"
                         Grid.Row="3"
                         MaxLength="160"
                         TextWrapping="Wrap"
                         VerticalScrollBarVisibility="Auto"/>

                <Button Name="sendButton"
                        Grid.Row="4"
                        Content="send"
                        IsEnabled="False"
                        HorizontalAlignment="Center"/>
            </Grid>
        </Grid>
    </Grid>

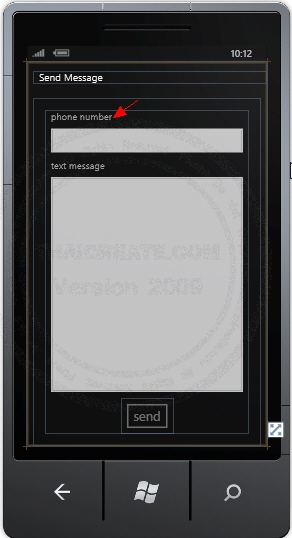

XAML Layout Design

Windows Phone Custom Style

Design ทีได้ ซึ่งจะเห็นว่ามีการเรียกใช้งาน Style ที่อยู่บน Windows Phone Library เช่น Style="{StaticResource PhoneTextSmallStyle}"

Windows Phone Custom Style

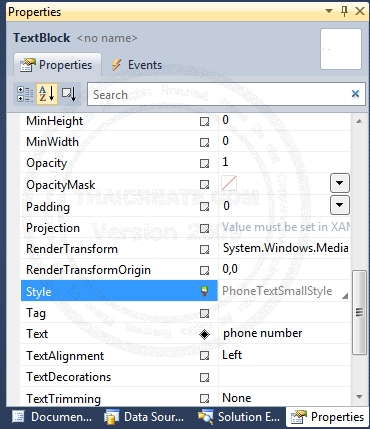

การเรียกค่าสามารถคลิกที่ Properties ของ Control นั้น ๆ

Windows Phone Custom Style

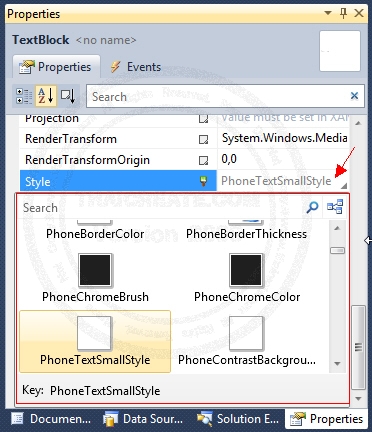

คลิกที่ Style ก็จะมีรายการ Style ที่อยู่ใน Library ของ Windows Phone

Screenshot

Windows Phone Custom Style

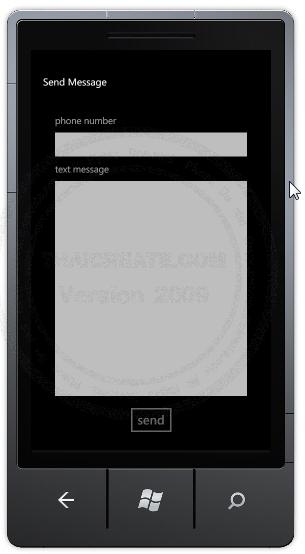

ทดสอบบน Emulator
