Windows Phone Image Source From Isolated Storage (Application Storage)

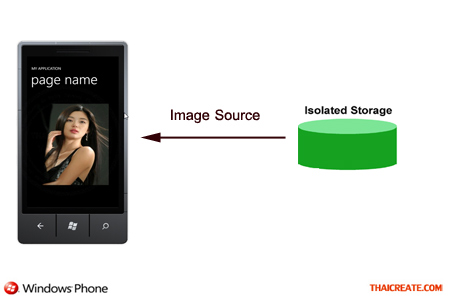

Windows Phone Image Source From Isolated Storage (Application Storage) สำหรับ Controls Image สามารถเรียก Source ได้หลากหลาย เช่นจาก Local หรือจาก URL รวทั้งการอ่าน Source ที่อยู่ใน Isolated Storage ของ Application และตัวอย่างนี้เรามาดูการอ่าน Source จาก Isolated Storage แบบง่าย ๆ โดยในขั้นตอนการอ่านนั้นเราจะไม่สามารถอ่าน Path ได้โดยตรง แต่จะต้องใช้การอ่านข้อมูลภาพที่ได้ให้อยู่ในรูปแบบของ Stream จากนั้นค่อยเอา Stream ที่ได้ กำหนด Source ให้กับ Image Control และแสดงผลในหน้า Page ของ Application

Windows Phone Image Source From  Isolated Storage

Windows Phone Image Source From Isolated Storage


Basic Windows Phone and Isolated Storage (Application Storage)

สำหรับพื้นฐาน Isolated Storage กับ Windows Phone ควรอ่าน 2 บทความนี้ เพื่อความเข้าใจ

Windows Phone Image Source From  Isolated Storage

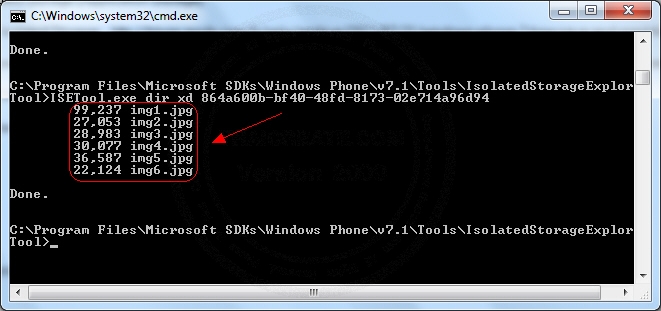

รายการ Image ที่ถูกจัดเก็บไว้ใน Isolated Storage

Example ตัวอย่างการอ่าน Image Source จาก Isolated Storage และแสดงผลบน Controls ของ Image

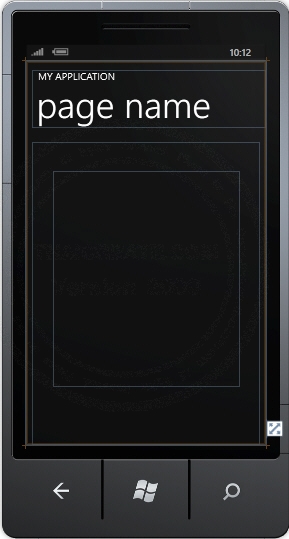

MainPage.xaml

Windows Phone Image Source From  Isolated Storage

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Image Height="432" HorizontalAlignment="Left" Margin="41,58,0,0" Name="ImageFull" Stretch="Fill" VerticalAlignment="Top" Width="375" />
        </Grid>
    </Grid>









MainPage.xaml.vb (VB.NET)
Imports System.IO
Imports System.IO.IsolatedStorage
Imports System.Windows.Media.Imaging

Partial Public Class MainPage
    Inherits PhoneApplicationPage

    ' Constructor
    Public Sub New()
        InitializeComponent()

        AddHandler Loaded, AddressOf MainPage_Loaded
    End Sub

    Private Sub MainPage_Loaded(sender As Object, e As System.Windows.RoutedEventArgs)
        Dim strImageName As String = "img1.jpg"
        'Dim strImageName As String = "dir/img1.jpg" '*** for Sub Directory

        Dim image As New BitmapImage()
        Dim isoStore As IsolatedStorageFile = IsolatedStorageFile.GetUserStoreForApplication()
        Dim isoFilename As String = strImageName
        Dim stream As Stream = isoStore.OpenFile(isoFilename, System.IO.FileMode.Open)
        image.SetSource(stream)
        Me.ImageFull.Source = image
        stream.Close()

    End Sub

End Class

MainPage.xaml.cs (C#)
using System;
using System.Windows;
using System.Net;
using System.IO;
using System.Text;
using System.IO.IsolatedStorage;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Shell;
using System.Collections.Generic;
using System.Windows.Controls;
using System.Windows.Media.Imaging;

namespace PhoneApp
{
    public partial class MainPage : PhoneApplicationPage
    {

        // Constructor
        public MainPage()
        {
            InitializeComponent();

            Loaded += MainPage_Loaded;
        }

        private void MainPage_Loaded(object sender, System.Windows.RoutedEventArgs e)
        {
            string strImageName = "img1.jpg";
            //Dim strImageName As String = "dir/img1.jpg" '*** for Sub Directory

            BitmapImage image = new BitmapImage();
            IsolatedStorageFile isoStore = IsolatedStorageFile.GetUserStoreForApplication();
            string isoFilename = strImageName;
            Stream stream = isoStore.OpenFile(isoFilename, System.IO.FileMode.Open);
            image.SetSource(stream);
            this.ImageFull.Source = image;
            stream.Close();

        }
    }
}

ในตัวอย่างนี้มี Code ทั้งที่เป็น VB.NET และ C# และสามารถดาวน์โหลด All Code ทั้งหมดได้จากส่วนท้ายของบทความ (Login สมาชิกก่อน)

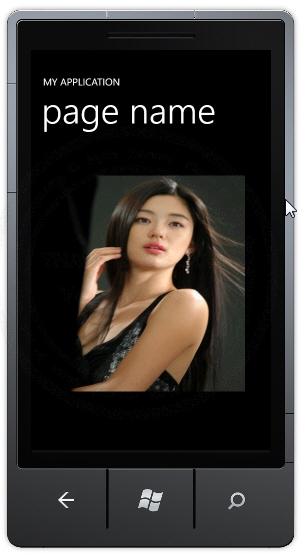

Screenshot

Windows Phone Image Source From  Isolated Storage

แสดง Image Source ที่อยู่ใน Isolated Storage
