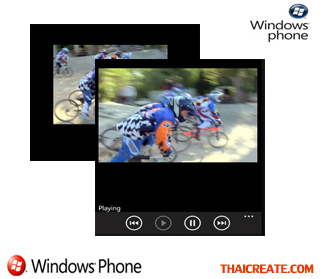

Windows Phone Play Media Player (Video,Audio) (Local Media, Web URL Media)

Windows Phone Play Media Player (VDO,MP3) (Local Media, Web Media) ในการเล่นไฟล์พวก Media บน Windows Phone นั้นสามารถทำได้ด้วยวิธีการง่าย ๆ ด้วยการใช้ Controls ที่มีชื่อว่า MediaElement โดย Controls นี้ รองรับไฟล์หลากหลายรูปแบบทั้งที่เป็นไฟล์ Video Musicหรือ Audio Sound เช่น mp3, mp4 และการเรียกใช้ง่ายก็ง่ายมาก เพียงแค่กำหนด Source ของ MediaElement ก็สามารถที่จะเล่นไฟล์ Media นั้น ๆ ได้ทันที และความสามารถที่จะเรียกได้ทั้ง Local Media หรือ Website Media ที่เรียกจาก URL ของเว็บไซต์

Windows Phone Play Media Player (VDO,MP3)

Windows Phone and MediaElement


MediaElement (Local Media)
	<MediaElement
		Name="MediaElement1"
		Source="/Media/vdo.mp4"
	/>


MediaElement (Website URL Media)
	<MediaElement
		Name="MediaElement1"
		Source="https://www.thaicreate.com/Media/vdo.mp4"
	/>

ไฟล์ที่รองรับ สามาถใช้งานได้หลากหลายรูปแบบเช่น .wma, mp3, mp4 และไฟล์อื่น ๆ (ดู Format ที่ Support ได้จากข้างล่าง)

Example 1 ตัวอย่างการเล่น Media ไฟล์แบบง่าย ๆ ด้วย MediaElement

Windows Phone Play Media Player (VDO,MP3)

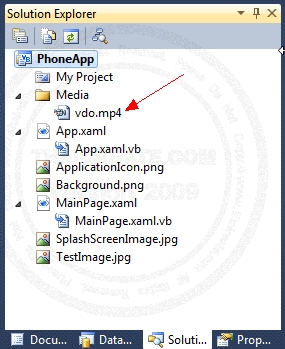

ไฟล์ Media ถกจัดเก็บไว้ที่โฟเดอร์ Media/vdo.mp4

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <MediaElement Height="242" HorizontalAlignment="Left" Margin="92,109,0,0" Name="MediaElement1" VerticalAlignment="Top" Width="274" Source="/Media/vdo.mp4" />
        </Grid>

    </Grid>


Windows Phone Play Media Player (VDO,MP3)

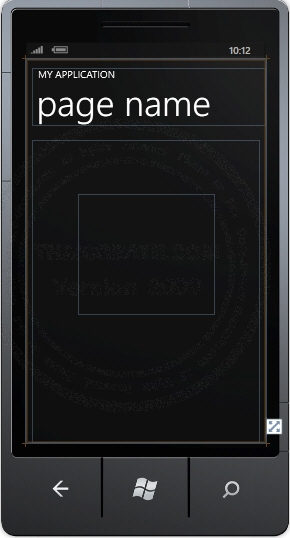

หน้าจอ Design ที่ได้

Screenshot

Windows Phone Play Media Player (VDO,MP3)

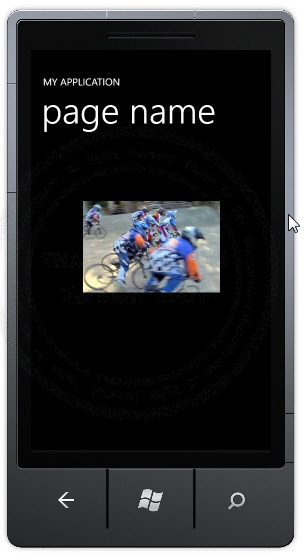

ทดสอบเล่นไฟล์ผ่าน Emulator








Example 2 สร้างปุ่ม Control Media เช่นปุ่ม Play, Pause และอื่น ๆ บน ApplicationBar

     <!--LayoutRoot contains the root grid where all other page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MOVIE PLAYER" Style="{StaticResource PhoneTextNormalStyle}"/>
        </StackPanel>

        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <MediaElement Name="mediaElement"
                          Source="/Media/vdo.mp4"
                          AutoPlay="True"
                          MediaOpened="OnMediaElementMediaOpened"
                          MediaFailed="OnMediaElementMediaFailed"
                          CurrentStateChanged="OnMediaElementCurrentStateChanged"  />

            <TextBlock Name="statusText"
                       HorizontalAlignment="Left"
                       VerticalAlignment="Bottom" />

            <TextBlock Name="errorText"
                       HorizontalAlignment="Right"
                       VerticalAlignment="Bottom"
                       TextWrapping="Wrap" />
        </Grid>
    </Grid>

    <phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar>
            <shell:ApplicationBarIconButton
                    x:Name="appbarRewindButton"
                    IconUri="Images/appbar.transport.rew.rest.png"
                    Text="rewind"
                    IsEnabled="False"
                    Click="OnAppbarRewindClick" />

            <shell:ApplicationBarIconButton
                    x:Name="appbarPlayButton"
                    IconUri="Images/appbar.transport.play.rest.png"
                    Text="play"
                    IsEnabled="False"
                    Click="OnAppbarPlayClick" />

            <shell:ApplicationBarIconButton
                    x:Name="appbarPauseButton"
                    IconUri="Images/appbar.transport.pause.rest.png"
                    Text="pause"
                    IsEnabled="False"
                    Click="OnAppbarPauseClick" />

            <shell:ApplicationBarIconButton
                    x:Name="appbarEndButton"
                    IconUri="Images/appbar.transport.ff.rest.png"
                    Text="to end"
                    IsEnabled="False"
                    Click="OnAppbarEndClick" />
        </shell:ApplicationBar>

    </phone:PhoneApplicationPage.ApplicationBar>


Windows Phone Play Media Player (VDO,MP3)

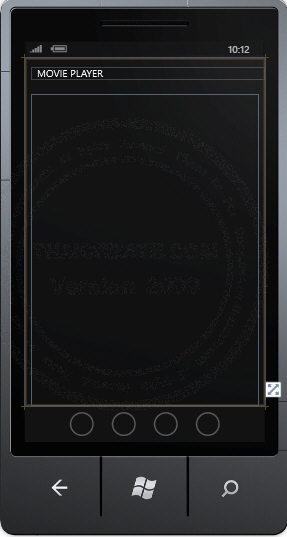

หน้าจอ Design

Windows Phone Play Media Player (VDO,MP3)

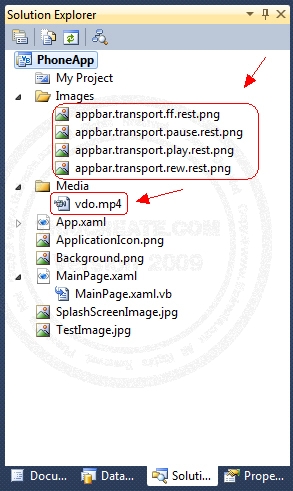

โครงสร้างของ Media ไฟล์และ Image Icons ที่จะนำมาเป็นปุ่มบน ApplicationBar

VB.NET
Partial Public Class MainPage
    Inherits PhoneApplicationPage

    ' Constructor
    Public Sub New()
        InitializeComponent()
        ' Re-assign names already in the XAML file
        appbarRewindButton = TryCast(Me.ApplicationBar.Buttons(0), ApplicationBarIconButton)
        appbarPlayButton = TryCast(Me.ApplicationBar.Buttons(1), ApplicationBarIconButton)
        appbarPauseButton = TryCast(Me.ApplicationBar.Buttons(2), ApplicationBarIconButton)
        appbarEndButton = TryCast(Me.ApplicationBar.Buttons(3), ApplicationBarIconButton)
    End Sub

    Private Sub OnAppbarRewindClick(sender As Object, e As System.EventArgs)
        mediaElement.Position = TimeSpan.Zero
    End Sub

    Private Sub OnAppbarPlayClick(sender As Object, e As System.EventArgs)
        mediaElement.Play()
    End Sub

    Private Sub OnAppbarPauseClick(sender As Object, e As System.EventArgs)
        mediaElement.Pause()
    End Sub

    Private Sub OnAppbarEndClick(sender As Object, e As System.EventArgs)
        mediaElement.Position = mediaElement.NaturalDuration.TimeSpan
    End Sub

    ' MediaElement events
    Private Sub OnMediaElementMediaFailed(sender As Object, args As ExceptionRoutedEventArgs)
        errorText.Text = args.ErrorException.Message
    End Sub

    Private Sub OnMediaElementMediaOpened(sender As Object, args As RoutedEventArgs)
        appbarRewindButton.IsEnabled = True
        appbarEndButton.IsEnabled = True
    End Sub

    Private Sub OnMediaElementCurrentStateChanged(sender As Object, args As RoutedEventArgs)
        statusText.Text = mediaElement.CurrentState.ToString()

        If mediaElement.CurrentState = MediaElementState.Stopped Or mediaElement.CurrentState = MediaElementState.Paused Then
            appbarPlayButton.IsEnabled = True
            appbarPauseButton.IsEnabled = False
        ElseIf mediaElement.CurrentState = MediaElementState.Playing Then
            appbarPlayButton.IsEnabled = False
            appbarPauseButton.IsEnabled = True
        End If
    End Sub

End Class


C#
public partial class MainPage : PhoneApplicationPage
{

	// Constructor
	public MainPage()
	{
		InitializeComponent();
		// Re-assign names already in the XAML file
		appbarRewindButton = this.ApplicationBar.Buttons(0) as ApplicationBarIconButton;
		appbarPlayButton = this.ApplicationBar.Buttons(1) as ApplicationBarIconButton;
		appbarPauseButton = this.ApplicationBar.Buttons(2) as ApplicationBarIconButton;
		appbarEndButton = this.ApplicationBar.Buttons(3) as ApplicationBarIconButton;
	}

	private void OnAppbarRewindClick(object sender, System.EventArgs e)
	{
		mediaElement.Position = TimeSpan.Zero;
	}

	private void OnAppbarPlayClick(object sender, System.EventArgs e)
	{
		mediaElement.Play();
	}

	private void OnAppbarPauseClick(object sender, System.EventArgs e)
	{
		mediaElement.Pause();
	}

	private void OnAppbarEndClick(object sender, System.EventArgs e)
	{
		mediaElement.Position = mediaElement.NaturalDuration.TimeSpan;
	}

	// MediaElement events
	private void OnMediaElementMediaFailed(object sender, ExceptionRoutedEventArgs args)
	{
		errorText.Text = args.ErrorException.Message;
	}

	private void OnMediaElementMediaOpened(object sender, RoutedEventArgs args)
	{
		appbarRewindButton.IsEnabled = true;
		appbarEndButton.IsEnabled = true;
	}

	private void OnMediaElementCurrentStateChanged(object sender, RoutedEventArgs args)
	{
		statusText.Text = mediaElement.CurrentState.ToString();

		if (mediaElement.CurrentState == MediaElementState.Stopped | mediaElement.CurrentState == MediaElementState.Paused) {
			appbarPlayButton.IsEnabled = true;
			appbarPauseButton.IsEnabled = false;
		} else if (mediaElement.CurrentState == MediaElementState.Playing) {
			appbarPlayButton.IsEnabled = false;
			appbarPauseButton.IsEnabled = true;
		}
	}

}

Code ที่เป็น VB.NET และ C# สำหรับควบคุมการทำเล่นของ Media









Screenshot

Windows Phone Play Media Player (VDO,MP3)

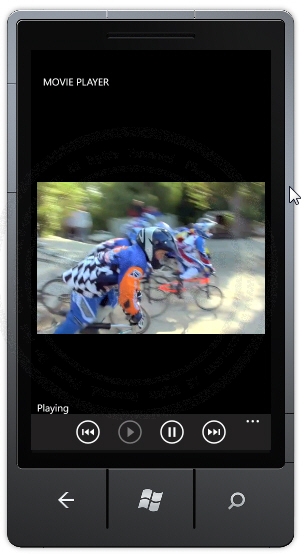

เมื่อทดสอบบน Emulator จะเห้นว่ามีปุ่มสำหรับ Control Media เช่น Play หรือ Pause

MediaElement Supported Media Formats - Windows Phone



Share

Property & Method (Others Related)

MediaElement Supported Media Formats - Windows Phone

ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-09-03 21:51:00 / 2017-03-25 22:05:57
  Download : Download  Windows Phone Play Media Player (Video,Audio) (Local Media, Web URL Media)
