Windows Phone Slider Progress and Media Player (Slider MediaElement)

Windows Phone Slider Progress and Media Player (Slider MediaElement) บทความการใช้ Slider แสดงสถานะ Progress กับการเล่น Media ไฟล์ด้วย MediaElement ว่าในขณะที่ Media กำลังเล่นไปนั้นสถานะของ Media เล่นถึงไหน และแสดงเวลาที่เล่นไปแล้ว ซึ่งจะทำให้ผู้ที่เล่นไฟล์ทราบสถานะบนแถบสีของ Slider ซึ่งจะเลื่อนไปเรื่อย ๆ ตามตำแหน่งและขนาดของไฟล์ Media

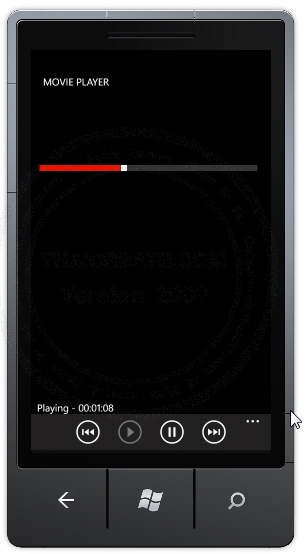

Windows Phone Slider Progress and Media Player

แสดง Slider Progress ขณะกำลังเล่นไฟล์ Media ด้วย MediaElement


กระบวนการ
ในการที่จะใช้ Slider มาแสดงแถบสถานะของ Media นั้นจะต้องใช้ Thread และ Timer มาควบคุมการทำงาน โดยขะใช้ Timer ทำงานทุก ๆ 1 วิธี และในทุก ๆ 1 วินาทีก็จะมีการตรวจสอบว่า Media ได้เล่นถึงตำแหน่งที่เท่าไหร่ จากนั้นนำ ตำแหน่งที่ได้ไปคำนวณเพื่อแสดงสถานะบน Slider

Windows Phone Slider Progress and Media Player

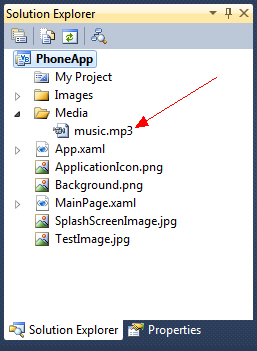

ไฟล์ Media จัดเก็บไว้ที่ /Media/music.mp3 (ตัวนี้เป็น Audio Sound)

     <!--LayoutRoot contains the root grid where all other page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MOVIE PLAYER" Style="{StaticResource PhoneTextNormalStyle}"/>
        </StackPanel>

        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <MediaElement Name="mediaElement"
                          Source="/Media/music.mp3"
                          AutoPlay="True"
                          MediaOpened="OnMediaElementMediaOpened"
                          MediaFailed="OnMediaElementMediaFailed"
                          CurrentStateChanged="OnMediaElementCurrentStateChanged"
                          />

            <TextBlock Name="statusText"
                       HorizontalAlignment="Left"
                       VerticalAlignment="Bottom" />

            <TextBlock Name="errorText"
                       HorizontalAlignment="Right"
                       VerticalAlignment="Bottom"
                       TextWrapping="Wrap" />
            <Slider Height="84" HorizontalAlignment="Left" Margin="-7,104,0,0" Name="SliderMedia" VerticalAlignment="Top" Width="460" />
        </Grid>
    </Grid>

    <phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar>
            <shell:ApplicationBarIconButton
                    x:Name="appbarRewindButton"
                    IconUri="Images/appbar.transport.rew.rest.png"
                    Text="rewind"
                    IsEnabled="False"
                    Click="OnAppbarRewindClick" />

            <shell:ApplicationBarIconButton
                    x:Name="appbarPlayButton"
                    IconUri="Images/appbar.transport.play.rest.png"
                    Text="play"
                    IsEnabled="False"
                    Click="OnAppbarPlayClick" />

            <shell:ApplicationBarIconButton
                    x:Name="appbarPauseButton"
                    IconUri="Images/appbar.transport.pause.rest.png"
                    Text="pause"
                    IsEnabled="False"
                    Click="OnAppbarPauseClick" />

            <shell:ApplicationBarIconButton
                    x:Name="appbarEndButton"
                    IconUri="Images/appbar.transport.ff.rest.png"
                    Text="to end"
                    IsEnabled="False"
                    Click="OnAppbarEndClick" />
        </shell:ApplicationBar>

    </phone:PhoneApplicationPage.ApplicationBar>


Windows Phone Slider Progress and Media Player

ออกแบบ Page ด้วย XAML Layout ดังภาพ

VB.NET
Imports System.Windows.Threading

Partial Public Class MainPage
    Inherits PhoneApplicationPage

    ' Constructor
    Public Sub New()
        InitializeComponent()
        ' Re-assign names already in the XAML file
        appbarRewindButton = TryCast(Me.ApplicationBar.Buttons(0), ApplicationBarIconButton)
        appbarPlayButton = TryCast(Me.ApplicationBar.Buttons(1), ApplicationBarIconButton)
        appbarPauseButton = TryCast(Me.ApplicationBar.Buttons(2), ApplicationBarIconButton)
        appbarEndButton = TryCast(Me.ApplicationBar.Buttons(3), ApplicationBarIconButton)

        ' Time Tick
        dt.Interval = New TimeSpan(0, 0, 0, 0, 100)
        AddHandler dt.Tick, AddressOf Me.dt_Tick
        dt.Start()


    End Sub

    Dim dt As DispatcherTimer = New DispatcherTimer

    Private Sub OnAppbarRewindClick(sender As Object, e As System.EventArgs)
        mediaElement.Position = TimeSpan.Zero
    End Sub

    Private Sub OnAppbarPlayClick(sender As Object, e As System.EventArgs)
        mediaElement.Play()
        dt.Start()
    End Sub

    Private Sub OnAppbarPauseClick(sender As Object, e As System.EventArgs)
        mediaElement.Pause()
        dt.Stop()
    End Sub

    Private Sub OnAppbarEndClick(sender As Object, e As System.EventArgs)
        mediaElement.Position = mediaElement.NaturalDuration.TimeSpan
    End Sub

    ' MediaElement events
    Private Sub OnMediaElementMediaFailed(sender As Object, args As ExceptionRoutedEventArgs)
        errorText.Text = args.ErrorException.Message
    End Sub

    Private Sub OnMediaElementMediaOpened(sender As Object, args As RoutedEventArgs)
        appbarRewindButton.IsEnabled = True
        appbarEndButton.IsEnabled = True

        ' Slider
        SliderMedia.Maximum = getMinute(mediaElement.NaturalDuration.TimeSpan)
    End Sub

    Private Sub OnMediaElementCurrentStateChanged(sender As Object, args As RoutedEventArgs)
        statusText.Text = mediaElement.CurrentState.ToString()

        If mediaElement.CurrentState = MediaElementState.Stopped Or mediaElement.CurrentState = MediaElementState.Paused Then
            appbarPlayButton.IsEnabled = True
            appbarPauseButton.IsEnabled = False
        ElseIf mediaElement.CurrentState = MediaElementState.Playing Then
            appbarPlayButton.IsEnabled = False
            appbarPauseButton.IsEnabled = True
        End If
    End Sub

    Private Sub dt_Tick(ByVal sender As Object, ByVal e As EventArgs)
        Dim strDuration As String = mediaElement.Position.ToString()
        statusText.Text = mediaElement.CurrentState.ToString() & " - " & getTime(strDuration).ToString()
        SliderMedia.Value = getMinute(mediaElement.Position)
    End Sub

    Public Function getMinute(ByVal strTime As TimeSpan) As Integer
        Return strTime.TotalMinutes * 60
    End Function

    Public Function getTime(ByVal strTime As String) As String
        Return strTime.Substring(0, 8).ToString()
    End Function

End Class










C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using System.Windows.Threading;
using Microsoft.Phone.Shell;

namespace PhoneAppCS
{
    public partial class MainPage : PhoneApplicationPage
    {

        // Constructor
        public MainPage()
        {
            InitializeComponent();
            // Re-assign names already in the XAML file
            appbarRewindButton = this.ApplicationBar.Buttons[0] as ApplicationBarIconButton;
            appbarPlayButton = this.ApplicationBar.Buttons[1] as ApplicationBarIconButton;
            appbarPauseButton = this.ApplicationBar.Buttons[2] as ApplicationBarIconButton;
            appbarEndButton = this.ApplicationBar.Buttons[3] as ApplicationBarIconButton;

            // Time Tick
            dt.Interval = new TimeSpan(0, 0, 0, 0, 100);
            dt.Tick += this.dt_Tick;
            dt.Start();


        }


        DispatcherTimer dt = new DispatcherTimer();
        private void OnAppbarRewindClick(object sender, System.EventArgs e)
        {
            mediaElement.Position = TimeSpan.Zero;
        }

        private void OnAppbarPlayClick(object sender, System.EventArgs e)
        {
            mediaElement.Play();
            dt.Start();
        }

        private void OnAppbarPauseClick(object sender, System.EventArgs e)
        {
            mediaElement.Pause();
            dt.Stop();
        }

        private void OnAppbarEndClick(object sender, System.EventArgs e)
        {
            mediaElement.Position = mediaElement.NaturalDuration.TimeSpan;
        }

        // MediaElement events
        private void OnMediaElementMediaFailed(object sender, ExceptionRoutedEventArgs args)
        {
            errorText.Text = args.ErrorException.Message;
        }

        private void OnMediaElementMediaOpened(object sender, RoutedEventArgs args)
        {
            appbarRewindButton.IsEnabled = true;
            appbarEndButton.IsEnabled = true;

            // Slider
            SliderMedia.Maximum = getMinute(mediaElement.NaturalDuration.TimeSpan);
        }

        private void OnMediaElementCurrentStateChanged(object sender, RoutedEventArgs args)
        {
            statusText.Text = mediaElement.CurrentState.ToString();

            if (mediaElement.CurrentState == MediaElementState.Stopped | mediaElement.CurrentState == MediaElementState.Paused)
            {
                appbarPlayButton.IsEnabled = true;
                appbarPauseButton.IsEnabled = false;
            }
            else if (mediaElement.CurrentState == MediaElementState.Playing)
            {
                appbarPlayButton.IsEnabled = false;
                appbarPauseButton.IsEnabled = true;
            }
        }

        private void dt_Tick(object sender, EventArgs e)
        {
            string strDuration = mediaElement.Position.ToString();
            statusText.Text = mediaElement.CurrentState.ToString() + " - " + getTime(strDuration).ToString();
            SliderMedia.Value = getMinute(mediaElement.Position);
        }

        public Double getMinute(TimeSpan strTime)
        {
            return strTime.TotalMinutes * Convert.ToDouble(60);
        }

        public string getTime(string strTime)
        {
            return strTime.Substring(0, 8).ToString();
        }

    }
}

Code ที่เป็น VB.NET และ C# ที่จะควบคุมการเล่นไฟล์ Media กับ Slider Progress

Screenshot

Windows Phone Slider Progress and Media Player

ในขณะที่กำลังเล่น Media ด้วย MediaElement ตัว Slider จะแสดงสถานะ Progress ในตำแหน่งที่ไฟล์เล่นถึง
