Windows Phone Get Retrieving Data from Web Server (PHP & MySQL and JSON)

Windows Phone Get Retrieving Data from Web Server (PHP & MySQL and JSON) ตัวอย่างการเขียน App บน Windows Phone เพื่ออ่านข้อมูลจาก Web Server ที่ทำงานด้วย PHP กับ MySQL และส่งค่ากลับมายัง Windows Phone ในรูปแบบของ JSON และเมื่อ Windows Phone ได้ค่า JSON ก็จะนำข้อมูลเหล่านั้นไปทำการ Binding Data ให้กับ ListBox เพื่อแสดงบนในหน้า Page ของ Application

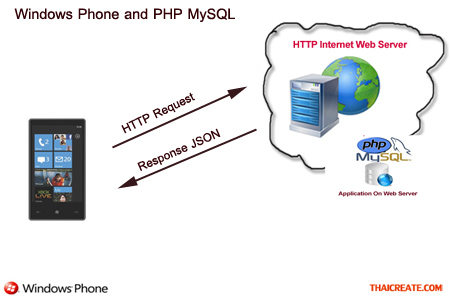

Windows Phone Get Retrieving Data  from Web Server

Windows Phone and JSON from PHP &MySQL


Windows Phone and JSON


Web Server สร้างไฟล์ PHP กับ MySQL บนฝั่งของ Web Server

customer
CREATE TABLE `customer` (
`CustomerID` varchar(4) NOT NULL,
`Name` varchar(50) NOT NULL,
`Email` varchar(50) NOT NULL,
`CountryCode` varchar(2) NOT NULL,
`Budget` double NOT NULL,
`Used` double NOT NULL,
PRIMARY KEY (`CustomerID`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;

--
-- Dumping data for table `customer`
--

INSERT INTO `customer` VALUES ('C001', 'Win Weerachai', '[email protected]', 'TH', 1000000, 600000);
INSERT INTO `customer` VALUES ('C002', 'John Smith', '[email protected]', 'EN', 2000000, 800000);
INSERT INTO `customer` VALUES ('C003', 'Jame Born', '[email protected]', 'US', 3000000, 600000);
INSERT INTO `customer` VALUES ('C004', 'Chalee Angel', '[email protected]', 'US', 4000000, 100000);

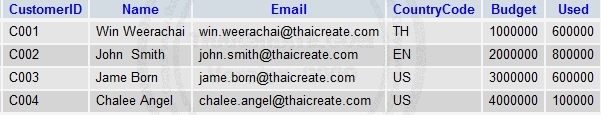

โครงสร้างของ Database ของ MySQL

Windows Phone Get Retrieving Data  from Web Server

getJSON.php
<?php
	$objConnect = mysql_connect("localhost","root","root");
	$objDB = mysql_select_db("mydatabase");

	$strSQL = "SELECT * FROM customer WHERE 1 ";

	$objQuery = mysql_query($strSQL);
	$intNumField = mysql_num_fields($objQuery);
	$resultArray = array();
	while($obResult = mysql_fetch_array($objQuery))
	{
		$arrCol = array();
		for($i=0;$i<$intNumField;$i++)
		{
			$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
		}
		array_push($resultArray,$arrCol);
	}

	mysql_close($objConnect);

	echo json_encode($resultArray);
?>

ไฟล์ php ที่ทำน้าที่อ่านข้อมูลจาก MySQL และส่งกลับในรูปแบบของ JSON

Windows Phone Get Retrieving Data  from Web Server

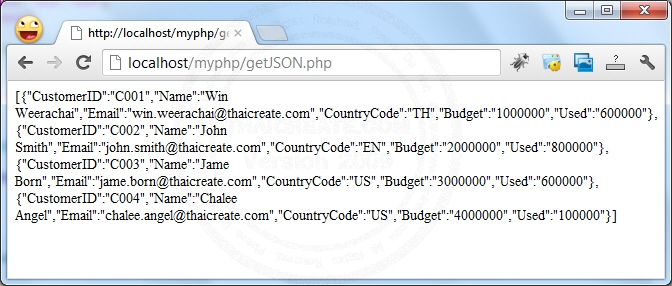

แสดง JSON เพื่อรันผ่าน Web Browser








Windows Phone Project

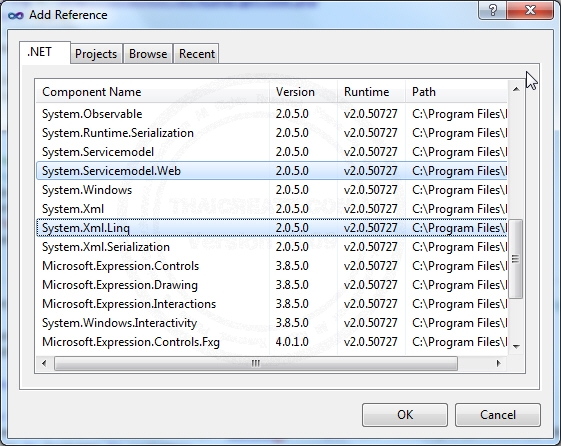

ทำการ Add Reference เข้ามาใน Project 2 ตัวคือ System.Servicemodel.Web และ System.Xml.Linq

Windows Phone Get Retrieving Data  from Web Server

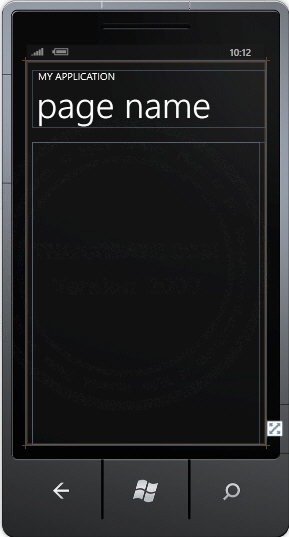

MainPage.xaml

Windows Phone Get Retrieving Data  from Web Server

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <ListBox Margin="0,0,-12,0" x:Name="CustomerList">
                <ListBox.ItemTemplate>
                    <DataTemplate>
                            <StackPanel>
                                <TextBlock Text="{Binding CustomerID}"  TextWrapping="Wrap" Style="{StaticResource PhoneTextExtraLargeStyle}"/>
                                <StackPanel Orientation="Horizontal" Margin="0,0,0,17">
                                    <TextBlock Text="{Binding Name}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                                    <TextBlock Text="{Binding Email}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                                    <TextBlock Text="{Binding CountryCode}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                                    <TextBlock Text="{Binding Budget}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                                    <TextBlock Text="{Binding Used}" TextWrapping="Wrap" Margin="5,0,0,0" Style="{StaticResource PhoneTextSubtleStyle}"/>
                            </StackPanel>
                        </StackPanel>
                    </DataTemplate>
                </ListBox.ItemTemplate>
            </ListBox>
        </Grid>
    </Grid>


MainPage.xaml.vb (VB.NET)
Imports System.Runtime.Serialization
Imports System.Runtime.Serialization.Json
Imports System.Collections.ObjectModel
Imports System.IO
Imports System.Text

Partial Public Class MainPage
    Inherits PhoneApplicationPage

    ' Constructor
    Public Sub New()
        InitializeComponent()

        AddHandler Loaded, AddressOf MainPage_Loaded

    End Sub

    Dim client As WebClient
    Dim prog As ProgressIndicator

    Private Sub MainPage_Loaded(sender As Object, e As System.Windows.RoutedEventArgs)

        Dim url As String = "http://localhost/myphp/getJSON.php"
        Dim uri As New Uri(url)
        client = New WebClient()
        client.AllowReadStreamBuffering = True

        AddHandler client.DownloadStringCompleted, AddressOf client_DownloadStringCompleted
        AddHandler client.DownloadProgressChanged, AddressOf client_DownloadProgressChanged

        client.DownloadStringAsync(uri)

        '*** SystemTray ProgressBar ***'
        prog = New ProgressIndicator()
        prog.IsVisible = True
        prog.IsIndeterminate = True
        prog.Text = "Downloading...."
        SystemTray.SetProgressIndicator(Me, prog)

    End Sub

    Private Sub client_DownloadStringCompleted(sender As Object, e As DownloadStringCompletedEventArgs)

        If e.Cancelled = False And e.Error Is Nothing Then

            Dim ms As New MemoryStream(Encoding.UTF8.GetBytes(e.Result))
            Dim list As New ObservableCollection(Of Customer)()
            Dim serializer As New DataContractJsonSerializer(GetType(ObservableCollection(Of Customer)))
            list = DirectCast(serializer.ReadObject(ms), ObservableCollection(Of Customer))

            Dim myCustomer As New List(Of Customer)

            For Each cm As Customer In list
                Dim sCustomerID As String = cm.CustomerID.ToString()
                Dim sName As String = cm.Name.ToString()
                Dim sEmail As String = cm.Email.ToString()
                Dim sCountryCode As String = cm.CountryCode.ToString()
                Dim sBudget As String = cm.Budget.ToString()
                Dim sUsed As String = cm.Used.ToString()

                myCustomer.Add(New Customer(sCustomerID, sName, sEmail, sCountryCode, sBudget, sUsed))
            Next

            Me.CustomerList.ItemsSource = myCustomer

            prog.IsVisible = False
        End If

    End Sub

    Private Sub client_DownloadProgressChanged(sender As Object, e As DownloadProgressChangedEventArgs)

    End Sub

    <DataContract> _
    Public Class Customer

        <DataMember()> _
        Public Property CustomerID() As String
            Get
                Return m_CustomerID
            End Get
            Set(value As String)
                m_CustomerID = value
            End Set
        End Property
        <DataMember()> _
        Public Property Name() As String
            Get
                Return m_Name
            End Get
            Set(value As String)
                m_Name = value
            End Set
        End Property
        <DataMember()> _
        Public Property Email() As String
            Get
                Return m_Email
            End Get
            Set(value As String)
                m_Email = value
            End Set
        End Property
        <DataMember()> _
        Public Property CountryCode() As String
            Get
                Return m_CountryCode
            End Get
            Set(value As String)
                m_CountryCode = value
            End Set
        End Property
        <DataMember()> _
        Public Property Budget() As String
            Get
                Return m_Budget
            End Get
            Set(value As String)
                m_Budget = value
            End Set
        End Property
        <DataMember()> _
        Public Property Used() As String
            Get
                Return m_Used
            End Get
            Set(value As String)
                m_Used = value
            End Set
        End Property

        Private m_CustomerID As String
        Private m_Name As String
        Private m_Email As String
        Private m_CountryCode As String
        Private m_Budget As String
        Private m_Used As String

        Public Sub New(ByVal strCustomerID As String,
                       ByVal strName As String,
                       ByVal strEmail As String,
                       ByVal strCountryCode As String,
                       ByVal strBudget As String,
                       ByVal strUsed As String)
            Me.CustomerID = strCustomerID
            Me.Name = strName
            Me.Email = strEmail
            Me.CountryCode = strCountryCode
            Me.Budget = strBudget
            Me.Used = strUsed

        End Sub

    End Class


End Class

MainPage.xaml.cs (C#)
using System;
using System.Windows;
using Microsoft.Phone.Controls;
using System.Collections.Generic;
using System.Runtime.Serialization;
using System.Runtime.Serialization.Json;
using System.Collections.ObjectModel;
using System.IO;
using System.Text;
using Microsoft.Phone.Shell;
using System.Net;

namespace PhoneApp
{
    public partial class MainPage : PhoneApplicationPage
    {

        // Constructor
        public MainPage()
        {
            InitializeComponent();

            Loaded += MainPage_Loaded;
        }

        WebClient client;
        ProgressIndicator prog;

        private void MainPage_Loaded(object sender, System.Windows.RoutedEventArgs e)
        {
            string url = "http://localhost/myphp/getJSON.php";
            Uri uri = new Uri(url);
            client = new WebClient();
            client.AllowReadStreamBuffering = true;

            client.DownloadStringCompleted += client_DownloadStringCompleted;
            client.DownloadProgressChanged += client_DownloadProgressChanged;

            client.DownloadStringAsync(uri);

            //*** SystemTray ProgressBar ***'
            prog = new ProgressIndicator();
            prog.IsVisible = true;
            prog.IsIndeterminate = true;
            prog.Text = "Downloading....";
            SystemTray.SetProgressIndicator(this, prog);
        }

        private void client_DownloadStringCompleted(object sender, DownloadStringCompletedEventArgs e)
        {


            if (e.Cancelled == false & e.Error == null)
            {
                MemoryStream ms = new MemoryStream(Encoding.UTF8.GetBytes(e.Result));
                ObservableCollection<Customer> list = new ObservableCollection<Customer>();
                DataContractJsonSerializer serializer = new DataContractJsonSerializer(typeof(ObservableCollection<Customer>));
                list = (ObservableCollection<Customer>)serializer.ReadObject(ms);

                List<Customer> myCustomer = new List<Customer>();

                foreach (Customer cm in list)
                {
                    string sCustomerID = cm.CustomerID.ToString();
                    string sName = cm.Name.ToString();
                    string sEmail = cm.Email.ToString();
                    string sCountryCode = cm.CountryCode.ToString();
                    string sBudget = cm.Budget.ToString();
                    string sUsed = cm.Used.ToString();

                    myCustomer.Add(new Customer(sCustomerID, sName, sEmail, sCountryCode, sBudget, sUsed));
                }

                this.CustomerList.ItemsSource = myCustomer;

                prog.IsVisible = false;
            }

        }

        private void client_DownloadProgressChanged(object sender, DownloadProgressChangedEventArgs e)
        {

        }

    }

    [DataContract]
    public class Customer
    {
        [DataMember]
        public string CustomerID { get; set; }

        [DataMember]
        public string Name { get; set; }

        [DataMember]
        public string Email { get; set; }

        [DataMember]
        public string CountryCode { get; set; }

        [DataMember]
        public string Budget { get; set; }

        [DataMember]
        public string Used { get; set; }

        public Customer(string strCustomerID, string strName, string strEmail
            ,string strCountryCode
            , string strBudget
            , string strUsed)
        {
            this.CustomerID = strCustomerID;
            this.Name = strName;
            this.Email = strEmail;
            this.CountryCode = strCountryCode;
            this.Budget = strBudget;
            this.Used = strUsed;
        }

    }
}

ในตัวอย่างนี้มี Code ทั้งที่เป็น VB.NET และ C# และสามารถดาวน์โหลด All Code ทั้งหมดได้จากส่วนท้ายของบทความ (Login สมาชิกก่อน)

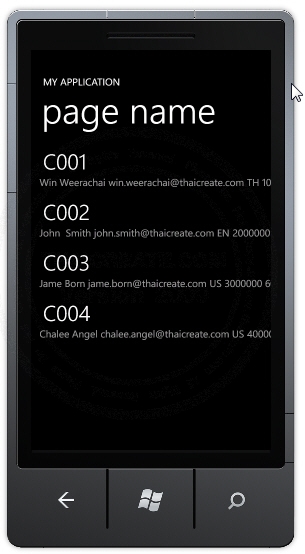

Screenshot

Windows Phone Get Retrieving Data  from Web Server

แสดงค่า JSON ที่ได้จาก Web Server และผ่านการ Binding ให้กับ ListBox


Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-09-15 13:06:48 / 2017-03-25 22:20:09
  Download : Download  Windows Phone Get Retrieving Data  from Web Server (PHP & MySQL and JSON)
 Sponsored Links / Related


Windows Phone Add Insert Data into Web Server (PHP and MySQL)
Rating :


Windows Phone Login Username and Password (PHP & MySQL Web Server)
Rating :


Windows Phone and JSON
Rating :


Windows Phone and XML Parser
Rating :


Windows Phone and RSS Reader Feed
Rating :


ThaiCreate.Com Forum


Comunity Forum Free Web Script
Jobs Freelance Free Uploads
Free Web Hosting Free Tools

สอน PHP ผ่าน Youtube ฟรี
สอน Android การเขียนโปรแกรม Android
สอน Windows Phone การเขียนโปรแกรม Windows Phone 7 และ 8
สอน iOS การเขียนโปรแกรม iPhone, iPad
สอน Java การเขียนโปรแกรม ภาษา Java
สอน Java GUI การเขียนโปรแกรม ภาษา Java GUI
สอน JSP การเขียนโปรแกรม ภาษา Java
สอน jQuery การเขียนโปรแกรม ภาษา jQuery
สอน .Net การเขียนโปรแกรม ภาษา .Net
Free Tutorial
สอน Google Maps Api
สอน Windows Service
สอน Entity Framework
สอน Android
สอน Java เขียน Java
Java GUI Swing
สอน JSP (Web App)
iOS (iPhone,iPad)
Windows Phone
Windows Azure
Windows Store
Laravel Framework
Yii PHP Framework
สอน jQuery
สอน jQuery กับ Ajax
สอน PHP OOP (Vdo)
Ajax Tutorials
SQL Tutorials
สอน SQL (Part 2)
JavaScript Tutorial
Javascript Tips
VBScript Tutorial
VBScript Validation
Microsoft Access
MySQL Tutorials
-- Stored Procedure
MariaDB Database
SQL Server Tutorial
SQL Server 2005
SQL Server 2008
SQL Server 2012
-- Stored Procedure
Oracle Database
-- Stored Procedure
SVN (Subversion)
แนวทางการทำ SEO
ปรับแต่งเว็บให้โหลดเร็ว


Hit Link








Load balance : Server 02
ThaiCreate.Com Logo
© www.ThaiCreate.Com. 2003-2024 All Rights Reserved.
ไทยครีเอทบริการ จัดทำดูแลแก้ไข Web Application ทุกรูปแบบ (PHP, .Net Application, VB.Net, C#)
[Conditions Privacy Statement] ติดต่อโฆษณา 081-987-6107 อัตราราคา คลิกที่นี่
