ตอนที่ 13 : การ Debug Stored Procedure บน Visual Studio 2010,2012,2013,2015 และอื่น ๆ

ตอนที่ 13 : การ Debug Stored Procedure บน Visual Studio 2010,2012,2013,2015 และอื่น ๆ สำหรับฟีเจอร์นี้ถือว่าเป็นจุดเล่นและความสามารถน่าสนใจมาก เพราะเหตุลผก็คือใน SQL Server รุ่นใหม่ ๆ มันสามารถใช้ Visual Studio ทำการ Debug ตัว Stored Procedure ร่วมกับการเขียนโปรแกรมอื่น ๆ บน Visual Studio ได้เลย ซึ่งปัญหาในการเขียน Stored ยุคแรก ๆ ก็คือแทบจะไม่มีวิธีการ Debug ตัว Stored Procedure ได้เลย การหาข้อผิดพลาดระหว่าง Runtime นั้นเป็นไปได้ยากมา นอกจากการใช้วิธี PRINT เพื่อดูค่าทาง Result ด้วยเหตุนี้เอง Stored Procedure จึงไม่ค่อยได้รับความนิยมมากนัก และถือว่าเป็นจุดเด่นมาก ๆ ที่ใน Visual Studio รุ่นใหม่ ๆ มีฟีเจอร์นี้ขึ้นมาด้วย โดยเราสามารถที่จะ Debug ได้เฉพาะ Stored Procedure ก็ได้ หรือจะ Debug โปรแกรมตั้งแต่ Application จนมาถึงการเรียกใช้งาน Stored Procedure

Stored สำหรับทดสอบในการ Debug โปรแกรม
CREATE PROCEDURE [dbo].[myStoredProcedure]
	@pRow	INT
AS
BEGIN

	-- Declare Table
	DECLARE @temp TABLE
	(
		RowID INT,
		Name VARCHAR(50),
		LastName VARCHAR(50)
	)

	-- Variable
	DECLARE @i INT
	SET @i = 1

	-- Loop Insert Table
	WHILE (@i <= @pRow)
		BEGIN
			INSERT INTO @temp (RowID,Name,LastName) VALUES ((@i),'Weerachai','Nukitram')
			SET @i = @i + 1
		END -- WHILE

	-- Variable
	DECLARE @j INT
	DECLARE @iRow INT
	DECLARE @sName VARCHAR(50)
	DECLARE @sLastName VARCHAR(50)

	-- Set Variable
	SET @j = 1
	SELECT @iRow = COUNT(*) FROM @temp

	-- Loop Display Row
	WHILE (@j <= @iRow)
		BEGIN
			-- Select from table
			SELECT @sName = Name , @sLastName = LastName
			FROM @temp WHERE RowID = @i

			-- Print output
			PRINT ' Row : ' + CONVERT(VARCHAR,@j) + ', Name : ' + @sName + ', LastName : ' + @sLastName

		SET @j = @j + 1
		END -- WHILE

END


Note!! Visual Studio 2010 สามารถ Debug ได้แค่ SQL Server 2008 ลงไป ส่วน รุ่นอื่น ๆ จะต้องใช้ให้สูงกว่า Version ที่โปรแกรม Limit ไว้

Example 1 การ Debug Stored Procedure บน Visual Studio 2010

Debug Stored Procedure

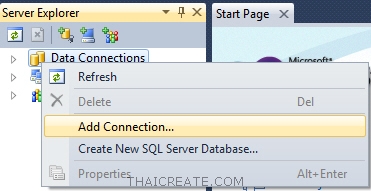

เลือกที่ Server Explorer คลิกขวา Add Connection

Debug Stored Procedure

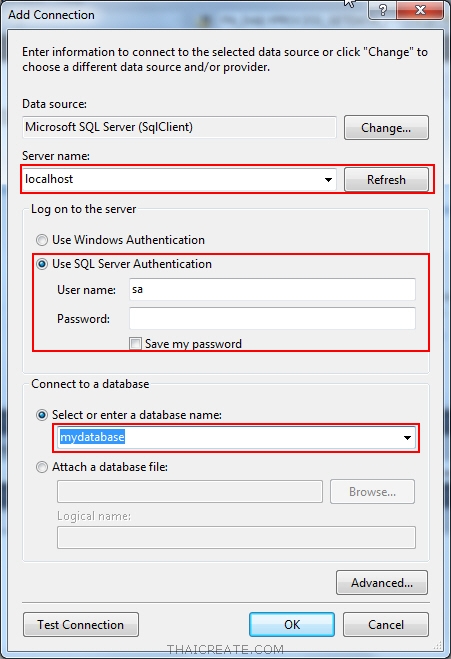

ข้อมูลที่จะติดต่อกับ SQL Server








Debug Stored Procedure

รายการ SQL Server แสดงใน Server Explorer ของ Visual Studio

Debug Stored Procedure

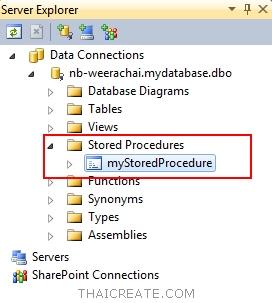

เลือกชื่อ Stored Procedure ที่ต้องการ

Debug Stored Procedure

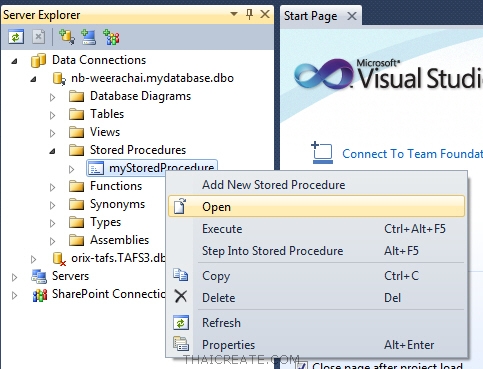

คลิกขวาเลือกที่ Open

Debug Stored Procedure

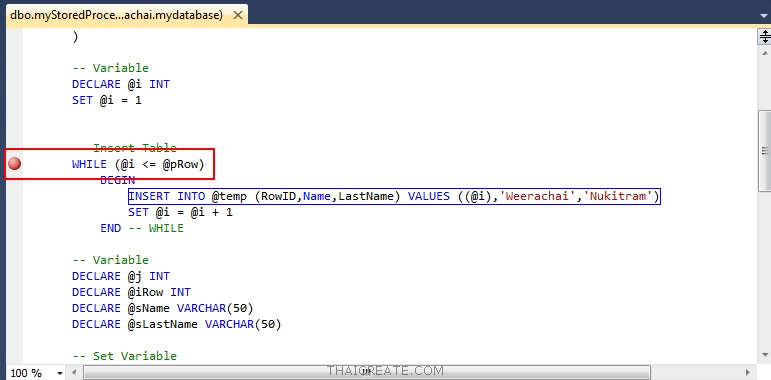

หลังจากที่แสดง Stored Procedure เราสามารถกำหนด Breakpoints ที่จะ Debugได้

Debug Stored Procedure

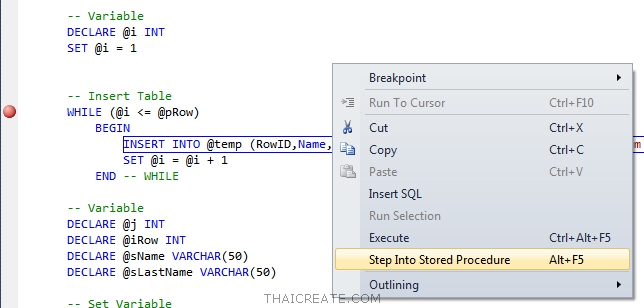

คลิกขวที่ Stored Procedure -> Step Info Stored Procedure

Debug Stored Procedure

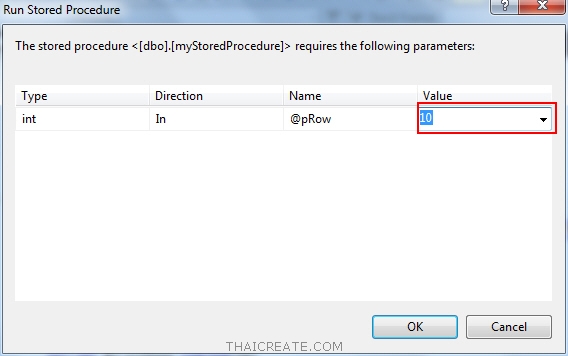

ในกรณีที่ Stored มี Parameters จะแสดง Dialog ให้ทำการ Input ค่าต่าง ๆ

Debug Stored Procedure

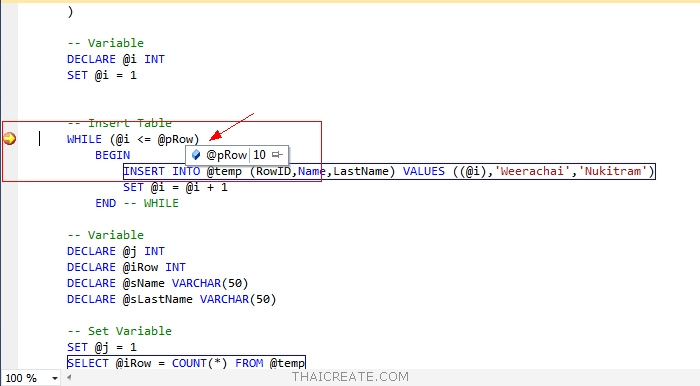

จากนั้นตัว Cursor จะวิ่งมายัง Breakpoints และหยุดให้เราตรวจสอบค่าต่าง ๆ ซึ่งสามารถ Debug Step ได้เหมือนกับ Visual Studio เช่น F10 , F11 , F5 เป็นต้น

Debug Stored Procedure

การ Control Step ต่าง ๆ

Example 2 การ Debug Stored Procedure บน Visual Studio 2012,2013 และอื่น ๆ

Debug Stored Procedure

ในการ Debug ตัว Stored Procedure ตั้งแต่ Visual Studio 2012 ขึ้นไป

Debug Stored Procedure

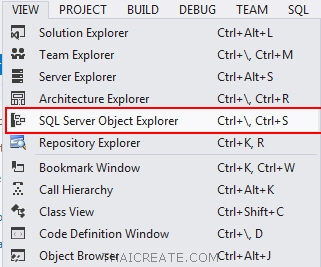

ให้คลิกที่เมนู VIEW -> SQL Server Object Explorer

Debug Stored Procedure

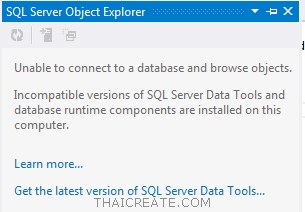

ในกรณีที่แสดงข้อความ
Untable to connect a database and browse object.

Incompatible version of sql server data tools and database runtime components are installed on this computer. Wen I click on Lear more... and Get the latest version of SQL Server Data Tools..., these two page are not available.

แสดงทำการดาวน์โหลดและติดตั้งตัว SQL Server Data Tools. ให้เรียบร้อยเสียก่อน

Microsoft SQL Server Data Tools
ล่าสุด
https://msdn.microsoft.com/en-us/library/mt204009.aspx

สำรอง
http://www.microsoft.com/en-us/download/details.aspx?id=36843
http://www.microsoft.com/en-us/download/details.aspx?id=42313


Debug Stored Procedure

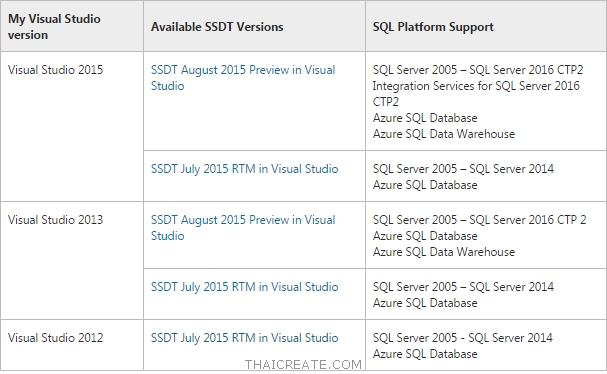

เลือก Version ให้ตรงกับ Visual Studio ที่กำลังใช้งาน

Debug Stored Procedure

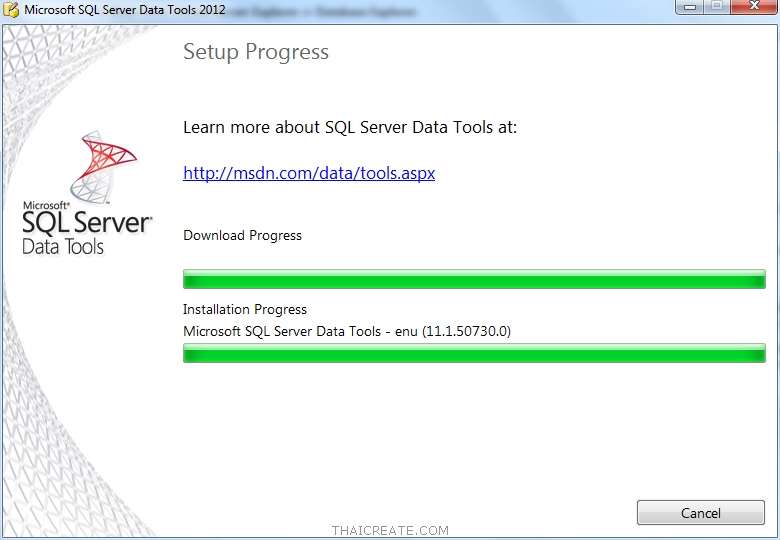

ติดตั้ง Microsoft SQL Server Data Tools

Debug Stored Procedure

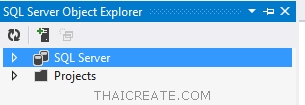

แสดงรายการของ SQL Server

Debug Stored Procedure

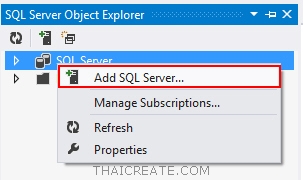

คลิกขวาที่ SQL Server -> Add SQL Server

Debug Stored Procedure

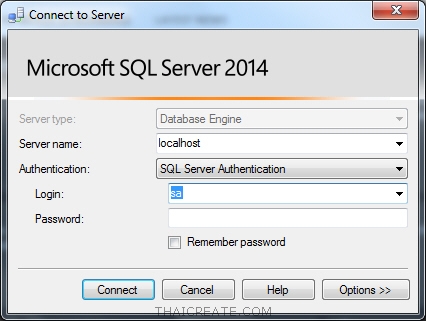

ทำการ Authen ตัว SQL Server ที่จะเชื่อมต่อ








Debug Stored Procedure

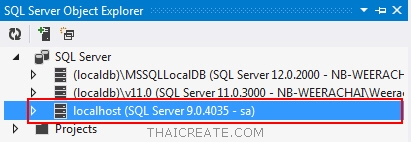

แสดงรายการของ SQL Server ที่ทำการ Add เข้ามา

Debug Stored Procedure

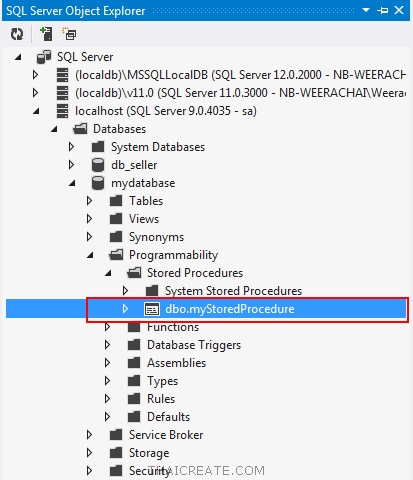

เลือกที่ Stored Procedure ที่จะทำการ Debug

Debug Stored Procedure

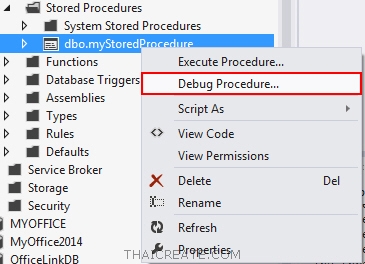

คลิกวาเลือก Debug Procedure

Debug Stored Procedure

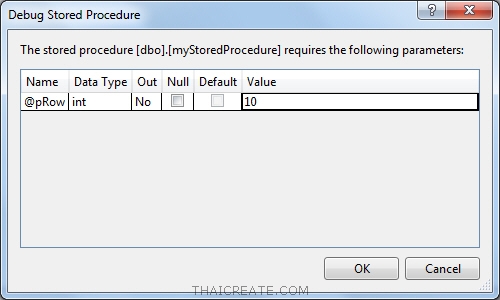

ใส่ค่า Parameters ในกรณีที่ต้องการให้มีค่าส่งไปด้วย

Debug Stored Procedure

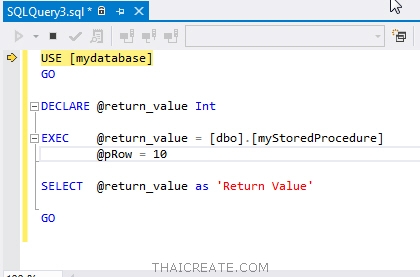

โปรแกรมจะสร้าง New Query ให้ใหม่ โดย Input ค่าต่าง ๆ ไปให้ด้วย

Debug Stored Procedure

เราสามารถ Debug เข้าไปใน Step ย่อยของ Procedure ด้วยการกด F11

Debug Stored Procedure

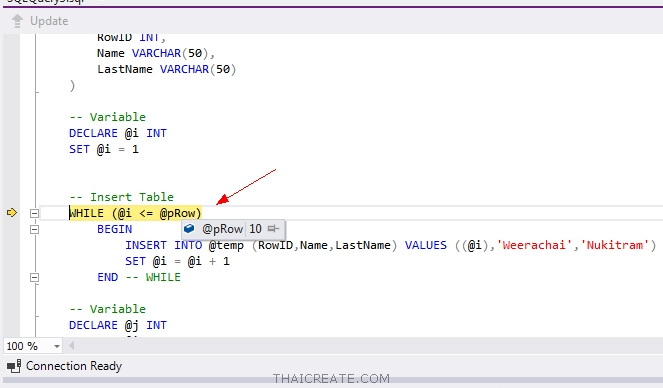

ถ้ามี Breakpoint จะหยุดและแสดงค่าต่าง ๆ ของตัวแปร


Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2015-09-12 08:50:55 / 2017-03-24 22:36:39
  Download : No files
