ตอนที่ 8 : Xamarin กับ Android การใช้ SetContentView() ควบคุมการแสดง XML Layout (C#)

ตอนที่ 8 : Xamarin กับ Android การใช้ SetContentView() ควบคุมการแสดง XML Layout (C#) ในการสร้าง Activity ทั่ว ๆ ไปบน Android App เราจะใช้ไฟล์ Activity ที่เป็น C# กับ XML ที่เป็น Layout ทำงานคู่กัน ซึ่งจะใช้ SetContentView(Resource.Layout.Main); เป็นตัวชี้ว่าจะใช้ Layout ตัวไหน แต่ก็มีเทคนิคการเปลี่ยน Layout ในขณะที่โปรแกรมทำงาน Runtime ได้ การใช้ SetContentView() ทำงานเป็นแบบ Dynamic ดึง XML layout มาแสดงผล ภายใต้ Activity เดิม ซึ่งผลลัพธ์ที่ได้ก็จะเป็นการเปลี่ยนไปยังหน้าต่าง ๆ ได้เหมือนกับการสร้างหลาย ๆ Activity

Xamarin Android C# setContentView

Xamarin Android (C#) and SetContentView()


จากรูปจะเห็นว่า C# Class ที่เป็น Activity มีอยู่แต่ตัวเดียว แต่จะสามารถเรียก XML layout ได้จาก layout ต่าง ๆ โดยจะสามารถเลือก SetContentView() ได้ครั้งล่ะ Layout

เทคนิคนี้เป็นทางเลือกในอันดับต้น ๆ ที่ใช้ในการเขียนโปรแกรมบน Android เหตุผลเพราะสามารถเขียนไฟล์ที่เป็น C# ที่อยู่ใน Class เดียวกับ แต่จะสามารถเรียกใช้ XML Layout ได้หลายตัว โดยไม่ต้องสร้าง Activity เพิ่มขึ้นมา แต่การใช้งาน SetContentView() คือข้อจำกัดในการแสดงผล Layout นั้น จะสามารถแสดงผลได้ครั้งล่ะ Layout เท่านั้น โดยถ้ามีการเรียก SetContentView() แบบซ้ำซ้อน ใน C# Activity จะเลือกแสดงผล Layout ที่ถูกเรียกใช้ล่าสุด

ลองมาดูตัวอย่างเพื่อความเข้าใจมากขึ้น

Xamarin Android C# setContentView

ตอนนี้เรามี C# Activity อยู่ 1 ตัวชื่อว่า MainActivity.cs เป็น Activity ที่จะทำงานแรกสุดและเรียก Layout ของ SetContentView(Resource.Layout.Main); มาแสดงผล

Xamarin Android C# setContentView

ปัจจุบันค่า Default ของ Activity คือ SetContentView(Resource.Layout.Main); ซึ่งจะทำงานแบบนี้ทุกครั้งเมื่อรันโปรแกรม

Xamarin Android C# setContentView

เราจะสร้าง Layout ขึ้นมาใหม่ ให้คลิกวาที่ layout -> Add -> New Item...

Xamarin Android C# setContentView

เลือก Android Layut และตั้งชื่อเป็น Main2.axml

Xamarin Android C# setContentView

ได้ไฟล์ XML Layout ขึ้นมาใหม่ชื่อว่า Main2.axml

Xamarin Android C# setContentView

ให้สร้างแบบเดียวกันตั้งชื่อว่า Main3.axml








และหลังจากที่ได้ไฟล์ Layout ขึ้นมา 3 ตัวแล้ว เราจะใช้ Activity ของ MainActivity.cs ควบคุมการแสดงผลของ Layout ทั้ง 3 ตัว

Xamarin Android C# setContentView

ใน Layout แรกให้ออกแบบหน้าจอดังนี้

Main.axml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent">
    <TextView
        android:text="Layout 1"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/textView1"
        android:gravity="center" />
    <Button
        android:text="Go to Layout 2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/btn1" />
</LinearLayout>


Xamarin Android C# setContentView

ใน Layout สองให้ออกแบบหน้าจอดังนี้

Main2.axml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:minWidth="25px"
    android:minHeight="25px">
    <TextView
        android:text="Layout 2"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/textView2"
        android:gravity="center" />
    <Button
        android:text="Go to Layout 3"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/btn2" />
</LinearLayout>


Xamarin Android C# setContentView

ใน Layout สามให้ออกแบบหน้าจอดังนี้

Main3.axml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:minWidth="25px"
    android:minHeight="25px">
    <TextView
        android:text="Layout 3"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/textView3"
        android:gravity="center" />
    <Button
        android:text="Go to Layout 1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/btn3" />
</LinearLayout>


จากนั้นในไฟล์ MainActivity.cs ให้เขียนคำสั่งเพื่อควบคุมการแสดงผลของ layout ดังนี้

MainActivity.cs
using System;
using Android.App;
using Android.Content;
using Android.Runtime;
using Android.Views;
using Android.Widget;
using Android.OS;

namespace myFirstApps
{
    [Activity(Label = "myFirstApps", MainLauncher = true, Icon = "@drawable/icon")]
    public class MainActivity : Activity
    {

        protected override void OnCreate(Bundle bundle)
        {
            base.OnCreate(bundle);

            // Set our view from the "main" layout resource
            ShowLayout1();

        }

        // Layout 1 (Main.axml)
        private void ShowLayout1()
        {
            SetContentView(Resource.Layout.Main);
            Button btn1 = FindViewById<Button>(Resource.Id.btn1);
            btn1.Click += delegate
            {
                ShowLayout2();
            };
        }

        // Layout 2 (Main2.axml)
        private void ShowLayout2()
        {
            SetContentView(Resource.Layout.Main2);
            Button btn2 = FindViewById<Button>(Resource.Id.btn2);
            btn2.Click += delegate
            {
                ShowLayout3();
            };
        }

        // Layout 3 (Main3.axml)
        private void ShowLayout3()
        {
            SetContentView(Resource.Layout.Main3);
            Button btn3 = FindViewById<Button>(Resource.Id.btn3);
            btn3.Click += delegate
            {
                ShowLayout1();
            };
        }

    }
}









ทดสอบการทำงาน

Xamarin Android C# setContentView

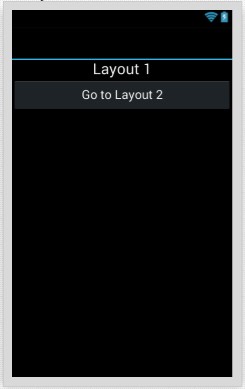

แสดง Layout แรก ให้คลิก Button เพื่อเรียก Layout ที่สองมาแสดง

Xamarin Android C# setContentView

แสดง Layout สอง ให้คลิก Button เพื่อเรียก Layout ที่สามมาแสดง

Xamarin Android C# setContentView

แสดง Layout สาม สามารถคลิกเพื่อกลับไป layout แรก
