AppBar : TopAppBar / BottomAppBar บน Windows Store Apps (C#)

รู้จักกับ AppBar : TopAppBar / BottomAppBar บน Windows Store Apps (C#) สำหรับ AppBar บน Windows Store Apps คือ Application Bar ของโปรแกรมซึ่งจะไว้สร้างเป็น Navigation หรือ Command ซึ่ง AppBar เราจะเห็นมีอยู่ 2 ส่วนด้วยกันคือ TopAppBar (แสดงด้านบนหน้าจอ App) และ BottomAppBar (แสดงด้านล่างของ Apps) โดยการทำงาของ AppBar สามารถเรียกให้โชว์และแสดงได้ตลอดเวลา เหมาะสำหรับสร้างเป็น Navigation และเมนู Function คำสั่ง Command ต่าง ๆ ซึ่งฟีเจอร์นี้เราจะได้พบเจอมันบน Windows 8

Windows Store Apps App Bar : TopAppBar  / BottomAppBar

โดยใน Windows Store Apps เราไม่จำเป็นจะต้องหา Icons ต่าง ๆ เหล่านี้มาแสดงผลเหมือนบน Windows Phone เพราะใน Windows Store Apps ได้เตรียม Icon เหล่านี้มาให้หลายตัว เช่น Icon="Refresh" แสดงปุ่ม Refresh , Icon="Help" แสดงปุ่ม Help และปุ่มอื่น ๆ อีกมากมาย ที่สามารถเรียกใช้งานได้ทันที

เราสามารถสร้าง AppBar ได้โดยการสร้าง Page.TopAppBar สำหรับ AppBar ข้างบนหรือ Page.BottomAppBar สำหรับ AppBar ข้างล่าง เหมือนโค้ดข้างล่าง

<Page.TopAppBar>
    <AppBar>
        <!-- AppBar content -->
    </AppBar>
</Page.TopAppBar>

<Page.BottomAppBar>
    <CommandBar>
        <!-- CommandBar content -->
    </CommandBar>
</Page.BottomAppBar>

เช่น
<Page.BottomAppBar>
    <CommandBar>
        <AppBarButton Label="Refresh" Icon="Refresh" Click="AppBarButton_Click"/>
        <AppBarButton Label="Help" Icon="Help" Click="AppBarButton_Click"/>

        <CommandBar.SecondaryCommands>
            <AppBarButton Label="Edit" Icon="Edit" Click="AppBarButton_Click"/>
            <AppBarButton Label="Remove" Icon="Remove" Click="AppBarButton_Click"/>
            <AppBarButton Label="Add" Icon="Add" Click="AppBarButton_Click"/>
        </CommandBar.SecondaryCommands>
    </CommandBar>
</Page.BottomAppBar>

จาก Code เราจะต้องสร้าง Event ของ Click="AppBarButton_Click" เพื่อรองรับ Event ที่จะเกิดขึ้น

        private void AppBarButton_Click(object sender, RoutedEventArgs e)
        {

        }









Example 1 สร้าง AppBar แบบ TopAppBar และ BottomAppBar

MainPage.xaml
<Page
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:WindowsStoreApps"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    x:Class="WindowsStoreApps.MainPage"
    mc:Ignorable="d">

    <Page.TopAppBar>
        <AppBar>
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition/>
                    <ColumnDefinition/>
                </Grid.ColumnDefinitions>
                <StackPanel Orientation="Horizontal">
                    <Button Content="Home" Width="140" Height="80" Click="AppBarButton_Click"/>
                    <Button Content="Page 1" Width="140" Height="80" Click="AppBarButton_Click"/>
                    <Button Content="Page 2" Width="140" Height="80" Click="AppBarButton_Click"/>
                </StackPanel>
                <SearchBox Grid.Column="1" Width="300" Height="50" HorizontalAlignment="Right"/>
            </Grid>
        </AppBar>
    </Page.TopAppBar>


    <Page.BottomAppBar>
        <CommandBar>
            <AppBarButton Label="Refresh" Icon="Refresh" Click="AppBarButton_Click"/>
            <AppBarButton Label="Help" Icon="Help" Click="AppBarButton_Click"/>

            <CommandBar.SecondaryCommands>
                <AppBarButton Label="Edit" Icon="Edit" Click="AppBarButton_Click"/>
                <AppBarButton Label="Remove" Icon="Remove" Click="AppBarButton_Click"/>
                <AppBarButton Label="Add" Icon="Add" Click="AppBarButton_Click"/>
            </CommandBar.SecondaryCommands>
        </CommandBar>
    </Page.BottomAppBar>

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Button x:Name="btnShow" Content="Show Bar" HorizontalAlignment="Left" Margin="549,351,0,0" VerticalAlignment="Top" FontSize="48" Click="btnShow_Click" FontFamily="Global User Interface"/>
    </Grid>

</Page>

MainPage.xaml.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;
using Windows.UI.Popups;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace WindowsStoreApps
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    ///

    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
        }

        private void AppBarButton_Click(object sender, RoutedEventArgs e)
        {
            MessageDialog msgDialog = new MessageDialog("AppBar Clicked", "Hi");
            msgDialog.ShowAsync();

        }

        private void btnShow_Click(object sender, RoutedEventArgs e)
        {
            if (this.TopAppBar != null)
            {
                this.TopAppBar.IsOpen = true;
            }

            if (this.BottomAppBar != null)
            {
                this.BottomAppBar.IsOpen = true;
            }
        }

    }
}

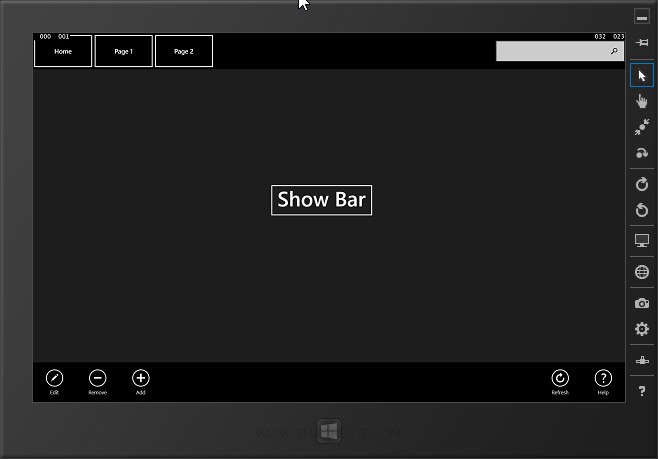

Screenshot

Windows Store Apps App Bar : TopAppBar  / BottomAppBar

แสดงหน้าจอซึ่งเราจะให้คลิกที่ Button และแสดง App Bat

Windows Store Apps App Bar : TopAppBar  / BottomAppBar

แสดง App Bar ทั้ง TopAppBar และ BottomAppBar

Windows Store Apps App Bar : TopAppBar  / BottomAppBar

เมื่อทดสอบการคลิกที่ App Bar บน Icon ต่าง ๆ ก็จะเกิด Event ตามที่เรากำนดไว้

Example 2 สร้าง AppBar แบบ BottomAppBar ด้วย CommandBar รูปแบบอื่น ๆ
    <Page.BottomAppBar>
        <CommandBar>
            <AppBarToggleButton Icon="Shuffle" Label="Shuffle" Click="AppBarButton_Click"/>
            <AppBarToggleButton Icon="RepeatAll" Label="Repeat" Click="AppBarButton_Click"/>
            <AppBarSeparator/>
            <AppBarButton Icon="Back" Label="Back" Click="AppBarButton_Click"/>
            <AppBarButton Icon="Stop" Label="Stop" Click="AppBarButton_Click"/>
            <AppBarButton Icon="Play" Label="Play" Click="AppBarButton_Click"/>
            <AppBarButton Icon="Forward" Label="Forward" Click="AppBarButton_Click"/>

            <CommandBar.SecondaryCommands>
                <AppBarButton Icon="Like" Label="Like" Click="AppBarButton_Click"/>
                <AppBarButton Icon="Dislike" Label="Dislike" Click="AppBarButton_Click"/>
            </CommandBar.SecondaryCommands>
        </CommandBar>
    </Page.BottomAppBar>


Screenshot

Windows Store Apps App Bar : TopAppBar  / BottomAppBar

แสดง CommandBar ที่อยู่ภายใต้ CommandBar และ BottomAppBar







.
