Windows Phone and ProgressBar Using Thread/Multiple Thread (Silverlight)

Windows Phone and ProgressBar Using Thread/Multiple Thread (Silverlight) ตัวอย่างการเขียน App บน Windows Phone กับการสร้าง ProgressBar ภายใต้การทำงานของ Thread โดยบทความนี้จะได้เข้าใจโครงสร้างพื้นฐานการเขียนโปรแกรมบน .NET กับ Windows Phone ในการสร้าง ProgressBar ที่ทำงานร่วมกับ Thread รวมทั้งการทำงานแบบ Mutiple Thread และการ Update Status ไปยังหน้าจอของ Page ในขณะที่ Thread กำลังทำงาน รวมถึงการแจ้งสถานะเป็น 1-100 % ทาง TextBlock

Windows Phone and ProgressBar Thread

Windows Phone and ProgressBar Using Thread/Multiple Thread


Windows Phone and Thread (Silverlight)

สำหรับการทำงานของ Thread ควรอ่านบทความนี้เพื่อความเข้าใจ


Example 1 ตัวอย่างการใช้ Thread กับ ProgressBar แบบง่าย ๆ

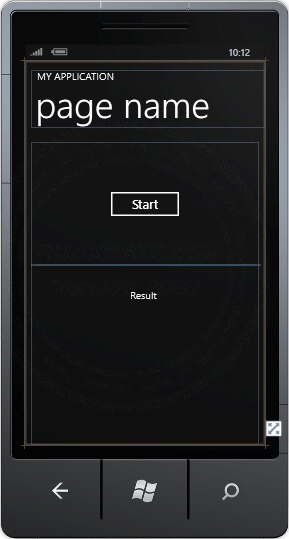

ออกแบบ Layout เหมือนในภาพ

Windows Phone and ProgressBar Thread

     <!--LayoutRoot contains the root grid where all other page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Start" Height="72" HorizontalAlignment="Left" Margin="148,89,0,0" Name="btnStartThread" VerticalAlignment="Top" Width="160" Click="btnStartThread_Click" />
            <ProgressBar Height="4" HorizontalAlignment="Left" Margin="-1,245,0,0" Name="ProgressBar1" VerticalAlignment="Top" Width="460" />
            <TextBlock Height="30" HorizontalAlignment="Right" Margin="0,293,12,0" Name="txtResult" Text="Result" VerticalAlignment="Top" Width="438" TextAlignment="Center" />
        </Grid>

    </Grid>









VB.NET
    Private Sub btnStartThread_Click(sender As System.Object, e As System.Windows.RoutedEventArgs)
        btnStartThread.IsEnabled = False
        Dim thread As System.Threading.Thread = New System.Threading.Thread(AddressOf ThreadStart)
        thread.Start()
    End Sub

    Private Sub ThreadStart()
        Dim intProgress As Integer = 0

        '*** for Display ***'
        Dim display As New Action(Of Integer)(AddressOf UpdateStatus)

        '*** when Finish ***'
        Dim finish As New Action(AddressOf UpdateFinish)

        '*** Example for Execute
        For i As Integer = 0 To 100
            intProgress = i
            System.Threading.Thread.Sleep(100)
            Dispatcher.BeginInvoke(display, intProgress) 'Update Status
        Next

        Dispatcher.BeginInvoke(finish) ' When Finish
    End Sub

    '*** for Update Status
    Private Sub UpdateStatus(ByVal intProgress As Integer)
        '*** Update Progress ***'
        Me.ProgressBar1.Value = intProgress

        '*** Update Text Result ***'
        Me.txtResult.Text = intProgress & " %"
    End Sub

    '*** for When Thread Complete
    Private Sub UpdateFinish()
        btnStartThread.IsEnabled = True
    End Sub


C#
       private void btnStartThread_Click(System.Object sender, System.Windows.RoutedEventArgs e)
        {
            btnStartThread.IsEnabled = false;
            System.Threading.Thread thread = new System.Threading.Thread(ThreadStart);
            thread.Start();
        }

        private void ThreadStart()
        {
            int intProgress = 0;

            //*** for Display ***'
            Action<int> display = new Action<int>(UpdateStatus);

            //*** when Finish ***'
            Action finish = new Action(UpdateFinish);

            //*** Example for Execute
            for (int i = 0; i <= 100; i++)
            {
                intProgress = i;
                System.Threading.Thread.Sleep(100);
                Dispatcher.BeginInvoke(display, intProgress);
                //Update Status
            }

            Dispatcher.BeginInvoke(finish);
            // When Finish
        }

        //*** for Update Status
        private void UpdateStatus(int intProgress)
        {
            //*** Update Progress ***'
            this.ProgressBar1.Value = intProgress;

            //*** Update Text Result ***'
            this.txtResult.Text = intProgress + " %";
        }

        //*** for When Thread Complete
        private void UpdateFinish()
        {
            btnStartThread.IsEnabled = true;
        }

จากตัวอย่าง Code ของ VB.NET และ C# จะยกตัวอย่างการ Loop ข้อมูลจาก 0-100

        For i As Integer = 0 To 100
            intProgress = i
            System.Threading.Thread.Sleep(100)
            Dispatcher.BeginInvoke(display, intProgress) 'Update Status
        Next

และแต่ล่ะ Loop ก็จะส่งสถานะไป Update ที่ ProgressBar แต่ในหลักการใช้งานจริง ๆ อาจจะต้องคำนวณจาก Progress ที่มีอยู่จริง เช่นต้องการ Loop Insert ข้อมูล 1000 รายการ ก็จะใช้การเขียนสูตรว่า 1000/100 = 10 นั่นหมายความว่าทุก ๆ 10 รอบ จะต้องส่ง Status ไป Update ยัง ProgressBar เพื่อจะให้ ProgressBar แสดง Status = 1- 100 หรือในกรณีที่เป็นการดาวน์โหลดไฟล์จาก Server ก็จะต้องหา Size ขนาดของไฟล์ และคำนวณด้วยอัตราส่วน 100 ซึ่งทุก ๆ ครั้งที่มีการดาวน์โหลดไฟล์มาจัดเก็บไว้ในเครื่อง ก็จะต้องส่ง Status ไป Update บน ProgressBar ทุกครั้ง และในส่วนของ System.Threading.Thread.Sleep(100) อาจจะไม่จำเป็นต้องใช้ เพราะจะได้ระยะเวลาใช้งานจริง มาแสดงผลอยู่แล้ว

Screenshot ทดสอบการทำงานบน Emulator ของ Windows Phone

Windows Phone and ProgressBar Thread

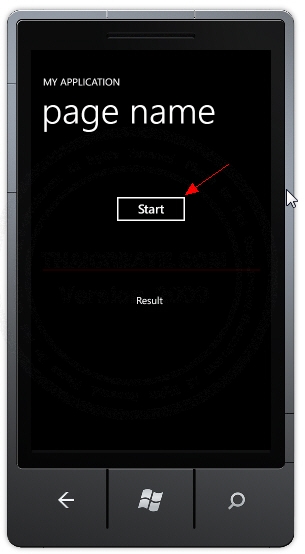

คลิกที่ปุ่ม Start

Windows Phone and ProgressBar Thread

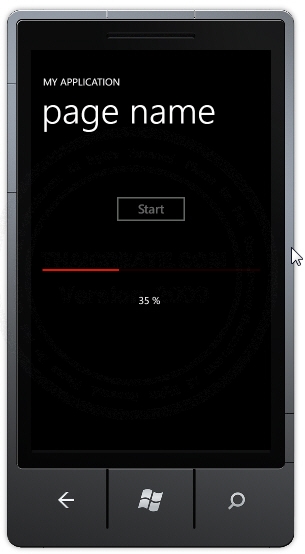

แสดง ProgressBar และตัวเลขสถานะ ในขณะที่กำลังทำงาน

Windows Phone and ProgressBar Thread

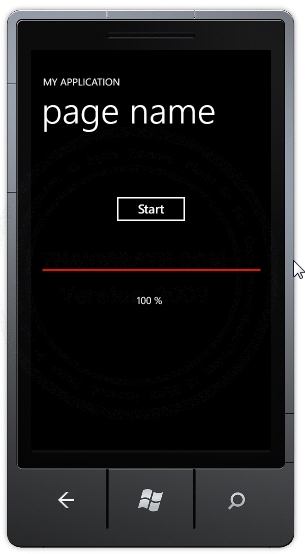

เมื่อทำงานเสร็จสิ้นก็สถานะจะวิ่งไปจนถึง 100%









Example 2 การใช้ Multiple Thread และ Mutiple ProgressBar แสดง ProgressBar ของแต่ล่ะ Thread

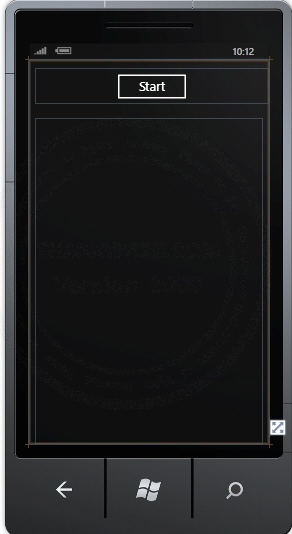

ออกแบบ Layout ดังรูป

Windows Phone and ProgressBar Thread

    <!--LayoutRoot contains the root grid where all other page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <Button Content="Start" Height="72" Name="btnStartThread" Width="160" Click="btnStartThread_Click" />
        </StackPanel>

        <StackPanel x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

        </StackPanel>

    </Grid>


VB.NET
    Private Sub btnStartThread_Click(sender As System.Object, e As System.Windows.RoutedEventArgs)
        Dim thread As System.Threading.Thread = New System.Threading.Thread(AddressOf ThreadStart)
        thread.Start()
    End Sub

    Private Sub ThreadStart()
        Dim intProgress As Integer = 0

        Dim threadID As String = System.Threading.Thread.CurrentThread.ManagedThreadId.ToString()

        '*** for Begin create Control ***'
        Dim begin As New Action(Of String)(AddressOf BeginCreate)

        '*** for Display ***'
        Dim display As New Action(Of Integer, String)(AddressOf UpdateStatus)

        '*** when Finish ***'
        Dim finish As New Action(AddressOf UpdateFinish)

        Dispatcher.BeginInvoke(begin, threadID) ' Create ProgressBar

        '*** Example for Execute
        For i As Integer = 0 To 100
            intProgress = i
            System.Threading.Thread.Sleep(100)
            Dispatcher.BeginInvoke(display, intProgress, threadID) 'Update Status
        Next

        Dispatcher.BeginInvoke(finish) ' When Finish
    End Sub

    '*** for Create control ProgressBar
    Private Sub BeginCreate(ByVal threadID As String)
        Dim ctrlProgress As New ProgressBar
        ctrlProgress.Name = "Progress" & threadID
        ContentPanel.Children.Add(ctrlProgress)

        Dim ctrlText As New TextBlock
        ctrlText.Name = "text" & threadID
        ContentPanel.Children.Add(ctrlText)
    End Sub

    '*** for Update Status
    Private Sub UpdateStatus(ByVal intProgress As Integer, ByVal threadID As String)
        '*** Update Progress ***'
        Dim progress As ProgressBar = Me.FindName("Progress" & threadID)
        progress.Value = intProgress

        '*** Update Text Result ***'
        Dim text As TextBlock = Me.FindName("text" & threadID)
        text.Text = intProgress.ToString() & " %"
    End Sub

    '*** for When Thread Complete
    Private Sub UpdateFinish()
        btnStartThread.IsEnabled = True
    End Sub


C#
        private void btnStartThread_Click(System.Object sender, System.Windows.RoutedEventArgs e)
        {
            System.Threading.Thread thread = new System.Threading.Thread(ThreadStart);
            thread.Start();
        }

        private void ThreadStart()
        {
            int intProgress = 0;

            string threadID = System.Threading.Thread.CurrentThread.ManagedThreadId.ToString();

            //*** for Begin create Control ***'
            Action<string> begin = new Action<string>(BeginCreate);

            //*** for Display ***'
            Action<int, string> display = new Action<int, string>(UpdateStatus);

            //*** when Finish ***'
            Action finish = new Action(UpdateFinish);

            Dispatcher.BeginInvoke(begin, threadID);
            // Create ProgressBar

            //*** Example for Execute
            for (int i = 0; i <= 100; i++)
            {
                intProgress = i;
                System.Threading.Thread.Sleep(100);
                Dispatcher.BeginInvoke(display, intProgress, threadID);
                //Update Status
            }

            Dispatcher.BeginInvoke(finish);
            // When Finish
        }

        //*** for Create control ProgressBar
        private void BeginCreate(string threadID)
        {
            ProgressBar ctrlProgress = new ProgressBar();
            ctrlProgress.Name = "Progress" + threadID;
            ContentPanel.Children.Add(ctrlProgress);

            TextBlock ctrlText = new TextBlock();
            ctrlText.Name = "text" + threadID;
            ContentPanel.Children.Add(ctrlText);
        }

        //*** for Update Status
        private void UpdateStatus(int intProgress, string threadID)
        {
            //*** Update Progress ***'
            ProgressBar progress = (ProgressBar)this.FindName("Progress" + threadID);
            progress.Value = intProgress;

            //*** Update Text Result ***'
            TextBlock text = (TextBlock)this.FindName("text" + threadID);
            text.Text = intProgress.ToString() + " %";
        }

        //*** for When Thread Complete
        private void UpdateFinish()
        {
            btnStartThread.IsEnabled = true;
        }

จาก Code ของ .NET จะมีการเพิ่ม Control ลงใน StackPanel ชื่อว่า ContentPanel

    <StackPanel x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

    </StackPanel>

StackPanel บน XAML

        private void BeginCreate(string threadID)
        {
            ProgressBar ctrlProgress = new ProgressBar();
            ctrlProgress.Name = "Progress" + threadID;
            ContentPanel.Children.Add(ctrlProgress);

            TextBlock ctrlText = new TextBlock();
            ctrlText.Name = "text" + threadID;
            ContentPanel.Children.Add(ctrlText);
        }

Create Control ลงบน ContentPanel ซึ่งจะได้ ProgressBar ตามจำนวนของ Thread

Screenshot ทดสอบการทำงานบน Emulator ของ Windows Phone

Windows Phone and ProgressBar Thread

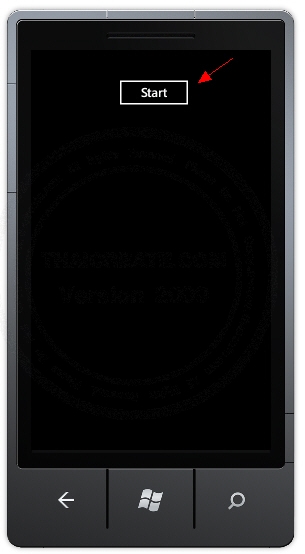

คลิกที่ Start หลาย ๆ ครั้งเพื่อสั่งให้ทำงาน Mutiple Thread โดยคลิกในระยะเวลาใกล้เคียงกัน

Windows Phone and ProgressBar Thread

จะเห็นว่าจำนวน ProgressBar จะสร้างเท่ากับจำนวนของ Thread และจะแสดง ProgressBar รวทั้งจำนวนตัวเลขแจ้งสถานะของแต่ล่ะ Thread ด้วย

Windows Phone and ProgressBar Thread

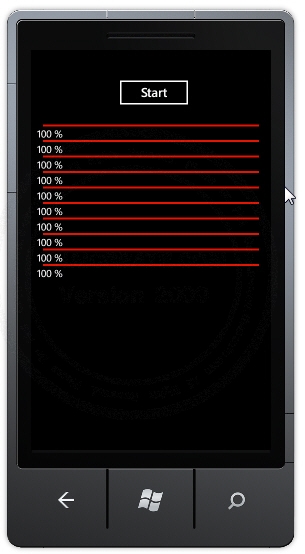

แสดง ProgressBar ครบ 100% เมื่อ Thread ทำงานจนเสร็จสิ้น


.
