Windows Phone SystemTray and ProgressIndicator

Windows Phone SystemTray and ProgressIndicator สำหรับ SystemTray บน Windows Phone เป็นตำแหน่งที่เรียกซึ่งจะอยู่บนเหนือ Titlebar อยู่ติดกับพวกแบตเตอร์รี่ หรือ สัญญาโทรศัพท์ และใน SystemTray เราสามารถสร้าง ProgressBar แบบ ProgressIndicator (IsIndeterminate) ลักษณะเป็น ลูกบอลเล็ก ๆ หมุ่นไปมา เหมาะสำหรับแสดงผลในขณะที่โปรแกรมกำลังโหลดข้อมูล หรือ กำลังทำงานอยู่ และเราสามารถเขียนโปรแกรมเพื่อควบคุม ProgressIndicator ได้ง่าย ๆ เช่น

Windows Phone SystemTray and ProgressIndicator


การแสดง(Show) SystemTray ProgressIndicator

VB.NET
        prog = New ProgressIndicator()
        prog.IsVisible = True
        prog.IsIndeterminate = True
        prog.Text = "Downloading...."

        SystemTray.SetProgressIndicator(Me, prog)

C#
prog = new ProgressIndicator();
prog.IsVisible = true;
prog.IsIndeterminate = true;
prog.Text = "Downloading....";

SystemTray.SetProgressIndicator(this, prog);


การซ่อน(Hide) SystemTray ProgressIndicator

VB.NET
        prog.IsVisible = False

C#
        prog.IsVisible = false;


Example การแสดง Progress แบบ ProgressIndicator บน SystemTray แบบง่าย ๆ

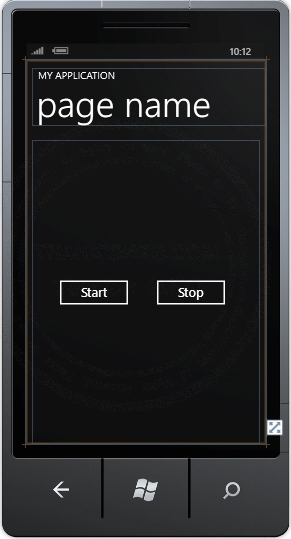

ออกแบบหน้าจอและ Layout ดังรูป ซึ่งประกอบด้วย Button 2 ตัวคือ Start และ Stop

Windows Phone SystemTray and ProgressIndicator

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Start" Height="72" Name="btnStart" Width="160" Click="btnStart_Click" Margin="44,268,252,267" />
            <Button Content="Stop" Height="72" Margin="238,268,58,267" Name="btnStop" Click="btnStop_Click" Width="160" />
        </Grid>

    </Grid>









VB.NET
    Dim prog As ProgressIndicator

    Private Sub btnStart_Click(sender As System.Object, e As System.Windows.RoutedEventArgs)
        SystemTray.SetIsVisible(Me, True)
        'SystemTray.SetBackgroundColor(Me, Colors.Blue)
        'SystemTray.SetForegroundColor(Me, Colors.Yellow)

        prog = New ProgressIndicator()
        prog.IsVisible = True
        prog.IsIndeterminate = True
        prog.Text = "Downloading...."

        SystemTray.SetProgressIndicator(Me, prog)
    End Sub

    Private Sub btnStop_Click(sender As System.Object, e As System.Windows.RoutedEventArgs)
        prog.IsVisible = False
    End Sub


C#
        ProgressIndicator prog;
        private void btnStart_Click(object sender, System.Windows.RoutedEventArgs e)
        {
            SystemTray.SetIsVisible(this, true);
            // SystemTray.SetBackgroundColor(Me, Colors.Blue)
            // SystemTray.SetForegroundColor(Me, Colors.Yellow)
            prog = new ProgressIndicator();
            prog.IsVisible = true;
            prog.IsIndeterminate = true;
            prog.Text = "Downloading....";
            SystemTray.SetProgressIndicator(this, prog);
        }

        private void btnStop_Click(object sender, System.Windows.RoutedEventArgs e)
        {
            prog.IsVisible = false;
        }


Code ที่เป็น VB.NET และ C#

Screenshot

Windows Phone SystemTray and ProgressIndicator

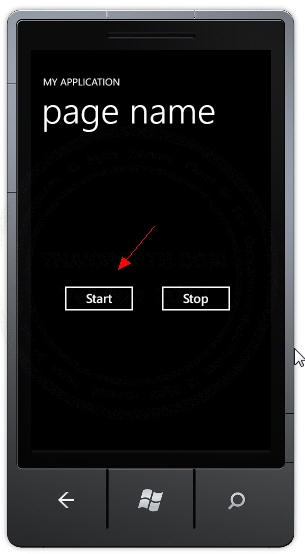

ทดสอบการทำงานด้วยการคลิกที่ Start

Windows Phone SystemTray and ProgressIndicator

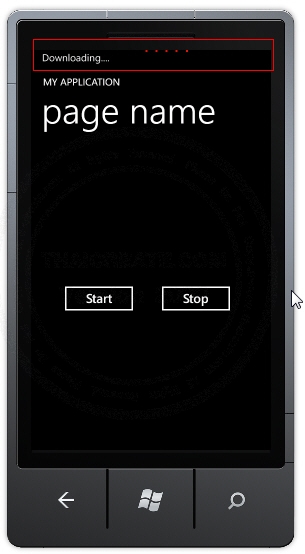

แสดง SystemTray and ProgressIndicator และกดปุ่ม Stop เพื่อหยุดการทำงาน








สำหรับ SystemTray ProgressIndicator เหมาะสมสำหรับการแสดงในขณะที่โปรแกรมกำลังทำงานหรือโหลดข้อมูล เช่นในขณะที่กำลังโหลดข้อมูลจาก Server ก็อาจจะโชว์ ProgressIndicator เพื่อให้ผู้ใช้ทราบว่ากำลังมีการโหลดข้อมูล และเมื่อโหลดข้อมูลเสร้จสิ้นแล้วก็ให้ซ่อน ProgressIndicator ออกจากหน้าจอ Application


Share


ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท


ลองใช้ค้นหาข้อมูล





Bookmark.

  By : ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
  Score Rating :
  Create/Update Date : 2012-09-05 22:03:00 / 2017-03-25 21:53:15
  Download : Download  Windows Phone SystemTray and ProgressIndicator
