ตอนที่ 14 : Show Case 1 : Register Form (Android and Mobile Services) |
ตอนที่ 14 : Show Case 1 : Register Form (Android and Mobile Services) บทความนี้จะเป็นการ Show case ยกตัวอย่างการทำระบบ Member register รับข้อมูลจากเครื่อง android เช่น username , password , name , email และ tel โดยจะทำการส่งข้อมูลทั้งหมดเหล่านี้ไปจัดเก็บไว้ที่ตาราง Table ของ Mobile Service ที่อยู่บน Windows Azure
Android Mobile Services Register Form
บทความนี้ถือเป็นการทบทวนและประยุกต์ใช้จากการศึกษาในหัวข้อที่ผ่าน ๆ มา ซึ่งการทำนั้นก็ไม่ต่างอะไรกับการออกแบบ Form รับข้อมูลบน Android และ Insert ลงไปใน Table ของ Mobile Services
Example ตัวอย่างการทำระบบลงทะเบียน Member Register Form

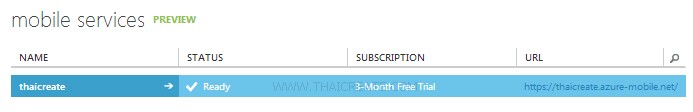

ตอนนี้เรามี Mobile Services อยู่ 1 รายการ

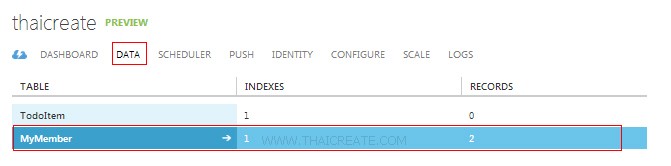

ชื่อตารางว่า MyMember

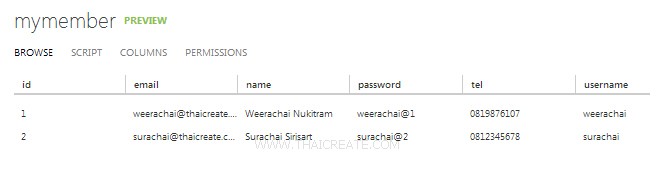

มีข้อมูลอยู่ 2 รายการ
กลับมายัง Android Project บนโปรแกรม Eclipse

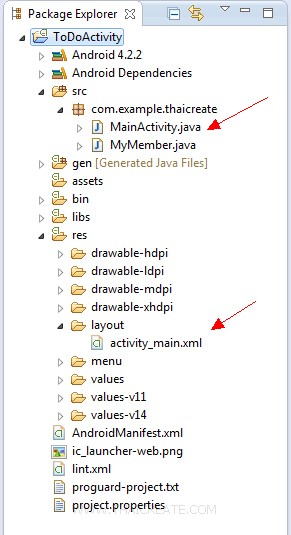

เป็นโครงสร้างของไฟล์ทั้งหมด

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:gravity="center"
android:text="Register Form "
android:layout_span="1"
android:textAppearance="?android:attr/textAppearanceLarge" />
</TableRow>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<TableLayout
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_weight="0.1"
android:orientation="horizontal">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Username :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtUsername"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Password :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtPassword"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Name :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtName"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Email :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtEmail"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:inputType="textEmailAddress"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Tel :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtTel"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:inputType="phone"
android:ems="10" >
</EditText>
<Button
android:id="@+id/btnSave"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Save" />
</TableLayout >
</TableLayout>
MyMember.java
package com.example.thaicreate;
public class MyMember {
@com.google.gson.annotations.SerializedName("id")
private int mId;
@com.google.gson.annotations.SerializedName("username")
private String mUsername;
@com.google.gson.annotations.SerializedName("password")
private String mPassword;
@com.google.gson.annotations.SerializedName("name")
private String mName;
@com.google.gson.annotations.SerializedName("tel")
private String mTel;
@com.google.gson.annotations.SerializedName("email")
private String mEmail;
public MyMember() {
// empty
}
public MyMember(String username, String password,
String name,String tel,String email) {
this.setUsername(username);
this.setPassword(password);
this.setName(name);
this.setTel(tel);
this.setEmail(email);
}
public final void setUsername(String username) {
mUsername = username;
}
public final void setPassword(String password) {
mPassword = password;
}
public final void setName(String name) {
mName = name;
}
public final void setTel(String tel) {
mTel = tel;
}
public final void setEmail(String email) {
mEmail = email;
}
}
MainActivity.java
package com.example.thaicreate;
import java.net.MalformedURLException;
import android.app.Activity;
import android.app.AlertDialog;
import android.os.Bundle;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import com.microsoft.windowsazure.mobileservices.MobileServiceClient;
import com.microsoft.windowsazure.mobileservices.MobileServiceTable;
import com.microsoft.windowsazure.mobileservices.ServiceFilterResponse;
import com.microsoft.windowsazure.mobileservices.TableOperationCallback;
public class MainActivity extends Activity {
private MobileServiceClient mClient;
private MobileServiceTable<MyMember> mMyMember;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
/*** Create to Mobile Service ***/
try {
mClient = new MobileServiceClient(
"https://thaicreate.azure-mobile.net/",
"QUjngFknhHZjdaGgYAAzdoXkOzKoxi24",
this);
} catch (MalformedURLException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
/*** Create getTable ***/
mMyMember = mClient.getTable(MyMember.class);
final EditText txtUsername = (EditText)findViewById(R.id.txtUsername);
final EditText txtPassword = (EditText)findViewById(R.id.txtPassword);
final EditText txtName = (EditText)findViewById(R.id.txtName);
final EditText txtEmail = (EditText)findViewById(R.id.txtEmail);
final EditText txtTel = (EditText)findViewById(R.id.txtTel);
final AlertDialog.Builder adb = new AlertDialog.Builder(this);
// btnSave
final Button btnSave = (Button) findViewById(R.id.btnSave);
// Perform action on click
btnSave.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
if (mClient == null) {
AlertDialog ad = adb.create();
ad.setMessage("Cannot connect to Windows Azure Mobile Service!");
ad.show();
}
else
{
/*** Item for Insert ***/
MyMember item = new MyMember();
item.setUsername(txtUsername.getText().toString());
item.setPassword(txtPassword.getText().toString());
item.setName(txtName.getText().toString());
item.setTel(txtTel.getText().toString());
item.setEmail(txtEmail.getText().toString());
// Insert the new item
mMyMember.insert(item, new TableOperationCallback<MyMember>() {
public void onCompleted(MyMember entity, Exception exception, ServiceFilterResponse response) {
if (exception == null) {
AlertDialog ad = adb.create();
ad.setMessage("Register Data Successfully.");
ad.show();
} else {
AlertDialog ad = adb.create();
ad.setMessage("Error : " + exception.getCause().getMessage());
ad.show();
}
}
});
}
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}

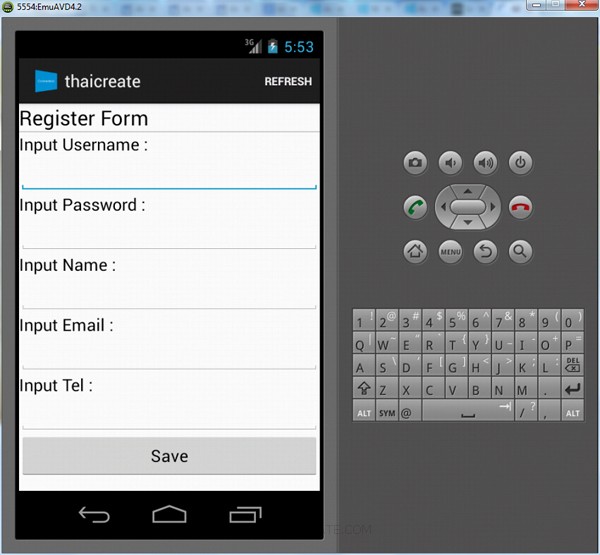

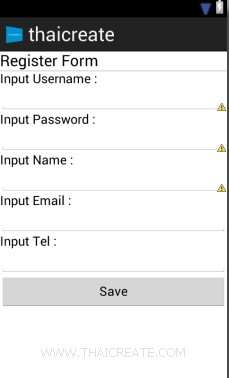

Screenshot

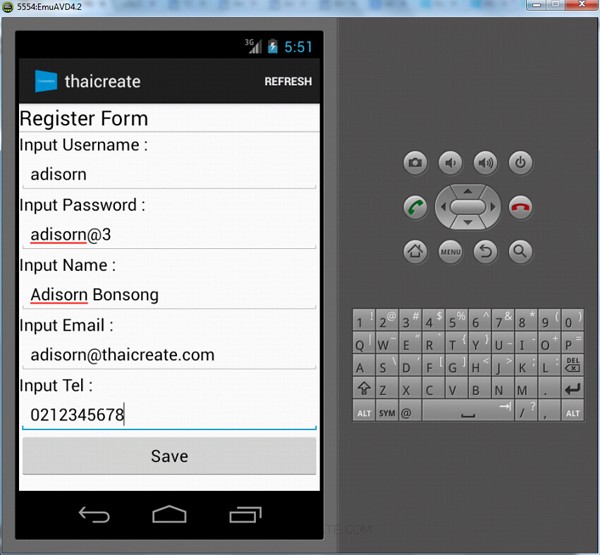

Register Form ทำการ Input ข้อมูล

Register Form ทำการ Input ข้อมูล

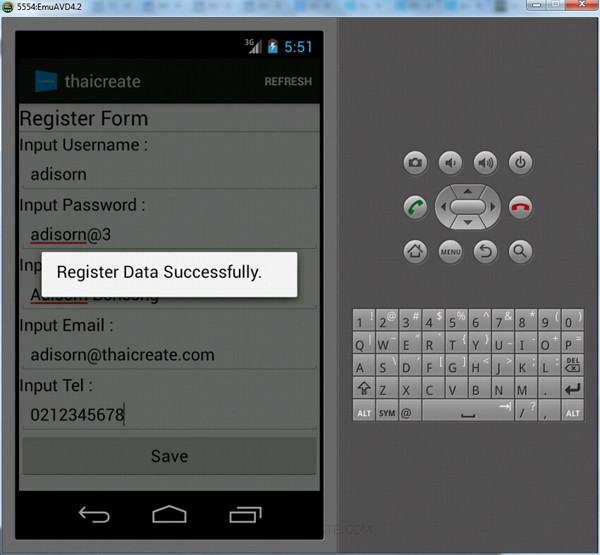

เมื่อ Input ข้อมูลเสร็จสิ้น

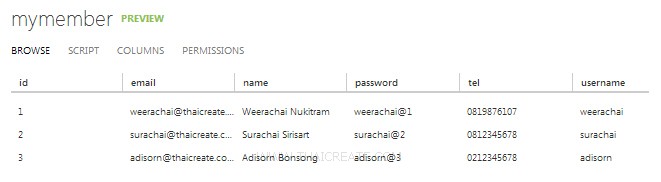

เมื่อกลับไปดูที่ Mobile Services บน Windows Azure ก็จะมีข้อมูลกรากฏขึ้นมา 1 รายการ
