ตอนที่ 11 : การทำ Validate และ Modify data in Mobile Services บน Andriod

ตอนที่ 11 : การทำ Validate และ Modify data in Mobile Services บน Andriod การเขียน Script เป็นความสามารถของ Mobile Services ที่จะช่วยให้เราเขียนรูปแบบการทำงานและคำสั่งต่าง ๆ ได้ (คล้ายกับการเขียน Stored Procedure บน SQL Server) เช่น เราสามารถตรวจสอบความถูกต้องของข้อมูลก่อนการ Insert ลงใน Table และในกรณีที่ข้อมูลผิดพลาดก็สามารถที่จะแจ้งสถานะกลับไปยัง Android ได้ หรือจะเขียนพวกเหตุการณ์อื่น ๆ บน Script ก็ได้เช่นเดียวกัน เช่นการ Query ข้อมูลมาตรวจสอบก่อนการ Insert และการตรวจสอบข้อมูลอื่น ๆ ที่เกี่ยวข้อง

ในตัวอย่างนี้เราจะออกแบบ Mobile Services เพื่อรับ Input Data จาก Android โดยมีเงื่อนไขว่า Android จะส่งข้อมูลที่เป็น name และ email โดย name จะต้องมีความยาวไม่เกิน 5 ตัวอักษร ถ้าเกินนี้จะส่งค่า Error แจ้งกลับไปยัง Android

Android Modify data in Mobile Services

ในตอนนี้เรามี Mobile Services อยู่แล้ว 1 รายการ

Android Modify data in Mobile Services

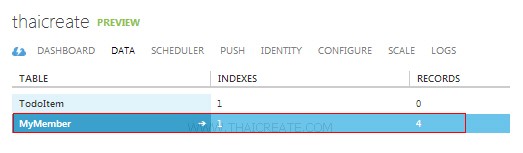

Table ตาราkงชื่อว่า MyMember ซึ่งอยู่รายการอยู่ 4 record

Android Modify data in Mobile Services

รายการปัจจุบัน 4 รายการ

Android Modify data in Mobile Services

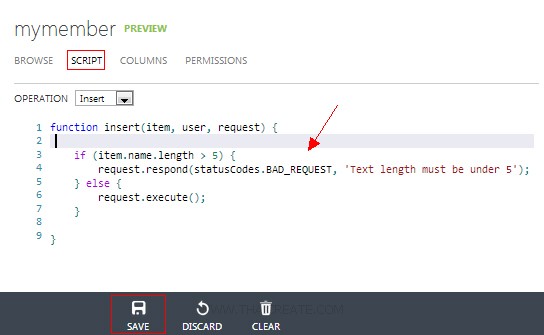

ในส่วนของ Script ที่เป็นคำสั่ง insert()

Android Modify data in Mobile Services

ให้เราเพิ่มเงื่อนไขนี้ลงไป โดยจะเป็นการตรวจสอบ name จะต้องไม่เกิน 5 ตัวอักษร

function insert(item, user, request) {

    if (item.name.length > 5) {
        request.respond(statusCodes.BAD_REQUEST, 'Text length must be under 5');
    } else {
        request.execute();
    }

}

ถ้าเกิน 5 ตัวอักษรจะให้ return คำว่า "Text length must be under 5" กลับไป

exception.getCause().getMessage()


เป็นคำสั่ง สำหรับการอ่านค่า Error ที่ส่งมาจาก Script บน Android








กลับมายังหน้า Android Project บน Eclipse

Android Modify data in Mobile Services

เป็นโครงสร้างของไฟล์ที่จะเขียนทั้งหมด

activity_main.xml

Android Modify data in Mobile Services

<?xml version="1.0" encoding="utf-8"?>
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/tableLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent">

   	<TableRow
      android:id="@+id/tableRow1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content" >

     <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="Insert Data "
        android:layout_span="1"
        android:textAppearance="?android:attr/textAppearanceLarge" />

 	</TableRow>

	<View
		android:layout_height="1dip"
		android:background="#CCCCCC" />

  <TableLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_weight="0.1"
        android:orientation="horizontal">

      <TextView
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:text="Input Name :"
          android:textAppearance="?android:attr/textAppearanceMedium" />

      <EditText
          android:id="@+id/txtName"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:ems="10" >
      </EditText>
		<TableRow>
      </TableRow>

      <TextView
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:text="Input Email :"
          android:textAppearance="?android:attr/textAppearanceMedium" />

      <EditText
          android:id="@+id/txtEmail"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:ems="10" >
      </EditText>

		<Button
		    android:id="@+id/btnSave"
		    android:layout_width="wrap_content"
		    android:layout_height="wrap_content"
		    android:text="Save" />


 	</TableLayout >

	<View
		android:layout_height="1dip"
		android:background="#CCCCCC" />

   	<LinearLayout
      android:id="@+id/LinearLayout1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:padding="5dip" >

   		<TextView
   		    android:id="@+id/textView2"
   		    android:layout_width="wrap_content"
   		    android:layout_height="wrap_content"
   		    android:text="By.. ThaiCreate.Com" />

	</LinearLayout>

</TableLayout>


MyMember.java
package com.example.thaicreate;

public class MyMember {

	@com.google.gson.annotations.SerializedName("id")
	private int mId;

	@com.google.gson.annotations.SerializedName("name")
	private String mName;

	@com.google.gson.annotations.SerializedName("email")
	private String mEmail;

	public MyMember() {
		// empty
	}

	public MyMember(String name, String email) {
		this.setName(name);
		this.setEmail(email);
	}

	public final void setName(String name) {
		mName = name;
	}

	public final void setEmail(String email) {
		mEmail = email;
	}

}


MainActivity.java
package com.example.thaicreate;

import java.net.MalformedURLException;

import android.app.Activity;
import android.app.AlertDialog;
import android.os.Bundle;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;

import com.microsoft.windowsazure.mobileservices.MobileServiceClient;
import com.microsoft.windowsazure.mobileservices.MobileServiceTable;
import com.microsoft.windowsazure.mobileservices.ServiceFilterResponse;
import com.microsoft.windowsazure.mobileservices.TableOperationCallback;

public class MainActivity extends Activity {

	private MobileServiceClient mClient;
	private MobileServiceTable<MyMember> mMyMember;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        /*** Create to Mobile Services ***/
        try {
			mClient = new MobileServiceClient(
				      "https://thaicreate.azure-mobile.net/",
				      "QUjngFknhHZjdaGgYAAzdoXkOzKoxi24",
				      this);

		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

        /*** Create getTable ***/
        mMyMember = mClient.getTable(MyMember.class);

        final EditText txt_name = (EditText)findViewById(R.id.txtName);
        final EditText txt_email = (EditText)findViewById(R.id.txtEmail);

        final AlertDialog.Builder adb = new AlertDialog.Builder(this);

        // btnSave
        final Button btnSave = (Button) findViewById(R.id.btnSave);
        // Perform action on click
        btnSave.setOnClickListener(new View.OnClickListener() {
            public void onClick(View v) {
            	if (mClient == null) {
            		AlertDialog ad = adb.create();
            		ad.setMessage("Cannot connect to Windows Azure Mobile Service!");
            		ad.show();
            	}
            	else
            	{
                	/*** Item for Insert ***/
                	MyMember item = new MyMember();
            		item.setName(txt_name.getText().toString());
            		item.setEmail(txt_email.getText().toString());

            		// Insert the new item
            		mMyMember.insert(item, new TableOperationCallback<MyMember>() {

            			public void onCompleted(MyMember entity, Exception exception, ServiceFilterResponse response) {

            				if (exception == null) {
                        		AlertDialog ad = adb.create();
                        		ad.setMessage("Insert Data Successfully.");
                        		ad.show();
            				} else {
                           		AlertDialog ad = adb.create();
                        		ad.setMessage("Error : " + exception.getCause().getMessage());
                        		ad.show();
            				}

            			}
            		});
            	}

            }
        });


    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.activity_main, menu);
        return true;
    }

}


[/b]Screenshot[/b]

Android Modify data in Mobile Services

ทดสอบกรอกข้อมูลโดย name มีความยาวมากกว่า 5 ตัวอักษร

Android Modify data in Mobile Services

แสดงข้อความ Error หลังจากที่ Insert ข้อมูลลงไป

Android Modify data in Mobile Services

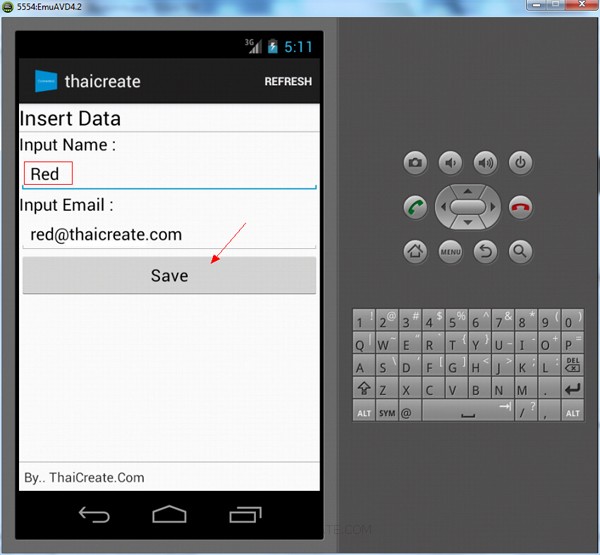

ทดสอบข้อมูลใหม่โดยที่ name ไม่ยาวเกินกว่า 5 ตัวอักษร

Android Modify data in Mobile Services

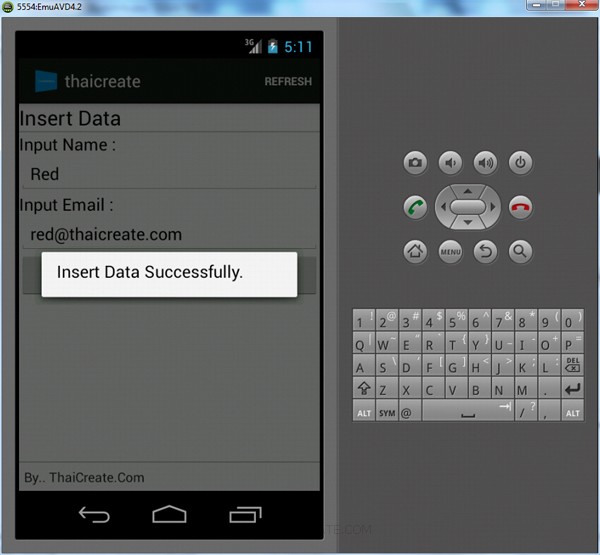

สามารถเพิ่มข้อมูลได้ตามปกติ

Android Modify data in Mobile Services

เมื่อกลับไปดูบน DATA ของ Mobile Services ก็จะพบกับข้อมูลที่ถูกเพิ่มลงไป
